LG LRE30755SB.ABKELGA

Model: LRE30755SB.ABKELGA

Save Part Not Listed?
product name

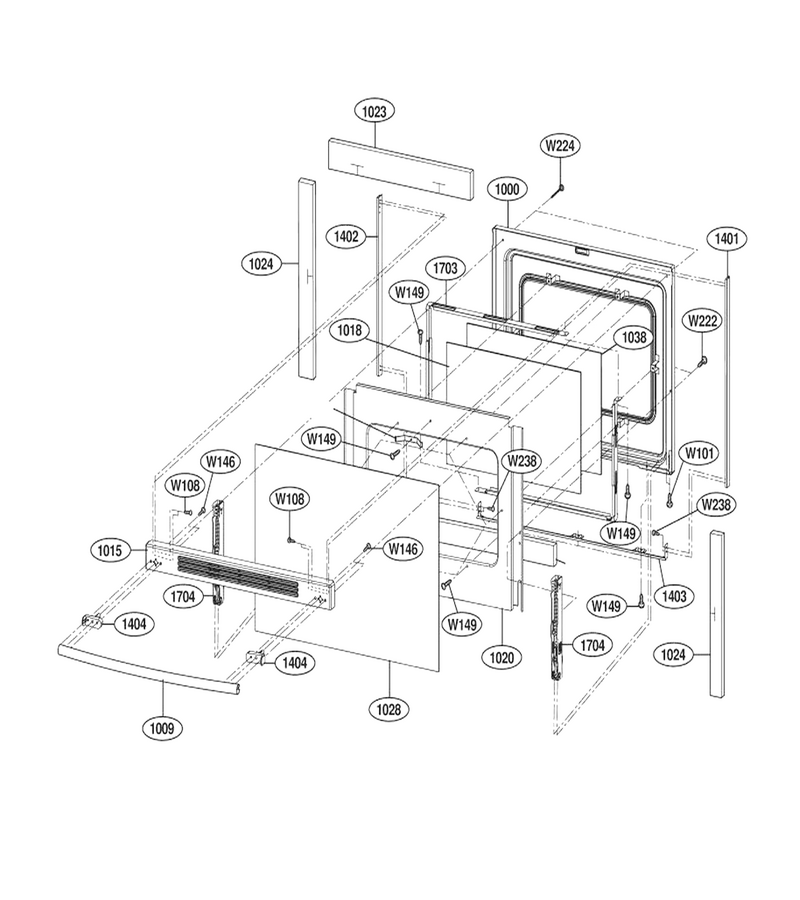

Door Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W146
Screw L-G-1TTL0403418
...
W149
Screw L-G-1TTL0402622
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W224
Screw,customized L-G-1SZZW5N001B
...
W238
Screw L-G-1TPL0402018
...
1000
Frame Assembly,door L-G-3213W0N001C
...
1009
Handle,door L-G-3650W0N004C
...
1015
Decorative Door L-G-3806W0N012B
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1020
Cover,inner L-G-3550W0N006A
...
1023
Insulator L-G-5290W1N003F
...
1024
Insulator L-G-5290W1N003G
...
1028
Window,glass L-G-4890W0N002B
...
1038
Range Oven Door Inner Glass L-G-4890W1N005B
...
1401
Supporter L-G-4980W1N010C
...
1402
Supporter L-G-4980W1N010F
...
1403
Supporter L-G-4980W1N011C
...
1404
Supporter L-G-4980W1N017D
...
1703
Bracket,mount L-G-4810W0N001A
...
1704
Hinge Assembly L-G-4775W1N001B

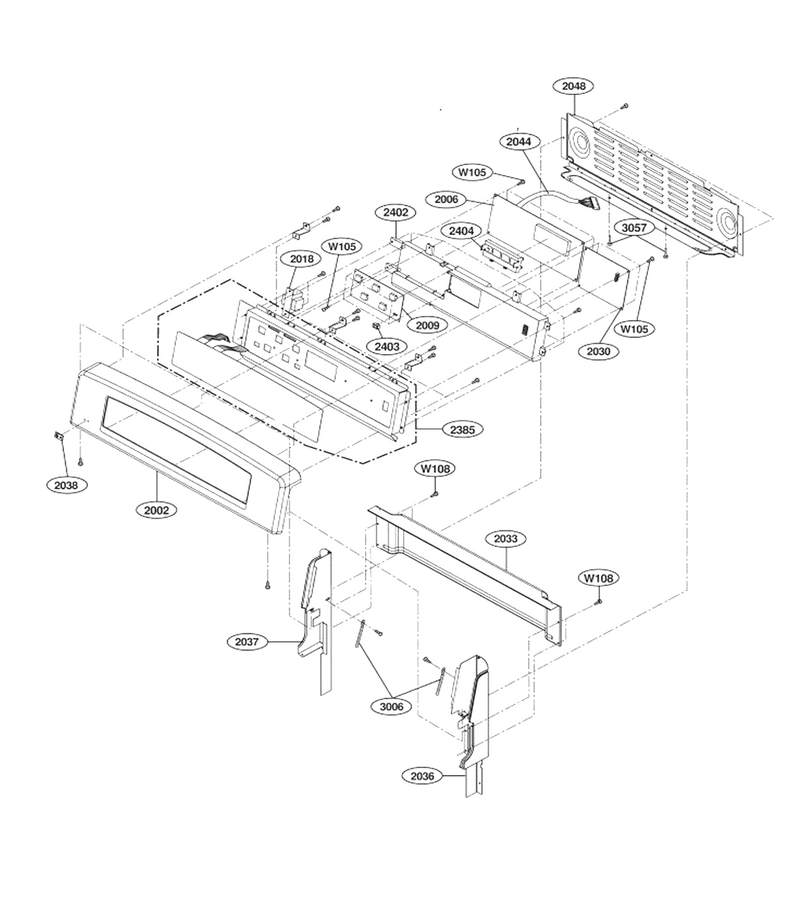

Controller Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
2002
Panel,control L-G-3720W0C247C
...
2006
Pcb Assembly,option L-G-6871W1N009A
...
2009
Pcb Assembly L-G-6871W1N010A
...
2018
Transformer,power L-G-6170W1G035A
...
2030
Pcb Assembly,sub L-G-EBR74632601
...
2033
Barrier L-G-4790W0N002C
...
2036
Supporter L-G-4980W1N020C
...
2037
Supporter L-G-4980W1N021C
...
2038
Nameplate L-G-3846W1N001B
...
2044
Harness,single L-G-6631W3A006X
...
2048
Cover,rear L-G-3550W0N008A
...
2385
Parts Assembly L-G-383EW1N006H
...
2402
Holder,display L-G-4930W0N001A
...
2403
Holder,display L-G-4930W1N005A
...
2404
Holder,display L-G-4930W1A071A
...
3006
Lug (circ) L-G-4B72510F
...
3057
Packing L-G-3920W1N014A

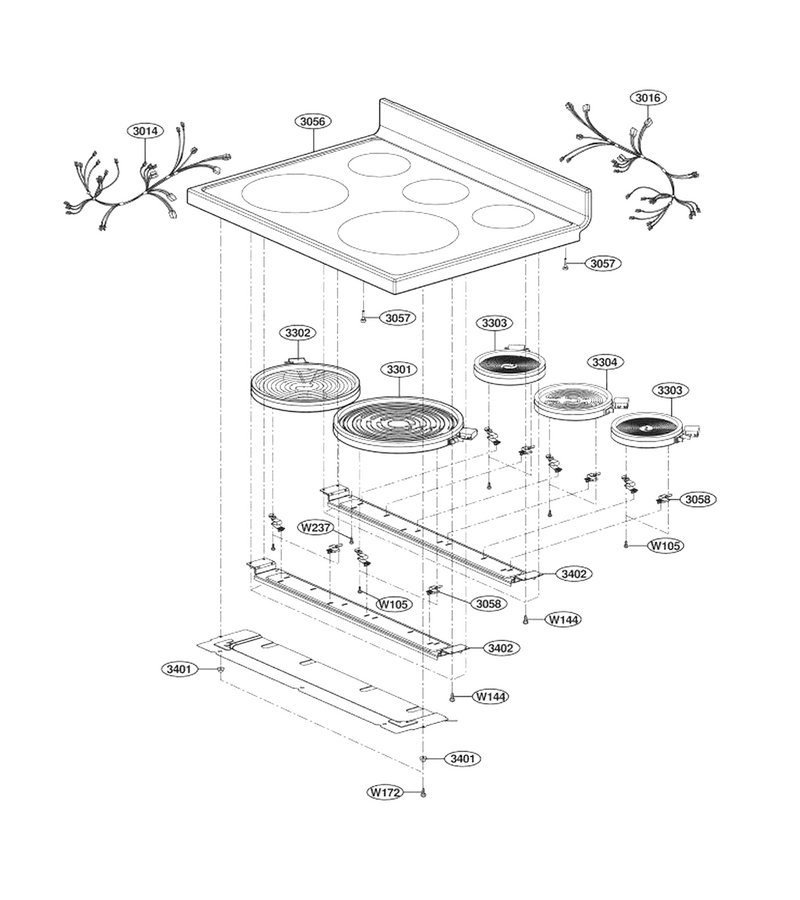

Cooktop Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W144
Microwave Screw L-G-1TTL0402618
...
W172
4.0x16mm Tap L-G-1TTL0403118
...
W237
Binding Hd Tap Tite Screw + L-G-1SBF0402618
...
3014
Range Wire Harness L-G-6877W1N034A
...
3016
Harness,single L-G-6877W1N035A
...
3056
Plate Assembly L-G-3301W0N002K
...
3057
Packing L-G-3920W1N014A
...
3058
Spring L-G-4970W1N004A
...
3301
Range Radiant Surface Element L-G-5300W1R009A
...
3302
Range Radiant Surface Element L-G-5300W1R005A
...
3303
Range Radiant Surface Element L-G-5300W1R004A
...
3304
Heater,radiation L-G-5300W1R010A
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-4980W0N002A

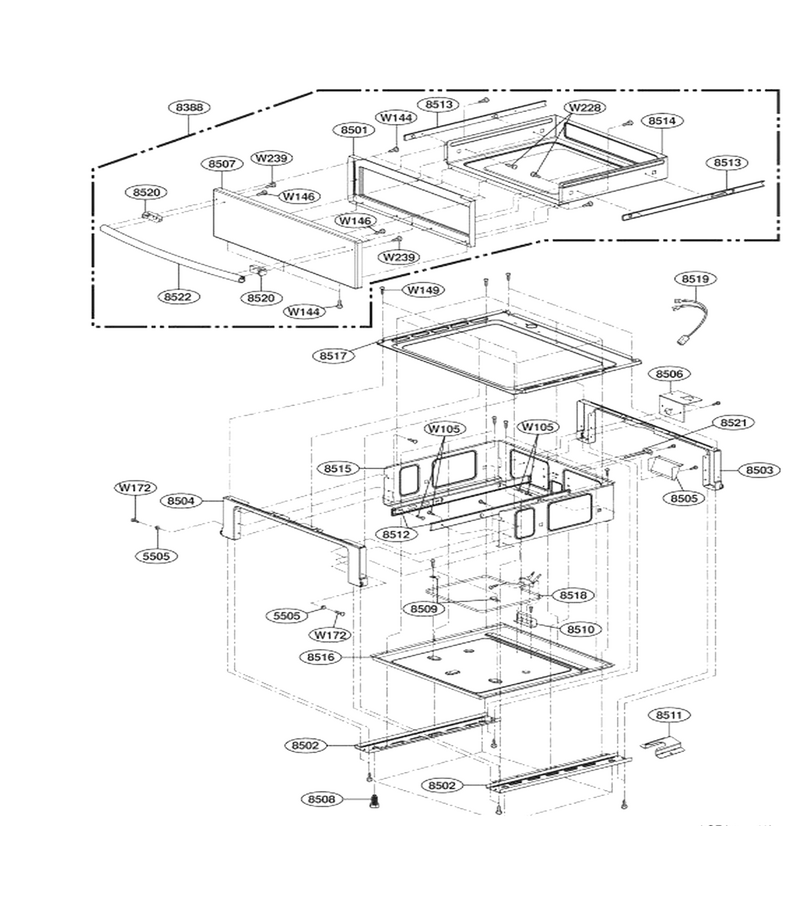

Drawer Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W144
Microwave Screw L-G-1TTL0402618
...
W146
Screw L-G-1TTL0403418
...
W149
Screw L-G-1TTL0402622
...
W172
4.0x16mm Tap L-G-1TTL0403118
...
W228
Screw L-G-1SZZW5N001E
...
W239
Screw,tapping L-G-1TTL0403116
...
5505
Supporter L-G-4980W1N013A
...
8388
Parts Assembly L-G-383EW0N001E
...
8501
Frame,door L-G-3212W0N001A
...
8502
Plate,base L-G-3302W1N001A
...
8503
Plate,front L-G-3446W0N001A
...
8504
Plate,front L-G-3446W0N001B
...
8505
Cover,heater L-G-3550W1N011A
...
8506
Cover,power Cord L-G-3550W1N004A
...
8507
Panel L-G-3720W0E010C
...
8508
Range Leveling Leg L-G-4778W1N001A
...
8509
Bracket,heater L-G-4810W1N018A
...
8510
Bracket,heater L-G-4810W1N023A
...
8511
Bracket,idle L-G-MAZ34877101
...
8512
Slider L-G-4818W1N001A
...
8513
Slider L-G-4818W1N002A
...
8514
Drawer L-G-4870W0N002E
...
8515
Drawer L-G-4870W0N001A
...
8516
Plate L-G-4960W0N001A
...
8517
Insulator L-G-5012W0N001A
...
8518
Heater,sheath L-G-5300W1S027A
...
8519
Harness,single L-G-6877W1N024B
...
8520
Supporter L-G-4980W1N023B
...
8521
Thermistor,ntc L-G-6322A00023B
...
8522
Handle,door L-G-3650W0N004C

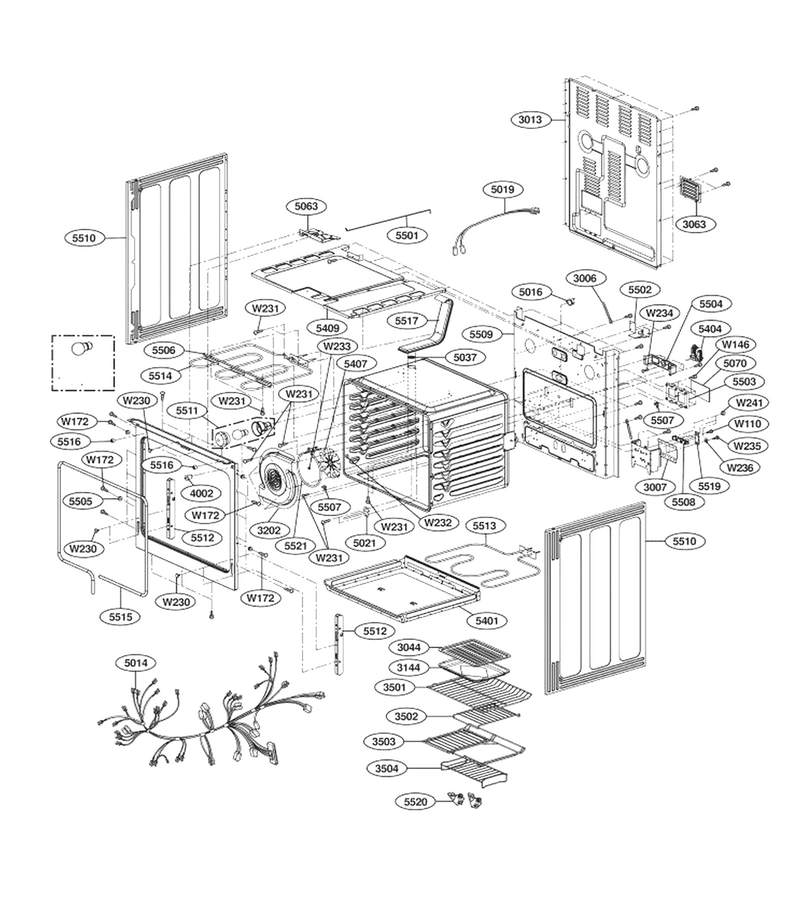

Cavity Parts

...
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W146
Screw L-G-1TTL0403418
...
W172
4.0x16mm Tap L-G-1TTL0403118
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W234
Drawing Screw L-G-4000W4A001E
...
W235
Screw L-G-1ATF0502610
...
W236
Washer,common L-G-4H00056C
...
W241
Nut L-G-1NZZW1N002A
...
3006
Lug (circ) L-G-4B72510F
...
3007
Insulator L-G-5012W1N016A
...
3013
Cover,rear L-G-3550W0N005A
...
3044
Tray,metal L-G-3390W0N002C
...
3063
Cover,rear L-G-3550W0N005B
...
3144
Tray,metal L-G-3390W0N001C
...
3202
Cover,heater L-G-3550W1N003D
...
3501
Shelf L-G-5026W0N001C
...
3502
Small Oven Rack L-G-5026W1N001B
...
3503
Shelf L-G-5026W0N004B
...
3504
Shelf L-G-5026W1N002B
...
4002
Tactile Switch L-G-6600R000082
...
5014
Harness,single L-G-6877W1N024D
...
5016
Thermostat L-G-6930W1A003X
...
5019
Range Wire Harness L-G-6877W1N025B
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5037
Charcoal Filter L-G-5230W1N001B
...
5063
Bracket Assembly L-G-4811W0N002A
...
5070
Pcb Assembly,sub L-G-6871W1N012A
...
5401
Chamber L-G-3504W0N001A
...
5404
Motor, Ac Circulation L-G-2B72066U
...
5407
Fan,convection L-G-5900W1N001A
...
5409
Insulator L-G-5012W0N002A
...
5501
Bar L-G-4270W1N001A
...
5502
Motor Assembly,ac,synchronous L-G-6549W1S025A
...
5503
Supporter L-G-4980W1N026B
...
5504
Supporter L-G-4980W1N009A
...
5505
Supporter L-G-4980W1N013A
...
5506
Bracket,heater L-G-4810W1N020A
...
5507
Heater Bracket L-G-4810W1N022A
...
5508
Terminal L-G-6640000045A
...
5509
Panel L-G-3720W0E011A
...
5510
Panel L-G-3720W0E012C
...
5511
Lamp L-G-6913W1N002B
...
5512
Bracket,hinge L-G-4810W1N040A
...
5513
Heater,sheath L-G-5300W1S026A
...
5514
Heater,sheath L-G-5300W1S025A
...
5515
Packing,gasket L-G-3920W0N001A
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV33791702
...
5519
Clamp,cord L-G-4860W1N003A
...
5520
Connector,terminal L-G-6630U60075A
...
5521
Heater,sheath L-G-5300W1S028A
