LG LRE30453SB.FBKLLGA

Model: LRE30453SB.FBKLLGA

Save Part Not Listed?
product name

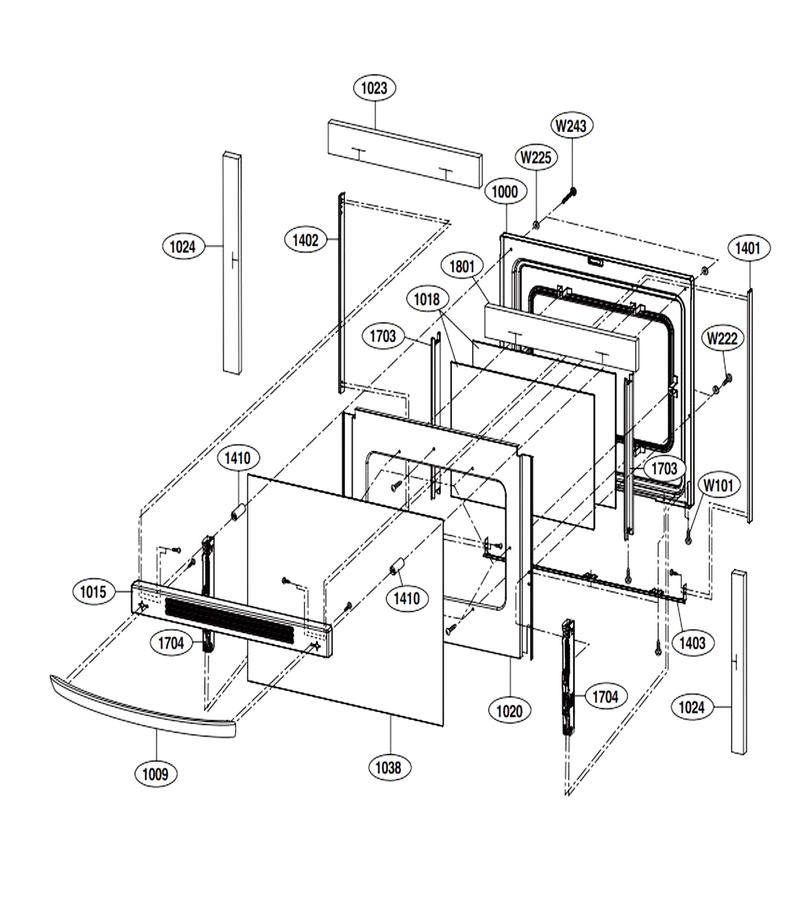

Door Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
1000
Frame Assembly,door L-G-ADV66482005
...
1009
Oven Door Handle L-G-MEB47914503
...
1015
Decorative Door L-G-3806W0N012B
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1020
Cover L-G-3550W0N006B
...
1023
Insulator L-G-MEV64166604
...
1024
Insulator L-G-MEV64166605
...
1038
Supporter L-G-4980W1N010J
...
1401
Supporter L-G-4980W1N010M
...
1402
Supporter L-G-4980W1N011F
...
1403
Bushing L-G-MBF47288401
...
1410
Bushing L-G-MBF47288401
...
1703
Mounting Bracket L-G-MAZ60113203
...
1704
Hinge Assembly L-G-AEH72957505
...
1801
Plate,shield L-G-3300W1N003K

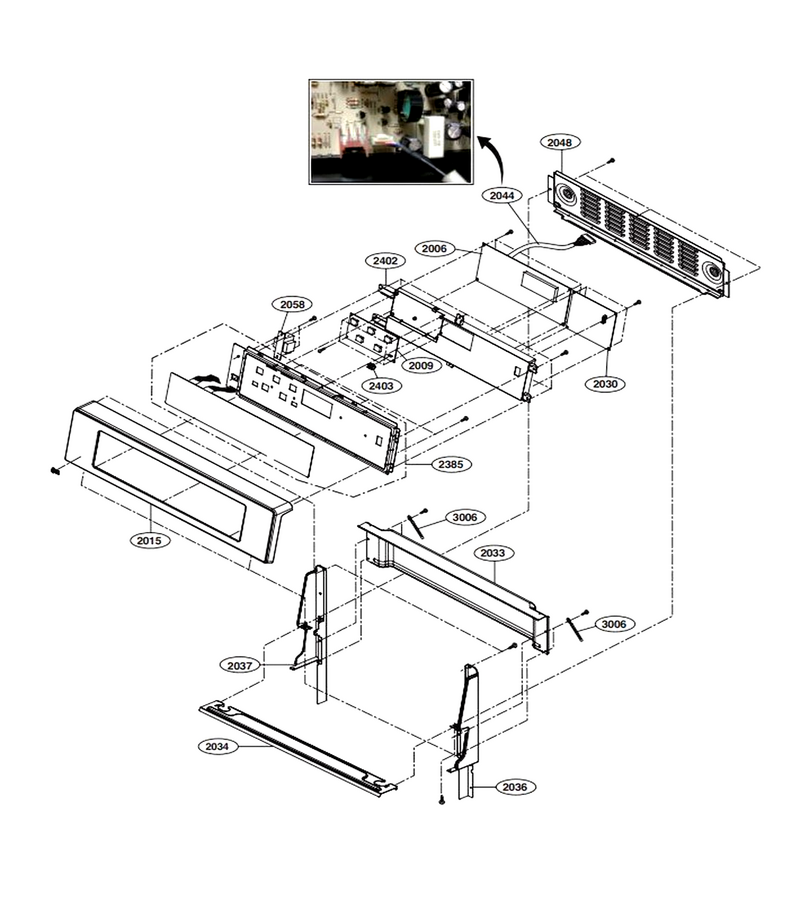

Controller Parts

...
...
2006
Pcb Assembly,sub L-G-6871W1N002E
...
2009
Pcb Assembly,sub L-G-6871W1N010F
...
2015
Controller Assembly,sub L-G-ACM70891102
...
2030
Pcb Assembly,sub L-G-6871W1N011A
...
2033
Barrier L-G-4790W0N002A
...
2034
Barrier L-G-MAL32136802
...
2036
Supporter L-G-MJH32134509
...
2037
Supporter L-G-MJH32135309
...
2044
Range Stove L-G-EAD60833503
...
2048
Cover,rear L-G-MCK35970304
...
2058
Range Display Transformer L-G-6170W1G037A
...
2385
Parts Assembly L-G-383EW1N006N
...
2402
Holder,display L-G-MEG42056902
...
2403
Holder,display L-G-4930W1N005A
...
3006
Lug (circ) L-G-4B72510F

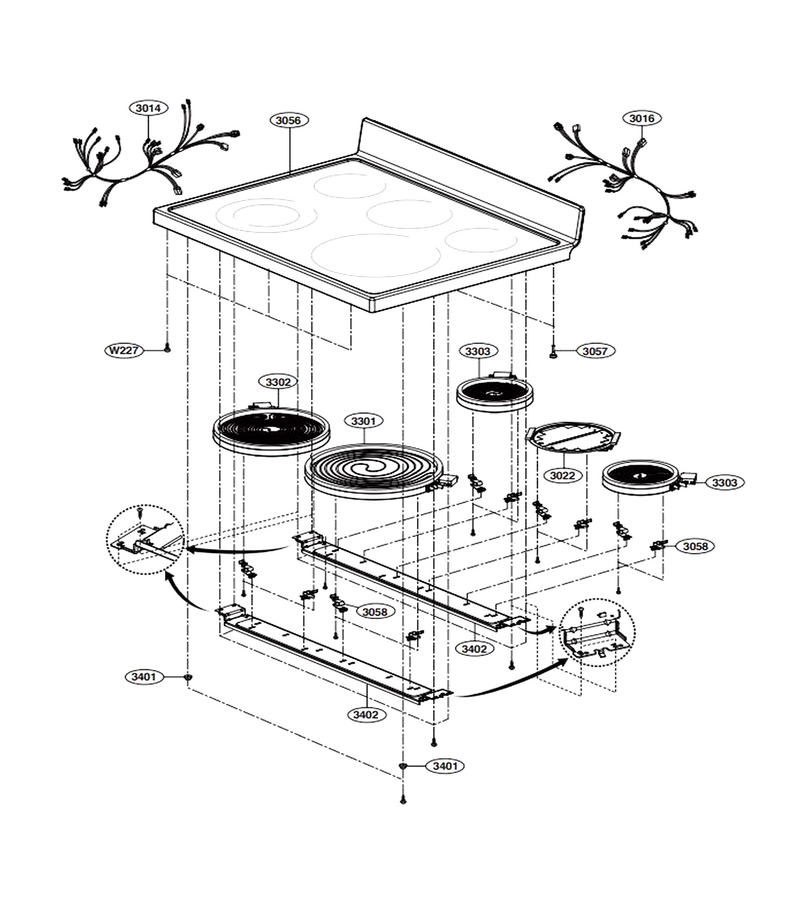

Cooktop Parts (i)

...
...
W227
Screw L-G-1SZZW3Z001A
...
3014
Harness,single L-G-6877W1N018B
...
3016
Harness,single L-G-6877W1N019A
...
3022
Range Warmer Zone Surface Element L-G-AEG33897001
...
3056
Plate Assembly L-G-AGU70894502
...
3057
Packing L-G-3920W1N014A
...
3058
Spring L-G-4970W1N004A
...
3301
Heater,radiation L-G-5300W1R006A
...
3302
Heater,radiation L-G-5300W1R008A
...
3303
Range Radiant Surface Element L-G-5300W1R004A
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-4980W0N002D

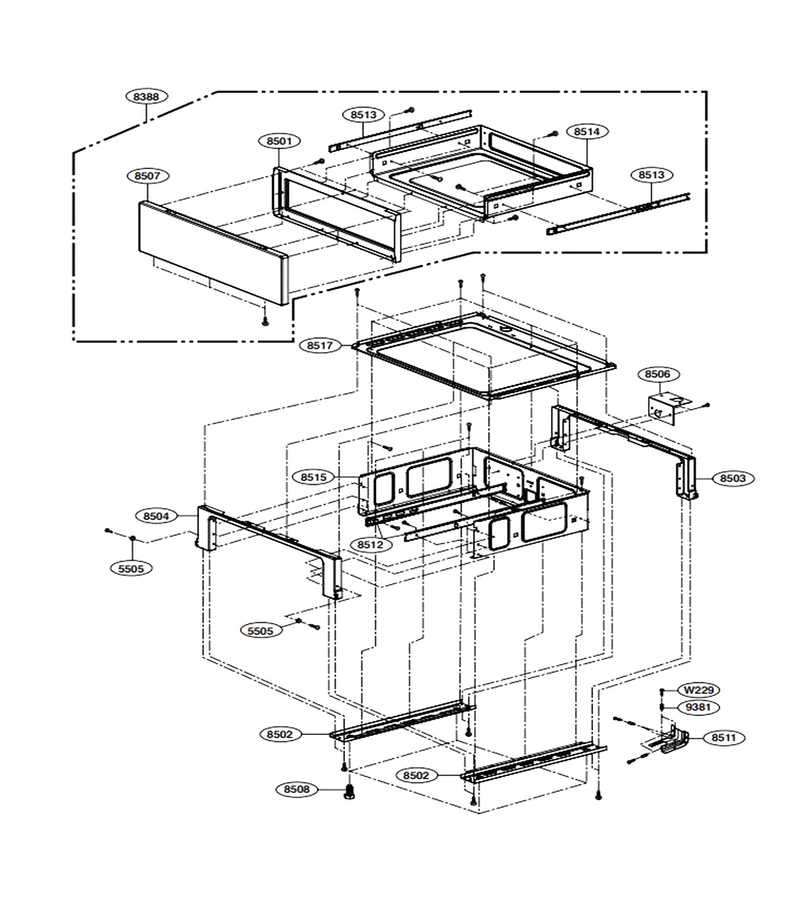

Drawer Parts

...
...
W229
Screw L-G-1SZZW1N003A
...
5505
Supporter L-G-4980W1N013A
...
8388
Parts Assembly L-G-383EW0N001B
...
8501
Frame,door L-G-3212W0N001B
...
8502
Plate L-G-3302W1N001B
...
8503
Plate L-G-MGJ62087501
...
8504
Plate L-G-3446W0N001E
...
8506
Cover L-G-3550W1N004B
...
8507
Panel L-G-3720W0E010L
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8511
Range Anti-Tip Bracket L-G-MAZ34877102
...
8512
Slider L-G-4818W1N001A
...
8513
Slider L-G-4818W1N002A
...
8514
Drawer L-G-4870W0N002J
...
8515
Drawer L-G-4870W0N001B
...
8517
Insulator L-G-5012W0N001D
...
9381
Anchor L-G-FAK30249601

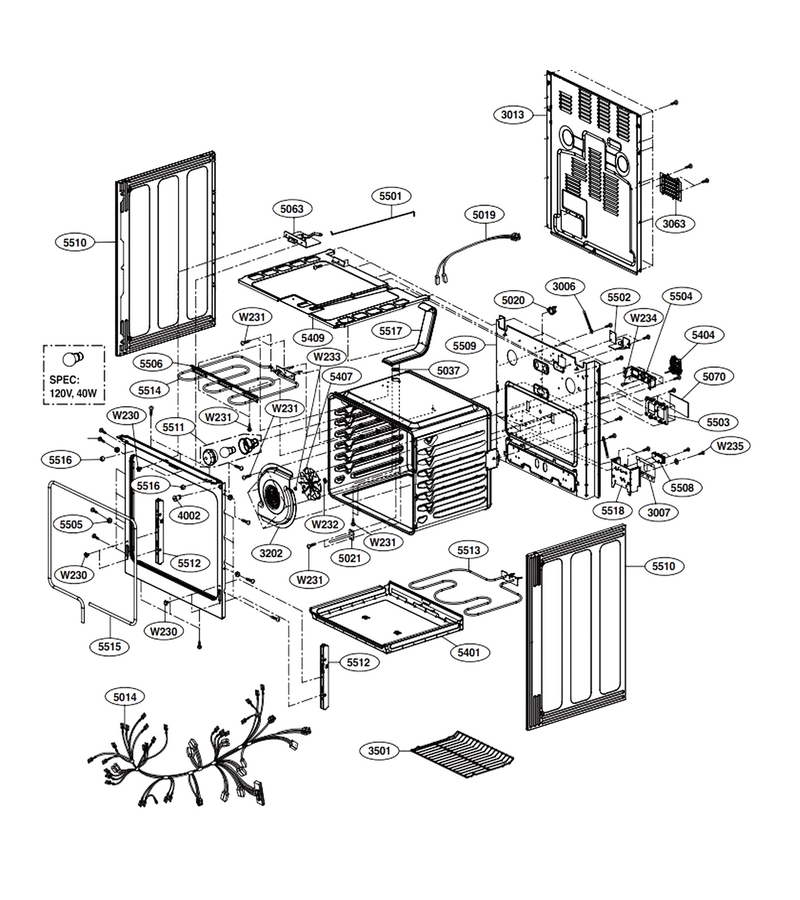

Cavity Parts

...
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W234
Drawing Screw L-G-4000W4A001E
...
W235
Screw L-G-1ATF0502610
...
3006
Lug (circ) L-G-4B72510F
...
3007
Insulator L-G-5012W1N016B
...
3013
Cover L-G-MCK36350003
...
3063
Oven Cover L-G-MCK36350004
...
3202
Cover,heater L-G-3550W1N003K
...
3501
Range Oven Rack L-G-MHL39256101
...
4002
Range Tact Switch L-G-EBF60663401
...
5014
Harness,single L-G-6877W1N025C
...
5019
Range Wire Harness L-G-6877W1N025B
...
5020
Thermostat L-G-6930W1A003X
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5037
Charcoal Filter L-G-5230W1N001B
...
5063
Range Oven Door Lock Assembly L-G-ABA34660001
...
5070
Range Oven Relay Control Board L-G-6871W1N012B
...
5401
Chamber L-G-3504W0N001B
...
5404
Range Oven Cooling Fan Motor L-G-EAU60722701
...
5407
Fan,convection L-G-5900W1N001B
...
5409
Insulator L-G-5012W0N002B
...
5501
Bar L-G-4270W1N001B
...
5502
Range Oven Door Lock Assembly L-G-6549W1S025B
...
5503
Supporter L-G-4980W1N026B
...
5504
Supporter L-G-4980W1N009B
...
5505
Supporter L-G-4980W1N013A
...
5506
Bracket L-G-4810W1N020B
...
5508
Range Terminal Block L-G-EAG32629302
...
5509
Panel L-G-3720W0E011B
...
5510
Range Panel L-G-MGC62644005
...
5511
Lamp L-G-6913W1N002D
...
5512
Hinge Bracket L-G-MAZ61885801
...
5513
Heater,sheath L-G-MEE36593202
...
5514
Heater,sheath L-G-MEE36592903
...
5515
Package Gasket L-G-3920W0N001B
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV31005901
...
5518
Bracket L-G-4810W1N056B
