LG LRDN22734SB.AWBCLGZ

Model: LRDN22734SB.AWBCLGZ

Save Part Not Listed?
product name

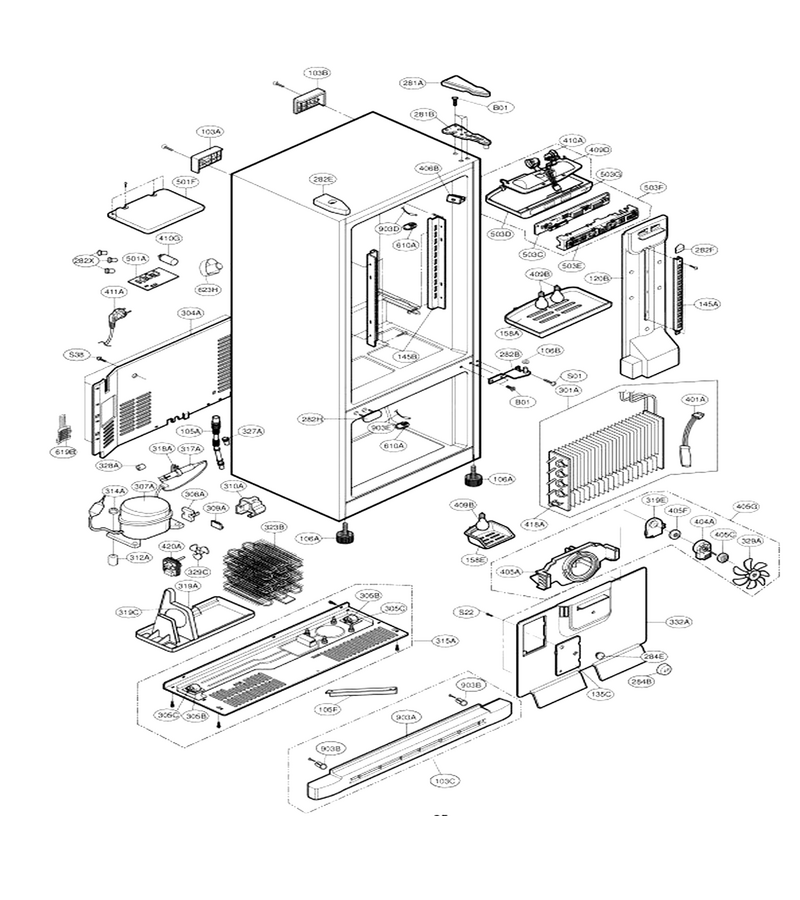

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Lower Cover L-G-3551JJ1015F
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
281A
Refrigerator Door Hinge Cover L-G-3550JJ2013C
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge L-G-4775JJ8002C
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001F
...
282F
Deco,duct L-G-3806JL2006E
...
282H
Refrigerator Center Hinge Hole Plug L-G-5006JJ3004E
...
282X
Refrigerator Door Hole Plug L-G-5006JJ3010A
...
284B
Connection Cover L-G-3550JA3120A
...
284E
Refrigerator Glide L-G-3550JJ3001A
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
308A
Refrigerator Ptc Relay L-G-6748JJ8002A
...
309A
Refrigerator Compressor Overload Protector L-G-6750JJ8002A
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Refrigerator Filter Dryer L-G-5851JA2007E
...
317A
Refrigerator Filter Dryer L-G-5851JJ2002F
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-3390JJ0003A
...
319C
Refrigerator Fan Guide L-G-4974JJ1009A
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1007A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
332A
Refrigerator Evaporator Cover L-G-3531JJ1004A
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Evaporator Fan Motor And Bracket A... L-G-4811JJ2002H
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2002D
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2003H
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
420A
Refrigerator Condenser Fan L-G-4680JK1001B
...
501A
Part L-G-EBR30659302
...
501F
Refrigerator Electronic Control Board Housing L-G-3551JJ1020A
...
503C
Refrigerator Display Control Board L-G-6871JB2046B
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Cover L-G-3550JJ2032A
...
503F
Refrigerator Display Case L-G-ABQ33905314
...
503G
Refrigerator Decorative Control L-G-3806JL1010A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
619B
3550jj2024a L-G-COVER,VALVE
...
623H
3550jj2036a L-G-COVER,TUBE
...
903A
Refrigerator Toe Grille L-G-3550JJ0006C
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

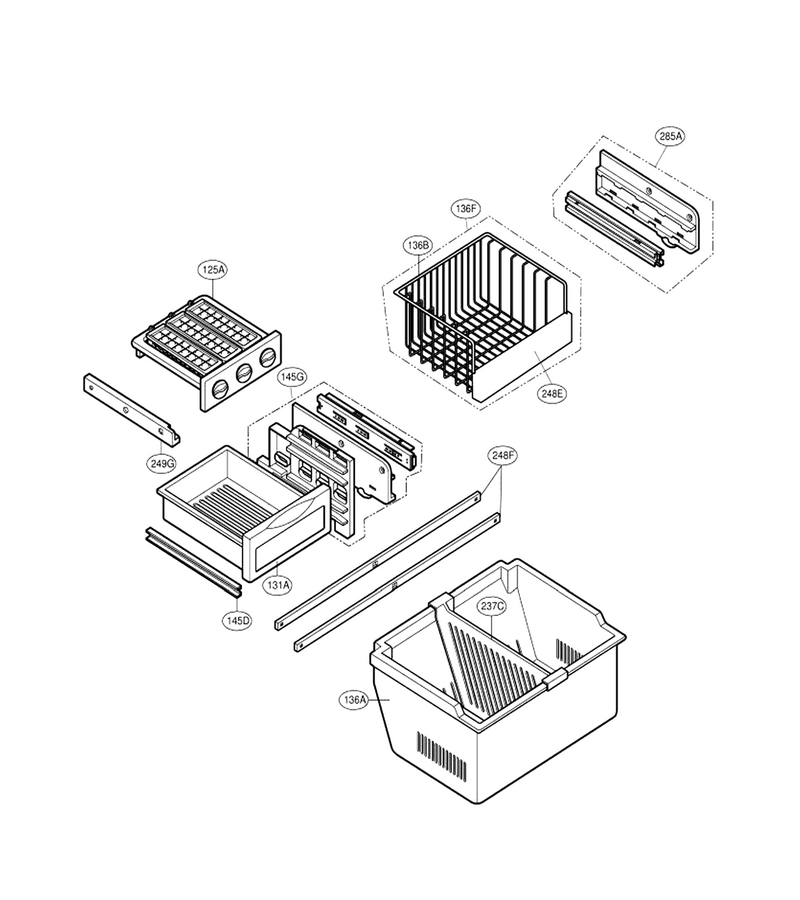

Freezer Parts

...
...
125A
Refrigerator Ice Cube Tray L-G-3391JJ1009B
...
131A
Refrigerator Ice Bin L-G-5075JJ1001B
...
136A
Refrigerator Freezer Drawer L-G-3391JJ1011B
...
136B
Refrigerator Freezer Basket Slide Rail Assembly... L-G-3390JJ1087A
...
136F
Refrigerator Tray L-G-3391JJ1033B
...
145D
Refrigerator Guide L-G-4974JJ1012A
...
145G
Refrigerator Freezer Basket Slide Rail Assembly... L-G-4975JJ2005H
...
237C
Refrigerator Freezer Basket Divider L-G-4974JJ1021A
...
248E
Refrigerator Decorative Tray L-G-3806JJ2035A
...
248F
Refrigerator Supporter L-G-4980JJ2005A
...
249G
Refrigerator Guide Rail L-G-4974JJ1011A
...
285A
Refrigerator Freezer Basket Slide Rail Assembly... L-G-4975JJ2007G

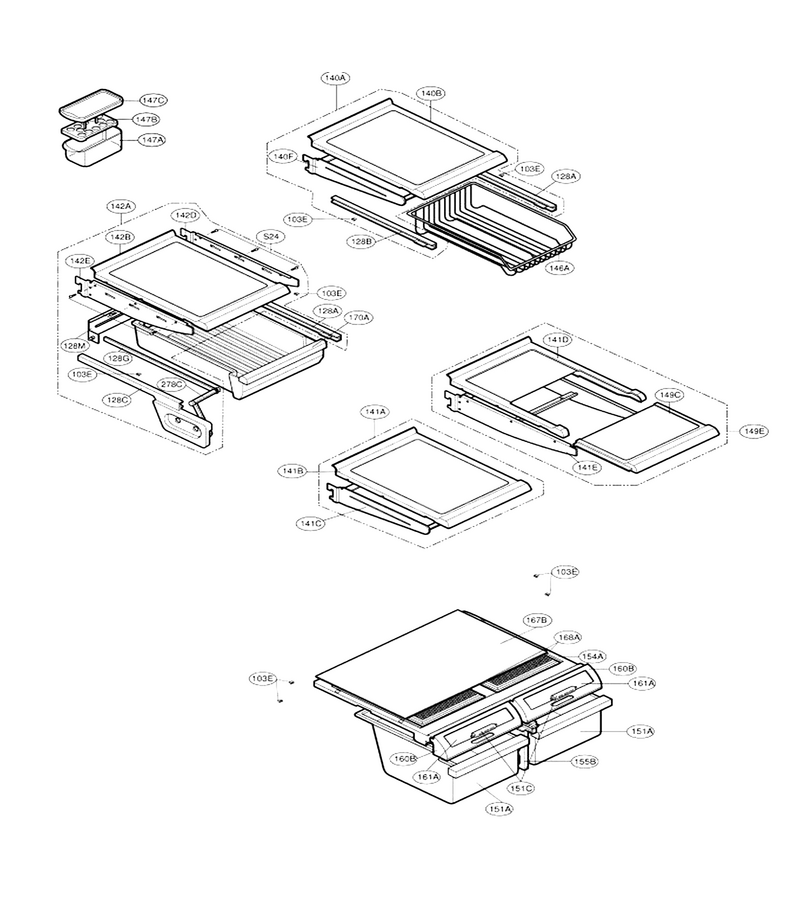

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
128C
Refrigerator Guide Assembly L-G-4975JJ2003C
...
128G
Refrigerator Link L-G-4520JJ2001A
...
128M
Refrigerator Meat Pan Air Guide (white) L-G-4974JJ2011A
...
140A
Refrigerator Shelf Assembly L-G-5027JJ1014D
...
140B
Refrigerator Shelf Assembly L-G-5027JJ1005A
...
140F
Refrigerator Shelf Assembly L-G-5027JJ2005F
...
141A
Refrigerator Shelf Assembly L-G-5027JJ1014B
...
141B
Refrigerator Shelf Assembly L-G-5027JJ1005A
...
141C
Refrigerator Shelf Assembly L-G-5027JJ2005C
...
141D
Refrigerator Glass Shelf L-G-5027JJ2011B
...
141E
Refrigerator Shelf Net L-G-5027JJ2005D
...
142A
Refrigerator Shelf Assembly L-G-5027JJ1013U
...
142B
Shelf Assy,r L-G-5027JJ1006A
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
146A
Refrigerator Wire Server Drawer L-G-5044JJ1001A
...
147A
Refrigerator Dairy Bin L-G-5074JJ1005A
...
147B
Refrigerator Egg Bin L-G-3390JJ1014A
...
147C
Refrigerator Dairy Bin Cover L-G-3550JJ1017A
...
149C
Refrigerator Shelf Assembly L-G-5027JJ2010B
...
149E
Refrigerator Glass Shelf L-G-5027JJ2009B
...
151A
Refrigerator Tray Assembly L-G-3391JJ1019E
...
151C
Refrigerator Shutter Knob L-G-4940JJ2003B
...
154A
Refrigerator Crisper Drawer Cover Frame L-G-3550JJ1033A
...
155B
Refrigerator Supporter L-G-4981JJ2001A
...
160B
Refrigerator Decorative Tray L-G-3806JL2005D
...
161A
Refrigerator Crisper Drawer Lid L-G-3550JJ2026A
...
167B
Refrigerator Glass Shelf L-G-4890JL1002K
...
168A
Refrigerator Crisper Drawer Cover Insert L-G-3550JJ1035A
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004K
...
278C
Shutter Lever L-G-4510JJ2002A

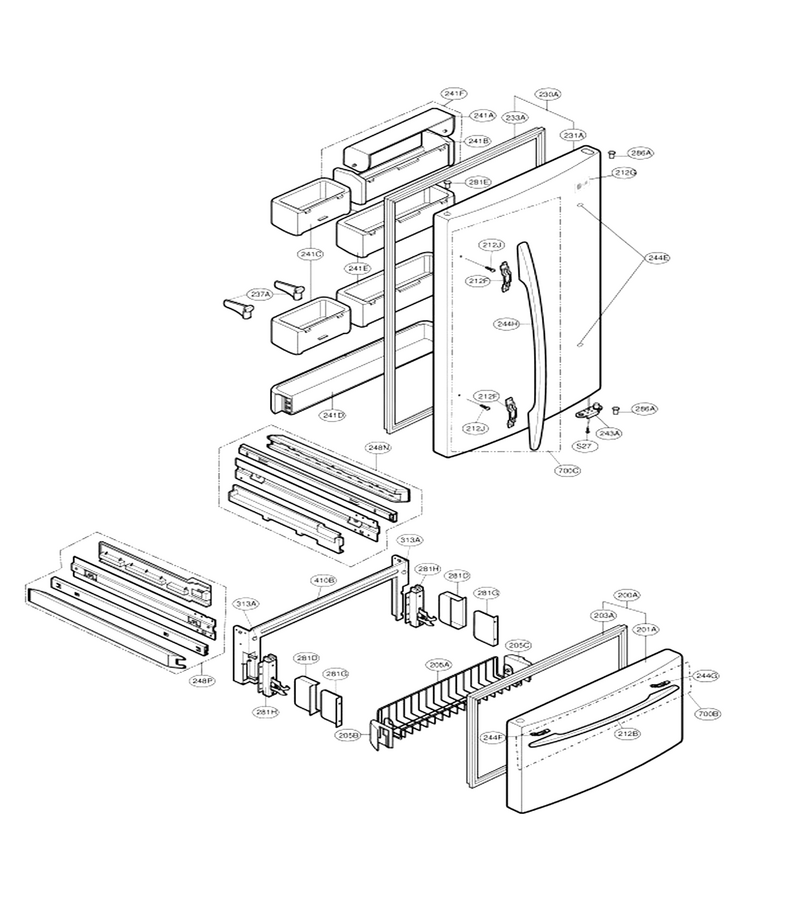

Door Parts (i)

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
200A
Refrigerator Freezer Door Assembly L-G-3581JJ8018H
...
201A
Refrigerator Freezer Door Assembly L-G-5433JJ0058M
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752609
...
205A
Refrigerator Freezer Door Wire Tilt Basket L-G-5004JJ1042B
...
205B
Refrigerator Door Bin L-G-5004JJ2005B
...
205C
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JJ2005A
...
212G
Refrigerator Nameplate L-G-3846JD1007H
...
212J
Refrigerator Door Handle Mounting Screw L-G-4620JJ3007E
...
230A
Refrigerator Door Assembly L-G-3581JJ8024H
...
231A
Refrigerator Door Assembly L-G-5433JJ0019T
...
233A
Refrigerator Door Gasket L-G-4987JJ1004F
...
237A
Refrigerator Guide L-G-4974JJ2012A
...
241A
Refrigerator Dairy Bin Cover L-G-3550JL2003H
...
241B
Refrigerator Door Basket L-G-5004JJ1021B
...
241C
Refrigerator Door Bin L-G-5005JJ2017A
...
241D
Refrigerator Door Bin, Lower L-G-5005JJ2020A
...
241E
Refrigerator Door Bin L-G-5005JJ2018A
...
241F
Refrigerator Tray Cover L-G-5005JJ2010G
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
248N
Refrigerator Freezer Door Slide Rail Assembly, ... L-G-5219JJ2002A
...
248P
Refrigerator Rail Assembly L-G-5219JJ2002B
...
281D
Refrigerator Hinge Cover L-G-3550JJ2043A
...
281G
Refrigerator Cover L-G-3550JJ2044A
...
281H
Refrigerator Door Hinge L-G-4775JJ2011B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
313A
Refrigerator Damper L-G-5040JJ3007A
...
410B
Refrigerator Bracket L-G-4811JJ2004B
...
700B
Refrigerator Handle Assembly L-G-3651JJ2010N
...
700C
Refrigerator Handle Assembly L-G-3651JJ2017A

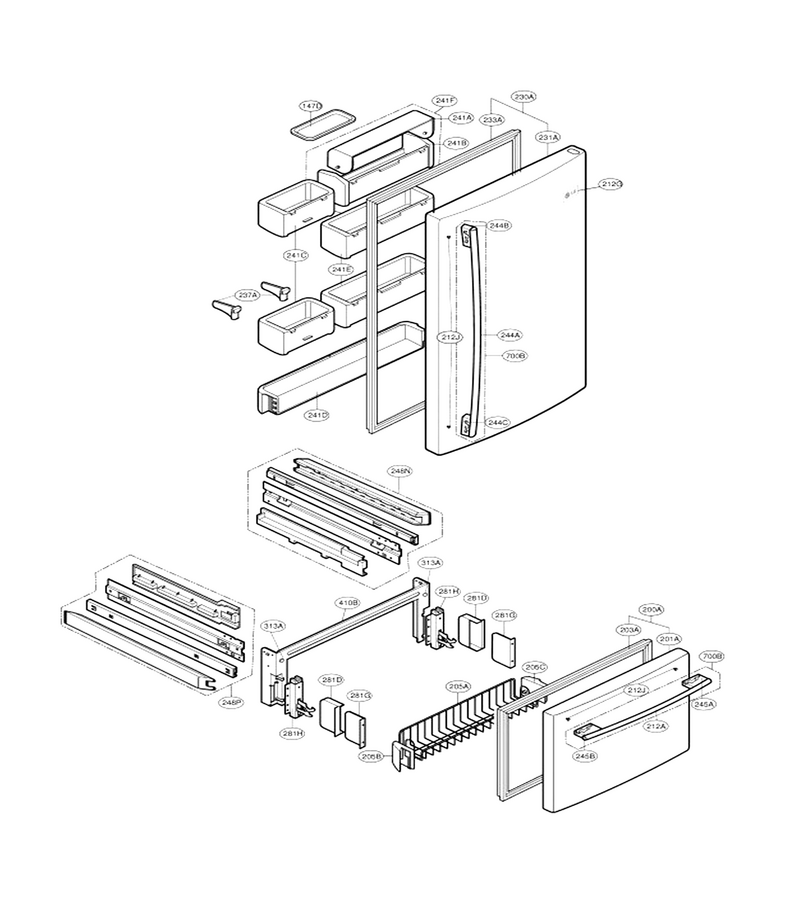

Door Parts (ii)

...
...
147D
Refrigerator Tray L-G-3390JJ2003A
...
200A
Refrigerator Freezer Door Assembly L-G-3581JJ8019Y
...
201A
Refrigerator Freezer Door Foam Assembly L-G-5433JJ0058R
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752609
...
205A
Refrigerator Freezer Door Wire Tilt Basket L-G-5004JJ1042B
...
205B
Refrigerator Door Bin L-G-5004JJ2005B
...
205C
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JJ2005A
...
212A
Refrigerator Freezer Handle L-G-3650JJ1041C
...
212G
Refrigerator Nameplate L-G-3846JD1007G
...
212J
Refrigerator Door Handle Mounting Screw L-G-4620JJ3007E
...
230A
Refrigerator Door Assembly L-G-3581JJ8024G
...
231A
Refrigerator Door Assembly L-G-5433JJ0019S
...
233A
Refrigerator Door Gasket L-G-4987JJ1004F
...
237A
Refrigerator Guide L-G-4974JJ2012A
...
241A
Refrigerator Dairy Bin Cover L-G-3550JL2003H
...
241B
Refrigerator Door Basket L-G-5004JJ1021B
...
241C
Refrigerator Door Bin L-G-5005JJ2017A
...
241D
Refrigerator Door Bin, Lower L-G-5005JJ2020A
...
241E
Refrigerator Door Bin L-G-5005JJ2018A
...
241F
Refrigerator Tray Cover L-G-5005JJ2010G
...
244A
Refrigerator Handle L-G-3650JJ1034Q
...
244B
Refrigerator Holder L-G-4930JJ2023C
...
244C
Refrigerator Holder L-G-4930JJ2022C
...
245A
Refrigerator Holder L-G-4930JJ2019C
...
245B
Refrigerator Holder L-G-4930JJ2020C
...
248N
Refrigerator Freezer Door Slide Rail Assembly, ... L-G-5219JJ2002A
...
248P
Refrigerator Rail Assembly L-G-5219JJ2002B
...
281D
Refrigerator Hinge Cover L-G-3550JJ2043A
...
281G
Refrigerator Cover L-G-3550JJ2044A
...
281H
Refrigerator Door Hinge L-G-4775JJ2011B
...
313A
Refrigerator Damper L-G-5040JJ3007A
...
410B
Refrigerator Bracket L-G-4811JJ2004B
...
700B
Refrigerator Handle Assembly L-G-3651JJ2010Q
