LG LRDN20725TT.ATICLGX

Model: LRDN20725TT.ATICLGX

Save Part Not Listed?
product name

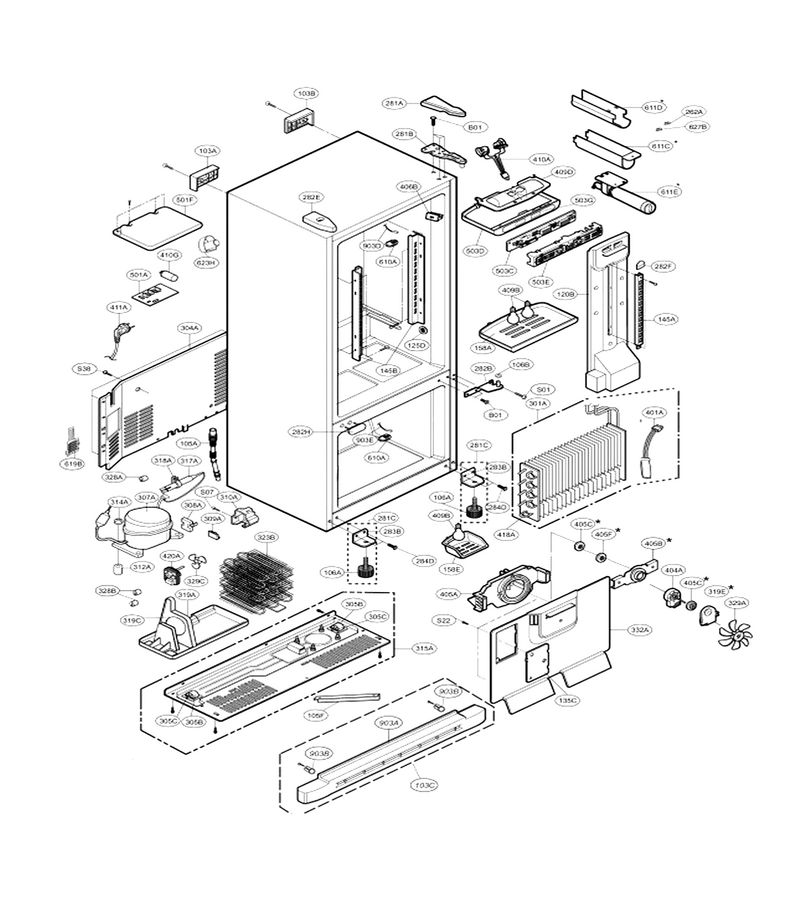

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Toe Grille L-G-3551JJ1015E
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shelf Holder L-G-4930JJ2004D
...
145B
Holder,shelf L-G-4930JJ2003D
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
281A
Refrigerator Door Hinge Cover L-G-3550JJ2013A
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge L-G-4775JJ8002A
...
282E
Refrigerator Door Hinge Cover L-G-5006JJ2001A
...
282F
Deco,duct L-G-3806JL2006E
...
282H
Refrigerator Hinge Cap L-G-5006JJ3004A
...
301A
Refrigerator Evaporator L-G-5421JJ1001A
...
304A
Refrigerator Cover Assembly, Rear L-G-3551JJ2008A
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
308A
Refrigerator Ptc Relay L-G-6748JJ8002A
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2059A
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Refrigerator Complete Base L-G-3103JJ1001K
...
317A
Refrigerator Filter Dryer L-G-5851JJ2002F
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-3390JJ0003A
...
319C
Refrigerator Fan Guide L-G-4974JJ1009A
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ0002A
...
323B
Refrigerator Condenser Wire L-G-5403JJ1008A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
332A
Grille Assembly,fan L-G-3531JJ1004T
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Refrigerator Evaporator Fan Motor L-G-4680JK1002B
...
405A
Refrigerator Motor Bracket Assembly L-G-4811JJ2002B
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2003B
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2003H
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
418A
Refrigerator Heater L-G-5300JB1100D
...
420A
Refrigerator Condenser Fan L-G-4680JK1001B
...
501A
Refrigerator Electronic Control Board L-G-6871JB1215J
...
501F
Refrigerator Electronic Control Board Housing L-G-3551JJ1020A
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503G
Refrigerator Control Panel Overlay L-G-3806JL1049A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
611C
Refrigerator Cover L-G-3550JL1008B
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
623H
Refrigerator Water Supply Tube Cover L-G-3550JJ2036A
...
903A
Refrigerator Toe Grille L-G-3550JJ0005A
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

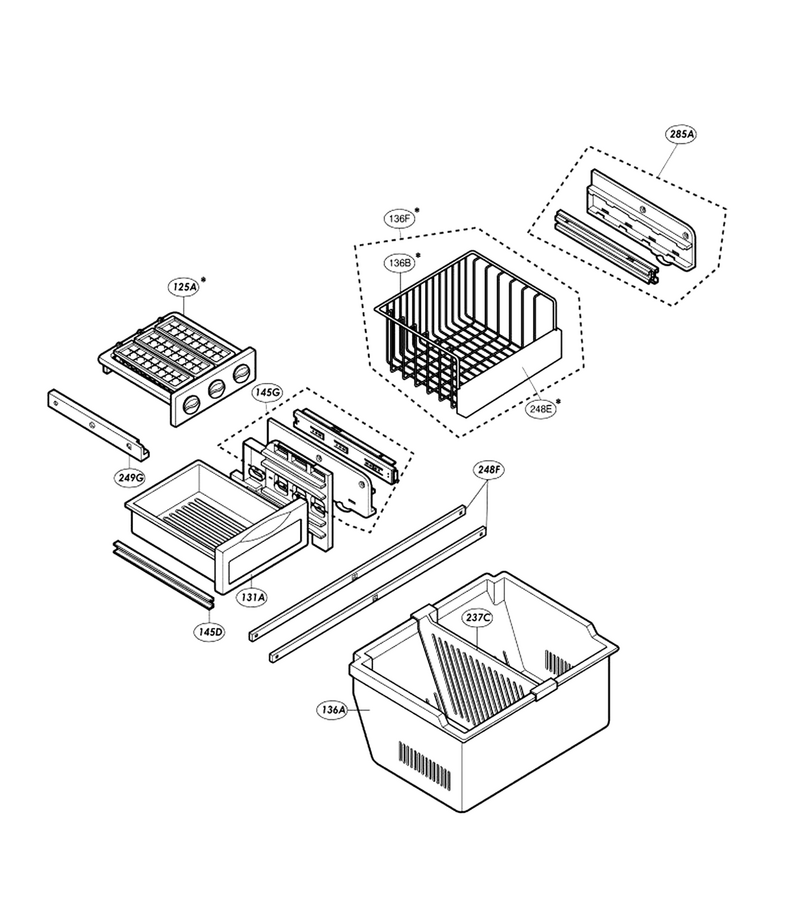

Freezer Parts

...
...
125A
Refrigerator Ice Cube Tray L-G-3391JJ1009B
...
131A
Refrigerator Ice Bin L-G-5075JJ1001B
...
136A
Refrigerator Freezer Drawer L-G-3391JJ1011A
...
136B
Refrigerator Freezer Basket L-G-3390JJ1088A
...
136F
Refrigerator Freezer Wire Drawer Assembly L-G-3391JJ1033A
...
145D
Refrigerator Guide L-G-4974JJ1012A
...
145G
Refrigerator Freezer Basket Slide Rail Assembly... L-G-4975JJ2005H
...
237C
Refrigerator Freezer Basket Divider L-G-4974JJ1021A
...
248E
Refrigerator Decorative Tray L-G-3806JJ2036A
...
248F
Refrigerator Supporter L-G-4980JJ2005B
...
249G
Refrigerator Guide Rail L-G-4974JJ1011A
...
285A
Refrigerator Freezer Basket Slide Rail Assembly... L-G-4975JJ2007G

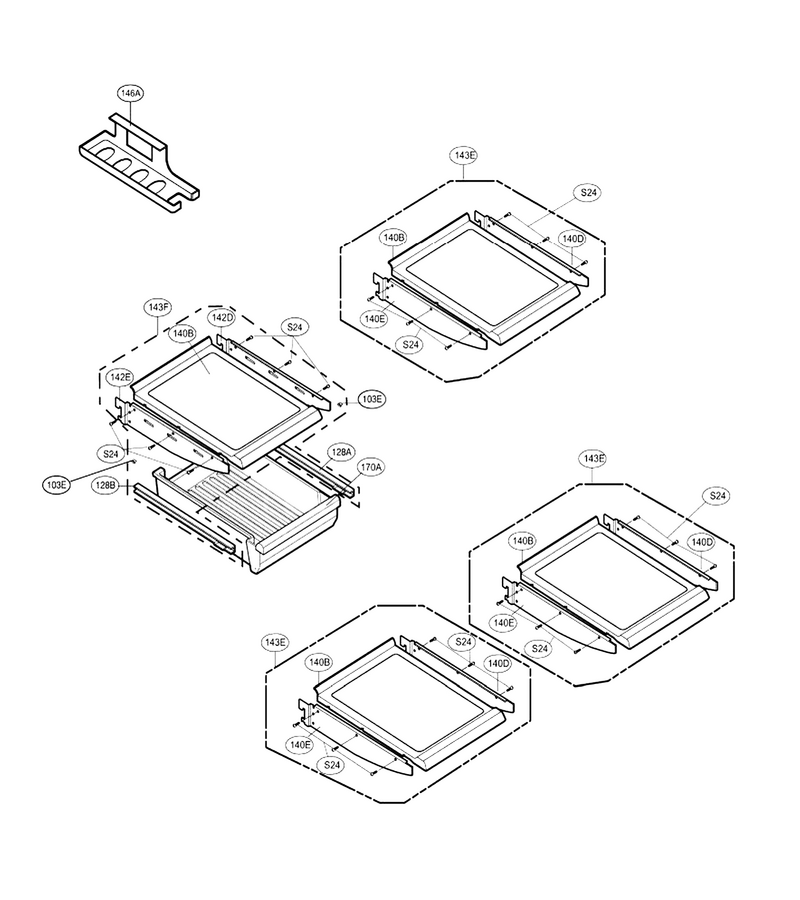

Refrigerator Parts (i)

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Guide Assembly L-G-4975JJ2003C
...
140B
Refrigerator Shelf Assembly, Right L-G-5027JJ2007A
...
140D
Refrigerator Shelf Support, Left L-G-5026JJ2001G
...
140E
Refrigerator Shelf Support, Right L-G-5026JJ2001H
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Refrigerator Shelf L-G-5027JJ1008A
...
143F
Refrigerator Shelf L-G-5027JJ1008C
...
146A
Refrigerator Storage L-G-5047JJ1001A
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004G

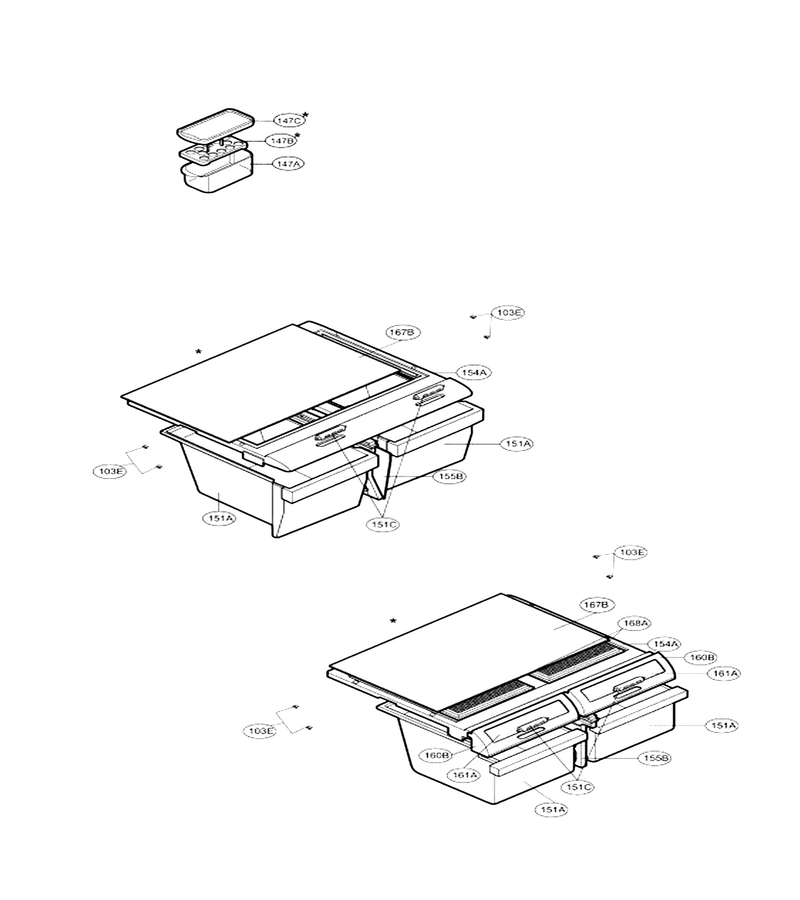

Refrigerator Parts (ii)

...
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
147A
Refrigerator Dairy Bin L-G-5074JJ1005A
...
151A
Refrigerator Crisper Drawer L-G-3390JJ1032A
...
151C
Refrigerator Shutter Knob L-G-4940JJ2003B
...
154A
Refrigerator Drawer Support L-G-3550JL1006D
...
155B
Refrigerator Crisper Drawer Cover Support L-G-4981JJ2001B
...
160B
Refrigerator Decorative Tray L-G-3806JL2005D
...
167B
Refrigerator Glass Shelf L-G-4890JL1002M

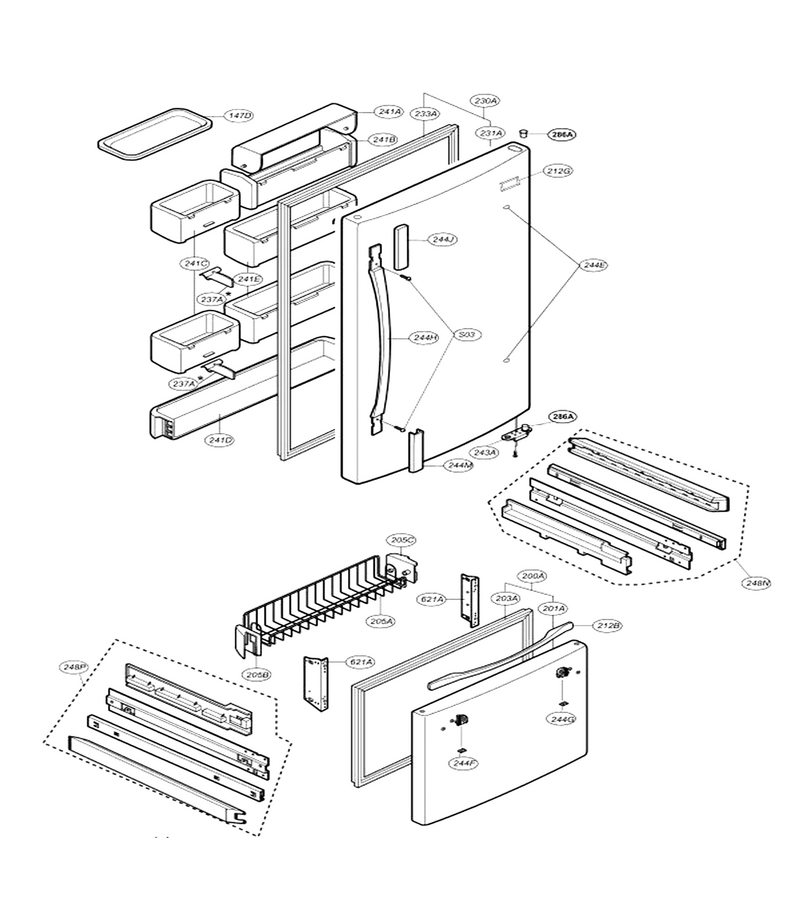

Door Parts (i)

...
...
200A
Refrigerator Freezer Door Assembly L-G-3581JJ8054C
...
201A
Refrigerator Part L-G-5433JJ0059J
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752604
...
205A
Refrigerator Basket L-G-5004JJ1042A
...
205B
Refrigerator Door Bin L-G-5004JJ2005B
...
205C
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JJ2005A
...
212G
Refrigerator Nameplate L-G-3846JD1007H
...
230A
Door Assembly L-G-3581JJ8719D
...
231A
Refrigerator Parts Door Foam Assembly L-G-5433JJ0123D
...
233A
Refrigerator Door Gasket L-G-4987JJ1004D
...
237A
Refrigerator Guide L-G-4974JJ2021A
...
241A
Refrigerator Tray Cover L-G-3550JL2003K
...
241B
Refrigerator Door Bin L-G-5004JJ1035A
...
241C
Refrigerator Door Bin L-G-5004JJ1030A
...
241D
Refrigerator Door Bin L-G-5004JJ0002A
...
241E
Refrigerator Door Bin L-G-5004JJ1028A
...
243A
Refrigerator Door Stop L-G-4620JJ3006D
...
248N
Refrigerator Freezer Door Slide Rail Assembly, ... L-G-5219JJ2002A
...
248P
Refrigerator Rail Assembly L-G-5219JJ2002B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621A
Refrigerator Connector L-G-4932JJ2001B

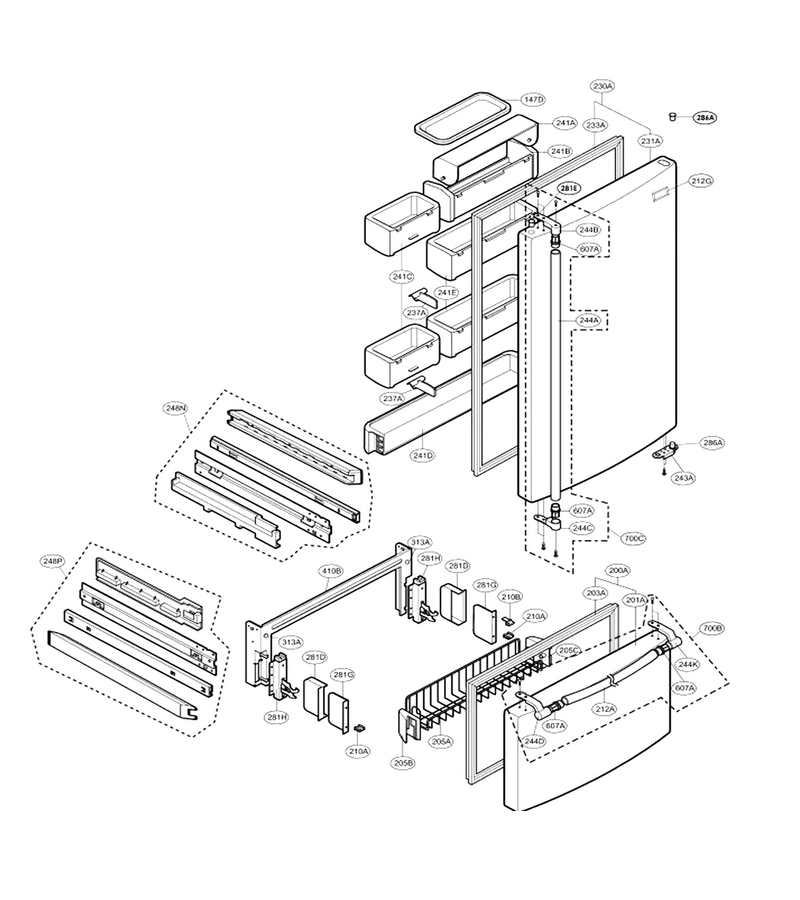

Door Parts (ii)

...
...
200A
Refrigerator Freezer Door Assembly L-G-3581JJ8054C
...
201A
Refrigerator Part L-G-5433JJ0059J
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752604
...
205A
Refrigerator Basket L-G-5004JJ1042A
...
205B
Refrigerator Door Bin L-G-5004JJ2005B
...
205C
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JJ2005A
...
212A
Refrigerator Parts Freezer Handle L-G-3651JA1033L
...
212G
Refrigerator Nameplate L-G-3846JD1007H
...
230A
Door Assembly L-G-3581JJ8719D
...
231A
Refrigerator Parts Door Foam Assembly L-G-5433JJ0123D
...
233A
Refrigerator Door Gasket L-G-4987JJ1004D
...
237A
Refrigerator Guide L-G-4974JJ2021A
...
241A
Refrigerator Tray Cover L-G-3550JL2003K
...
241B
Refrigerator Door Bin L-G-5004JJ1035A
...
241C
Refrigerator Door Bin L-G-5004JJ1030A
...
241D
Refrigerator Door Bin L-G-5004JJ0002A
...
241E
Refrigerator Door Bin L-G-5004JJ1028A
...
243A
Refrigerator Door Stop L-G-4620JJ3006D
...
244A
Refrigerator Parts Handle Assembly L-G-3651JA1023W
...
244B
Handle Holder L-G-4930JJ2009E
...
244C
Handle Holder L-G-4930JJ2010E
...
244D
Holder,handl L-G-4930JJ2012E
...
244K
Refrigerator Holder L-G-4930JJ2011E
...
248N
Refrigerator Freezer Door Slide Rail Assembly, ... L-G-5219JJ2002A
...
248P
Refrigerator Rail Assembly L-G-5219JJ2002B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
607A
Refrigerator Holder Bracket L-G-4930JJ2013A
...
700B
Refrigerator Freezer Handle Assembly L-G-3651JJ0002C
...
700C
Ff Hndl Asm L-G-3651JJ1017G

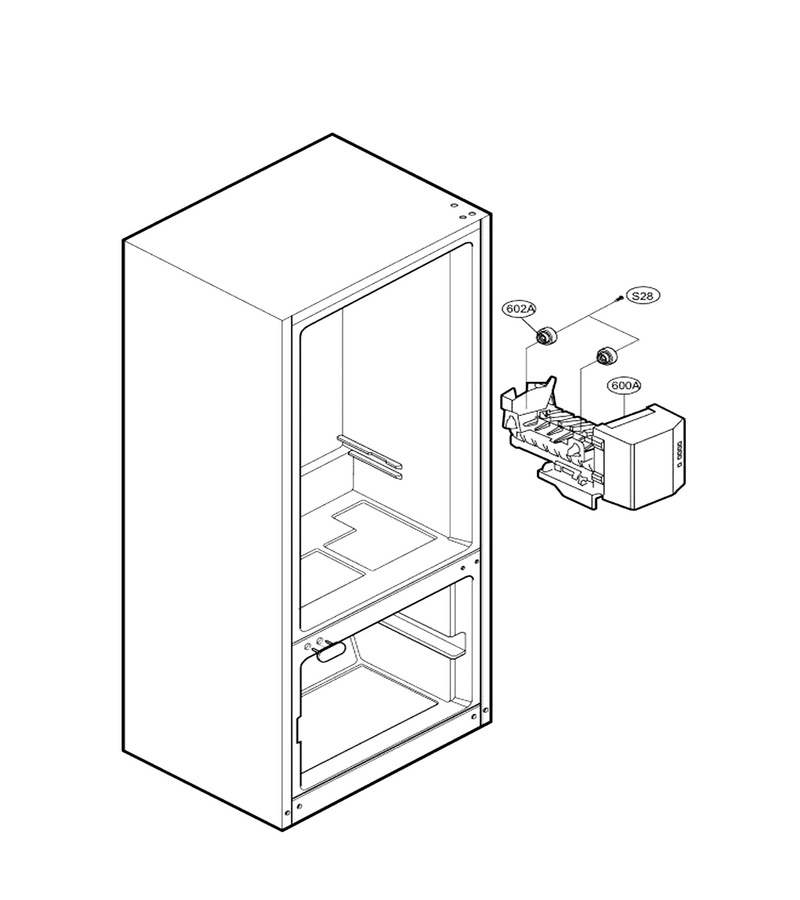

Ice Maker Parts

...

No Parts Available for this Schematic

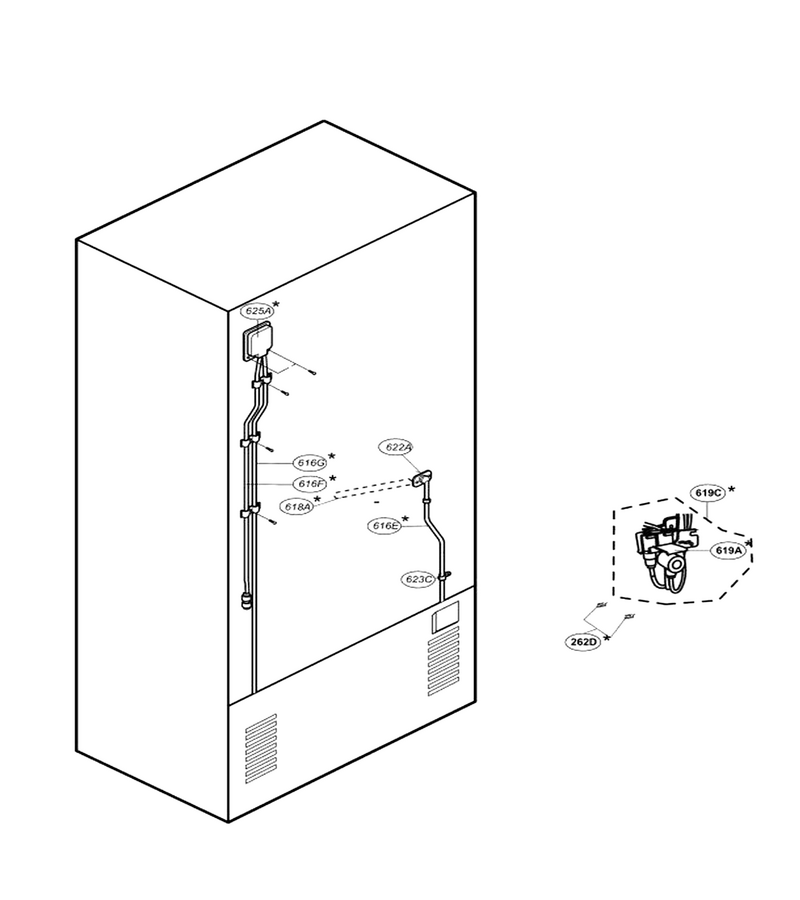

Ice & Water Parts

...

No Parts Available for this Schematic
