product name

LG LRBN22511TT.ATICLGB

Model: LRBN22511TT.ATICLGB

Save Part Not Listed?
product name

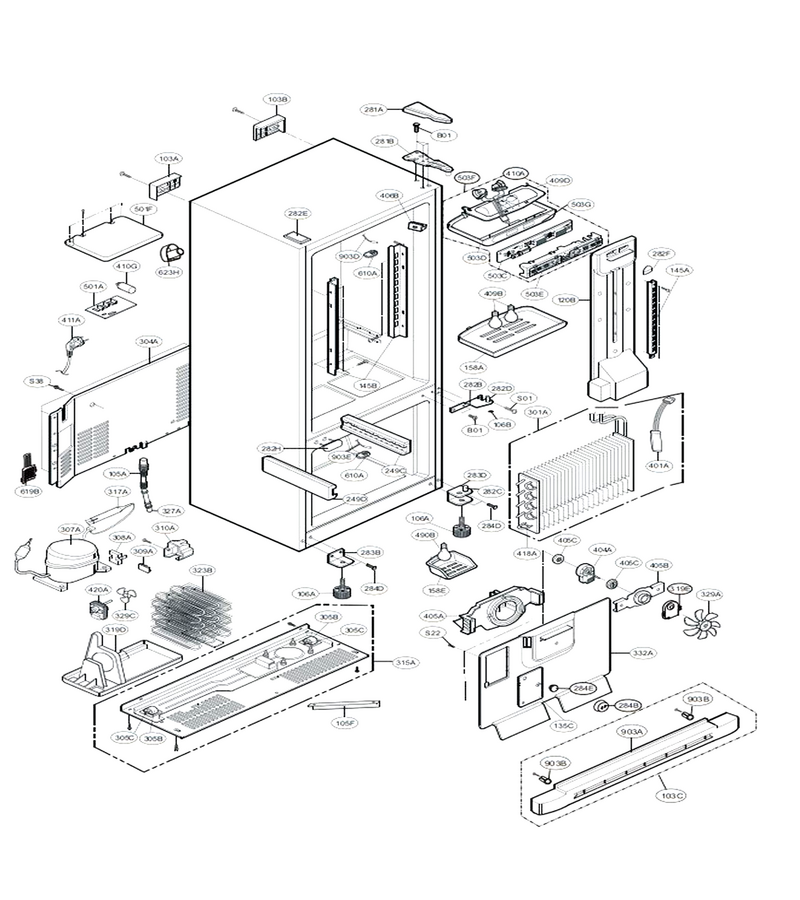

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Lower Cover L-G-3551JJ1015F
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-AFC73249601
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shelf Holder L-G-4930JJ2004D
...
145B
Holder,shelf L-G-4930JJ2003D
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
249C
Refrigerator Holder L-G-4930JJ1006A
...
249D
Refrigerator Holder L-G-4930JJ1006B
...
281A
Refrigerator Door Hinge Cover L-G-3550JJ2013C
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge L-G-4775JJ8002E
...
282C
Refrigerator Door Hinge Pin L-G-1PZZJJ3002F
...
282D
Pin,common L-G-1PZZJJ3002B
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001F
...
282F
Deco,duct L-G-3806JL2006E
...
282H
Refrigerator Hinge Cap L-G-5006JJ3004A
...
283B
Refrigerator Door Hinge, Lower L-G-4775JJ2007B
...
283D
Hinge Assembly,lower L-G-4775JJ2007C
...
284B
Connection Cover L-G-3550JA3120A
...
284D
Refrigerator Door Hinge Screw L-G-1STZJA3004K
...
284E
Refrigerator Glide L-G-3550JJ3001A
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
308A
Refrigerator Ptc Relay L-G-6748JJ8002A
...
309A
Refrigerator Compressor Overload Protector L-G-6750CR0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
319D
Guide Assy,f L-G-AEC72997402
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ0002A
...
323B
Refrigerator Condenser Coil L-G-ACG73746801
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
332A
Refrigerator Fan Grille Assembly L-G-3531JJ1004Q
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Refrigerator Evaporator Fan Motor L-G-4680JK1002B
...
405A
Refrigerator Motor Bracket Assembly L-G-4811JJ2002B
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA3007A
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002C
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2002D
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2003H
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
420A
Refrigerator Condenser Fan L-G-4680JK1001B
...
490B
Refrigerator Light Bulb L-G-6912JK2002C
...
501A
Refrigerator Electronic Control Board L-G-6871JB1215J
...
501F
Cover Assembly,pcb L-G-3551JJ1020D
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503F
Refrigerator Display Case L-G-ABQ33905312
...
503G
Refrigerator Control Panel Overlay L-G-3806JL1049A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
623H
Refrigerator Water Supply Tube Cover L-G-3550JJ2036A
...
903A
Refrigerator Toe Grille L-G-3550JJ0006C
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

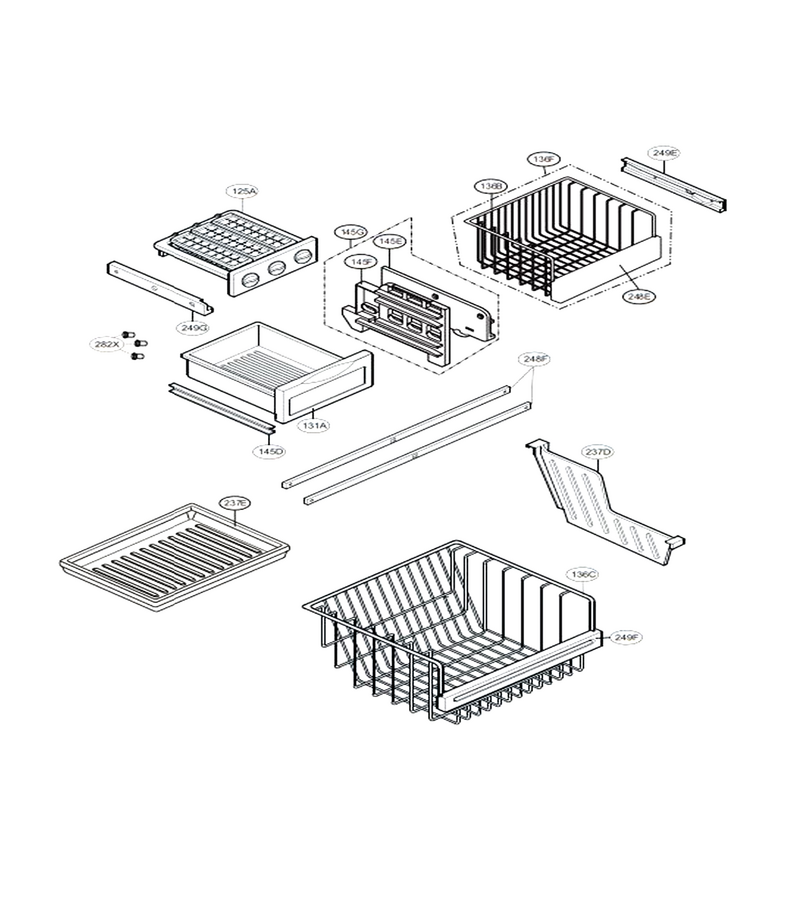

Freezer Part

...
...
125A
Refrigerator Ice Cube Tray L-G-3391JJ1009B
...
131A
Refrigerator Ice Bin L-G-5075JJ1001B
...
136B
Refrigerator Drawer Tray L-G-3390JJ1034A
...
136C
Refrigerator Tray L-G-3390JJ1027A
...
136F
Refrigerator Freezer Basket, Upper L-G-3391JJ1013C
...
145D
Refrigerator Guide L-G-4974JJ1012A
...
145E
Refrigerator Guide Rail L-G-4974JJ1014A
...
145F
Refrigerator Guide L-G-4974JJ1013A
...
145G
Refrigerator Rail Guide Assembly L-G-4975JJ2005B
...
237D
Refrigerator Drawer Guide L-G-4974JJ1019A
...
237E
Refrigerator Drawer Tray L-G-3390JJ1036A
...
248E
Refrigerator Decorative Tray L-G-3806JJ1018A
...
248F
Refrigerator Supporter L-G-4980JJ2005A
...
249E
Refrigerator Guide Rail L-G-4974JJ1010A
...
249F
Refrigerator Decorative Tray L-G-3806JJ2017A
...
249G
Refrigerator Guide Rail L-G-4974JJ1011A
...
282X
Cap,handle L-G-5006JJ3010E

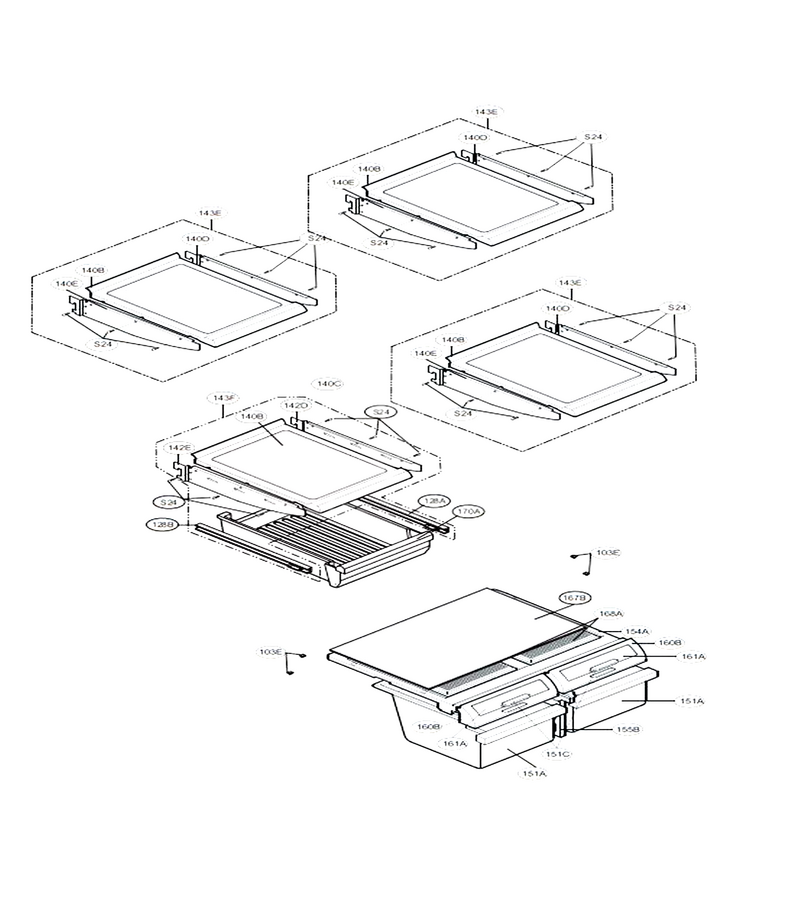

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Guide Assembly L-G-4975JJ2003C
...
140B
Refrigerator Shelf L-G-5027JJ2007B
...
140D
Refrigerator Shelf Support, Left L-G-5026JJ2001G
...
140E
Refrigerator Shelf Support, Right L-G-5026JJ2001H
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Refrigerator Shelf L-G-5027JJ1008B
...
143F
Refrigerator Shelf L-G-5027JJ1008D
...
151A
Refrigerator Tray Assembly L-G-3391JJ1019E
...
151C
Refrigerator Shutter Knob L-G-4940JJ2003B
...
154A
Refrigerator Crisper Drawer Cover Frame L-G-3550JJ1033A
...
155B
Refrigerator Supporter L-G-4981JJ2001A
...
160B
Refrigerator Decorative Tray L-G-3806JL2005D
...
161A
Refrigerator Crisper Drawer Lid L-G-3550JJ2026A
...
167B
Refrigerator Glass Shelf L-G-4890JL1002K
...
168A
Refrigerator Crisper Drawer Cover Insert L-G-3550JJ1035A
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004H

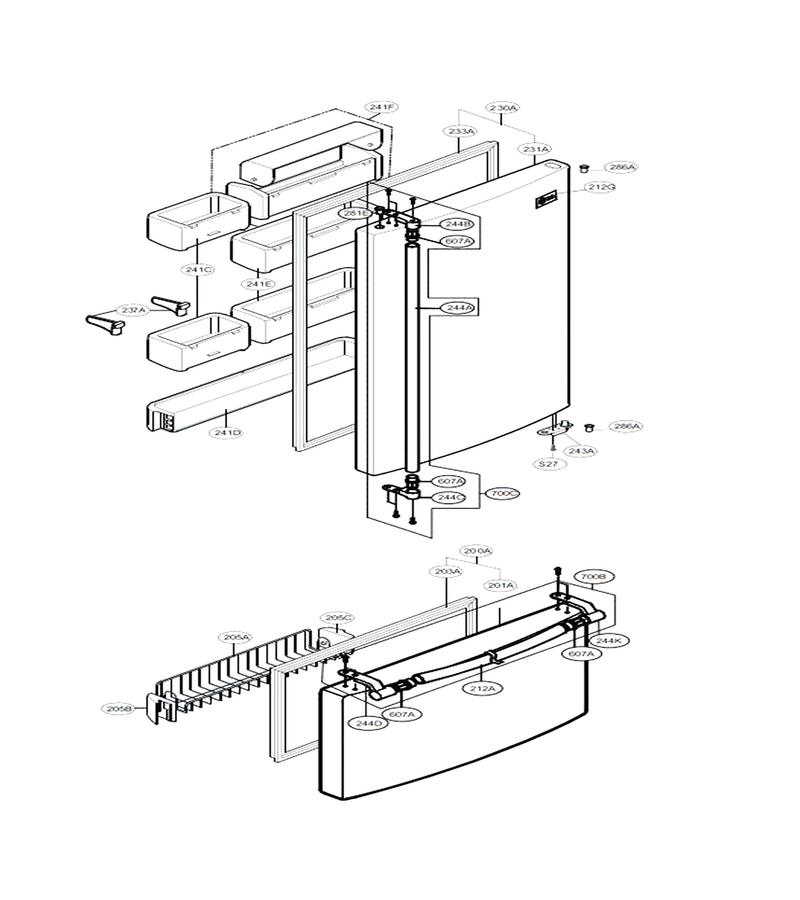

Door Parts

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
200A
Door Assembly,freezer L-G-3581JJ8020R
...
201A
Door Foam Assembly,freezer L-G-5433JJ0018U
...
203A
Refrigerator Freezer Door Gasket L-G-4987JJ1004E
...
205A
Refrigerator Freezer Door Wire Tilt Basket L-G-5004JJ1042B
...
205B
Refrigerator Door Bin L-G-5004JJ2005B
...
205C
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JJ2005A
...
212A
F Handle L-G-3650JJ1017H
...
212G
Refrigerator Nameplate L-G-MFT61843003
...
230A
Refrigerator Door Assembly L-G-3581JJ8024D
...
231A
Refrigerator Door Foam Assembly L-G-5433JJ0019L
...
233A
Refrigerator Door Gasket L-G-4987JJ1004F
...
237A
Refrigerator Guide L-G-4974JJ2021A
...
241C
Refrigerator Door Bin L-G-5004JJ1031A
...
241D
Refrigerator Door Bin L-G-5004JJ0001A
...
241E
Refrigerator Door Bin L-G-5004JJ1029A
...
241F
Basket Assembly,door L-G-5005JJ2010E
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
244A
Refrigerator Handle L-G-3650JJ2008E
...
244B
Holder,handl L-G-4930JJ2009A
...
244C
Refrigerator Hand Holder L-G-4930JJ2010A
...
244D
Refrigerator Handle L-G-4930JJ2012A
...
244K
Refrigerator Freezer Door Handle Support L-G-4930JJ2011A
...
281E
Refrigerator Hinge Cap L-G-5006JJ3014C
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
607A
Refrigerator Holder Bracket L-G-4930JJ2013A
...
700B
Refrigerator Freezer Handle L-G-3651JJ0002B
...
700C
Refrigerator Freezer Door Handle L-G-3651JJ1017F
