LG LRBC22544SB.AWBCLGR

Model: LRBC22544SB.AWBCLGR

Save Part Not Listed?
product name

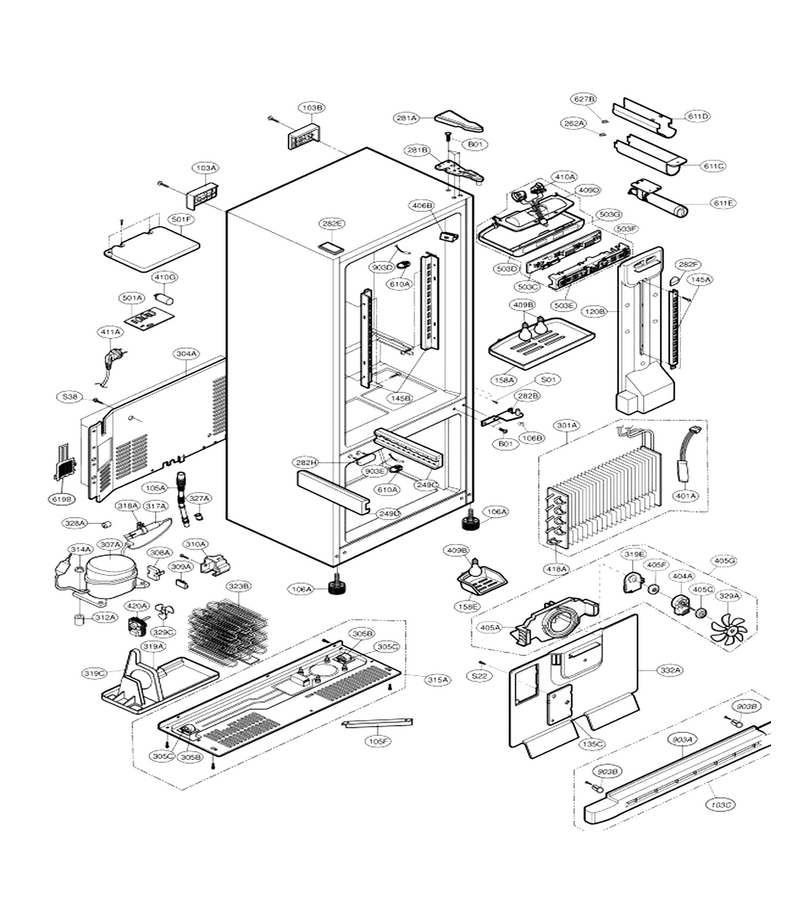

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Lower Cover L-G-3551JJ1015F
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
249C
Refrigerator Holder L-G-4930JJ1006A
...
249D
Refrigerator Holder L-G-4930JJ1006B
...
262A
Refrigerator Holder Bracket L-G-4930JA3093A
...
281A
Refrigerator Cover L-G-3550JJ1039C
...
281B
Refrigerator Hinge Assembly L-G-4775JJ2005A
...
282B
Refrigerator Door Hinge L-G-4775JJ8002E
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001F
...
282F
Deco,duct L-G-3806JL2006E
...
282H
Refrigerator Center Hinge Hole Plug L-G-5006JJ3004E
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
308A
Refrigerator Ptc Relay L-G-6748JJ8002A
...
309A
Refrigerator Compressor Overload Protector L-G-6750CR0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Compressor Base Assembly L-G-3103JJ1001J
...
317A
Refrigerator Filter Dryer L-G-5851JJ2002F
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-3390JJ0003A
...
319C
Refrigerator Fan Guide L-G-4974JJ1009A
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Coil L-G-ACG73746801
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
332A
Refrigerator Evaporator Cover L-G-3531JJ1004A
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Evaporator Fan Motor And Bracket A... L-G-4811JJ2002H
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002C
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Socket,lamp L-G-EAG62831801
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2003H
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
420A
Refrigerator Condenser Fan L-G-4680JK1001B
...
501A
Refrigerator Power Control Board Assembly L-G-6871JB1213H
...
503C
Refrigerator Display Pcb Assembly L-G-6871JB2046A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Cover L-G-3550JJ2032A
...
503F
(503f) Case Assembly,display L-G-3111JJ1001H
...
503G
Controle L-G-3806JL1039A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
611C
Refrigerator Water Filter Cover L-G-3550JL1008D
...
611D
Refrigerator Water Filter Cover L-G-3550JJ2028B
...
611E
Genuine Kenmore Refrigerator Water Filter L-G-5231JA2005A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
627B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
903A
Refrigerator Toe Grille L-G-3550JJ0006C
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

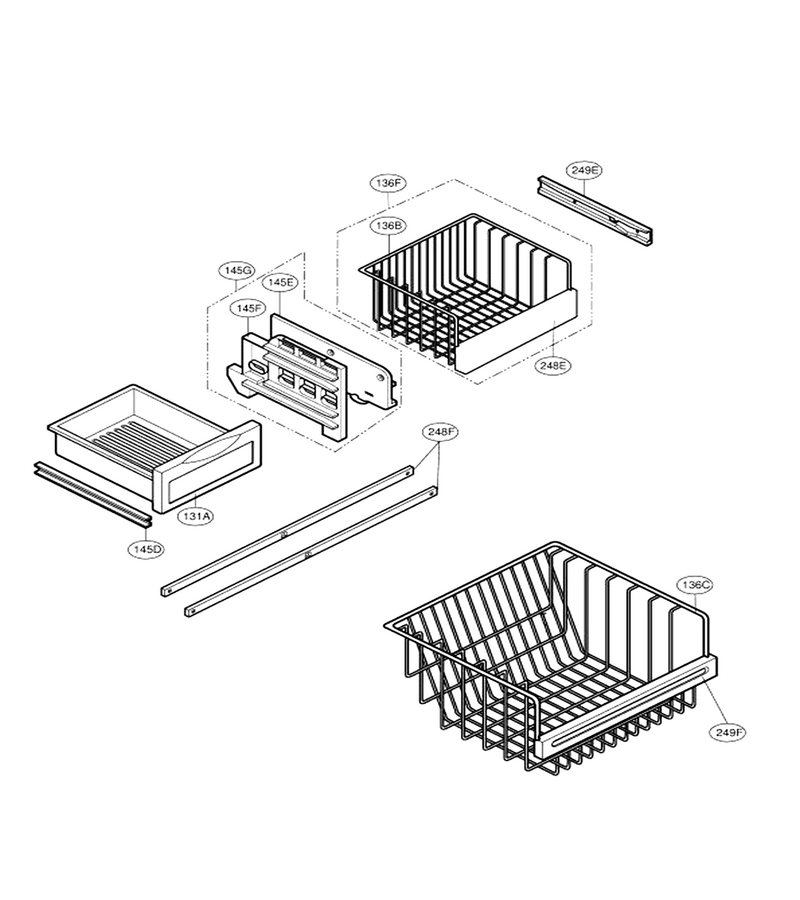

Freezer Part

...
...
131A
Refrigerator Ice Bin L-G-5075JJ1001B
...
136B
Refrigerator Drawer Tray L-G-3390JJ1034A
...
136C
Refrigerator Tray L-G-3390JJ1027A
...
136F
Refrigerator Freezer Basket, Upper L-G-3391JJ1013C
...
145D
Refrigerator Guide L-G-4974JJ1012A
...
145E
Refrigerator Guide Rail L-G-4974JJ1014A
...
145F
Refrigerator Guide L-G-4974JJ1013A
...
248E
Refrigerator Decorative Tray L-G-3806JJ1018A
...
248F
Refrigerator Supporter L-G-4980JJ2005A
...
249E
Refrigerator Guide Rail L-G-4974JJ1010A
...
249F
Refrigerator Decorative Tray L-G-3806JJ2017A

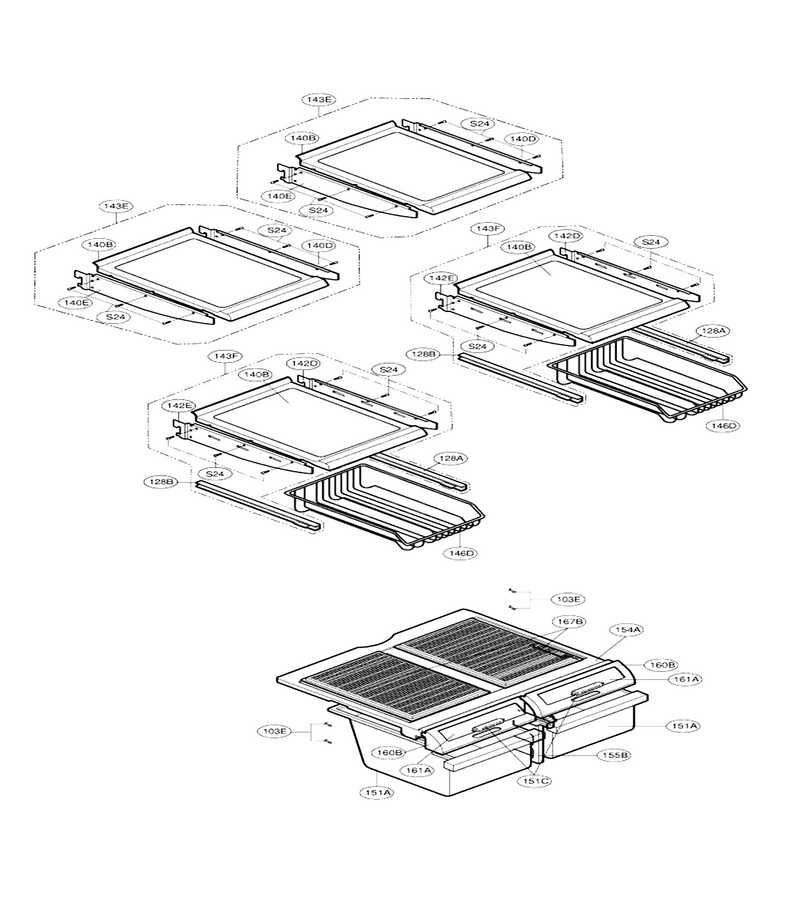

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
140B
Refrigerator Shelf L-G-5027JJ2007B
...
140D
Refrigerator Shelf Support, Left L-G-5026JJ2001G
...
140E
Refrigerator Shelf Support, Right L-G-5026JJ2001H
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Refrigerator Shelf L-G-5027JJ1008B
...
143F
Refrigerator Shelf L-G-5027JJ1008D
...
146D
Refrigerator Wire Server Drawer L-G-5044JJ1001A
...
151A
Refrigerator Tray Assembly L-G-3391JJ1019E
...
151C
Refrigerator Shutter Knob L-G-4940JJ2003B
...
154A
Refrigerator Crisper Drawer Cover Frame L-G-3550JJ1033A
...
155B
Refrigerator Supporter L-G-4981JJ2001A
...
160B
Refrigerator Decorative Tray L-G-3806JL2005D
...
161A
Refrigerator Crisper Drawer Lid L-G-3550JJ2026A
...
167B
Refrigerator Glass Shelf L-G-4890JL1002K

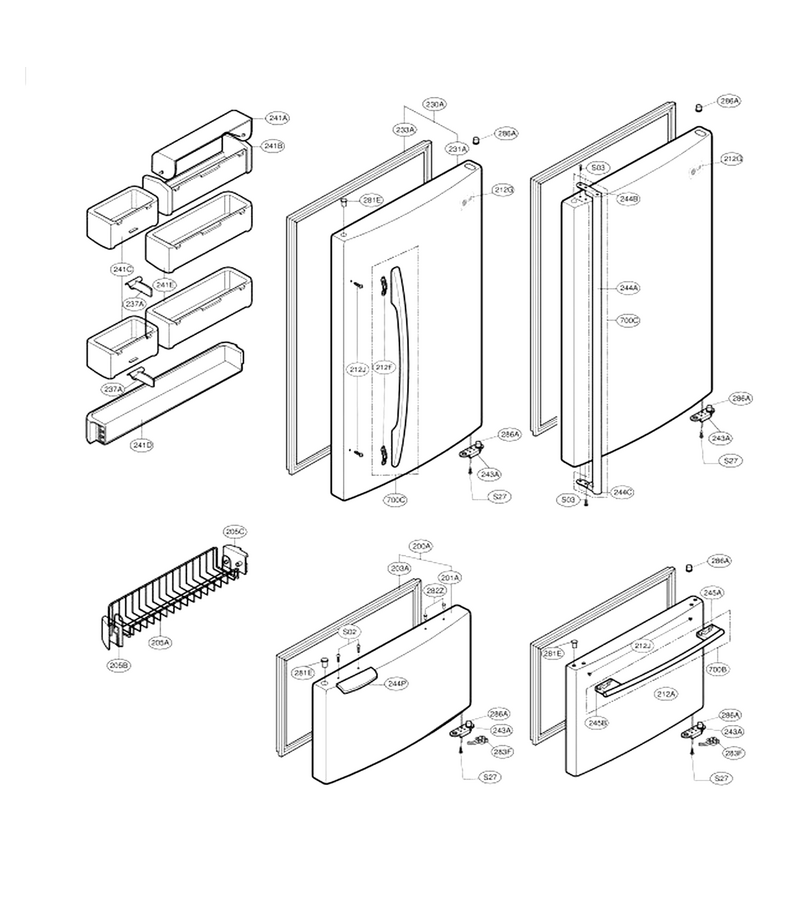

Door Parts

...
...
S03
Refrigerator Screw L-G-1SZZJJ3018A
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
200A
Refrigerator Door Assembly L-G-3581JJ8020G
...
201A
Refrigerator Door Foam L-G-5433JJ0058F
...
203A
Refrigerator Freezer Door Gasket L-G-4987JJ1004E
...
205A
Refrigerator Freezer Door Wire Tilt Basket L-G-5004JJ1042B
...
205B
Refrigerator Door Bin L-G-5004JJ2005B
...
205C
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JJ2005A
...
212A
Refrigerator Freezer Handle L-G-3650JJ1041C
...
212G
Refrigerator Nameplate L-G-MFT61843003
...
212J
Refrigerator Door Handle Mounting Screw L-G-4620JJ3007E
...
230A
Refrigerator Door Assembly L-G-3581JJ8025M
...
231A
Refrigerator Door Assembly L-G-5433JJ0033H
...
233A
Refrigerator Door Gasket L-G-4987JJ1004F
...
237A
Refrigerator Guide L-G-4974JJ2012A
...
241A
Refrigerator Dairy Bin Cover L-G-3550JL2003H
...
241B
Refrigerator Door Bin L-G-5004JJ1021A
...
241C
Refrigerator Door Bin L-G-5005JJ2017A
...
241D
Refrigerator Door Bin, Lower L-G-5005JJ2020A
...
241E
Refrigerator Door Bin L-G-5005JJ2018A
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
244A
Refrigerator Handle L-G-3650JJ1034Q
...
244B
Refrigerator Holder L-G-4930JJ2023C
...
244C
Refrigerator Holder L-G-4930JJ2022C
...
245A
Refrigerator Holder L-G-4930JJ2019C
...
245B
Refrigerator Holder L-G-4930JJ2020C
...
281E
Refrigerator Hinge Cap L-G-5006JJ3014C
...
283F
Refrigerator Door Stopper L-G-4620JJ2007B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
700B
Refrigerator Handle Assembly L-G-3651JJ2010Q
...
700C
Refrigerator Handle Assembly L-G-3651JJ2017C

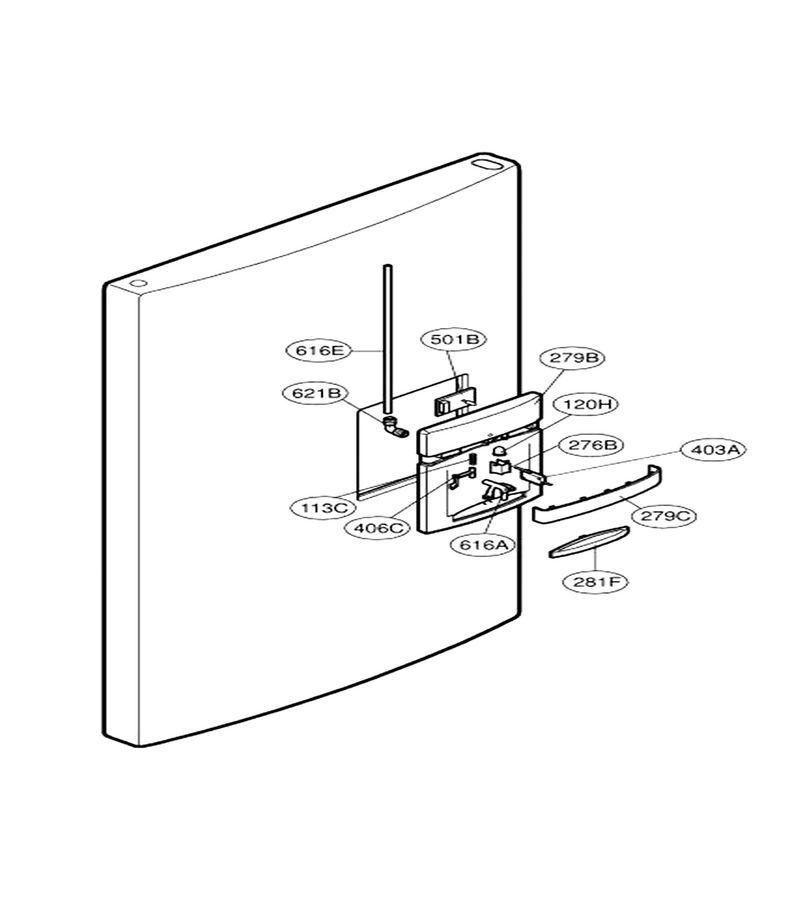

Water Dispenser

...
...
113C
Refrigerator Spring L-G-4970JJ3004A
...
120H
Refrigerator Led Cover L-G-3550JJ3003A
...
276B
Refrigerator Button L-G-5020JJ3001C
...
279B
Refrigerator Dispenser Cover L-G-3550JL1005C
...
279C
Deco L-G-3806JJ2021C
...
281F
Refrigerator Decorative Drain L-G-3806JJ2020C
...
403A
Refrigerator Dispenser Switch L-G-6600JB3001B
...
406C
Refrigerator Lever L-G-4510JJ3001A
...
501B
Refrigerator Display Pcb Assembly L-G-6871JB3008A
...
616A
Refrigerator Injection Tube L-G-5210JJ2001A
...
616E
Refrigerator Water Tubing Clip L-G-5210JA3005N
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3009A

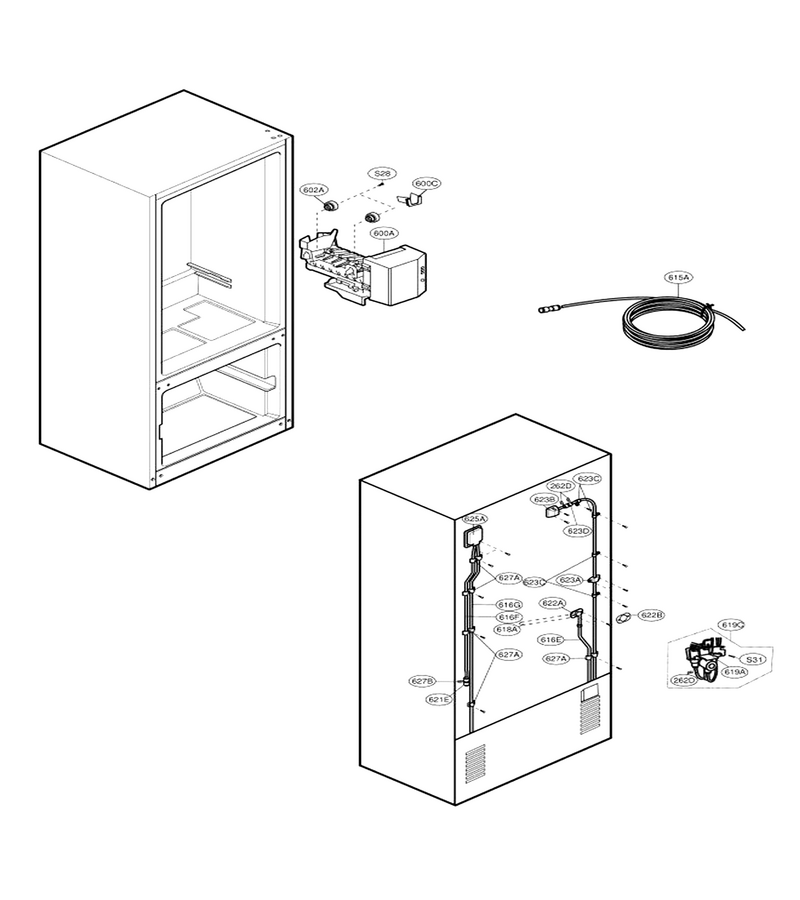

Ice Maker & Ice Water Parts

...
...
S28
Refrigerator Ice Maker Bracket Screw L-G-1SZZJJ3005E
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
262D
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
600A
Refrigerator Ice Maker L-G-5989JA0002U
...
600C
Refrigerator Ice Maker Fill Tube L-G-MEA32865501
...
602A
Refrigerator Shelf Support L-G-4931JA3005B
...
615A
Refrigerator Water Reservoir L-G-4839JJ2002A
...
616E
Refrigerator Water Tubing Clip L-G-5210JA3005N
...
616F
Refrigerator Water Tubing L-G-5210JA3004B
...
616G
Refrigerator Water Tubing L-G-5210JA3005P
...
618A
Refrigerator Ice Maker Fill Tube L-G-5210JJ3005B
...
619A
Refrigerator Water Valve L-G-5220JA2013A
...
621E
Refrigerator Water Tube Fitting L-G-4932JA3014A
...
622A
Refrigerator Water Tube Fitting L-G-5040JA2015A
...
622B
Refrigerator Ice Maker Water Inlet Cover Bracket L-G-4810JA3036A
...
623A
Refrigerator Cap Cover L-G-5006JJ2004A
...
623B
Cap,cover L-G-MBL67039201
...
623C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JJ2034A
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Refrigerator Water Tubing Clip L-G-4930JA3091A
