LG LPCS34886C.ALBCNA0

Model: LPCS34886C.ALBCNA0

Save Part Not Listed?
product name

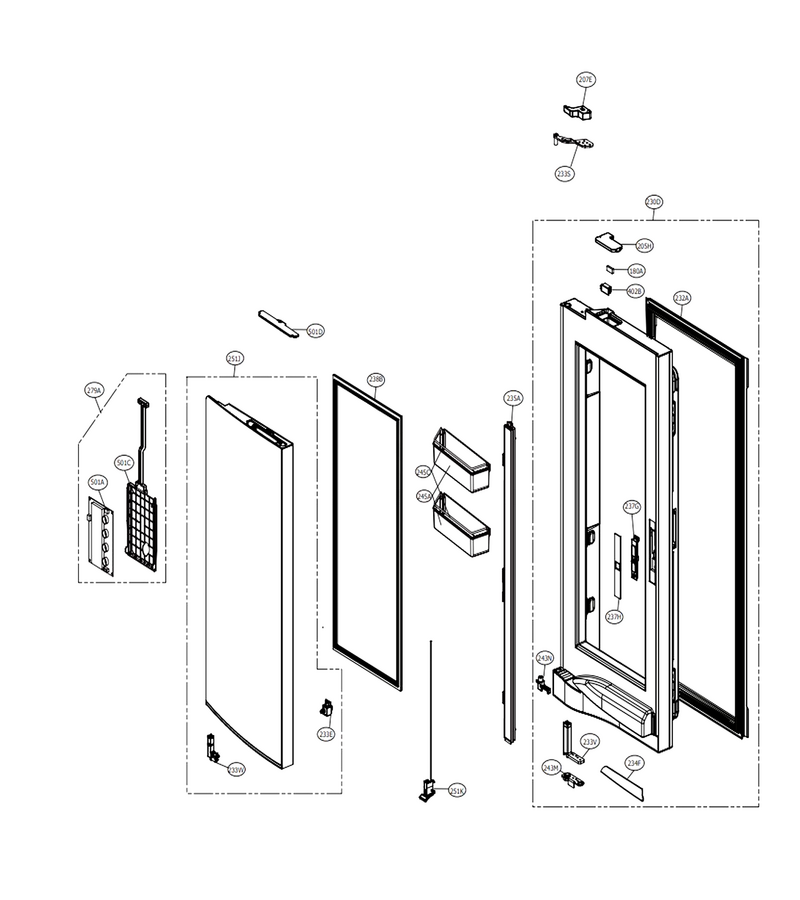

R-Room Door Part (1)

...
...
180A
Rt Side Uppr L-G-RAB32775604
...
205H
Cap,cover L-G-MBL65698303
...
207E
Cover,hinge L-G-MCK67917501
...
230D
Door Assembly,refrigerator(left) L-G-ADC74746012
...
232A
Gasket Assembly,door L-G-ADX72930442
...
233E
Refrigerator Button Assembly L-G-ABH74540602
...
233S
Hinge Assembly,upper L-G-AEH74356401
...
233V
Hinge Assembly,center L-G-AEH36821913
...
233W
Bracket Assembly L-G-ABA74591208
...
234F
Handle,decor L-G-MEB63234101
...
235A
Plate Assembly,front L-G-AGU74268137
...
237G
Holder,lever L-G-MEG63540901
...
237H
Cover L-G-MCK67918102
...
238B
Gasket,home Bar L-G-MDS62152442
...
243M
Stopper Assembly,door L-G-AJC68689641
...
243N
Bracket,hinge L-G-MAZ64644401
...
245A
Basket,door L-G-MAN62769801
...
245C
Bar L-G-MAK62707201
...
251J
Door Foam Assembly,home Bar L-G-ADD74456015
...
251K
Button Assembly L-G-ABH74899821
...
279A
Frame Assembly,display L-G-ADV74310633
...
402B
Refrigerator Door Switch L-G-EBF61314804
...
501A
Pcb Assembly,display L-G-EBR80348401
...
501C
Case,pcb L-G-MBN63225301
...
501D
Cap,cover L-G-MBL66357202

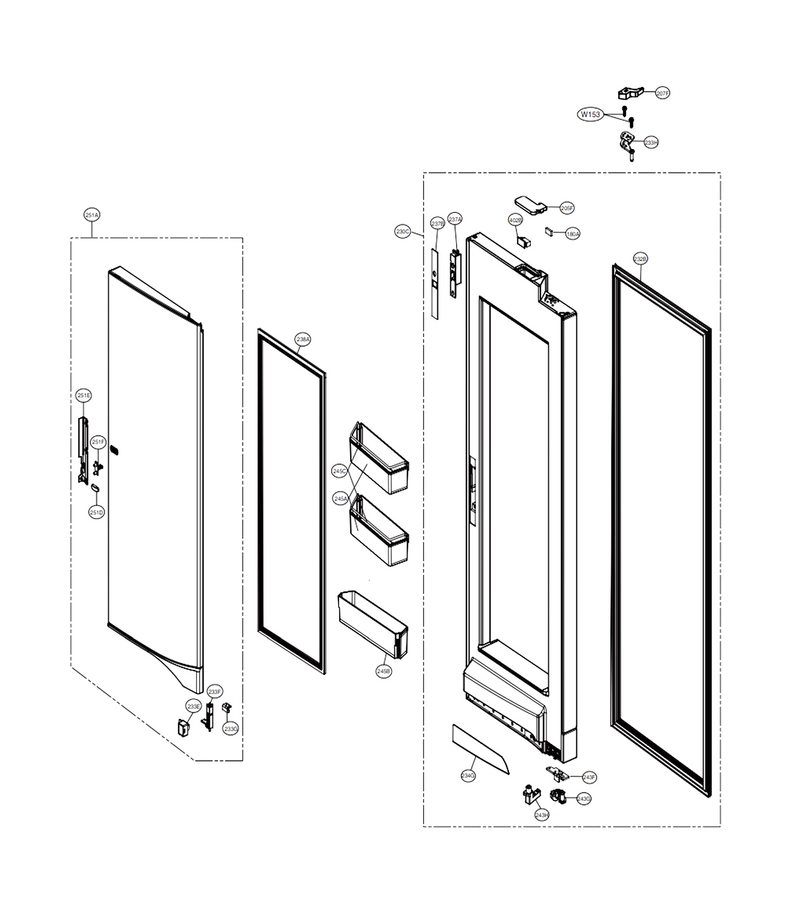

R-Room Door Part (2)

...
...
180A
Rt Side Uppr L-G-RAB32775604
...
205F
Refrigerator Cap Cover L-G-MBL65698304
...
207F
Cover,hinge L-G-MCK67917502
...
230C
Door Assembly,refrigerator(right) L-G-ADC74765808
...
232B
Gasket Assembly,door L-G-ADX72930441
...
233E
Refrigerator Button Assembly L-G-ABH74540602
...
233F
Hinge Assembly,home Bar L-G-AEH73676207
...
233G
Refrigerator Door Stopper L-G-MJB62709701
...
233H
Refrigerator Hinge Assembly, Upper L-G-AEH72957207
...
234G
Handle,decor L-G-MEB63234102
...
237A
Holder Assembly,bracket L-G-AEJ73219506
...
237B
Cover,lever L-G-3550JA3171S
...
238A
Gasket,home Bar L-G-MDS62152442
...
243F
Refrigerator Door Stopper L-G-MJB63171101
...
243G
Refrigerator Door Stopper L-G-MJB63171201
...
243H
Bracket,hinge L-G-MAZ63479502
...
245A
Basket,door L-G-MAN62769801
...
245B
Basket,door L-G-MAN62648301
...
245C
Bar L-G-MAK62707201
...
251A
Door Foam Assembly,home Bar L-G-ADD74456013
...
251D
Button,lever L-G-MBG64225802
...
251E
Cover,front L-G-MCK66728402
...
251F
Holder,lever L-G-MEG62900301
...
402B
Refrigerator Door Switch L-G-EBF61314804

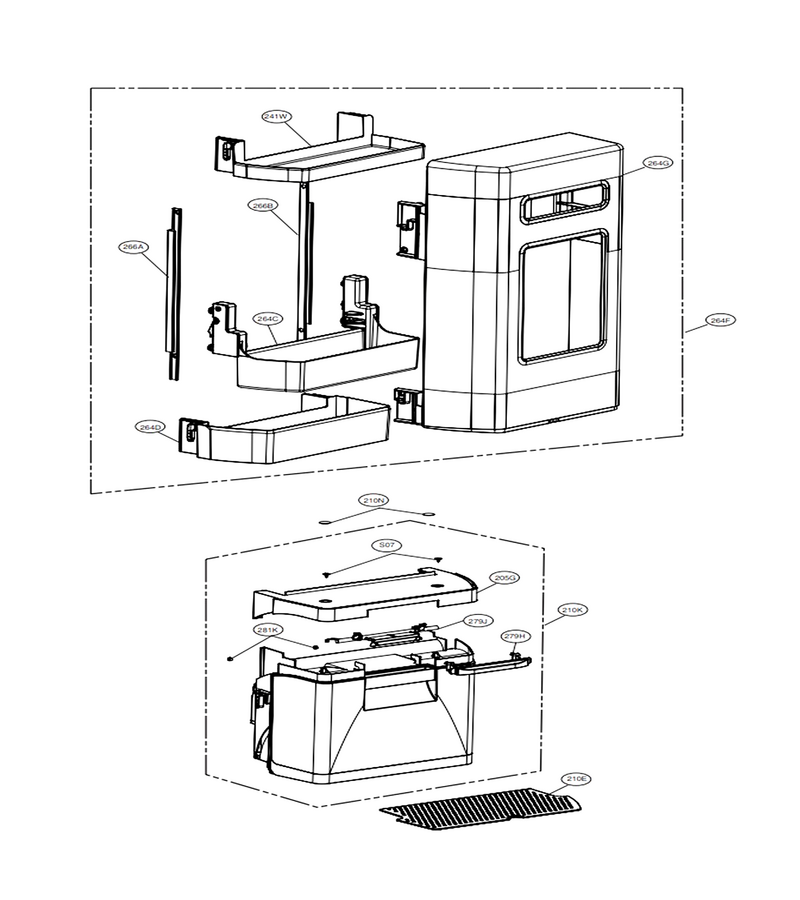

R-Room Home Part (1)

...
...
S07
Screw,customized L-G-1SBZJA3004Q
...
205G
Basket,tilt L-G-MAN62928702
...
210E
Tray,drain L-G-MJS63032001
...
210K
Basket Assembly,door L-G-AAP73811911
...
210N
Decor,tray L-G-MCR65028304
...
241W
Basket,door L-G-MAN63128302
...
264C
Basket Assembly,door L-G-AAP73692505
...
264D
Basket,door L-G-MAN62571901
...
264F
Case Assembly,home Bar L-G-ABQ73948812
...
264G
Case,home Bar L-G-MBN63246801
...
266A
Rail Assembly,slide L-G-AHC73535001
...
266B
Rail Assembly,slide L-G-AHC73535002
...
279H
Button,lever L-G-MBG64965801
...
279J
Button,lever L-G-MBG64965702
...
281K
Refrigerator Door Bin Cover Bumper L-G-5040JA3033B

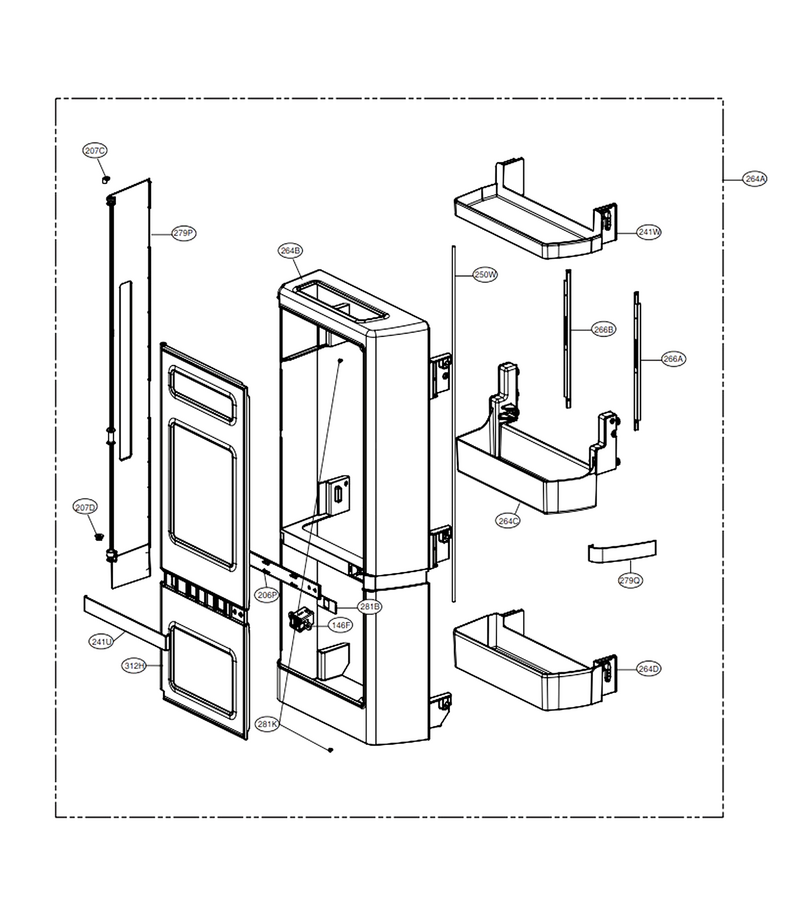

R-Room Home Part (2)

...
...
146F
Holder Assembly L-G-AEJ72914501
...
206P
Decor,door L-G-MCR65269101
...
207C
Refrigerator Door Hinge Cover L-G-MBL65046501
...
207D
Refrigerator Door Hinge Cover L-G-MBL65077501
...
241U
Cover,front L-G-MCK68106004
...
241W
Basket,door L-G-MAN63128302
...
250W
Bar L-G-MAK62347402
...
264A
Case Assembly,home Bar L-G-ABQ74423404
...
264B
Case,home Bar L-G-MBN63265901
...
264C
Basket Assembly,door L-G-AAP73692505
...
264D
Basket,door L-G-MAN62571901
...
266A
Rail Assembly,slide L-G-AHC73535001
...
266B
Rail Assembly,slide L-G-AHC73535002
...
279P
Decor,cover L-G-MCR65269001
...
279Q
Decor,side L-G-MCR65270103
...
281B
Refrigerator Decorative Handle L-G-MEB62455901
...
281K
Refrigerator Door Bin Cover Bumper L-G-5040JA3033B
...
312H
Cover,home Bar L-G-MCK67937501

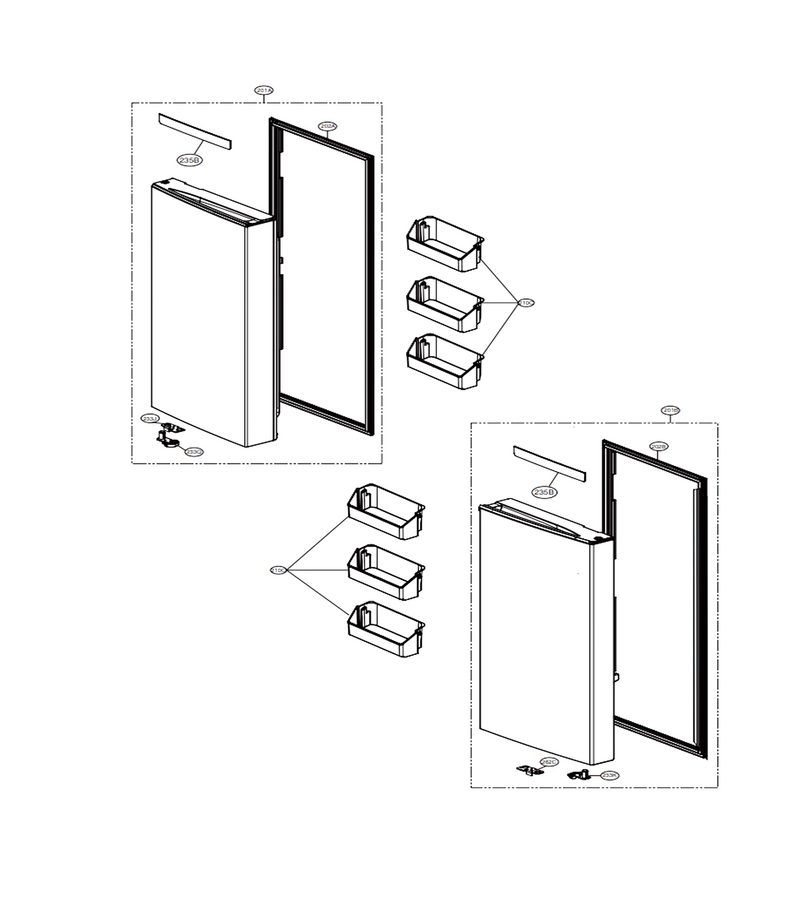

F-Room Door Part

...
...
201A
Door Foam Assembly,freezer L-G-ADD74455801
...
201B
Door Foam Assembly,freezer L-G-ADD74455901
...
202A
Gasket Assembly,door L-G-ADX72930429
...
202B
Gasket Assembly,door L-G-ADX72930430
...
210C
Basket Assembly,door L-G-AAP73711501
...
233J
Stopper,door L-G-MJB63030702
...
233K
Stopper,door L-G-MJB63030801
...
233Q
Stopper,door L-G-MJB63030802
...
235B
Handle,decor L-G-MEB63234201
...
262C
Stopper,door L-G-MJB63030701

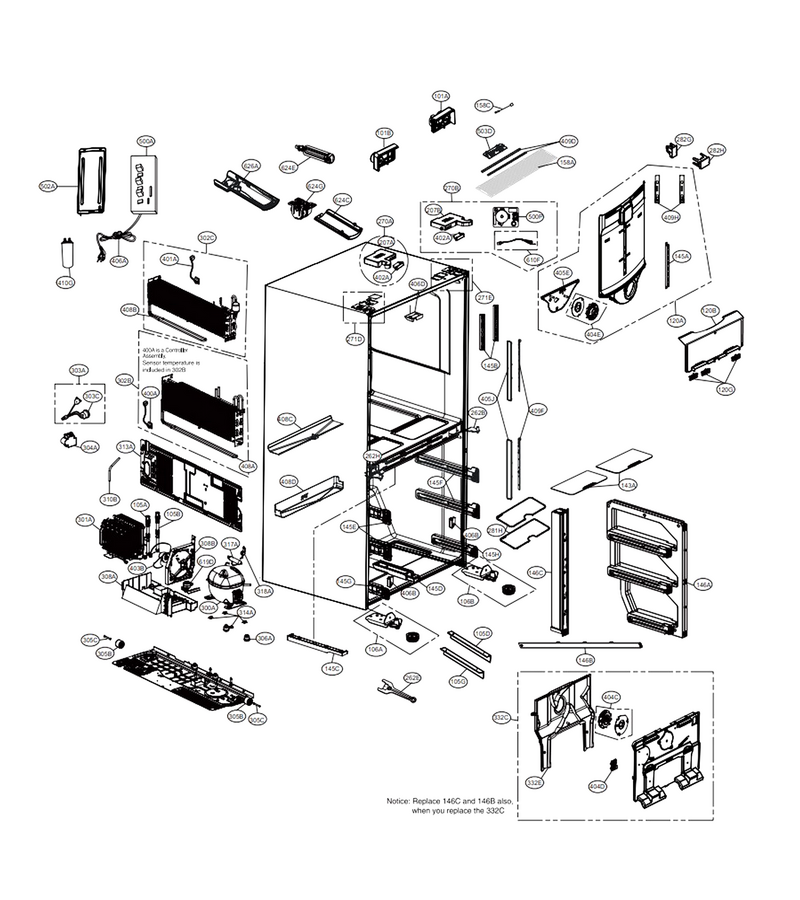

Case Parts

...
...
101A
Refrigerator Rear Handle L-G-3650JA2061S
...
101B
Refrigerator Rear Handle L-G-3650JA2061T
...
105A
Refrigerator Cabinet Drain Tube Assembly L-G-AJR74166101
...
105B
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
105D
Skirt,lower L-G-5070JA3002Y
...
105G
Skirt,lower L-G-5070JA3002A
...
106A
Hinge Assembly,lower L-G-AEH73998405
...
106B
Hinge Assembly,lower L-G-AEH73998406
...
120A
Duct Assembly,multi L-G-ADJ73632124
...
120B
Duct Assembly,connector L-G-ADJ73632216
...
120G
Deodorizer Assembly L-G-ACX72949205
...
143A
Refrigerator Cover Assembly L-G-ACQ85959312
...
145A
Holder,shelf L-G-MEG63160005
...
145B
Holder,shelf L-G-MEG63146201
...
145C
Supporter,holder L-G-MJH62740701
...
145D
Supporter,holder L-G-MJH62740801
...
145E
Guide Assembly,rail L-G-AEC73658001
...
145F
Guide Assembly,rail L-G-AEC73658002
...
145G
Guide Assembly,rail L-G-AEC73658003
...
145H
Guide Assembly,rail L-G-AEC73658004
...
146A
Holder Assembly,bracket L-G-AEJ73660001
...
146B
Plate Assembly,center L-G-AGU73972110
...
146C
Plate Assembly,center L-G-AGU74008301
...
158A
Refrigerator Lamp Cover L-G-MCK67195101
...
158C
Refrigerator Temperature Sensor L-G-EBD60925804
...
207A
Refrigerator Hinge Cover L-G-MCK67917603
...
207B
Refrigerator Hinge Cover L-G-MCK68184709
...
262B
Hinge Assembly,center L-G-AEH74377504
...
262E
Refrigerator Spanner Wrench L-G-MHU38218908
...
262H
Hinge Assembly,center L-G-AEH74377503
...
270A
Cover Assembly,hinge L-G-ACQ86948303
...
270B
Cover Assembly,hinge L-G-ACQ86948323
...
271D
Hinge Assembly,upper L-G-AEH73998907
...
271E
Refrigerator Hinge L-G-AEH73998906
...
281H
Tray,drain L-G-MJS62614401
...
282G
Cap,duct L-G-MBL65039903
...
282H
Cap,duct L-G-MBL66840101
...
300A
Compressor,set Assembly L-G-TCA36691610
...
301A
Refrigerator Condenser Coil L-G-ACG73645002
...
302B
Evaporator Assembly L-G-ADL73980915
...
302C
Evaporator Assembly L-G-ADL73881005
...
303A
Thermistor Assembly,ptc L-G-EBG63205831
...
303C
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
305B
Refrigerator Roller L-G-MHA62513601
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
308A
Refrigerator Drain Pan L-G-MJS62233503
...
308B
Guide,fan L-G-MEA42772903
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
317A
Drier Assembly L-G-ADH73590304
...
318A
Drier Holder L-G-4930JA3034C
...
332C
Grille Assembly,fan L-G-AEB73784615
...
332E
Shroud,freezer L-G-MHN62562401
...
400A
Controller Assembly L-G-ACM73919220
...
401A
Controller Assembly L-G-ACM73919209
...
403B
Refrigerator Condenser Fan Motor Assembly L-G-EAU62025701
...
404C
Motor Assembly,dc L-G-EAU64824402
...
404D
Cover Assembly,sensor L-G-ACQ73244005
...
404E
Motor Assembly,dc L-G-EAU64824402
...
405E
Shroud,refrigerator L-G-MHN62482301
...
405J
Refrigerator Lamp Cover L-G-MCK67195001
...
406A
Power Cord Assembly L-G-EAD62329149
...
406B
Refrigerator Door Switch L-G-EBF61314804
...
406D
Refrigerator Door Holder L-G-MEG63261302
...
408A
Heater,sheath L-G-MEE62225120
...
408B
Heater,sheath L-G-MEE62105217
...
408C
Tray Assembly,drain L-G-3391JJ2013N
...
408D
Refrigerator Evaporator Drip Pan L-G-3391JJ2013J
...
409D
Refrigerator Led Light Assembly L-G-EAV61916703
...
409F
Refrigerator Freezer Light Board L-G-EAV61916704
...
409H
Refrigerator Led Light L-G-EAV61572001
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
500A
Pcb Assembly,main L-G-EBR80382501
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
502A
Cover Assembly,pcb L-G-3551JA2144V
...
503D
Refrigerator Sensor Cover L-G-MCK67228501
...
610F
Pcb Assembly L-G-EBR71326804
...
619D
Pcb Assembly L-G-AJU73872501
...
624C
Cover,filter L-G-MCK66849403
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Filter Assembly,head L-G-ADQ73673605
...
626A
Refrigerator Water Filter Outer Cover L-G-MCK66584901

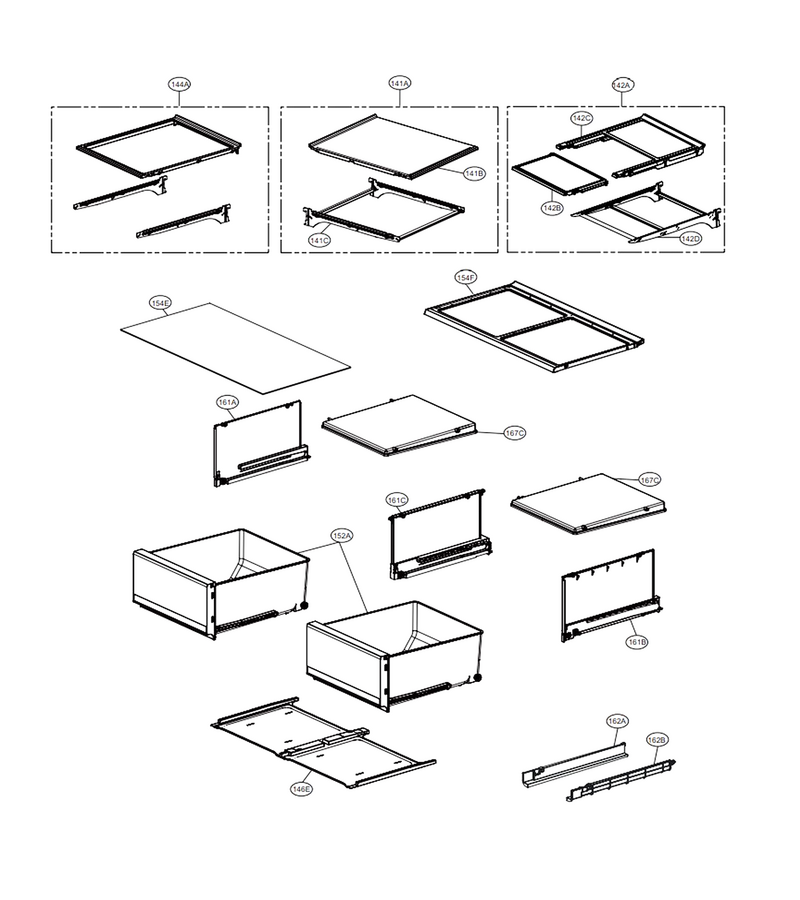

Drawers And Vegetable Room Part

...
...
141A
Shelf Assembly,refrigerator L-G-AHT72910322
...
141B
Shelf Assembly,refrigerator L-G-AHT73573828
...
141C
Shelf Assembly,net L-G-AHT73554302
...
142A
Shelf Assembly,refrigerator L-G-AHT73234041
...
142B
Shelf Assembly,refrigerator L-G-AHT73574019
...
142C
Shelf Assembly,refrigerator L-G-AHT73573916
...
142D
Shelf Assembly,net L-G-AHT73554301
...
144A
Shelf Assembly,refrigerator L-G-AHT73233944
...
146E
Supporter,cover Tv L-G-MJH62939701
...
152A
Tray Assembly,vegetable L-G-AJP73654624
...
154E
Shelf,glass L-G-MHL63391601
...
154F
Cover Assembly,tv L-G-ACQ86036109
...
161A
Guide Assembly,rail L-G-AEC73657803
...
161B
Guide Assembly,rail L-G-AEC73657804
...
161C
Guide Assembly,rail L-G-AEC73657702
...
162A
Refrigerator Guide Rail L-G-MEA62954201
...
162B
Guide Rail L-G-MEA62954202
...
167C
Cover,magic Room L-G-MCK67570601

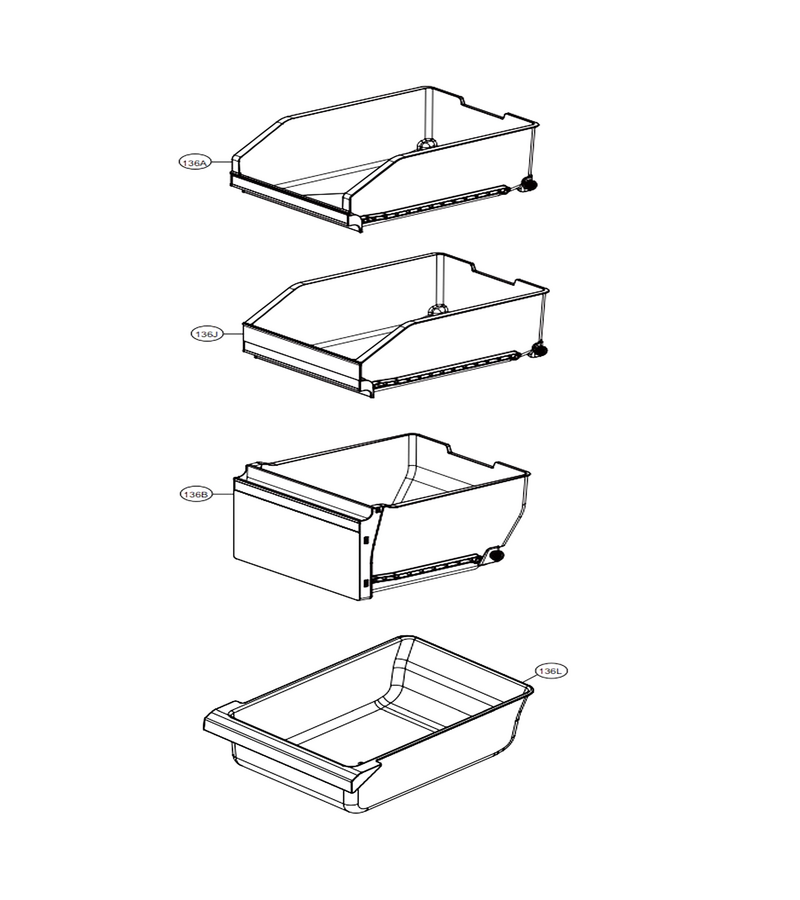

F-Room Drawer Part

...
...
136A
Tray Assembly,drawer L-G-AJP73654823
...
136B
Tray Assembly,drawer L-G-AJP73654706
...
136J
Tray Assembly,drawer L-G-AJP73654825
...
136L
Tray,freezer L-G-MJS63552001

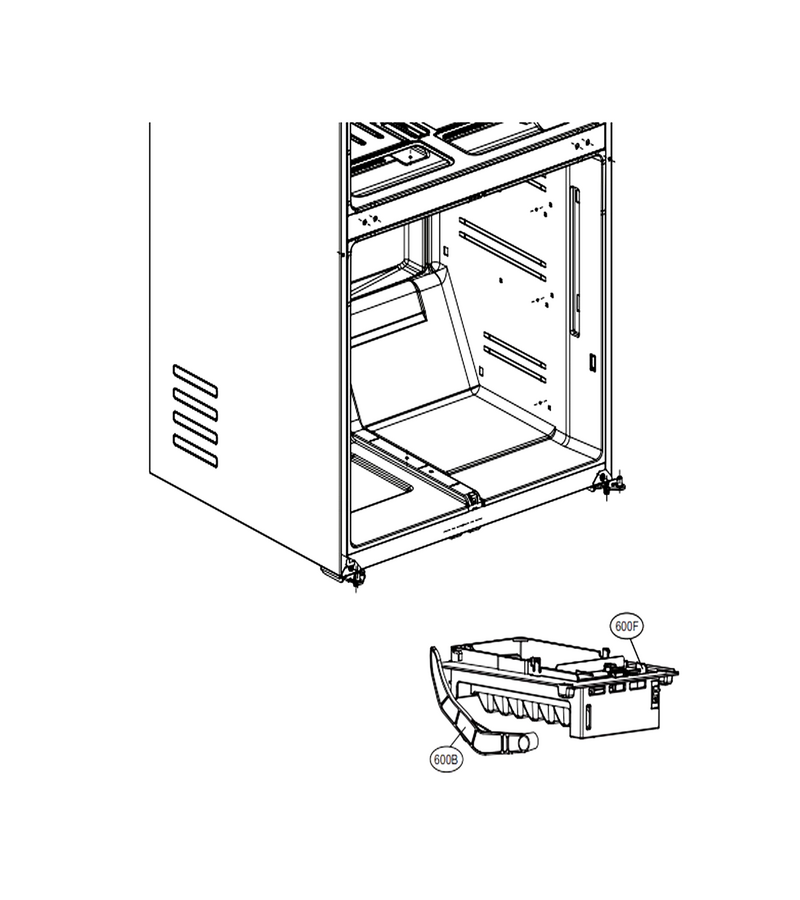

Ice Maker & Ice Bin Parts

...
...
600B
Refrigerator Ice Maker Shut-Off Arm L-G-4510JA3003D
...
600F
Ice Maker Assembly,kit L-G-AEQ72909602

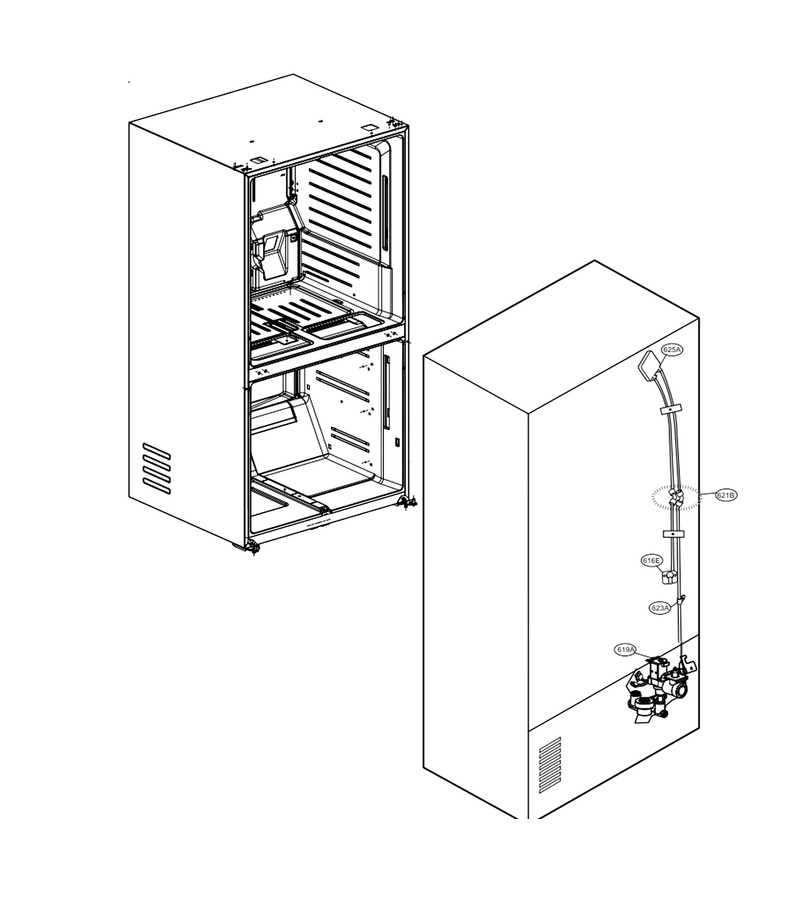

Valve & Water Tube Parts

...
...
616E
Holder,pipe L-G-MEG64339501
...
619A
Valve,water L-G-5220JB2010W
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
625A
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
