product name

LG LMVH1711BD.CBDELGA

Model: LMVH1711BD.CBDELGA

Save Part Not Listed?
product name

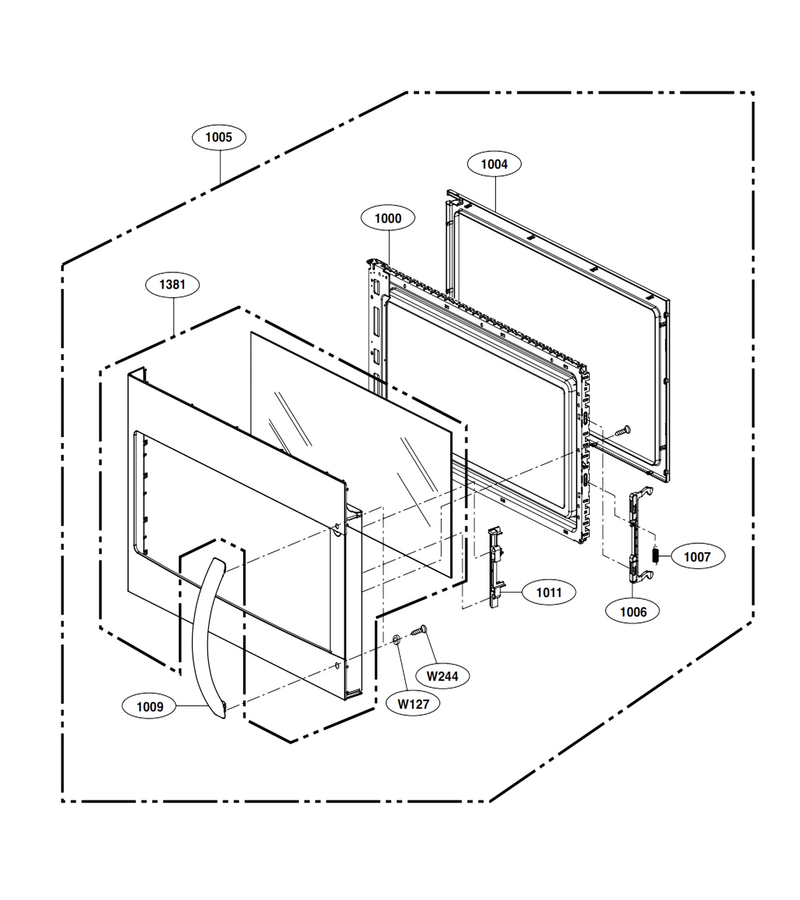

Door Parts

...
...
W244
Screw L-G-1MTC0502616
...
1004
Cover,choke L-G-3552W0A001E
...
1005
Door Assembly,full L-G-ADC67735712
...
1006
Locker L-G-MFG61841302
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1009
Handle,door L-G-MEB42441402
...
1011
Baffle L-G-MAE51773002
...
1381
Door Assembly,sub L-G-ADC76365802

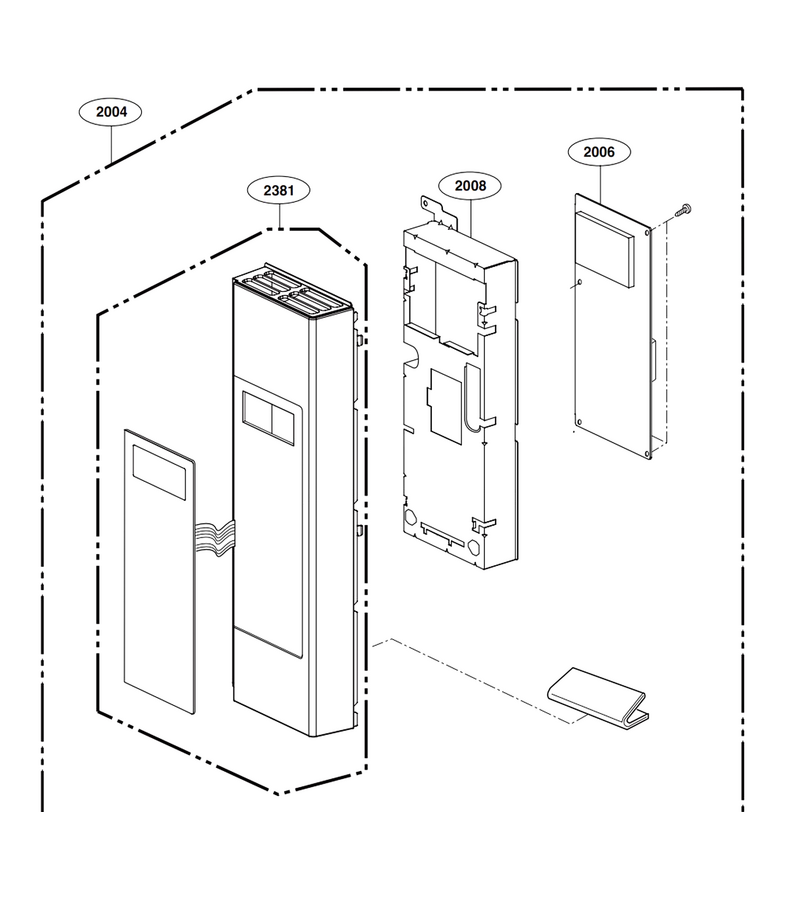

Controller Parts

...
...
2004
Controller Assembly,keypad L-G-ACM67735812
...
2006
Pcb Assembly,main L-G-EBR80109206
...
2008
Bracket,control Panel L-G-MAZ51778902
...
2381
Parts Assembly L-G-383EW1A123W

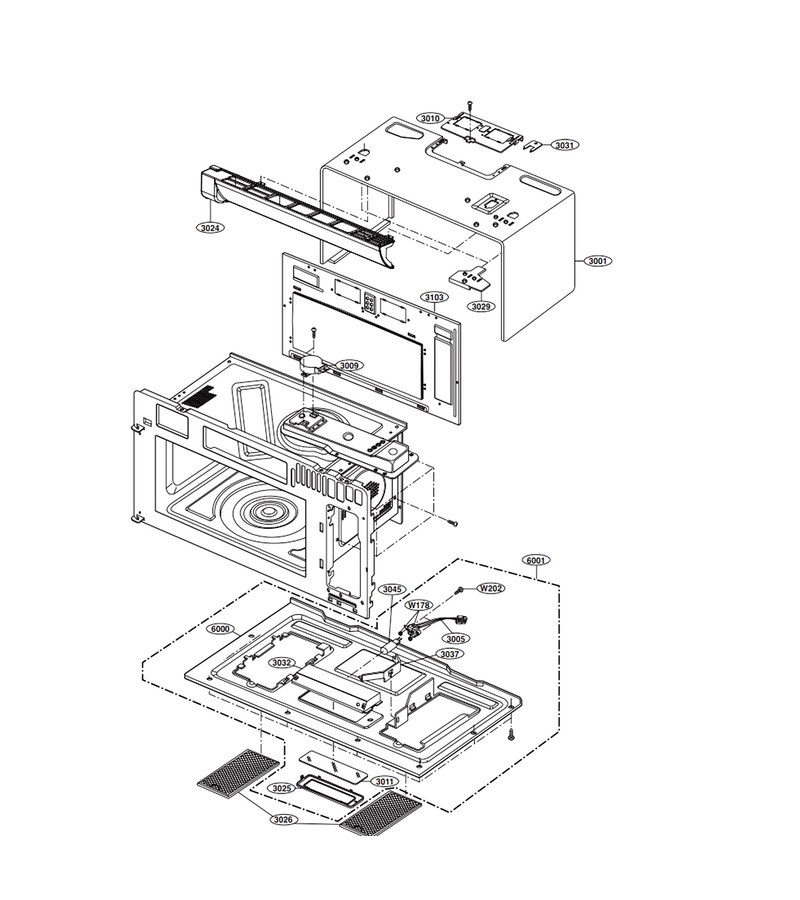

Oven Cavity Parts

...
...
W178
Nut,common L-G-FAD33211301
...
W202
Screw L-G-1MPC0303118
...
3001
Case,flat L-G-MBN61874806
...
3005
Holder Assembly L-G-4931W1A009A
...
3009
Motor L-G-6549W1S002G
...
3010
Plate L-G-4960W1A008G
...
3011
Window,glass L-G-MKC55508801
...
3024
Grille,vent L-G-MDX61171703
...
3025
Bracket,lamp L-G-4810W2T003E
...
3026
Microwave Grease Filter L-G-5230W1A012C
...
3029
Microwave Installation Bracket L-G-4810W1A149A
...
3031
Cover,power Cord L-G-3550W1A001A
...
3032
Reflector L-G-3034W1A008D
...
3037
Supporter L-G-3740W2A003C
...
3045
Lamp,halogen L-G-6912A40002J
...
3103
Cover Assembly,rear L-G-3551W1A031G
...
6000
Plate,base L-G-3302W0A028M
...
6001
Plate Assembly,base L-G-AGU30055512

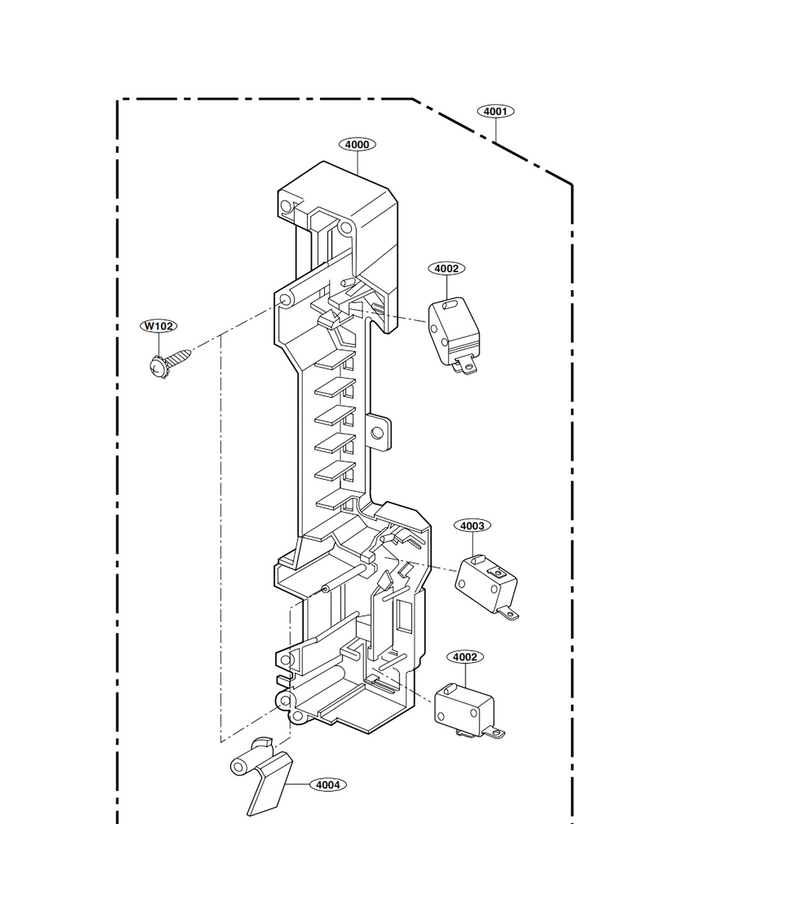

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A013R
...
4001
Holder Assembly,locker L-G-AEJ75540901
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W4A005F

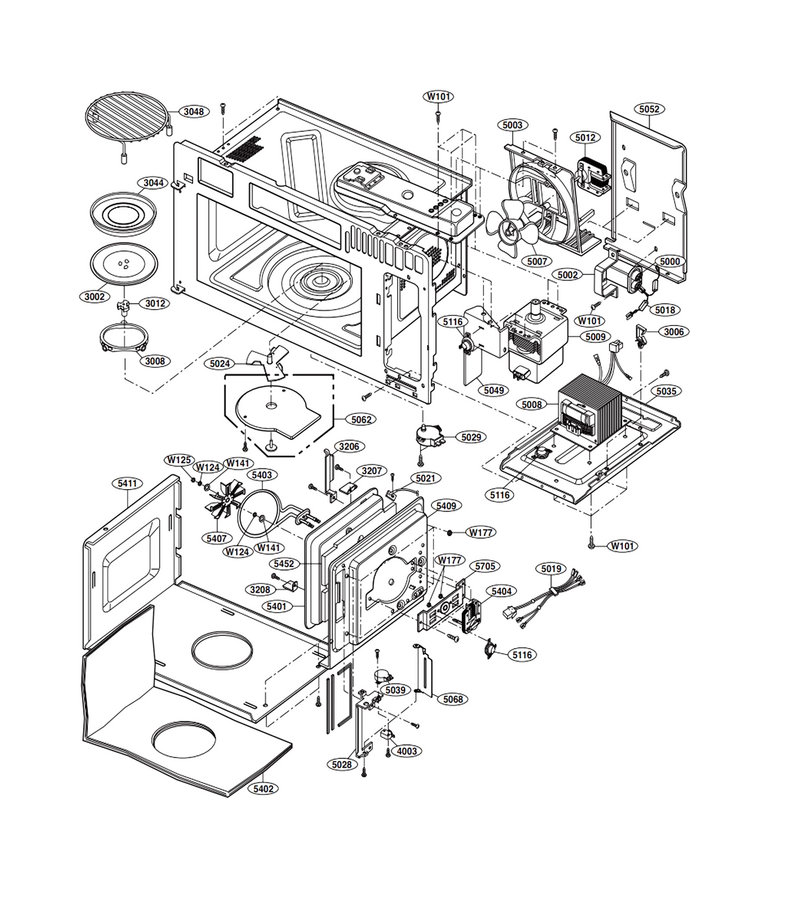

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W124
Washer L-G-1WSD0400032
...
W141
Washer L-G-1WPL0500032
...
W177
Drawer Nut L-G-4B71028B
...
3008
Turntable Assembly L-G-5889W2A012P
...
3044
Microwave Turntable Tray L-G-3390W2P002F
...
3206
Bracket,heater L-G-4810W1A243B
...
3207
Bracket,heater L-G-4810W1A244B
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810WRC002A
...
5003
Guide,suction L-G-4974W1A032D
...
5007
Blower Fan L-G-2B72279B
...
5009
Magnetron L-G-EAS42812932
...
5018
Cable,assembly L-G-6851W1A001T
...
5019
Harness,single L-G-6877W1A548F
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5024
Fan Assembly L-G-5901W1A003F
...
5028
Bracket,damper L-G-4810W1A234C
...
5029
Microwave Turntable Motor L-G-6549W1S013D
...
5035
Plate,bottom L-G-3300W1A055D
...
5039
Motor, Ac Synchronous L-G-EAU60783501
...
5049
Guide,air L-G-4974W1A028C
...
5052
Guide,air L-G-4974W1A029C
...
5062
Cover Assembly,stirrer Fan L-G-3551W1A032C
...
5068
Bracket,damper L-G-4810W1A235C
...
5116
Thermostat L-G-6930W1A003Z
...
5401
Chamber L-G-3504W1A005E
...
5407
Fan,convection L-G-5900W3A004E
...
5409
Insulator L-G-5012W0A010E
...
5411
Insulator Assembly L-G-5013W1A011D
...
5705
Plate,side Heater L-G-3300W1A049C

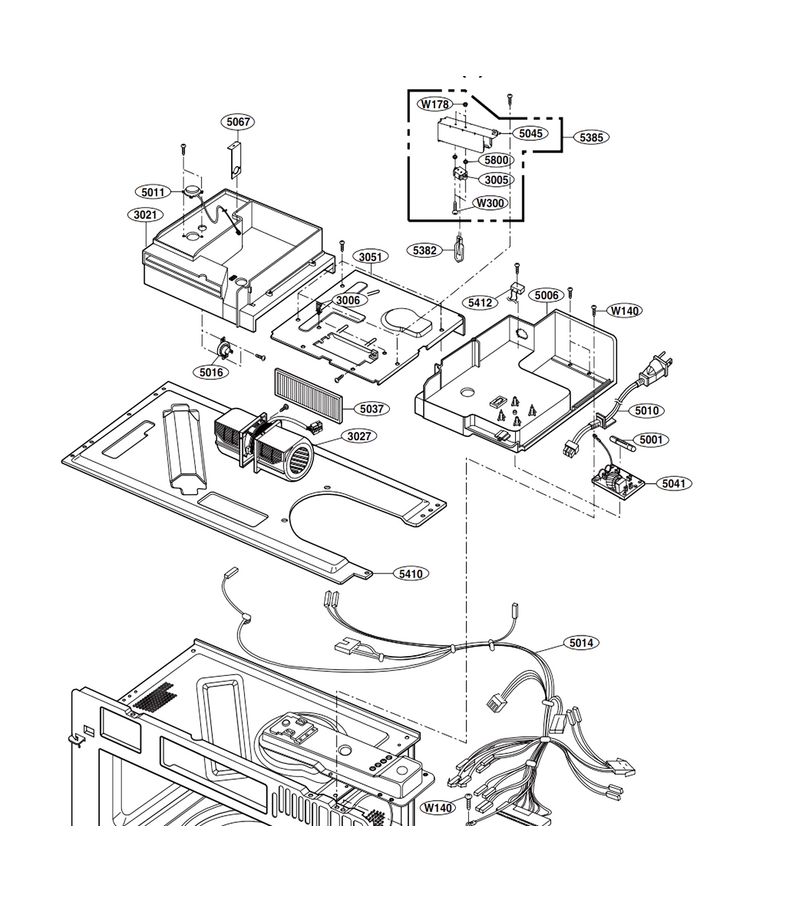

Interior Parts (ii)

...
...
W178
Nut,common L-G-FAD33211301
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
3006
Holder L-G-4B72944B
...
3021
Guide,air L-G-5264W0A011D
...
3027
Motor, Ac Ventilation L-G-EAU56778701
...
3051
Guide,air L-G-5264W1A031C
...
5001
Fuse,drawing L-G-3B74133Q
...
5006
Duct L-G-5208W0A016C
...
5010
Power Cord Assembly L-G-6411W1A039L
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A603L
...
5016
Microwave Thermal Cut-Off L-G-6930W1A003R
...
5037
Microwave Charcoal Filter L-G-5230W2A003A
...
5041
Filter Assembly L-G-EAM62952102
...
5067
Bracket,thermostat L-G-MAZ62369502
...
5382
Parts Assembly L-G-383EW1A077G
...
5385
Parts Assembly L-G-AGM30919405
...
5410
Insulator L-G-5012W0A011D
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

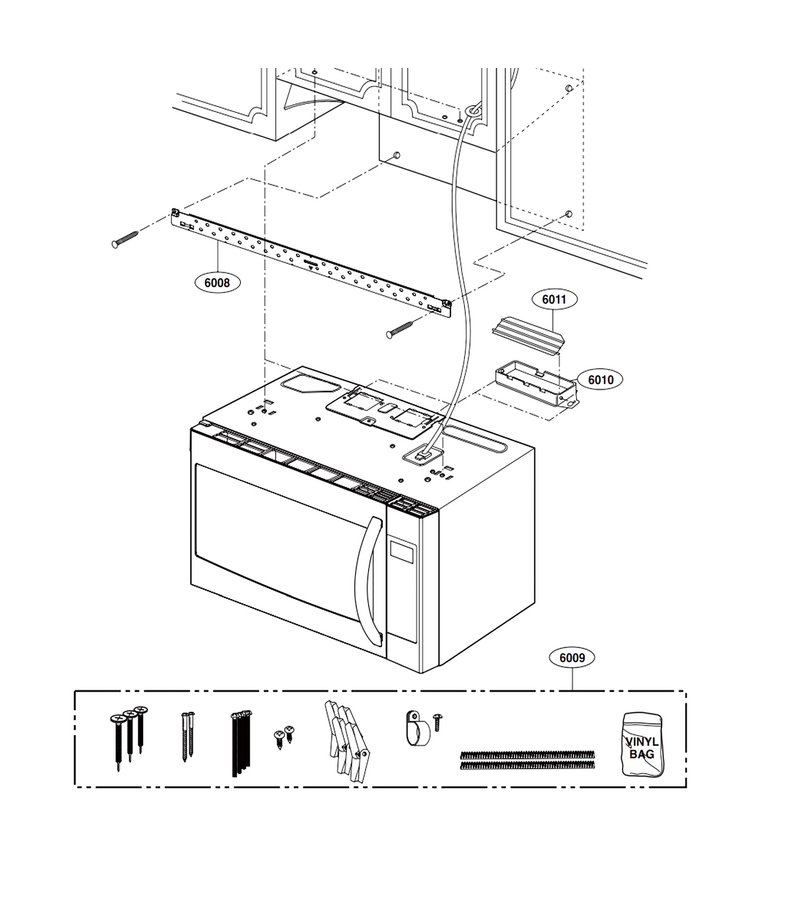

Installation Parts

...
...
6008
Plate,mount L-G-3300W0A045A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043H
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
