LG LMV2061SB.ABKELCA

Model: LMV2061SB.ABKELCA

Save Part Not Listed?
product name

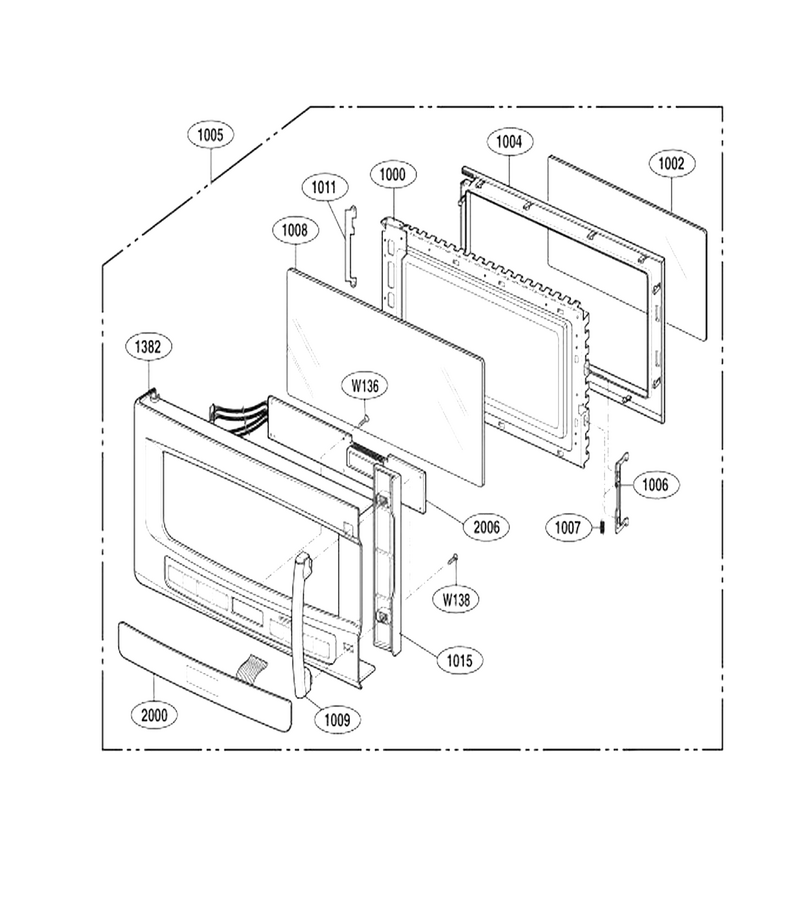

Door Parts (i)

...
...
W136
Screw L-G-1TPL0302418
...
1000
Microwave Door Inner Frame L-G-3213W0A003D
...
1002
Seal Tape L-G-3536WRA001T
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-3581W1A555F
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Microwave/hood Glass L-G-4890W1A054L
...
1009
Handle L-G-3650W1A178B
...
1011
Baffle L-G-4760W1A018A
...
1015
Door Docor L-G-3806W1A132B
...
1382
Door L-G-383EW1A130B
...
2000
Membrane L-G-3506W1A799E
...
2006
Pcb Assembly,sub L-G-6871W1A459B

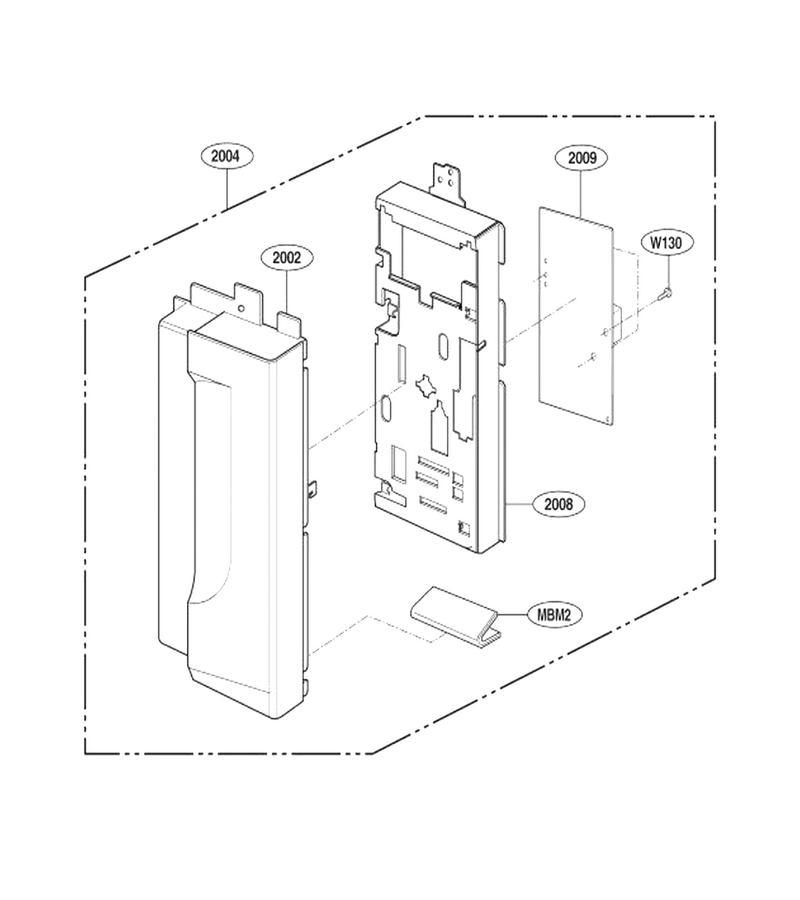

Controller Parts (i)

...
...
MBM2
Technical Card L-G-3840W1T166B
...
W130
Microwave Screw L-G-1TPL0402618
...
2002
Control Panel L-G-3720W0C303B
...
2004
Controller Assembly,keypad L-G-4781W1M438B
...
2008
Bracket, C L-G-4810W1P009A
...
2009
Part L-G-6871W1A460A

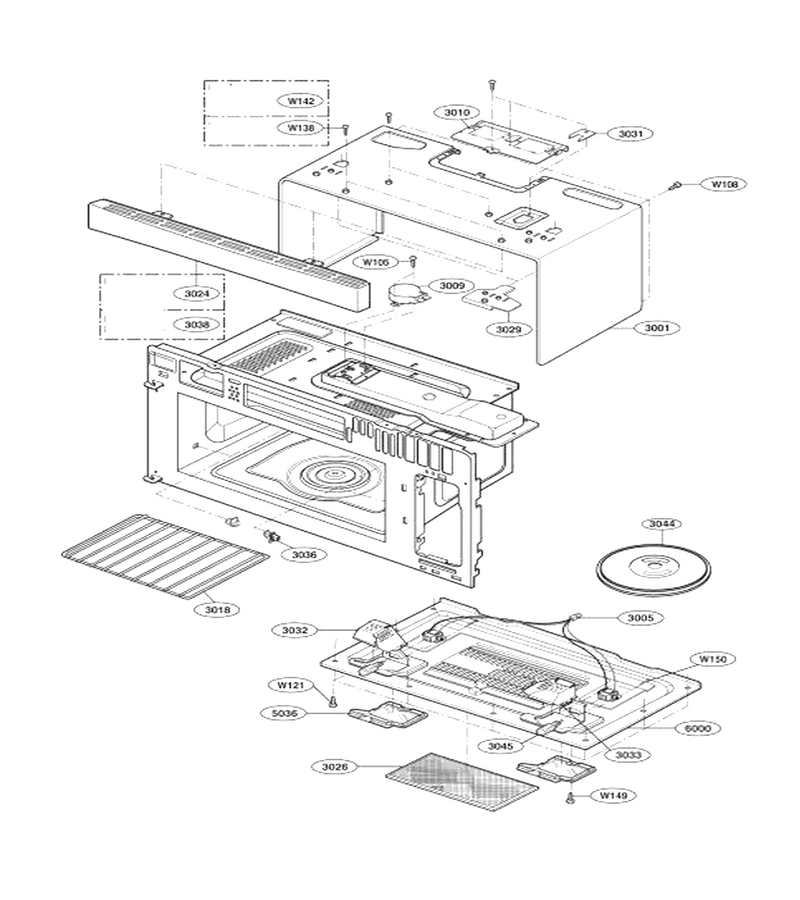

Oven Cavity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W121
Microwave Screw L-G-1TTL0402422
...
W142
Screw L-G-1TTL0402816
...
W149
Screw L-G-1TTL0402622
...
3001
Black Case L-G-3112W0F013G
...
3005
Holder Assembly L-G-4931W1A011E
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3018
Microwave Cooking Rack L-G-5026W1A052B
...
3024
Microwave Vent Grille L-G-3530W0A053B
...
3026
Microwave/hood Grease Filter L-G-5230W2A004B
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3032
Reflector L-G-3034W2A003B
...
3033
Reflector L-G-3034W2A002B
...
3036
Holder L-G-4930W1A026A
...
3044
Metal Tray L-G-3390W1A024B
...
5036
Microwave Surface Light Lens L-G-3550W2L001A
...
6000
Base Plate L-G-3302W0A038B

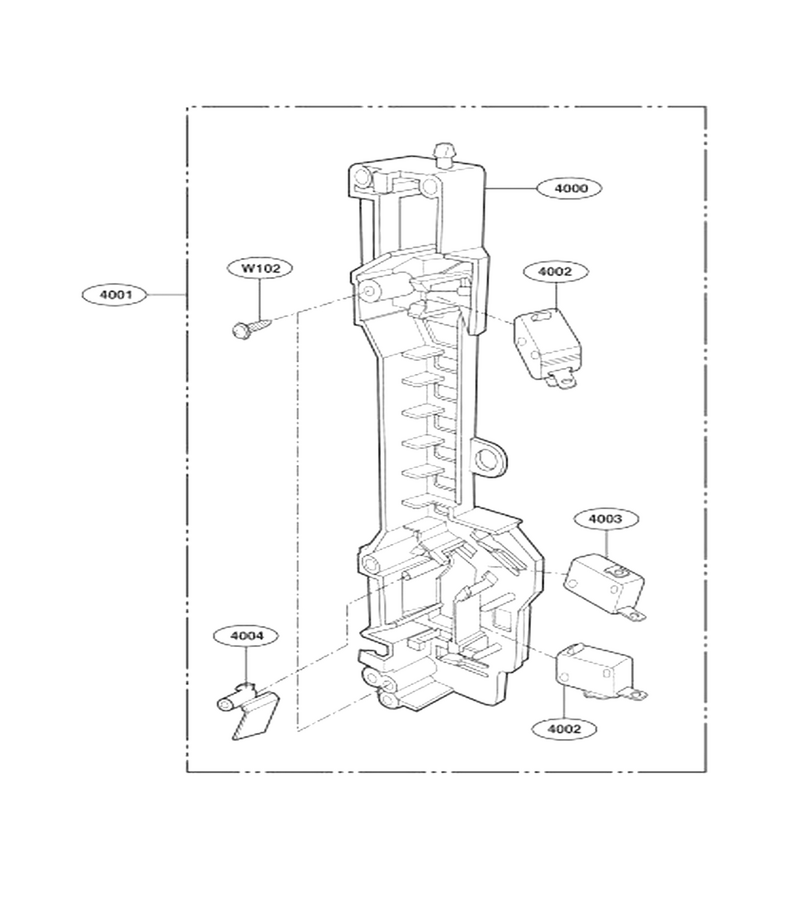

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Latch Assembly L-G-3501W1A016M
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A

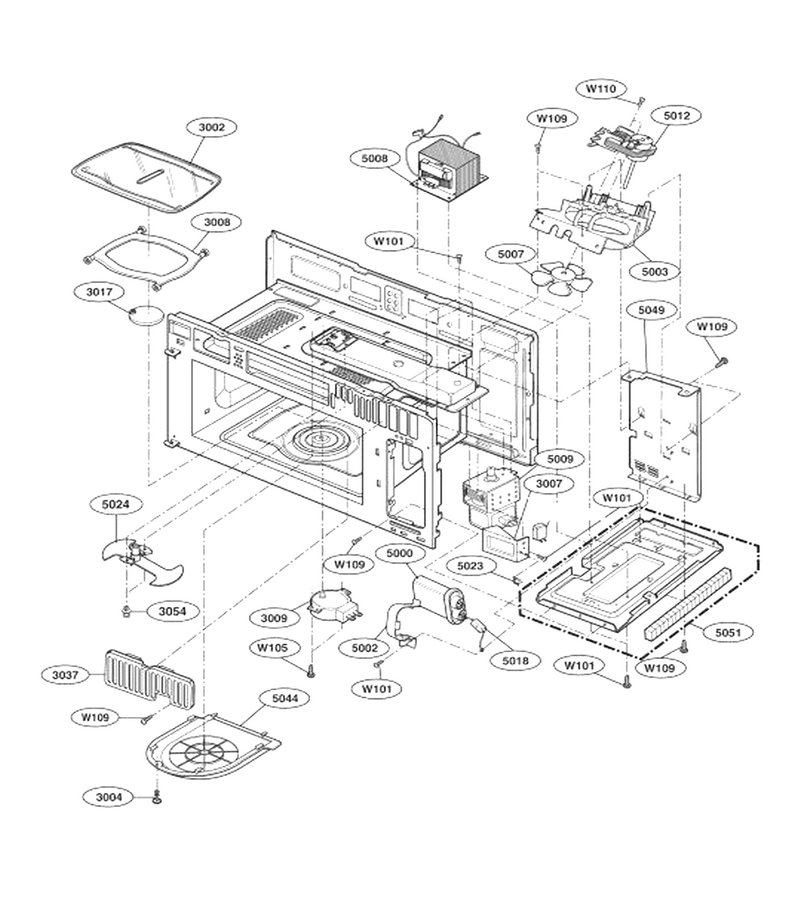

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
3002
Glass Tray L-G-3390W0A001A
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3007
Air Guide L-G-4974W1A043B
...
3008
Microwave Turntable Ring L-G-5889W1A007A
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3017
Ring Assembly L-G-4351W1A001C
...
3037
Supporter L-G-3740W1A025A
...
3054
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
5000
Microwave High-Voltage Capacitor L-G-6120W3H003G
...
5002
Bracket L-G-4810WRC002A
...
5003
Microwave/hood Guide L-G-4974W1A035A
...
5007
Fan L-G-5900W1A027B
...
5008
Microwave High-Voltage Transformer L-G-6170W1D100C
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5012
Circulating Motor L-G-6549W1F009H
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5023
Dishwasher Thermostat L-G-6930W1A003K
...
5024
Microwave Stirrer Fan Blade L-G-5901W1A002A
...
5044
Microwave/hood Cover L-G-3550W1A169A
...
5049
Guide L-G-4974W1A037A
...
5051
Plate Assembly L-G-3301W1A045C

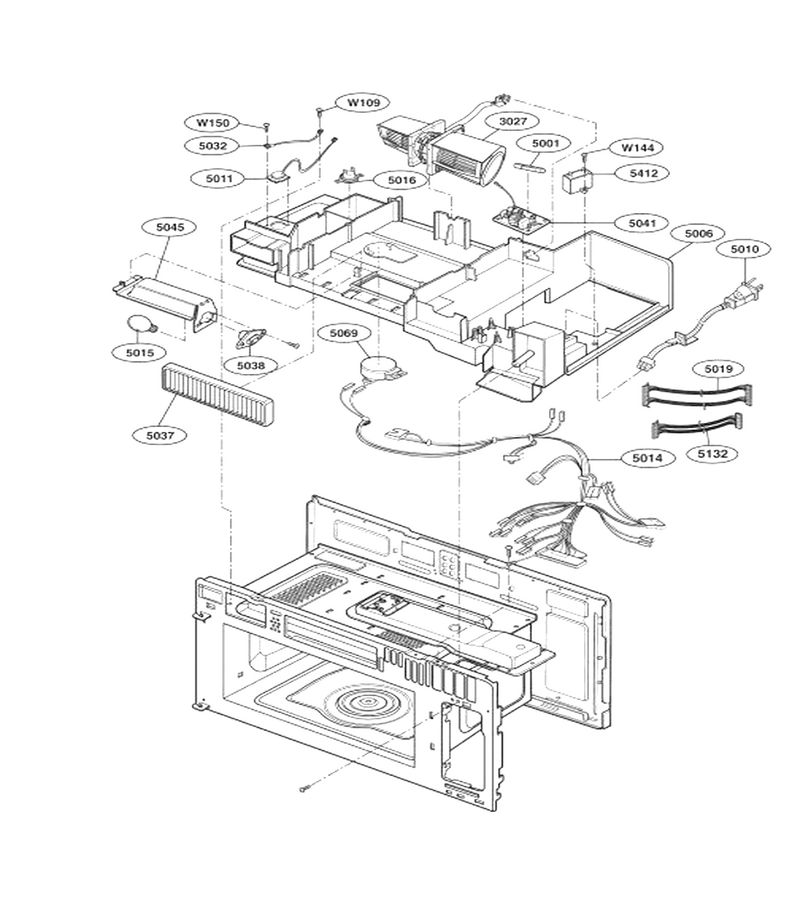

Interior Parts (ii)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
3027
Motor L-G-6549W1V006J
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A019A
...
5010
Power Cord L-G-6411W2A002E
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness L-G-6877W1A579D
...
5015
Microwave Light Bulb L-G-3B70067A
...
5016
Microwave Thermostat L-G-6930WRT003C
...
5019
Microwave Wire Harness L-G-6877W1A453M
...
5032
Ground Wire L-G-3B72342Q
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket L-G-6804W2A001B
...
5041
Microwave Noise Filter L-G-2B72130F
...
5045
Microwave Light Lens Bracket L-G-3550W1A171A
...
5069
Motor L-G-6549W1S002G
...
5132
Harness L-G-6877W1A453L
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

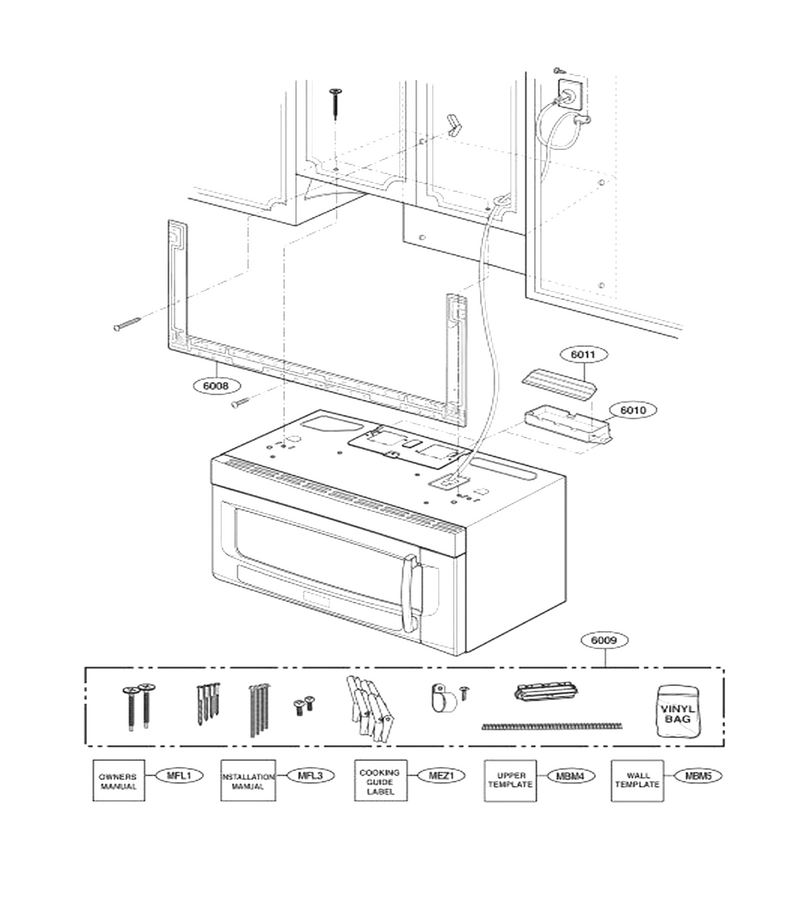

Installation Parts

...
...
MBM4
Card,template L-G-4922W5A069A
...
MBM5
Card,template L-G-4922W5A063A
...
MEZ1
Cooking Guide Label L-G-3850W1D134B
...
MFL1
Manual,owners L-G-3828W5A4632
...
MFL3
Manual,installation L-G-3828W5U0474
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043C
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
