LG LMV2031BD.CBDELGA

Model: LMV2031BD.CBDELGA

Save Part Not Listed?
product name

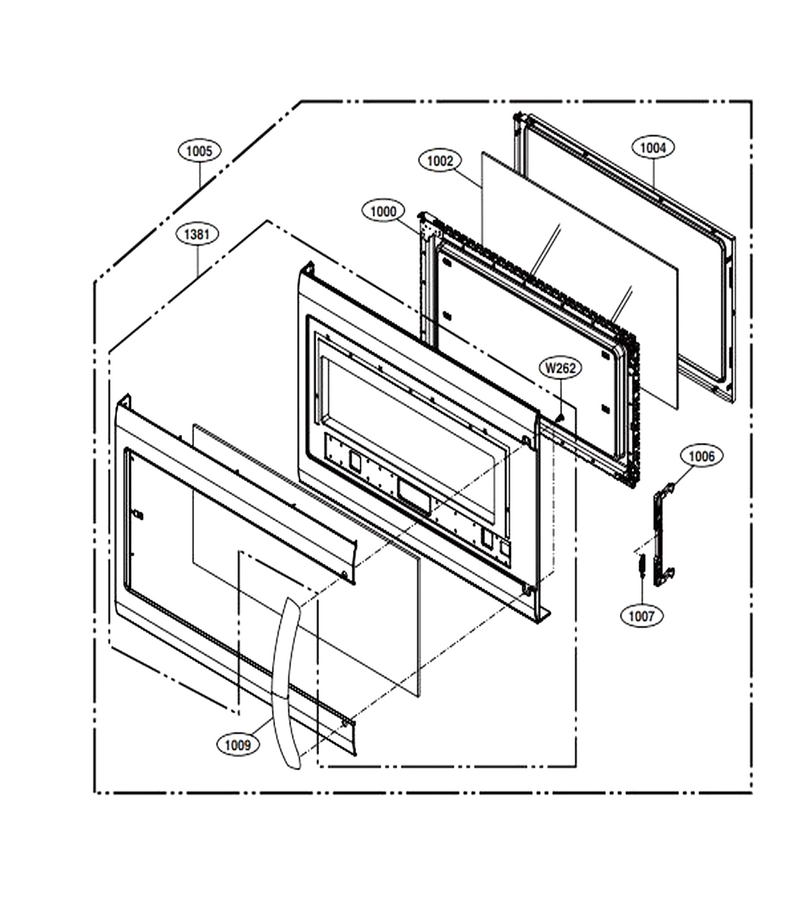

Door Parts

...
...
W262
Screw,customized L-G-FAB30216602
...
1000
Frame Assembly. Door L-G-ADV36545804
...
1002
Tape,sealing L-G-3536W1A012G
...
1004
Cover,choke L-G-3552W1A032J
...
1005
Door Assembly L-G-ADC74347110
...
1006
Locker L-G-MFG61876301
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1009
Door Handle L-G-MEB55508904
...
1381
Parts Assembly L-G-AGM74690908

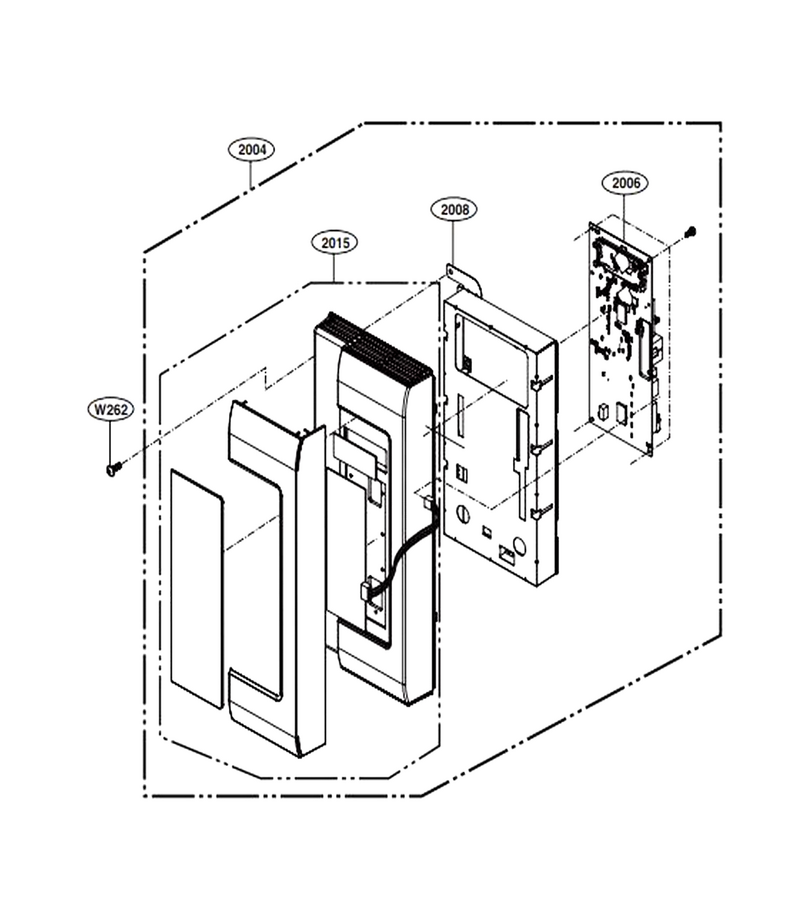

Controller Parts

...
...
W262
Screw,customized L-G-FAB30216602
...
2004
Controller Assembly,keypad L-G-ACM74119046
...
2006
Pcb Assembly,main L-G-EBR77659113
...
2008
Bracket,control Panel L-G-MAZ62063901
...
2015
Parts Assembly L-G-AGM74691008

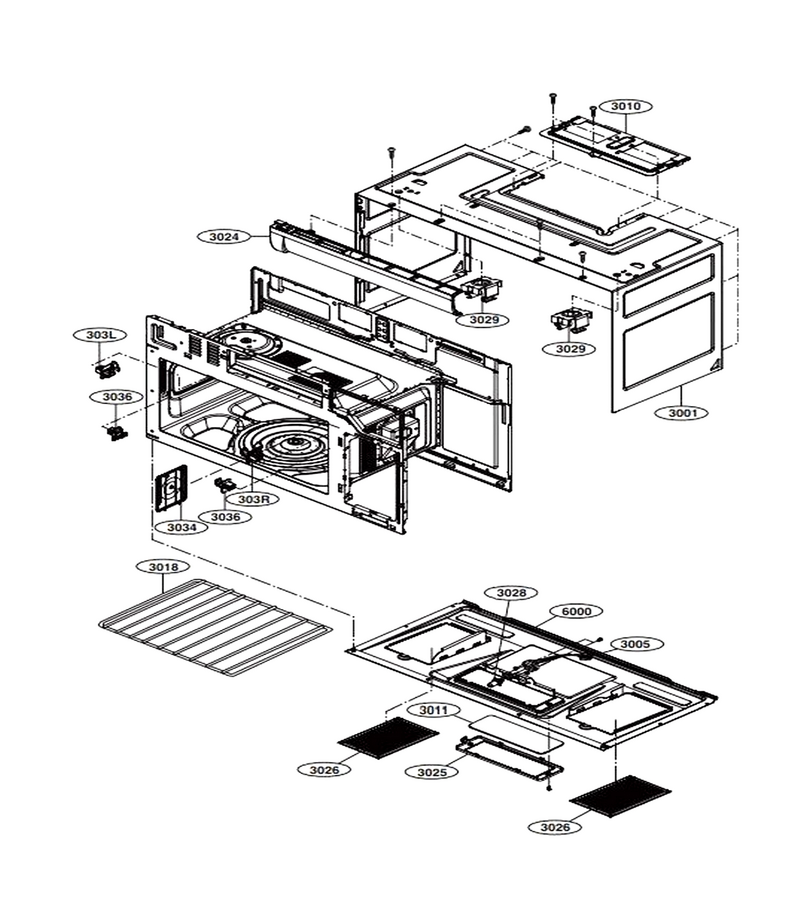

Oven Cavity Parts

...
...
303L
Holder,cook Auxiliary L-G-MEG62698903
...
303R
Holder,cook Auxiliary L-G-MEG62698904
...
3001
Case,u Bending L-G-MBN63104504
...
3005
Holder Assembly L-G-4931W1A011F
...
3010
Plate L-G-MGJ42525102
...
3011
Glass L-G-4890W1A045A
...
3018
Shelf L-G-MHL54382302
...
3025
Bracket,lamp L-G-4810W1A150D
...
3026
Filter,grease L-G-5230W1A012E
...
3028
Lamp,halogen L-G-6912A40002K
...
3029
Holder Assembly L-G-4021W3A001A
...
3034
Cover,resin L-G-3052W2A021D
...
3036
Holder,cook Auxiliary L-G-4930W1A069B
...
6000
Plate,base L-G-MGJ62922401

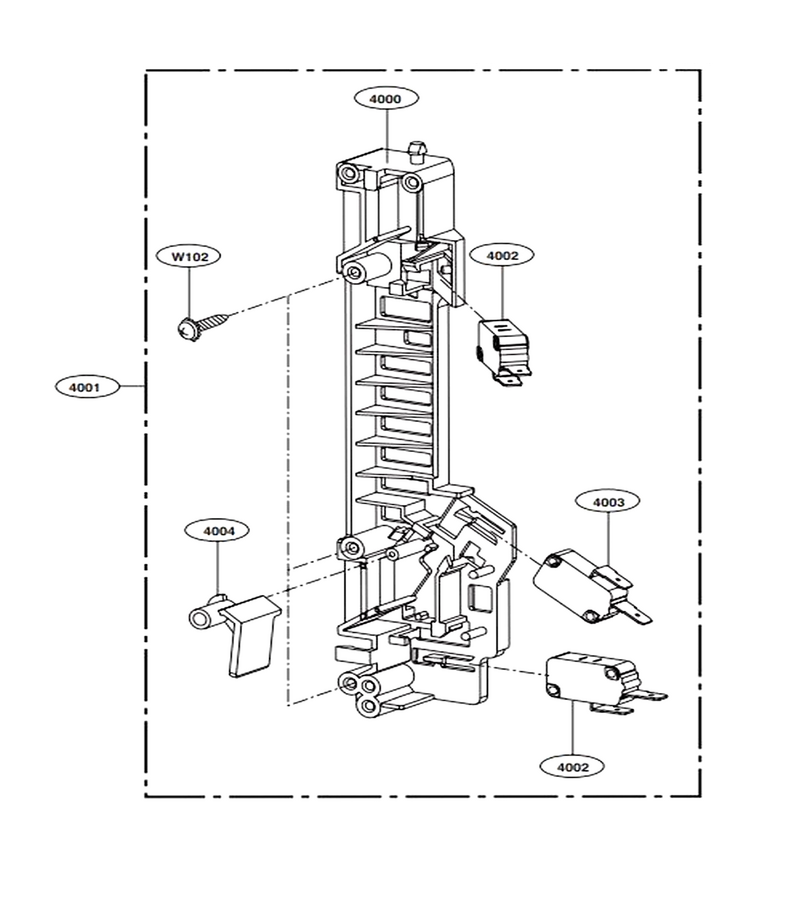

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-MEG61890701
...
4001
Holder Assembly,locker L-G-3501W1A019S
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012B

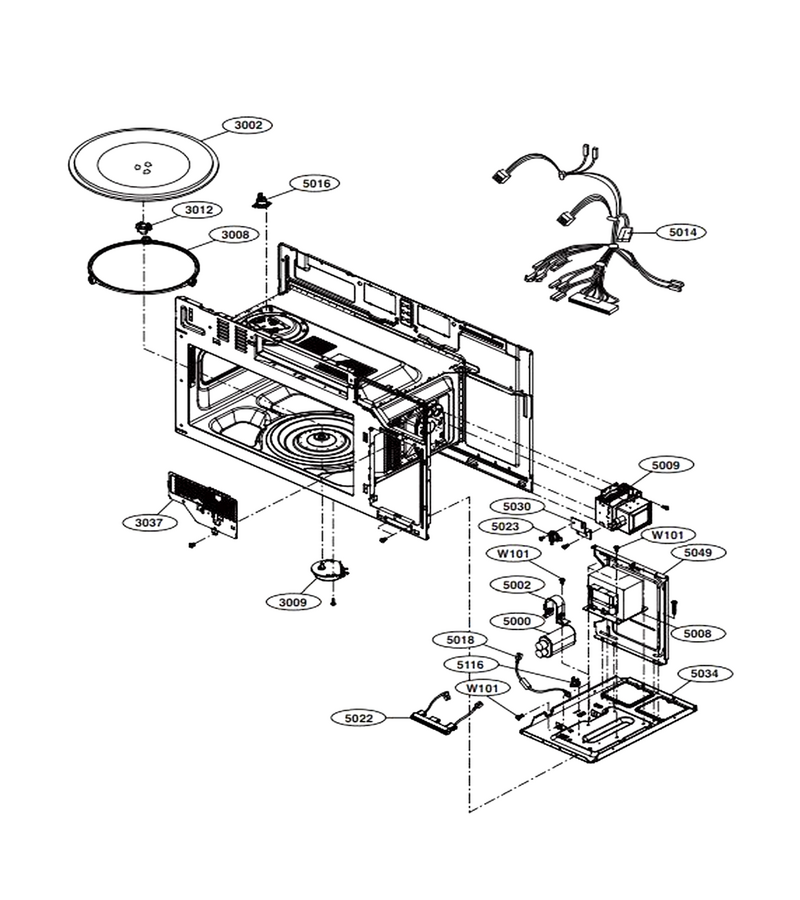

Interior Parts (1)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3008
Turntable Assembly L-G-5889W2A012N
...
3009
Motor, Ac Synchronous L-G-6549W1S013X
...
3012
Shaft,turntable L-G-4370W1A006F
...
3037
Microwave Charcoal Filter L-G-5230W1A003C
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004G
...
5002
Bracket,capacitor L-G-4810W1A141A
...
5008
Transformer,high Voltage L-G-EBJ60664610
...
5009
Magnetron L-G-6324W1A001L
...
5014
Harness,single L-G-EAD62686206
...
5016
Thermostat L-G-6930W1A007K
...
5018
Cable,assembly L-G-6851W1A002E
...
5022
Fuse Assembly L-G-EAF36358316
...
5023
Thermostat L-G-6930W1A007H
...
5030
Bracket,misc L-G-4810W1A180A
...
5034
Plate,bottom L-G-MGJ42959602
...
5049
Guide,air L-G-MEA42959501
...
5116
Thermostat L-G-6930W1A007N

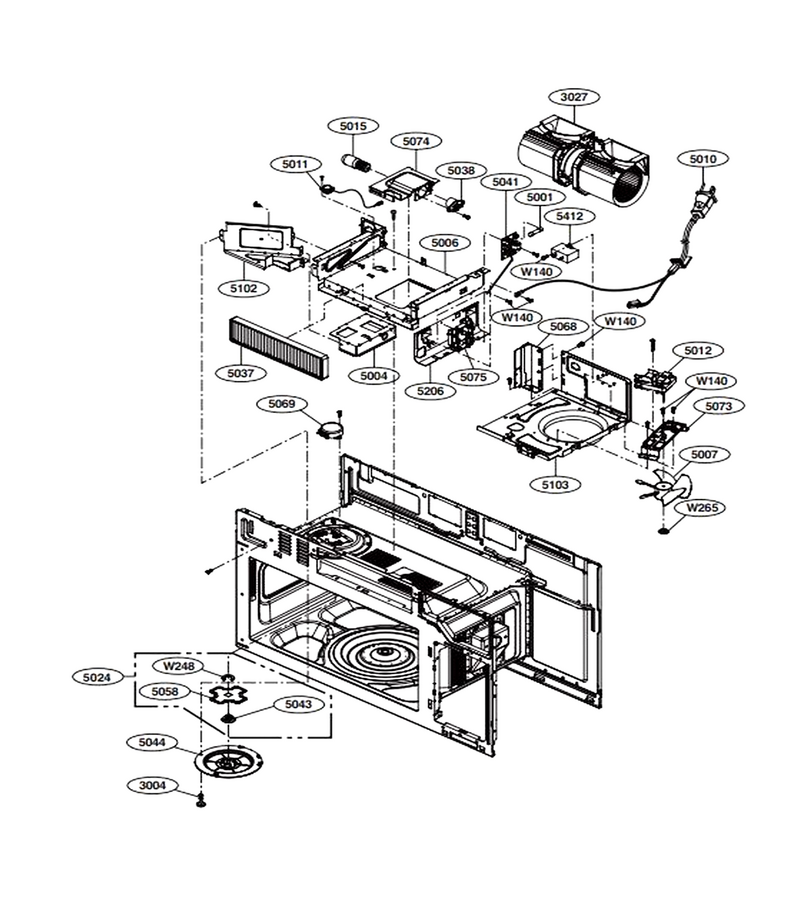

Interior Parts (2)

...
...
W265
Nut,customized L-G-1NZZW1A004D
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Motor, Ac Ventilation L-G-EAU49964804
...
5001
Fuse,time Delay L-G-EAF42072605
...
5004
Bracket,sensor L-G-MAZ64030501
...
5006
Duct L-G-MCZ62854502
...
5007
Fan L-G-5900W1A007C
...
5010
Power Cord Assembly L-G-EAD62027814
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Motor,ac Fan L-G-EAU42744419
...
5015
Microwave Light Bulb L-G-6912W1Z004B
...
5024
Fan Assembly L-G-ADP72973301
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5041
Filter Assembly,noise L-G-ADQ75393201
...
5044
Cover,stirrer Fan L-G-MCK62987001
...
5058
Nut,customized L-G-1NZZW1A004D
...
5068
Bracket L-G-MAZ64128001
...
5069
Motor(circ),synchronous L-G-6549W1S002D
...
5073
Bracket,motor L-G-MAZ62063703
...
5074
Cover,lamp L-G-MCK67667401
...
5075
Supporter,filter L-G-MJH61956601
...
5102
Duct L-G-MCZ63052901
...
5103
Duct L-G-MCZ61912102
...
5206
Bracket L-G-MAZ63737603
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

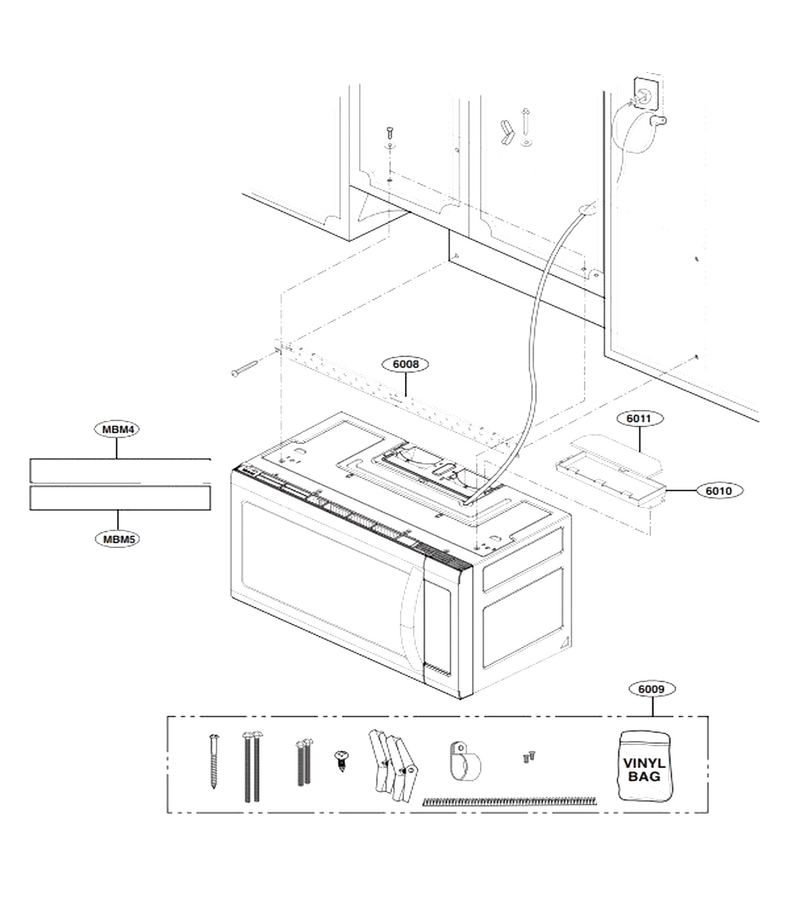

Installation Parts

...
...
MBM4
Card,template L-G-4922W5A057G
...
MBM5
Microwave Wall Mounting Template L-G-4922W5A060B
...
6008
Plate,mount L-G-3300W0A045A
...
6009
Kit Assembly L-G-3861W2A006L
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
