product name

LG LMV1915NVBS.ABSELGA

Model: LMV1915NVBS.ABSELGA

Save Part Not Listed?
product name

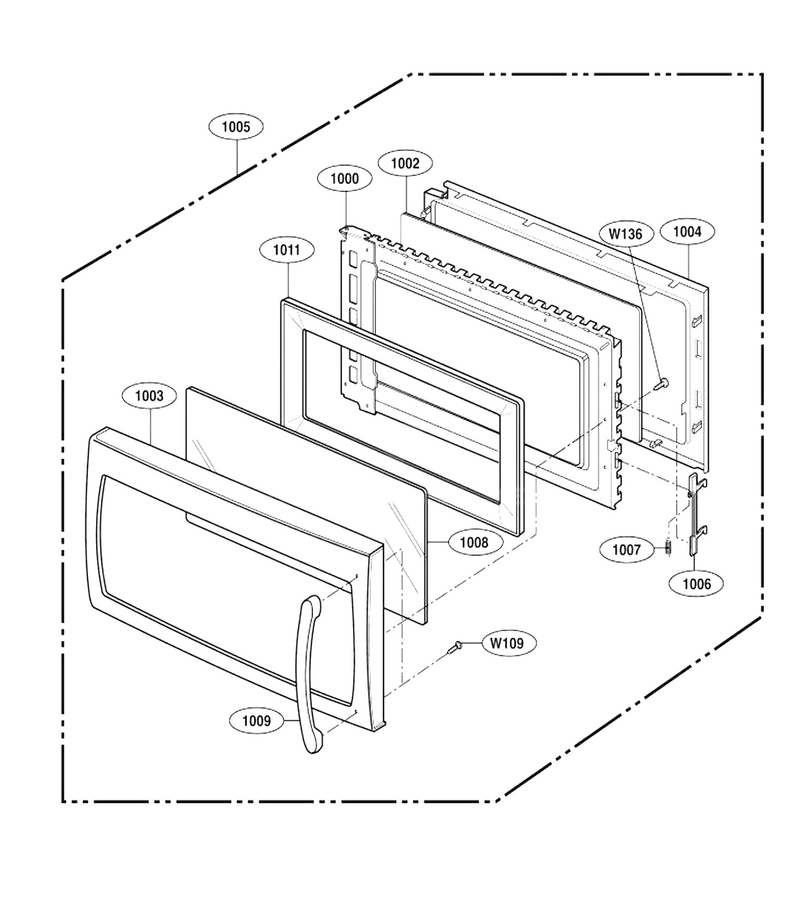

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
1000
Microwave Door Inner Frame L-G-3213W0A003D
...
1002
Seal Tape L-G-3536WRA001T
...
1003
Door Panel L-G-3720W0D165D
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-3581W1A329M
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A008R
...
1009
Handle,?do L-G-3650W1A039D
...
1011
Baffle L-G-4760W0A001D

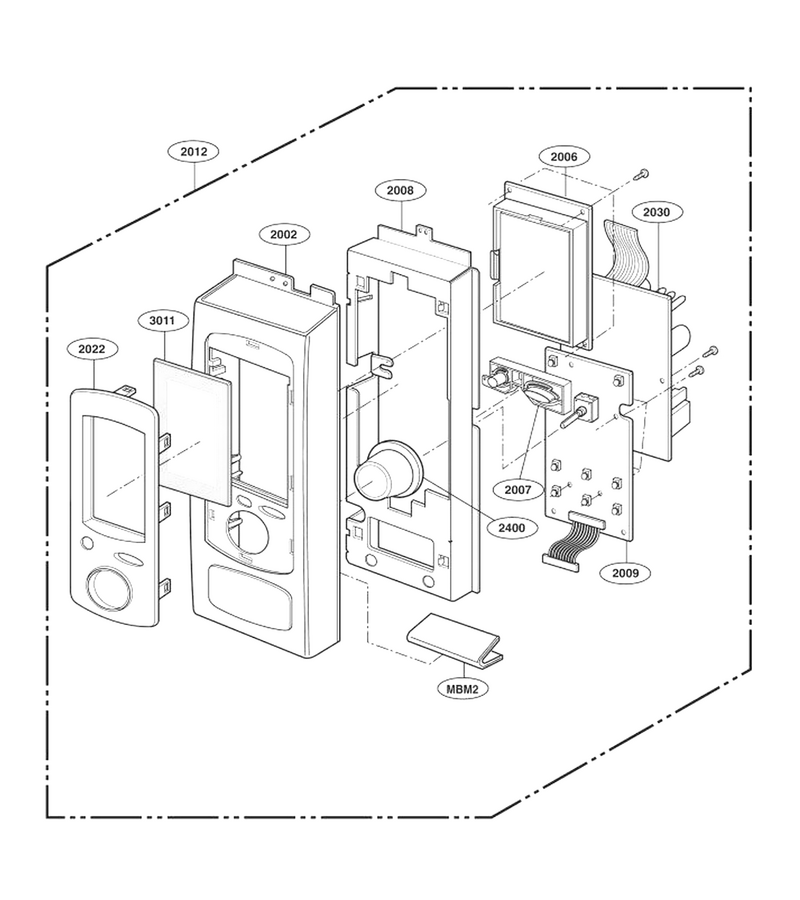

Controller Parts

...
...
MBM2
Card,technical L-G-3840W3T001P
...
2002
Panel,control L-G-3572W0A252C
...
2006
Pcb Assembly,sub L-G-6871W1S030A
...
2007
Button L-G-5020W1A028C
...
2008
Bracket,control Panel L-G-4810W1A018A
...
2009
Pcb Assembly,sub L-G-6871W1S032A
...
2012
Controller Assembly,tact Dial L-G-4781W0S005C
...
2022
Decor,control Panel L-G-3806W1A030C
...
2030
Pcb Assembly,sub L-G-6871W1S031A
...
2400
Knob L-G-4940W1A010C
...
3011
Window,glass L-G-4890W1A008E

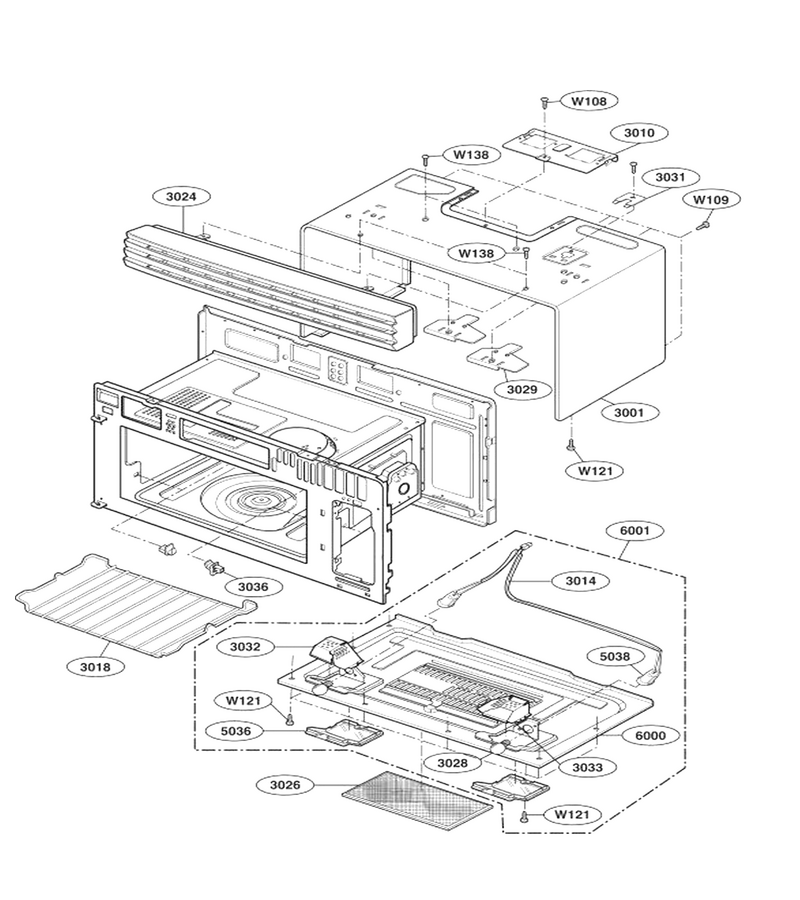

Oven Cavity Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
3001
Flat Case L-G-3112W0F013E
...
3010
Microwave Vent Duct Cover L-G-4960W1A004B
...
3014
Connector L-G-6877W2A004B
...
3018
Shelf L-G-5026W1A053C
...
3024
Grille,vent L-G-3530W0A011D
...
3026
Microwave/hood Grease Filter L-G-5230W2A004B
...
3028
Microwave Light Bulb L-G-6912W3Q001D
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3032
Reflector L-G-3034W2A003B
...
3033
Reflector L-G-3034W2A002B
...
3036
Holder L-G-4930W1A027A
...
5036
Microwave Surface Light Lens L-G-3550W2L001A
...
5038
Microwave Light Socket L-G-6804W3A001A
...
6000
Base Plate L-G-3302W0A021B
...
6001
Base Plate L-G-3303W1A047B

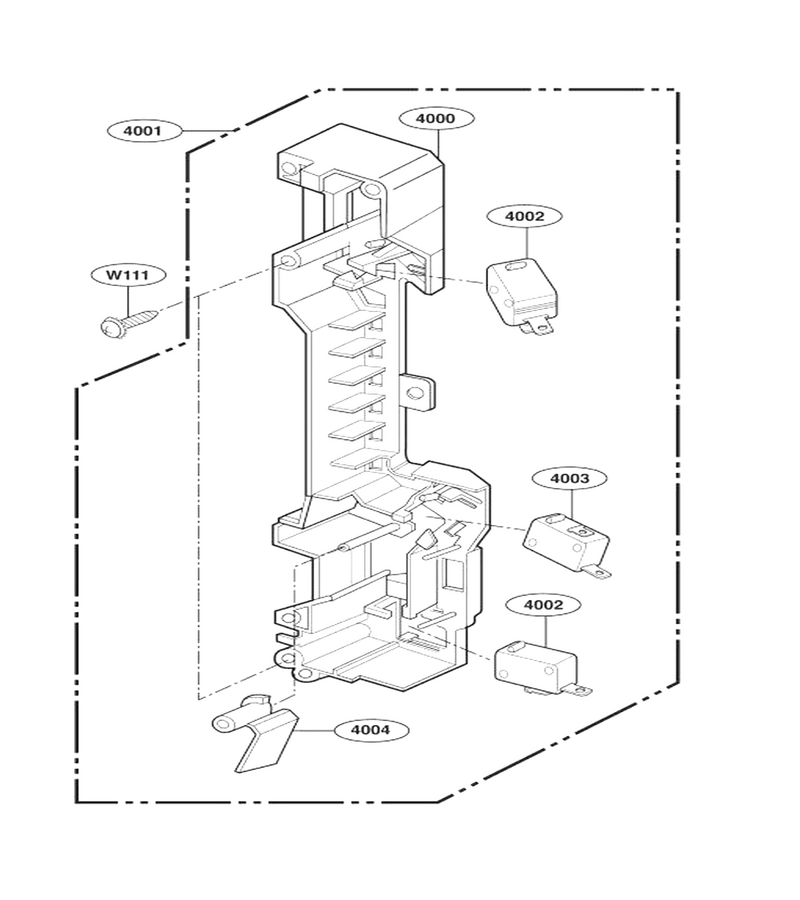

Latch Board Parts

...
...
W111
Screw L-G-4B70188B
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

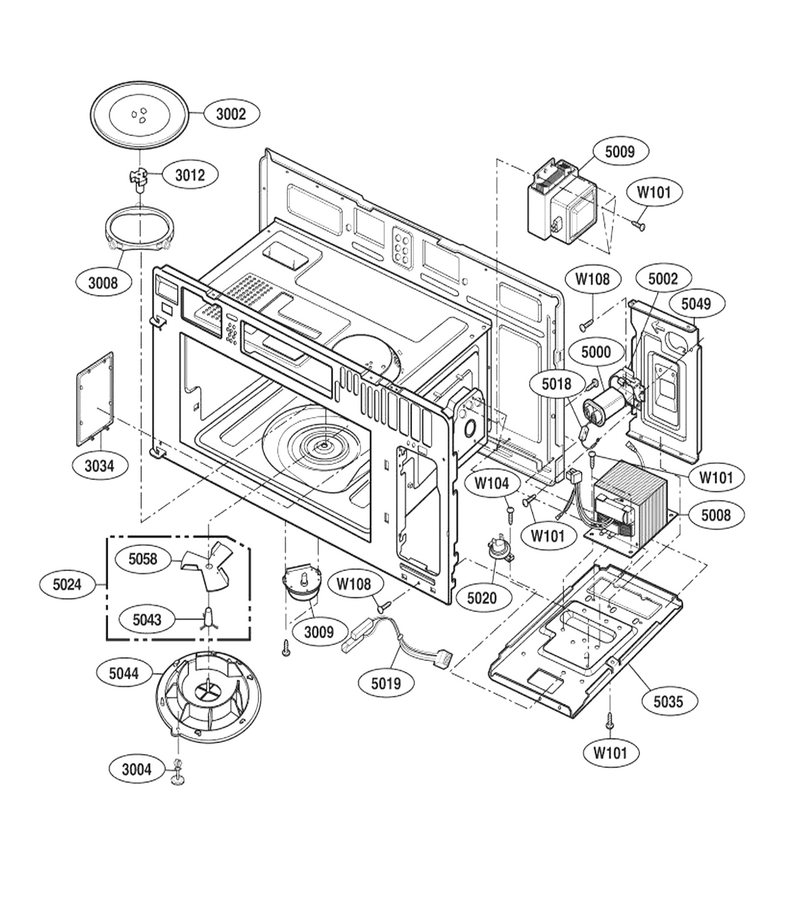

Interior Parts (1)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W104
Screw L-G-1TPL0302018
...
W108
Microwave Screw L-G-1TTL0402418
...
3002
Microwave Glass Tray L-G-3390W1G014A
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Microwave Turntable Tray Support L-G-5889W2A005J
...
3009
Microwave Turntable Motor L-G-6549W1S013A
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3034
Canopy L-G-3052W3A015A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W3C006A
...
5008
Transformer L-G-6170W1D052D
...
5009
Microwave Magnetron L-G-6324W1A001A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M
...
5019
Single Harness L-G-6631W1A005A
...
5020
Microwave/hood Thermostat L-G-6930W1A003H
...
5024
Fan Assembly L-G-5893W3A002A
...
5035
Plate L-G-3300W1B001A
...
5043
Holder L-G-4930W3A013A
...
5044
Microwave/hood Cover L-G-3550W1S001A
...
5049
Air Guide L-G-5238W1A003A
...
5058
Fan L-G-5892W3A006A

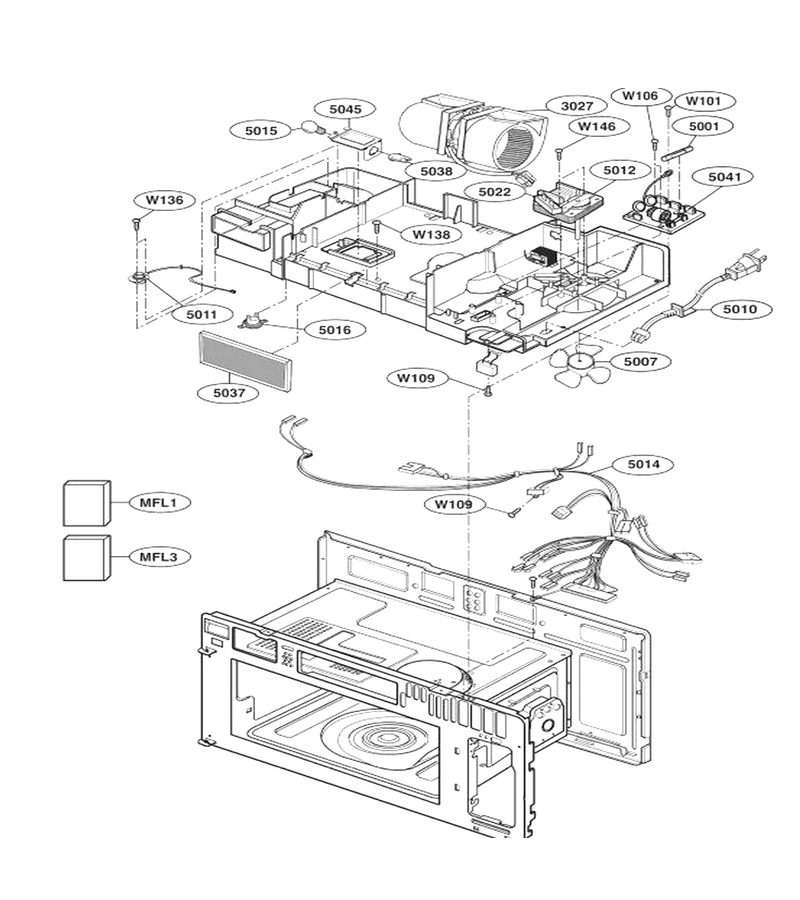

Interior Parts (2)

...
...
MFL1
Manual,owners L-G-3828W5A2081
...
MFL3
Manual,installation L-G-3828W5U0148
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
W138
Screw L-G-1TTL0402822
...
3027
Motor L-G-6549W1V008C
...
5001
Fuse[all] L-G-3B74133K
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5010
Power Cord L-G-6411W2A002E
...
5011
Sensor Assembly L-G-6501W1A006C
...
5012
Fan Motor L-G-6549W1F001W
...
5014
Single Harness L-G-6631W1A008A
...
5015
Lamp L-G-3B70067E
...
5016
Microwave Thermostat L-G-6930WRT003C
...
5022
Fuse L-G-3B72974C
...
5037
Microwave Charcoal Filter L-G-5230W2A003A
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5041
Microwave Noise Filter L-G-2B72130F
...
5045
Oven Cover L-G-3550W3A082A

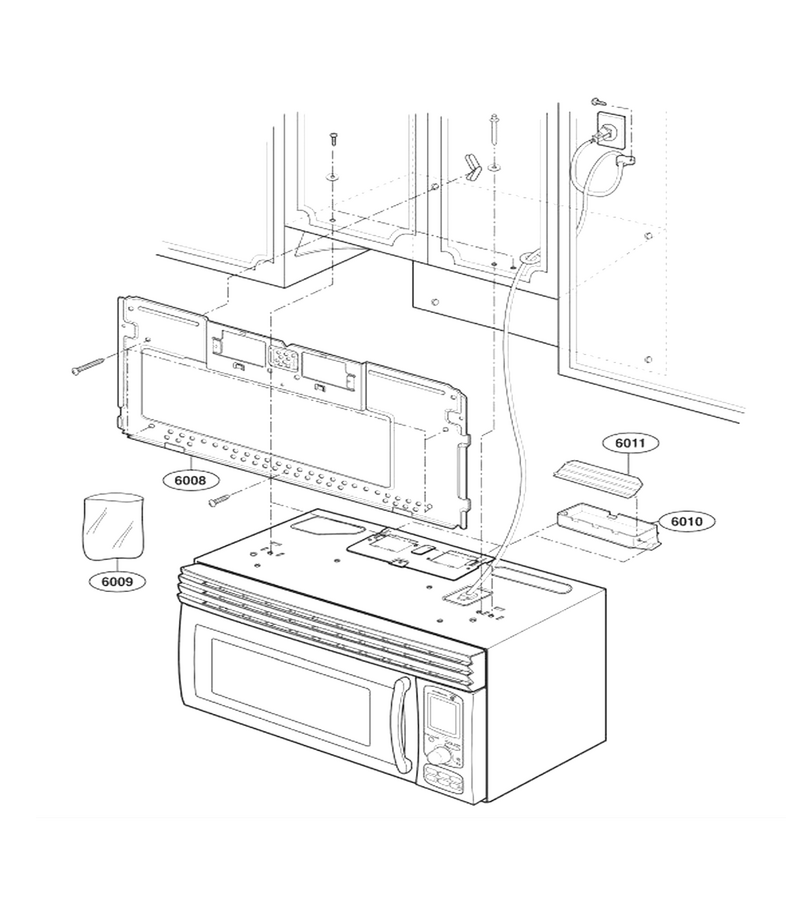

Installation Parts

...
...
6008
Mounting Plate L-G-3300W0M003A
...
6009
Microwave Hardware Assembly Kit L-G-2B72771A
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
