LG LMV1831BD.CBDELGA

Model: LMV1831BD.CBDELGA

Save Part Not Listed?
product name

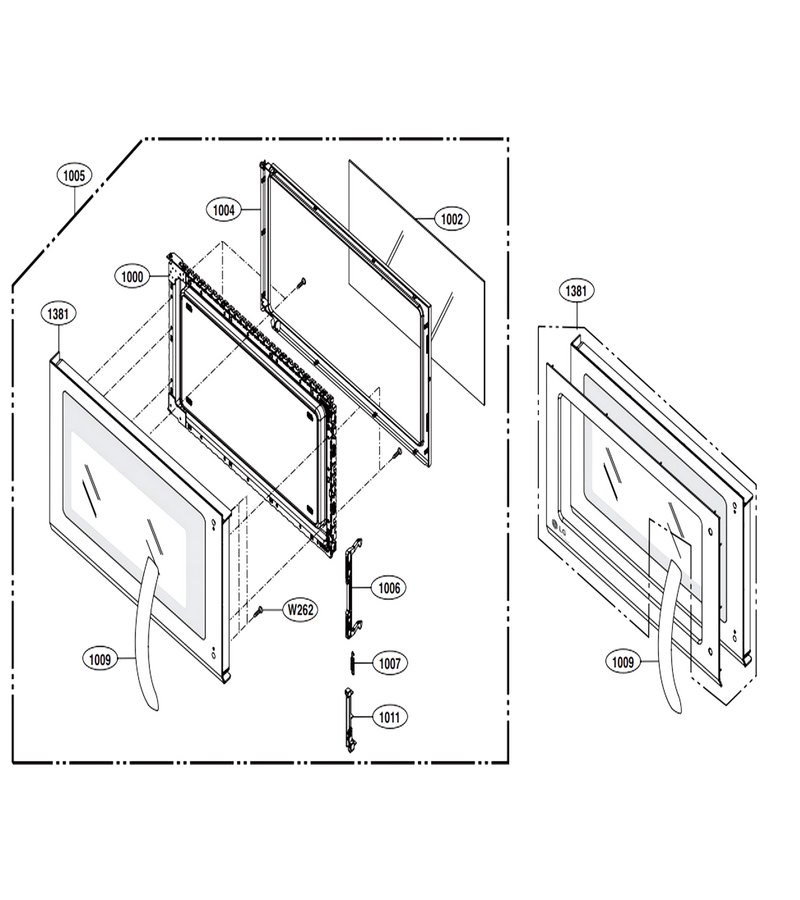

Door Parts

...
...
1000
Microwave Door Inner Frame L-G-3213W1A049F
...
1002
Microwave Door Film L-G-3536W1A012B
...
1004
Cover,choke L-G-3552W1A032J
...
1005
Door Assembly,full L-G-ADC73028308
...
1006
Microwave Door Latch L-G-4026W2A019A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1009
Handle,door L-G-MEB41909004
...
1011
Baffle L-G-4760W1A017B
...
1381
Parts Assembly L-G-AGM73170611

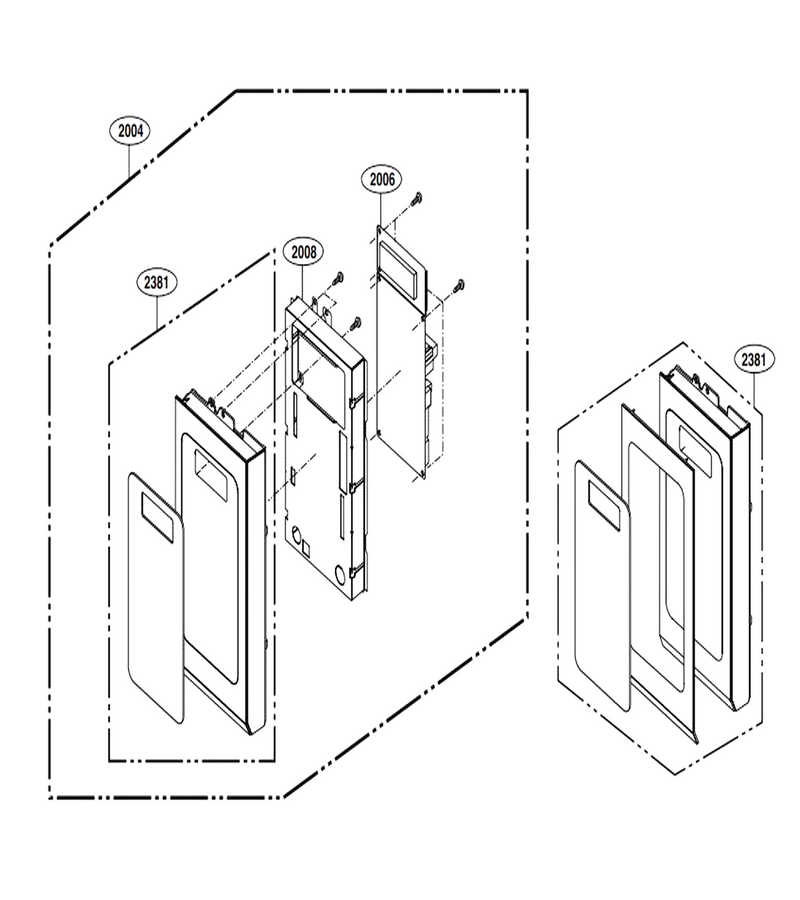

Control Panel Parts

...
...
2004
Controller Assembly,keypad L-G-ACM72981019
...
2006
Pcb Assembly,main L-G-EBR84124401
...
2008
Bracket Panel L-G-MAZ62069501
...
2381
Parts Assembly L-G-AGM73170713

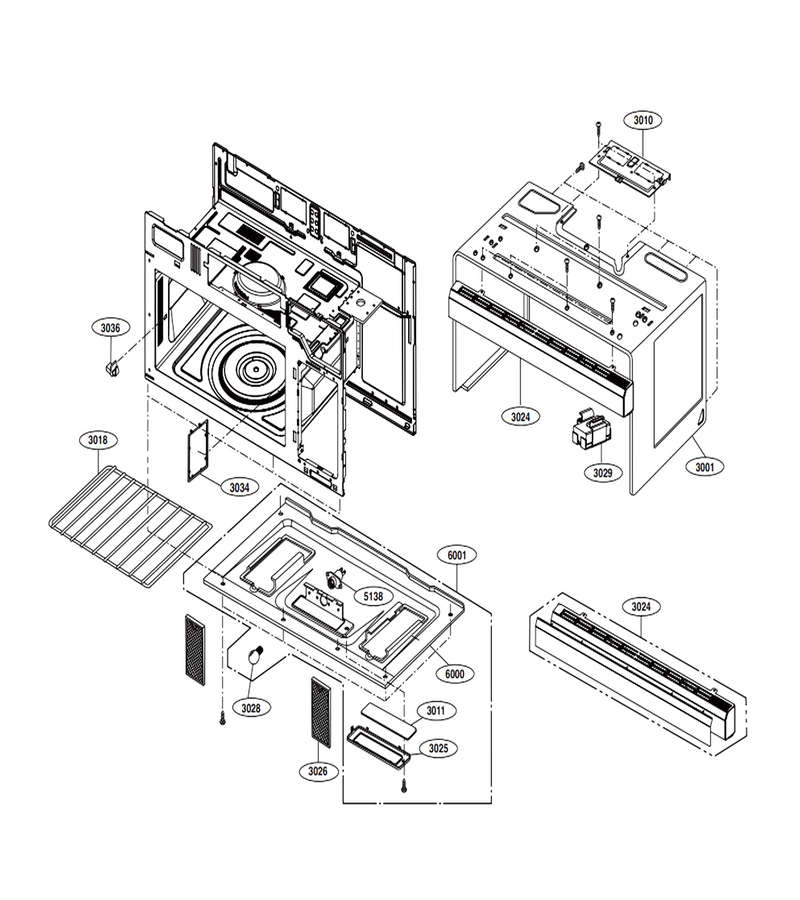

Oven Cavity Parts

...
...
3001
Case,u Bending L-G-MBN63104504
...
3010
Plate L-G-MGJ42525102
...
3018
Microwave Metal Rack L-G-MHL54382301
...
3024
Grille Assembly L-G-AEB73006903
...
3025
Bracket,lamp L-G-4810W1A150D
...
3026
Filter(mech),grease L-G-5230W1A012B
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
3029
Holder Assembly L-G-4021W3A001A
...
3034
Resin Cover L-G-3052W1A002E
...
3036
Holder,cook Auxiliary L-G-4930W1A069B
...
6000
Plate,base L-G-MGJ62922401
...
6001
Base Plate Assembly L-G-AGU73568103

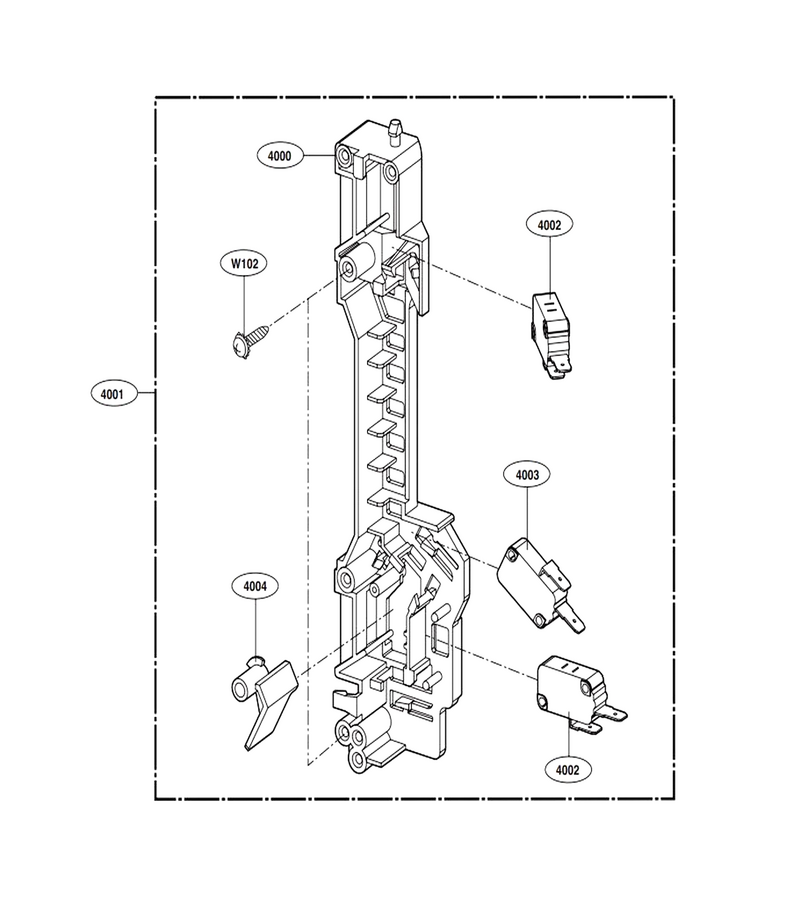

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-MEG61890701
...
4001
Holder Assembly,locker L-G-3501W1A019S
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012B

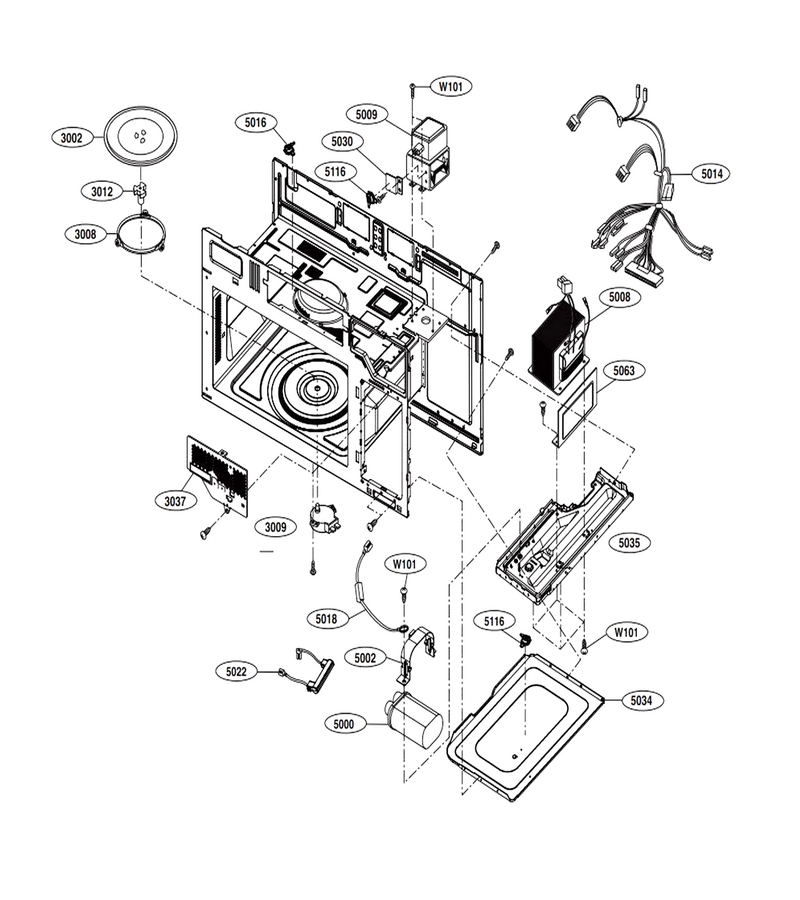

Interior Parts(i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961H
...
3008
Turntable Assembly L-G-5889W2A012N
...
3009
Motor(circ),synchronous L-G-6549W1S013H
...
3012
Shaft,turntable L-G-4370W1A006F
...
3037
Supporter Assembly L-G-AJJ34381202
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
5002
Bracket L-G-4810W1A313A
...
5008
Transformer,high Voltage L-G-EBJ60664609
...
5014
Single Harness L-G-EAD60756907
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5018
Cable,assembly L-G-6851W1A002E
...
5030
Bracket,misc L-G-4810W1A180A
...
5034
Plate,bottom L-G-3300W1A046D
...
5035
Plate L-G-3300W1A045C
...
5063
Bracket Assembly L-G-ABA34926501
...
5116
Microwave Thermostat L-G-6930W1A003D

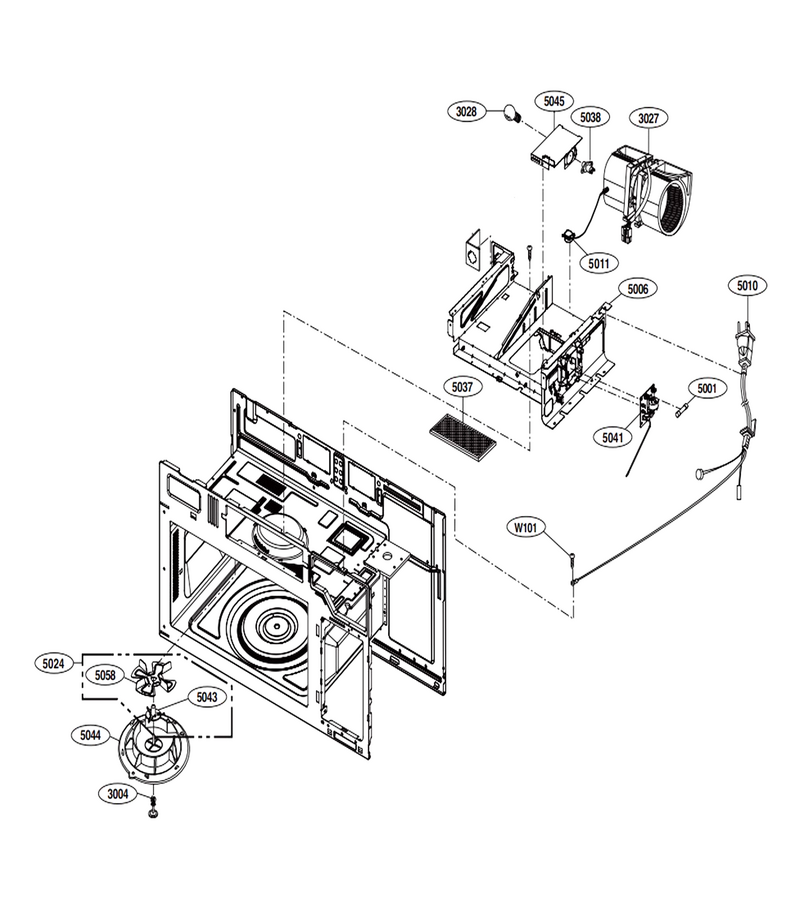

Interior Parts(ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Motor, Ac Ventilation L-G-EAU51230507
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
5001
Fuse,drawing L-G-3B74133Q
...
5006
Duct L-G-MCZ62854501
...
5010
Power Cord Assembly L-G-EAD62027814
...
5011
Sensor Assembly L-G-6501W1A013A
...
5024
Fan Assembly L-G-5893W3A002G
...
5037
Microwave Charcoal Filter L-G-5230W1A011B
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5041
Filter,ac Line L-G-EAM35001888
...
5043
Holder,stirrer Fan L-G-4930W1A068B
...
5044
Microwave Stirrer Fan Cover L-G-3550W1A126D
...
5045
Cover,lamp L-G-MCK67667404
...
5058
Microwave Stirrer Fan Blade L-G-5892W1A003A

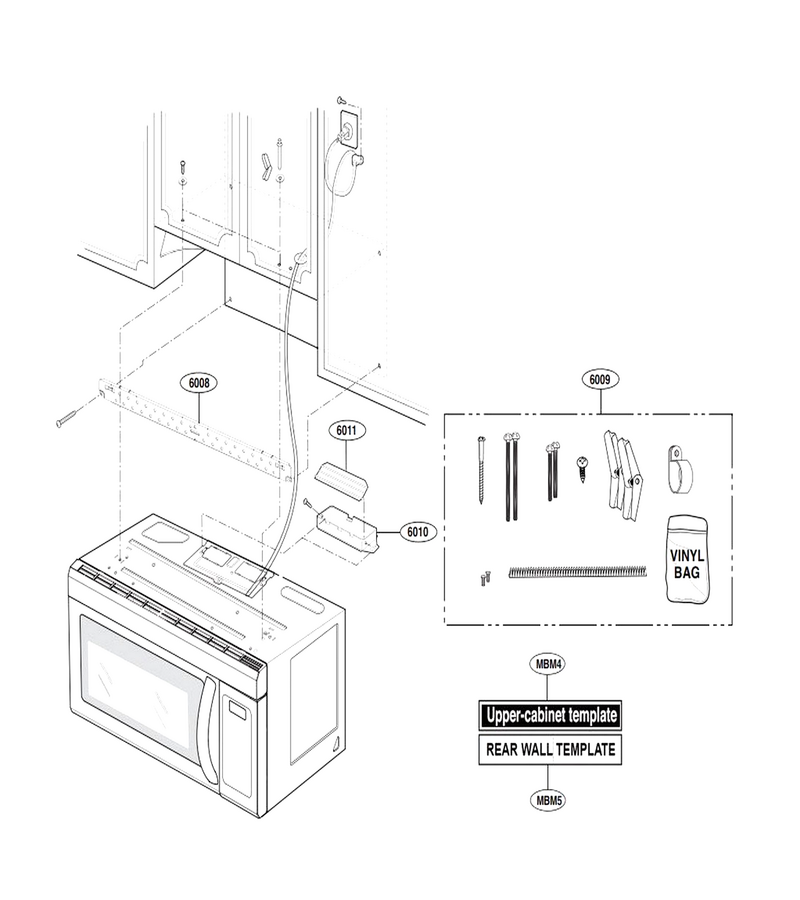

Installation Parts

...
...
MBM4
Card,template L-G-4922W5A057G
...
6008
Plate,mount L-G-3300W0A045A
...
6009
Kit Assembly L-G-3861W2A006K
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
