LG LMU480HHV.AWGBEUS

Model: LMU480HHV.AWGBEUS

Save Part Not Listed?
product name

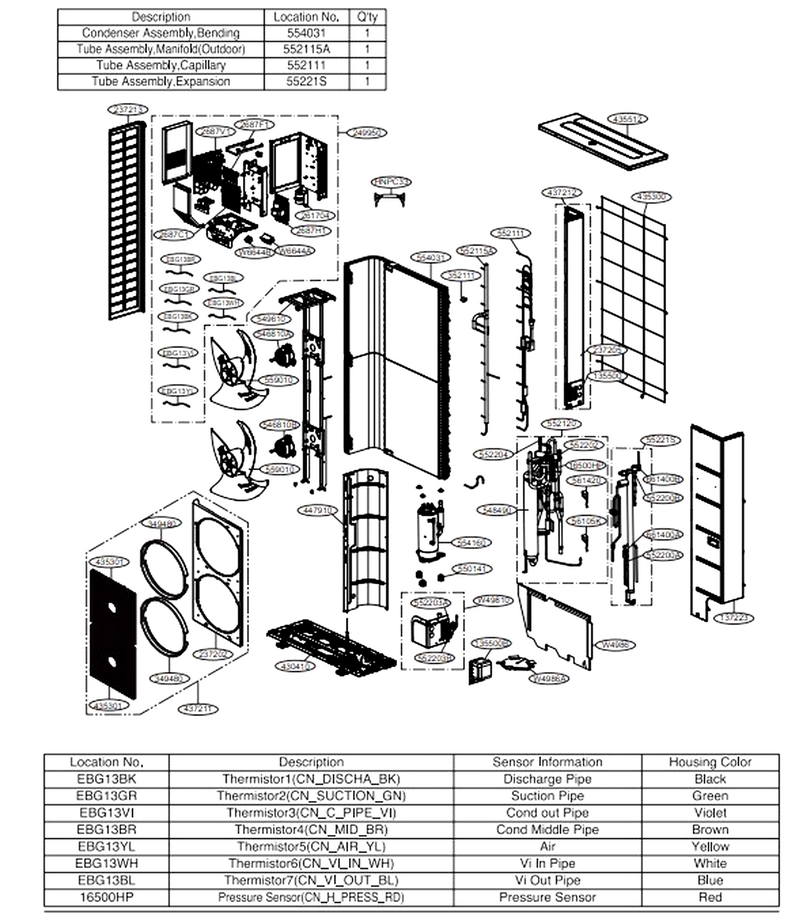

Main

...
...
EBG13BK
Thermistor Assembly,ntc L-G-EBG61406004
...
W6644B
Terminal Block Connector L-G-EAG38884402
...
W6644A
Terminal Block Connector L-G-EAG63591101
...
W4986A
Sound Proof L-G-MMC00120719
...
W4986
Sound Proof L-G-MMC00120717
...
W49810
Supporter Assembly L-G-AJJ74578333
...
HNPC33
Harness,multi L-G-EAD63768954
...
EBG13YL
Thermistor Assembly,ntc L-G-EBG61446002
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287712
...
EBG13VI
Thermistor Assembly,ntc L-G-EBG61445809
...
EBG13GR
Thermistor Assembly,ntc L-G-EBG61405903
...
EBG13BR
Thermistor Assembly,ntc L-G-EBG61445905
...
EBG13BL
Thermistor Assembly,ntc L-G-EBG61106549
...
2687V1
Inverter Pcb Assembly L-G-EBR31109724
...
2687H1
Filter Pcb Assembly L-G-EBR88830705
...
2687F1
Pcb Assembly,fan L-G-EBR79191502
...
2687C1
Cycle Pcb Assembly L-G-EBR86386913
...
16500HP
Sensor,pressure L-G-EBD60663821
...
55221S
Expansion Tube Assembly L-G-AJR75462923
...
56105K
Solenoid L-G-EBE61441605
...
135500B
Cover L-G-MCK67662901
...
135500
Cover L-G-MCK39626227
...
137223
Side Panel Assembly L-G-AGL34579164
...
237202
Front Panel L-G-MGC39426120
...
237205
Rear Panel L-G-MGC39613745
...
237213
Side Panel L-G-MGC39426024
...
249950
Control Box Case Assembly L-G-ABQ77442307
...
261704
Transformer,reactor L-G-EBJ61770403
...
349480
Orifice L-G-MFX63082101
...
352111
Tube Assembly,connector L-G-5211A20349P
...
430410
Base Assembly,outdoor L-G-AAN75870802
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Top (outdoor) Cover Assembly L-G-ACQ35131832
...
437211
Front (outdoor) Panel Assembly L-G-AGL34578727
...
437212
Rear (outdoor) Panel Assembly L-G-AGL76512822
...
447910
Outdoor Barrier Assembly L-G-AAM35646446
...
546810A
Motor Assembly,dc,outdoor L-G-EAU62543703
...
546810B
Motor Assembly,dc,outdoor L-G-EAU62543704
...
548490
Accumulator L-G-4848A20007R
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168809
...
550141
Damper,rubber L-G-MCQ68888201
...
552111
Capillary Tube Assembly L-G-AJR74522410
...
552115A
Manifold (outdoor) Tube Assembly L-G-AJR74703607
...
552120
Tube Assembly L-G-AJR77144418
...
552200B
Expansion Body Valve L-G-MJX63991905
...
552200A
Valve,expansion Body L-G-MJX63991701
...
552202
Valve,reverse L-G-MJX63491603
...
552203A
Service Valve L-G-MJX62451603
...
552203B
Valve,service L-G-MJX62472202
...
552204
Valve,solenoid L-G-MJX61841306
...
554031
Condenser Assembly,bending L-G-ACG74464807
...
554160
Compressor Set,korea L-G-TBZ38294501
...
559010
Fan Assembly,propeller L-G-ADP75033301
...
561420
Coil Assembly,reverse L-G-EAP64467707
...
661400A
Expansion Coil L-G-EAP63107140
...
661400B
Coil,expansion L-G-EAP63107113
