LG LMU366HV.AWGBEUS

Model: LMU366HV.AWGBEUS

Save Part Not Listed?
product name

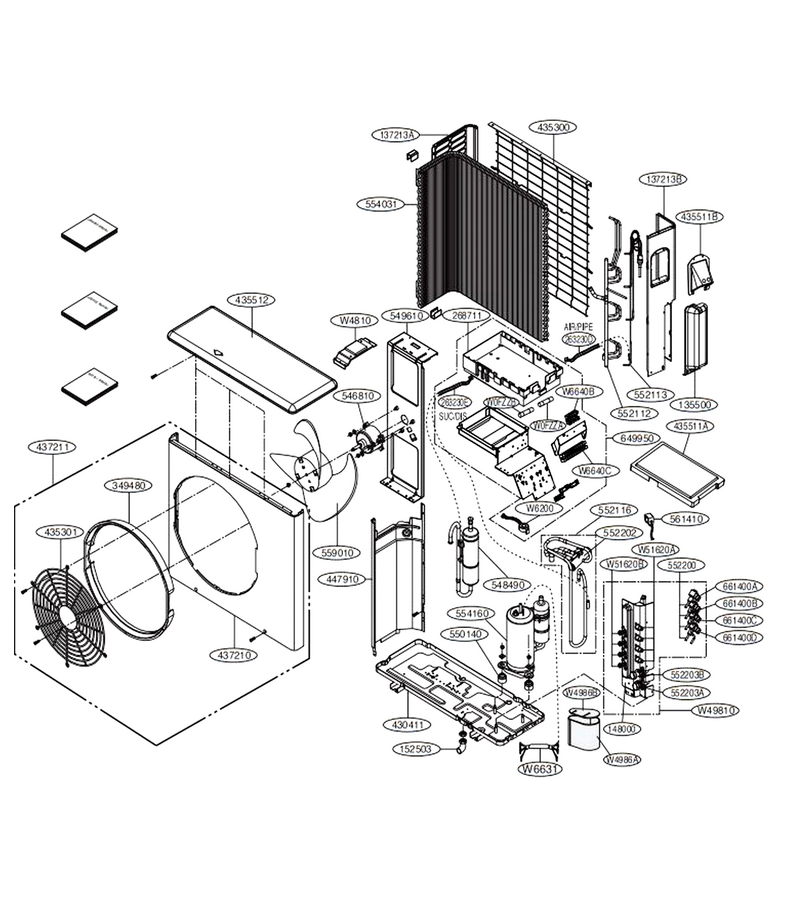

Main

...
...
W0FZZB
Fuse, Time Delay L-G-0FZZA90002A
...
W6640B
Connector,terminal Block L-G-EAG41846702
...
W6631
Harness,multi L-G-EAD63768925
...
W6200
Filter,line Noise L-G-EAM38878003
...
W51620B
Socket,flare L-G-MHT40969701
...
W4986B
Sound Proof L-G-3096AP3476L
...
W4986A
Gasket L-G-3096A20018A
...
W49810
Supporter Assembly L-G-AJJ36182702
...
W4810
Bracket L-G-3A01934B
...
W51620A
Socket,flare L-G-5162AG3296A
...
135500
Cover L-G-MCK47277801
...
137213A
Panel Assembly,side L-G-AGL70858101
...
137213B
Panel Assembly,side L-G-3721A10134D
...
148000
Supporter L-G-4980A01001U
...
152503
Nipple,drain L-G-4H01010A
...
263230D
Thermistor Assembly,ntc L-G-EBG61107014
...
263230E
Thermistor Assembly,ntc L-G-EBG61107109
...
268711
Pcb Assembly,main L-G-EBR61481808
...
349480
Orifice L-G-4948A20011G
...
430411
Base Assembly,weld(outdoor) L-G-AAN35549403
...
435300
Grille,rear L-G-MDX59045504
...
435301
Grille,discharge L-G-MDX61846201
...
435511B
Cover Assembly, Control (outdoor) L-G-3551A30162B
...
435511A
Cover Assembly,control(outdoor) L-G-ACQ36712504
...
435512
Cover Assembly,top(outdoor) L-G-3551A30113G
...
437210
Panel Assembly,front(sub) L-G-1A00197E
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105614
...
447910
Barrier Assembly,outdoor L-G-AAM34710905
...
546810

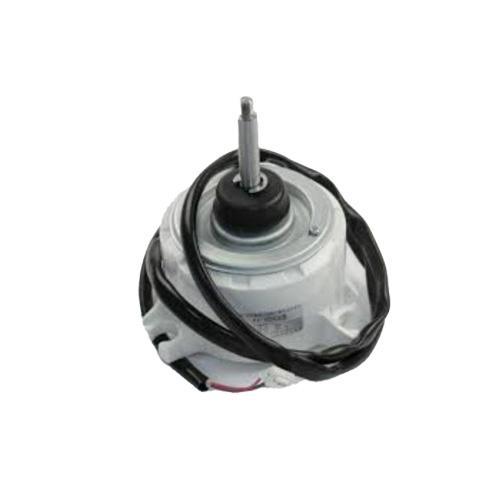

Motor Assembly,dc,outdoor L-G-4681A20172B
...
548490
Accumulator Assembly L-G-4849A20069D
...
549610
Bracket Assembly,motor L-G-ABA32344701
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly,condenser(in) L-G-AJR36137701
...
552113
Tube Assembly,condenser(out) L-G-AJR36137801
...
552116
Tube Assembly,reverse L-G-AJR36158701
...
552200
Valve,expansion Body L-G-MJX62711401
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Valve,service L-G-5220A20029P
...
552203B
Valve,service L-G-5220A20035C
...
554031
Condenser Assembly,bending L-G-ACG73425103
...
554160
Compressor L-G-5416A90055D
...
559010
Fan,propeller L-G-MDG37708601
...
561410
Drawing,assembly L-G-EAD62115302
...
649950
Case Assembly,control(outdoor) L-G-ABQ32900616
...
661400A
Coil,expansion L-G-EAP30616909
...
661400B
Solenoid,expansion,valve L-G-EBE43125106
...
661400C
Coil,expansion L-G-EAP62228713
...
661400D
Coil,expansion L-G-EAP62228704
