LG LMU360HHV.AWGBEUS

Model: LMU360HHV.AWGBEUS

Save Part Not Listed?
product name

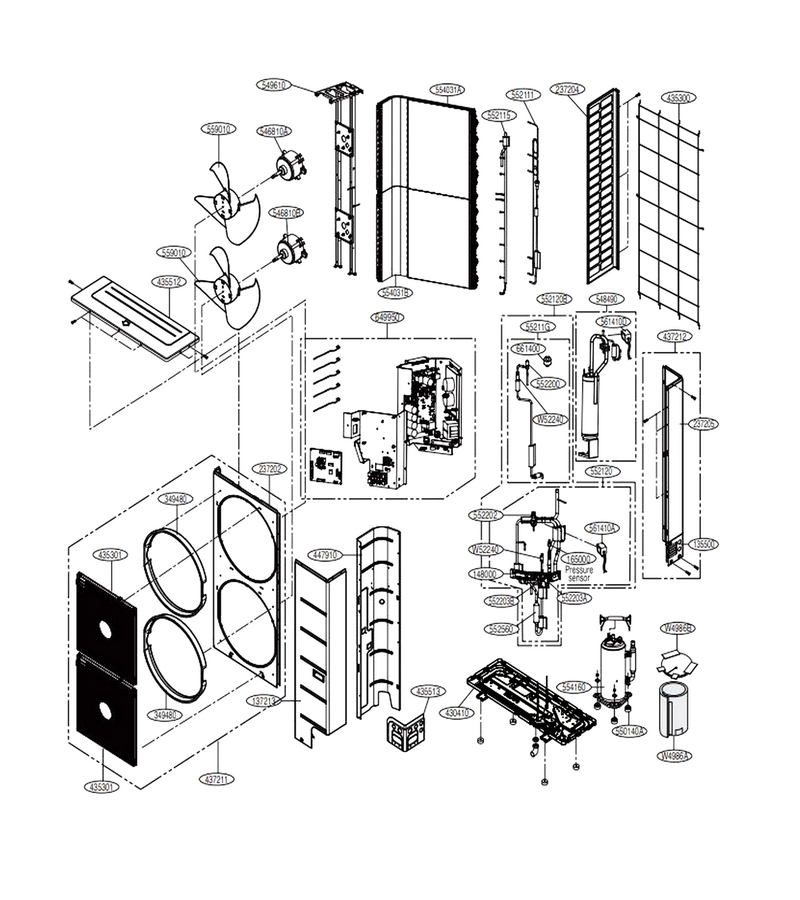

Main

...
...
W4986A
Sound Proof L-G-MDS63978803
...
W4986B
Sound Proof L-G-MDS63978804
...
55211G
Tube Assembly,expansion L-G-AJR74844204
...
135500
Cover L-G-MCK39626220
...
137213
Panel Assembly,side L-G-AGL76513015
...
148000
Supporter L-G-MJH39544901
...
165000
Sensor,pressure L-G-EBD62165602
...
237202
Panel,front L-G-MGC39426114
...
237204
Panel,side L-G-MGC39426015
...
237205
Panel,rear L-G-MGC39613728
...
349480
Orifice L-G-MFX63082101
...
430410
Base Assembly,outdoor L-G-AAN75870801
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
435513
Cover Assembly,tubing L-G-ACQ34583418
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578724
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512809
...
447910
Barrier Assembly,outdoor L-G-AAM35646432
...
546810A
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
546810B
Motor Assembly,dc L-G-4681A20172R
...
548490
Accumulator Assembly L-G-AAB73490411
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168809
...
550140A
Damper,rubber L-G-MCQ68888201
...
552111
Tube Assembly,capillary L-G-AJR74522404
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR74703604
...
552120
Tube Assembly L-G-AJR75584501
...
552120B
Tube Assembly L-G-AJR75584502
...
552200
Valve,expansion Body L-G-5220A90013J
...
552202
Valve,reverse L-G-3A02080B
...
552203B
Valve,service L-G-MJX42581402
...
552203A
Valve,service L-G-MJX62451601
...
552560
Muffler L-G-5256A30003R
...
554031A
Condenser Assembly,bending L-G-ACG74464808
...
554031B
Condenser Assembly,bending L-G-ACG74464807
...
554160
Compressor Set,korea L-G-TBZ37955101
...
559010
Fan Assembly,propeller L-G-ADP75033301
...
561410A
Drawing,assembly L-G-EAD62115301
...
561410D
Solenoid L-G-EBE61441605
...
649950
Case Assembly,control(outdoor) L-G-ABQ74541615
...
661400
Coil,expansion L-G-EAP63107113
