LG LMU30CHV.AWGBEUS

Model: LMU30CHV.AWGBEUS

Save Part Not Listed?
product name

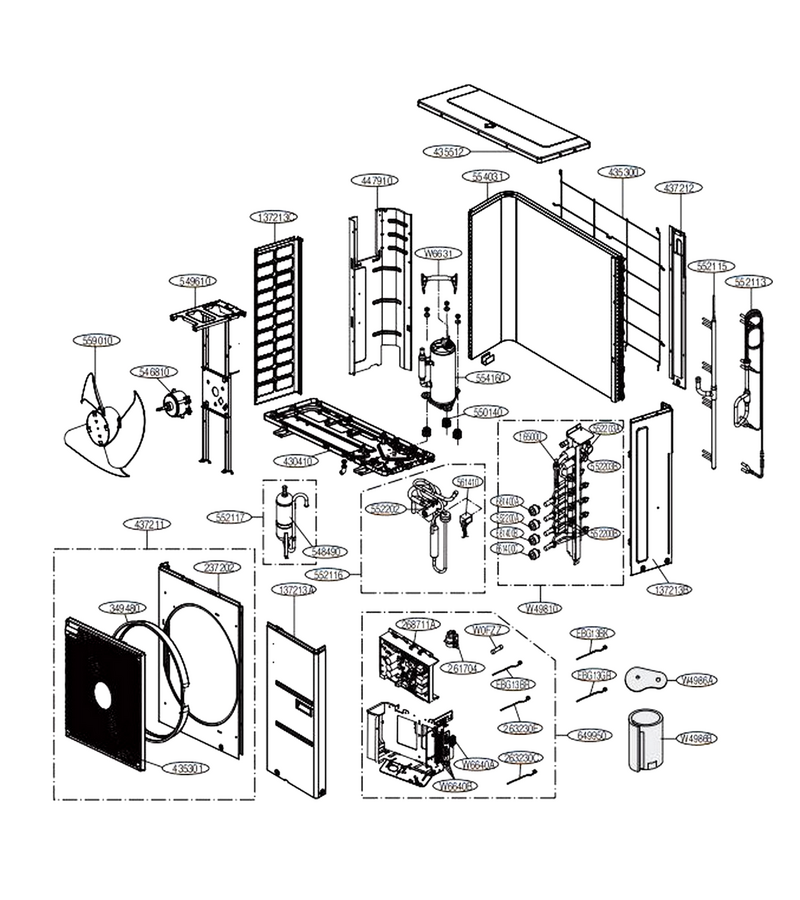

Main

...
...
EBG13BK
Thermistor Assembly,ntc L-G-EBG61406003
...
W6640B
Connector,terminal Block L-G-EAG38884401
...
W6640A
Connector,terminal Block L-G-EAG38884408
...
W6631
Harness Assembly L-G-EAD65614302
...
W4986B
Sound Proof L-G-MMC00280304
...
W49810
Supporter Assembly L-G-AJJ73640309
...
W0FZZ
Fuse,time Delay L-G-EAF61090201
...
EBG13GR
Thermistor Assembly,ntc L-G-EBG61405904
...
EBG13BR
Thermistor Assembly,ntc L-G-EBG61445905
...
W4986A
Sound Proof L-G-MMC00280404
...
137213A
Panel Assembly,side L-G-AGL72909449
...
137213B
Panel Assembly,side L-G-AGL72341007
...
137213C
Panel Assembly,side L-G-AGL72909307
...
165000
Sensor,pressure L-G-EBD62165602
...
237202
Panel,front L-G-MGC53382919
...
261704
Transformer,reactor L-G-EBJ61970005
...
263230C
Thermistor Assembly,ntc L-G-EBG61445812
...
263230E
Thermistor Assembly,ntc L-G-EBG61446002
...
268711A
Inverter Pcb Assembly L-G-EBR83831208
...
349480
Orifice L-G-MFX63082101
...
430410
Base Assembly,outdoor L-G-AAN74512228
...
435300
Grille,rear L-G-MDX61843709
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
437211
Panel Assembly,front(outdoor) L-G-AGL72770336
...
437212
Panel Assembly,rear(outdoor) L-G-AGL72341110
...
447910
Barrier Assembly,outdoor L-G-AAM72909101
...
546810
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
548490
Accumulator L-G-4848A20007P
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA74032401
...
550140
Isolator L-G-5014A20003A
...
552113
Tube Assembly,condenser(out) L-G-AJR73068708
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73326604
...
552116
Tube Assembly,reverse L-G-AJR65521322
...
552117
Tube Assembly,suction(outdoor) L-G-AJR65507705
...
552200B
Valve,expansion Body L-G-5220A90013E
...
552200A
Solenoid,expansion,valve L-G-EBE43125106
...
552202
Valve,reverse L-G-5220AR3228W
...
552203A
Valve,service L-G-5220A20035C
...
552203B
Valve,service L-G-5220A20029P
...
554031
Condenser Assembly,bending L-G-ACG73885401
...
554160
Compressor Set,korea L-G-TBZ37955001
...
559010
Fan Assembly,propeller L-G-ADP75033301
...
561410
Coil Assembly,reverse L-G-EAP64467708
...
649950
Control Box Case Assembly L-G-ABQ77201627
...
661400A
Coil,expansion L-G-EAP30616908
...
661400B
Coil,expansion L-G-EAP62228713
...
661400C
Coil,expansion L-G-EAP62228704
