LG LMU247HV.AWGBEUS

Model: LMU247HV.AWGBEUS

Save Part Not Listed?
product name

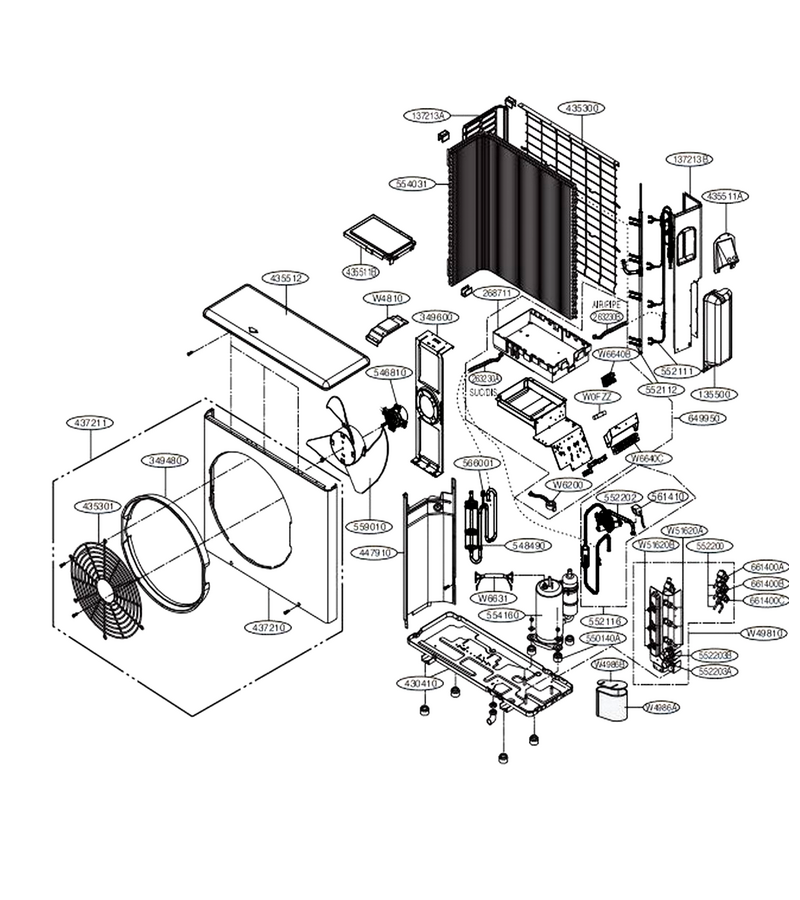

Main

...
...
W0FZZ
Fuse, Time Delay L-G-0FZZA90002A
...
W6640C
Connector,terminal Block L-G-6640A30001B
...
W6640B
Connector,terminal Block L-G-EAG41846702
...
W6631
Harness,multi L-G-EAD63768925
...
W6200
Filter,line Noise L-G-EAM38878003
...
W51620B
Socket,flare L-G-MHT40969701
...
W4986B
Sound Proof L-G-3096AP3476L
...
W4986A
Gasket L-G-3096A20018A
...
W49810
Supporter Assembly L-G-AJJ36182706
...
W4810
Bracket L-G-3A01934B
...
W51620A
Socket,flare L-G-5162AG3296A
...
135500
Cover L-G-MCK47277801
...
137213A
Panel Assembly,side L-G-AGL70858101
...
137213B
Panel Assembly,side L-G-3721A10134E
...
263230A
Thermistor Assembly,ntc L-G-EBG61107109
...
263230B
Thermistor Assembly,ntc L-G-EBG61107014
...
268711
Pcb Assembly,main L-G-EBR72398908
...
349480
Orifice L-G-4948A20005A
...
349600
Motor Mount L-G-1A00206B
...
430410
Base Assembly,outdoor L-G-AAN74315303
...
435300
Grill, Rear L-G-MDX59045502
...
435301
Grille,discharge L-G-MDX61844501
...
435511B
Cover Assembly,control(outdoor) L-G-3551A30162D
...
435511A
Cover Assembly,control(outdoor) L-G-ACQ36712504
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
437210
Panel Assy,f L-G-1A00197C
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105612
...
447910
Barrier Assembly,outdoor L-G-AAM34710905
...
546810
Motor, Dc Outdoor L-G-EAU52759301
...
548490
Accumulator Assembly L-G-4849A20069M
...
550140A
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Tube Assembly,capillary L-G-5211A22009Q
...
552112
Tube Assembly,condenser(in) L-G-AJR36137704
...
552116
Tube Assembly,reverse L-G-5211A20896P
...
552200
Valve,expansion Body L-G-MJX62711401
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Valve,service L-G-5220A20029P
...
552203B
Valve,service L-G-5220A20035C
...
554031
Condenser Assembly,bending L-G-ACG73024802
...
554160
Compressor Set,korea L-G-TBZ35296001
...
559010
Fan,propeller L-G-MDG37706506
...
561410
Drawing,assembly L-G-EAD62115302
...
566001
Pressure Switch L-G-6600L000022
...
649950
Case Assembly,control(outdoor) L-G-ABQ73082811
...
661400A
Coil,expansion L-G-EAP30616909
...
661400B
Solenoid,expansion,valve L-G-EBE43125106
...
661400C
Coil,expansion L-G-EAP62228713
