LG LMU240HV.AWGBEUS

Model: LMU240HV.AWGBEUS

Save Part Not Listed?
product name

Main

...
...
EBG13BK
Thermistor Assembly,ntc L-G-EBG61406003
...
W6648
Connector,terminal Block L-G-6640A30001B
...
W6644
Terminal Block Connector L-G-4G00103B
...
W4986B
Sound Proof L-G-MMC00180203
...
W4986A
Sound Proof L-G-MDS63972502
...
W49810
Supporter Assembly L-G-AJJ76558706
...
W1NF
Nut,common L-G-4H00947C
...
HNMC13
Multi Harness L-G-EAD60868316
...
EBG13VI
Thermistor Assembly,ntc L-G-EBG61445811
...
EBG13GR
Thermistor Assembly,ntc L-G-EBG61405902
...
EBG13BR
Thermistor Assembly,ntc L-G-EBG61445905
...
W1NZZ
Customized Nut L-G-FAD33370603
...
2687S1
Sub Pcb Assembly L-G-EBR86704702
...
2687M1
Inverter Pcb Assembly L-G-EBR83188036
...
16500HP
Pressure Sensor L-G-EBD60663838
...
135501
Cover Assembly L-G-ACQ89178801
...
137213
Side Panel Assembly L-G-AGL77052702
...
137223
Panel,side L-G-MGC65919401
...
148000
Supporter L-G-MJH62815922
...
152503
Nipple,drain L-G-4H01010A
...
237202
Front Panel L-G-MGC64419403
...
249300
Sensor Holder L-G-MEG65559802
...
261704
Reactor Transformer L-G-EBJ63090305
...
263230C
Ntc Thermistor Assembly L-G-EBG61446003
...
349600
Motor Bracket L-G-MAZ65186201
...
352111
Tube Assembly,connector L-G-5211A20349P
...
352119
Tube Assembly,return Bending L-G-3H02787A
...
430410
Outdoor Base Assembly L-G-AAN75630639
...
435301
Discharge Grille L-G-MDX64192401
...
435312
Rear (outdoor) Grille Assembly L-G-AEB74924904
...
435512
Top (outdoor) Cover Assembly L-G-ACQ88886205
...
435513
Tubing Cover Assembly L-G-ACQ91138801
...
437211
Front (outdoor) Panel Assembly L-G-AGL75733901
...
447910
Outdoor Barrier Assembly L-G-AAM74391214
...
546810
Motor Assembly,dc,outdoor L-G-EAU60905408
...
550140
Isolator L-G-4H00637A
...
550140A
Isolator L-G-5014A20003A
...
552111
Capillary Tube Assembly L-G-AJR77167602
...
552115
Manifold (outdoor) Tube Assembly L-G-AJR75803809
...
552116
Reverse Tube Assembly L-G-AJR77167311
...
552200
Valve,expansion Body L-G-MJX63991801
...
552202
Valve,reverse L-G-5220AR3228W
...
552203A
Service Valve L-G-5220A20018F
...
552203B
Valve,service L-G-5220A20029P
...
554031
Bending Condenser Assembly L-G-ACG75425501
...
554160
China Compressor Set L-G-TBZ37534901
...
559010
Fan,propeller L-G-MDG63102801
...
561420
Coil Assembly,reverse L-G-EAP64467708
...
649950
Control (outdoor) Case Assembly L-G-ABQ77501016
...
661400A
Coil,expansion L-G-EAP63107103
...
661400B
Coil,expansion L-G-EAP63107105
...
661400C
Coil,expansion L-G-EAP63107110

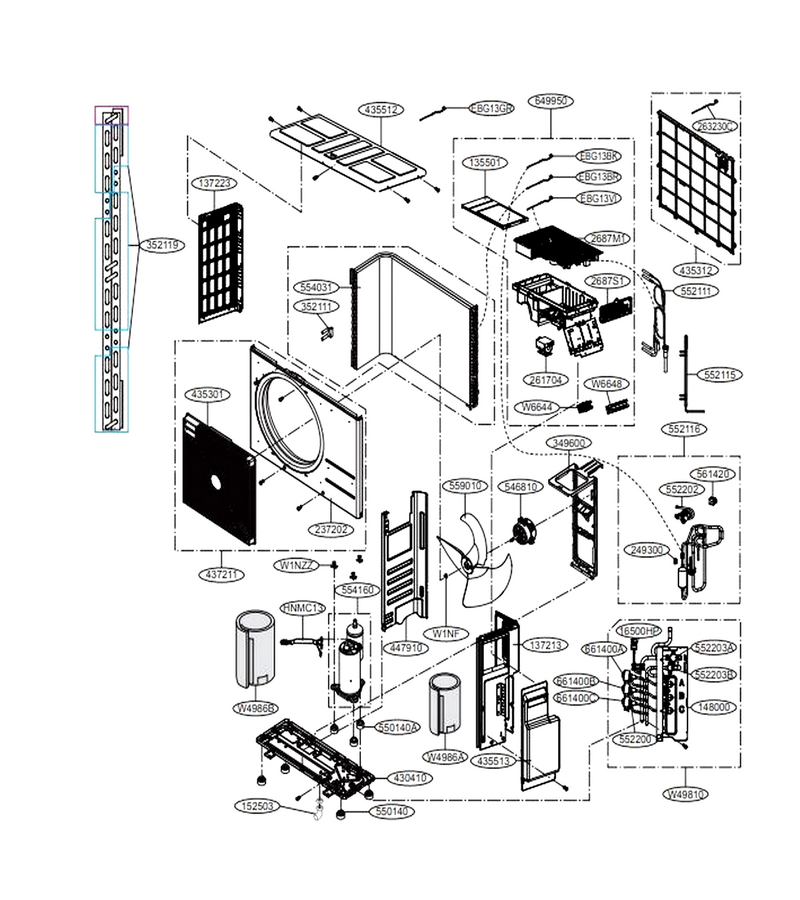

Schematic Image Zoomed
