LG LMU187HV.AWGBEUS

Model: LMU187HV.AWGBEUS

Save Part Not Listed?
product name

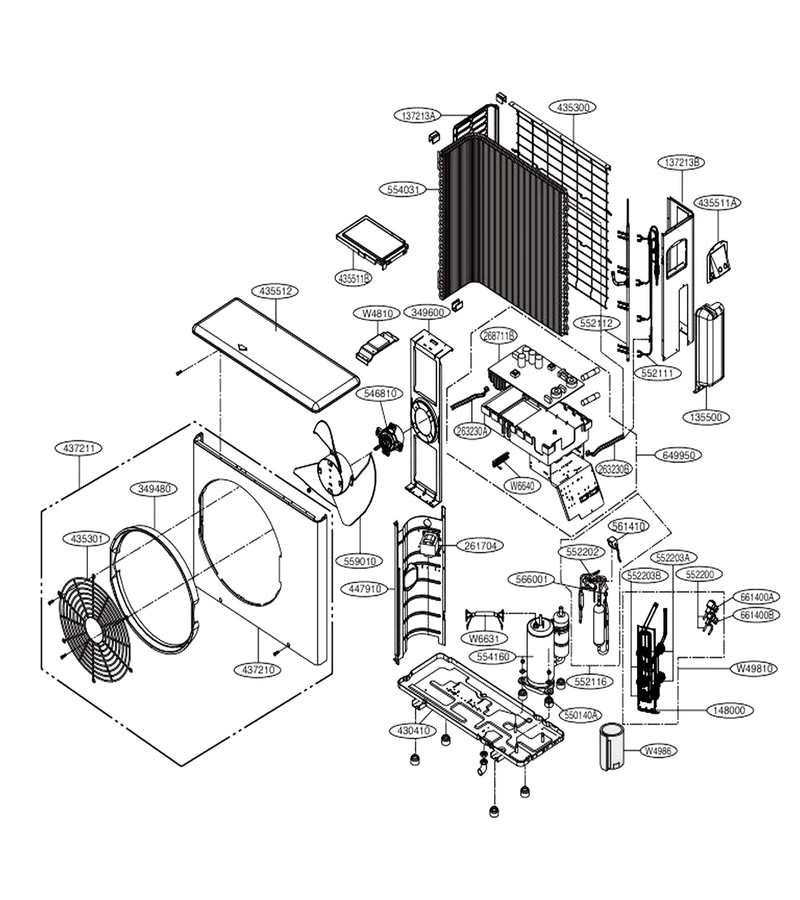

Main

...
...
W4810
Bracket L-G-3A01934B
...
W6640
Connector,terminal Block L-G-3A00093G
...
W6631
Harness,multi L-G-EAD62228501
...
W49810
Supporter Assembly L-G-5211A20927H
...
W4986
Gasket L-G-3096A30010V
...
135500
Cover L-G-MCK47277701
...
137213A
Panel Assembly,side L-G-AGL70858101
...
137213B
Panel Assembly,side L-G-3A02284R
...
148000
Supporter L-G-4908AR1016K
...
261704
Transformer L-G-5874A90007A
...
263230A
Thermistor Assembly,ntc L-G-EBG61107109
...
263230B
Thermistor Assembly,ntc L-G-EBG61107014
...
268711B
Main Pcb Assembly L-G-EBR72398907
...
349480
Orifice L-G-4948A20005A
...
349600
Motor Mount L-G-1A00206B
...
430410
Outdoor Base Assembly L-G-AAN74315304
...
435300
Grill, Rear L-G-MDX59045502
...
435301
Grille,discharge L-G-MDX61844501
...
435511A
Cover Assembly,control(outdoor) L-G-ACQ36712504
...
435511B
Cover Assembly, Control (outdoor) L-G-3551A30162B
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
437210
Panel Assy,f L-G-1A00197C
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105612
...
447910
Outdoor Barrier Assembly L-G-4791A30004Z
...
546810
Motor, Dc Outdoor L-G-EAU52759301
...
550140A
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Tube Assembly,capillary L-G-5211A22009Q
...
552112
Tube Assembly,condenser(in) L-G-AJR36137704
...
552116
Reverse Tube Assembly L-G-AJR72982406
...
552200
Valve,expansion Body L-G-MJX62711401
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Valve,service L-G-MJX62472208
...
552203B
Valve,service L-G-MJX62451505
...
554031
Condenser Assembly,bending L-G-ACG73024802
...
554160
Korea Compressor Set L-G-TBZ35295301
...
559010
Fan,propeller L-G-MDG37706506
...
561410
Drawing,assembly L-G-EAD62115302
...
566001
Pressure Switch L-G-6600L000022
...
649950
Control (outdoor) Case Assembly L-G-ABQ73082812
...
661400A
Coil Assembly L-G-EAD62437308
...
661400B
Solenoid,expansion,valve L-G-EBE43125114
