LG LMU186HV.AWGBEUS

Model: LMU186HV.AWGBEUS

Save Part Not Listed?
product name

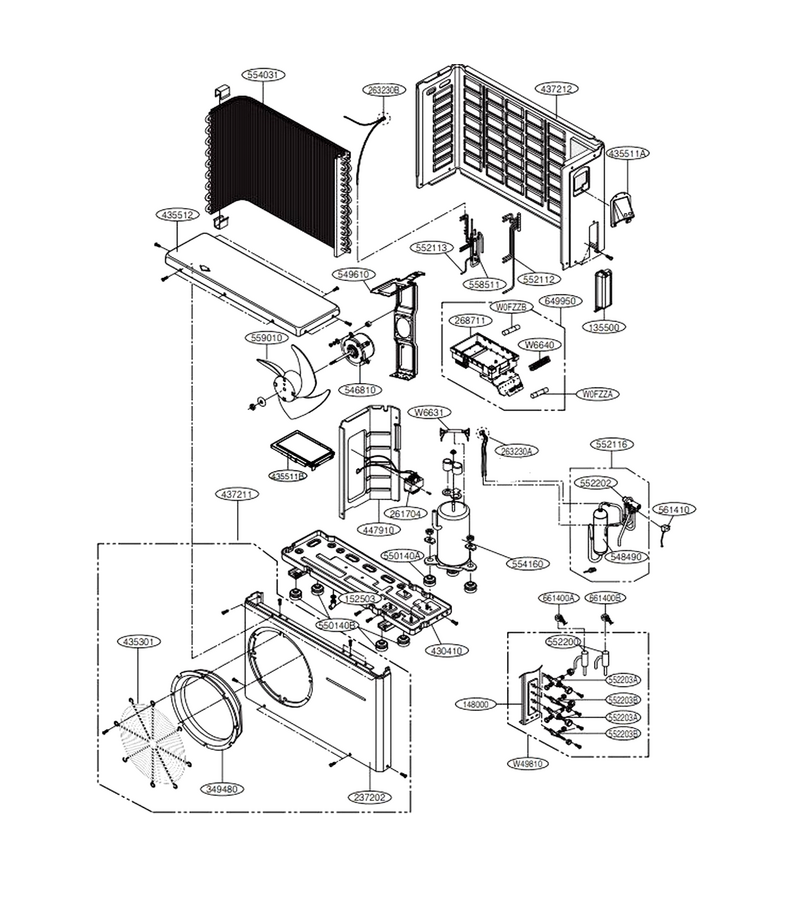

Main

...
...
W0FZZA
Fuse, Time Delay L-G-0FZZA90002A
...
W6631
Harness,multi L-G-EAD62228501
...
W0FZZB
Fuse,time Delay L-G-0FT5001B511
...
W49810
Supporter Assembly L-G-5211A20927A
...
135500
Cover L-G-MCK47277701
...
148000
Supporter L-G-4908AR1016G
...
152503
Nipple,drain L-G-4H01010A
...
237202
Front Panel L-G-1A00196M
...
261704
Transformer L-G-5874A90007A
...
263230A
Thermistor Assembly,ntc L-G-EBG61107109
...
263230B
Thermistor Assembly,ntc L-G-EBG61107014
...
268711
Pcb Assembly,main L-G-EBR65250519
...
349480
Orifice L-G-4948A20005A
...
430410
Base Assembly,outdoor L-G-AAN74315308
...
435301
Grille,discharge L-G-MDX61844501
...
435511A
Cover Assembly,control(outdoor) L-G-ACQ36712504
...
435511B
Cover Assembly,control(outdoor) L-G-3551A30162A
...
435512
Cover Assembly,top(outdoor) L-G-3551A30113G
...
437211
Panel Assembly,front(outdoor) L-G-AGL36687014
...
437212
Panel Assembly,rear(outdoor) L-G-AGL36636801
...
447910
Barrier Assembly, Outdoor L-G-3H03307M
...
546810
Motor, Dc Outdoor L-G-EAU52759301
...
548490
Accumulator Assembly L-G-4849A20012B
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73010801
...
550140A
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
550140B
Isolator L-G-4H00637A
...
552112
Tube Assembly,condenser(in) L-G-5211A30298A
...
552113
Tube Assembly,condenser(out) L-G-5211A23320G
...
552116
Tube Assembly,reverse L-G-5211A20493Z
...
552200
Valve,expansion Body L-G-MJX62711401
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Valve,service L-G-MJX62472208
...
552203B
Valve,service L-G-MJX62451505
...
554031
Condenser Assembly,bending L-G-ACG73547307
...
554160
Compressor L-G-5416A90015A
...
558511
Drier Assembly L-G-5851A20003M
...
559010
Fan, Propeller L-G-MDG37706501
...
561410
Drawing,assembly L-G-EAD62115302
...
649950
Case Assembly,control(outdoor) L-G-ABQ69476604
...
661400A
Drawing, Assembly L-G-6877A20050A
...
661400B
Drawing,assembly L-G-6877A20050B
