product name

LG LMU180HE.AWGAEUS

Model: LMU180HE.AWGAEUS

Save Part Not Listed?
product name

Main

...
...
W0CZZA
Capacitor,film,box L-G-2A00986G
...
W6640B
Terminal Block L-G-3H00390A
...
W6640A
Connector, Terminal Block L-G-3A00093A
...
W6631B
Harness,multi L-G-6631A10050P
...
W49810
Supporter Assembly L-G-5211A20927F
...
W0CZZB
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
W6631A
Harness,multi L-G-6631A10050N
...
137213A
Panel Assembly,side L-G-3A02284M
...
137213B
Panel Assembly,side L-G-AGL71275601
...
152503
Nipple,drain L-G-4H01010A
...
237202
Panel,front L-G-1A00196L
...
263230C
Thermistor Assembly,ntc L-G-EBG61107013
...
263230D
Thermistor Assembly,ntc L-G-EBG61186733
...
268711A
Pcb Assembly,main L-G-6871A20479G
...
268711B
Pcb Assembly,main L-G-6871A20500B
...
349480
Orifice L-G-4948A20005A
...
430410
Base Assembly, Outdoor L-G-AAN73130003
...
435300
Grille,rear L-G-1A00207B
...
435301
Grille,discharge L-G-MDX61844501
...
435511B
Cover Assembly L-G-3550AR2886C
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019503
...
437211
Panel Assembly,front(outdoor) L-G-AGL73078003
...
447910
Barrier Assembly, Outdoor L-G-4791A30004K
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20008E
...
548490
Accumulator Assembly L-G-AAB33905201
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73010801
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly,condenser(in) L-G-AJR33484101
...
552113
Tube Assembly,condenser(out) L-G-AJR33485101
...
552114
Tube Assembly,discharge(outdoor) L-G-AJR33477801
...
552116
Tube Assembly,reverse L-G-AJR33477701
...
552200
Valve,expansion Body L-G-5220A90010G
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203B
Service Valve L-G-5220A20005D
...
552203A
Valve,service L-G-MJX62472208
...
554031
Condenser Assembly,bending L-G-5403A20072L
...
554160A
Compressor Set, Korea L-G-2520UGAK2AA
...
554160B
Compressor Set, Korea L-G-2520UGJK2AA
...
559010
Fan Assembly L-G-1A00195B
...
561410
Solenoid L-G-3A02028Z
...
566000
Service Valve L-G-6600L000013
...
567502A
Room Air Conditioner Compressor Overload Protector L-G-6750U-L058A
...
567502B
O.l.p L-G-6750U-L039A
...
649950
Case Assembly,control(outdoor) L-G-ABQ34008701
...
661400A
Drawing,assembly L-G-EAD62437307
...
661400B
Solenoid,expansion,valve L-G-EBE43125114

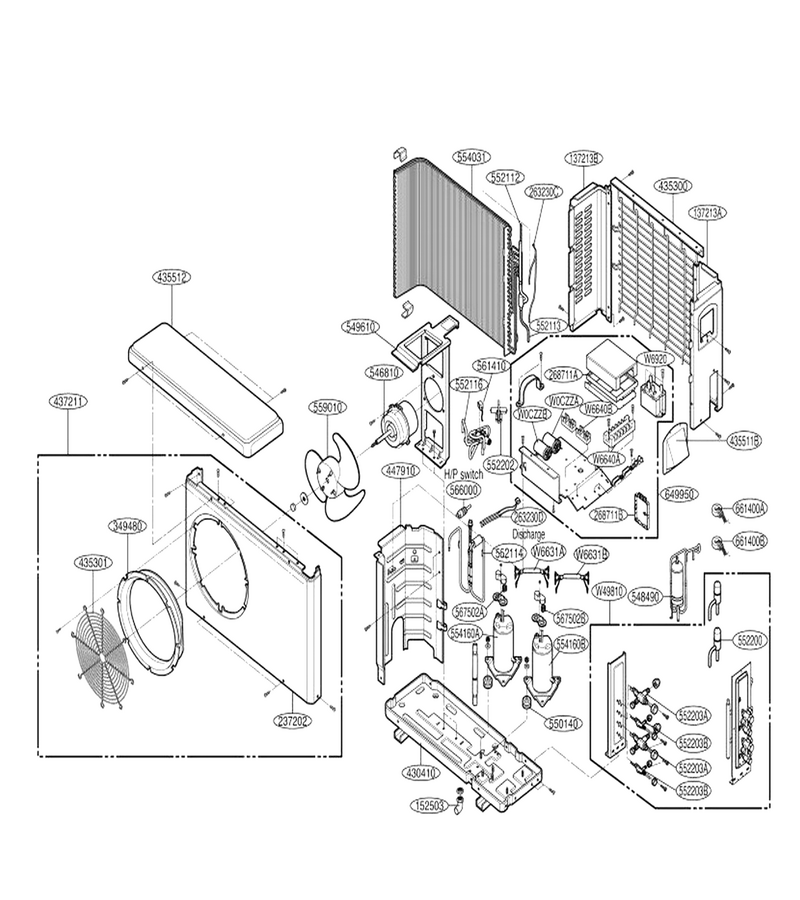

Schematic Image Zoomed
