product name

LG LMNS14420V.ANSCNA0

Model: LMNS14420V.ANSCNA0

Save Part Not Listed?
product name

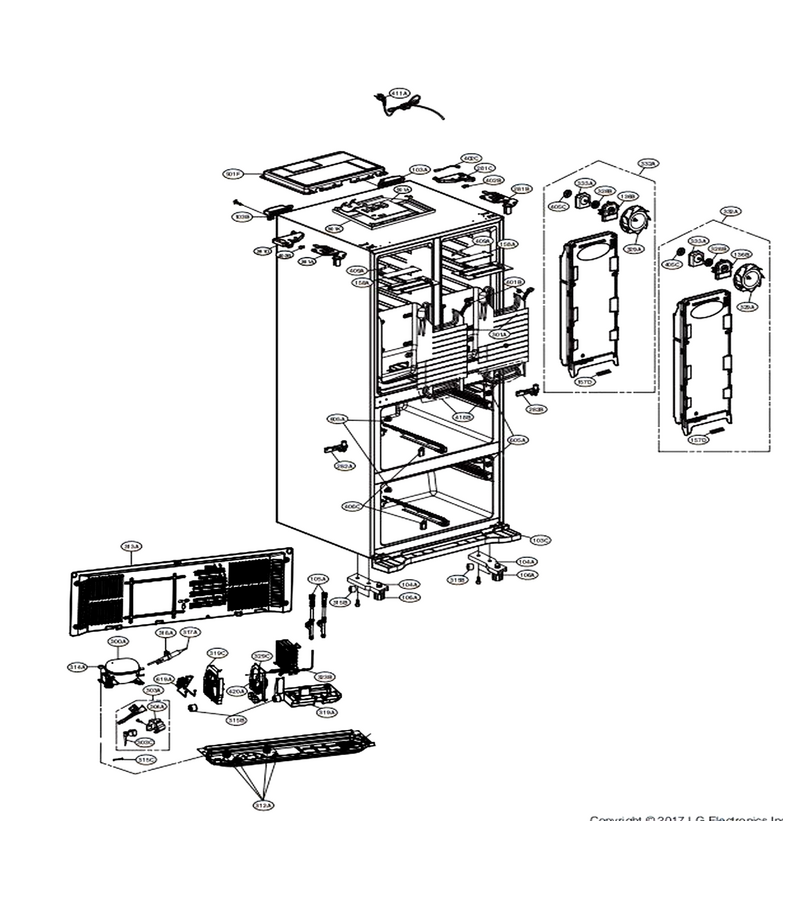

Main 1

...
...
103A
Handle,rear L-G-MEB61994107
...
103C
Cover Assembly,lower L-G-ACQ83868803
...
103B
Handle,rear L-G-MEB61994108
...
104A
Leg Assembly,frame L-G-AFC30700608
...
105A
Tube Assembly,drain L-G-5251JA2006B
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
136B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2055A
...
157D
Deodorizer Assembly L-G-ACX72949201
...
158A
Cover,lamp L-G-MCK70864302
...
281A
Refrigerator Door Hinge L-G-AEH60614101
...
281B
Refrigerator Door Hinge L-G-AEH60614102
...
281C
Cover Assembly,hinge L-G-ACQ83870533
...
281D
Cover Assembly,hinge L-G-ACQ83870524
...
282A
Hinge Assembly,center L-G-AEH75957401
...
282B
Hinge Assembly,center L-G-AEH75957402
...
300A
Compressor,set Assembly L-G-TCA36491302
...
301A
Evaporator Assembly L-G-ADL75560902
...
303A
Thermistor Assembly,ptc L-G-EBG63205834
...
303C
Overload Protect L-G-6750C-0002C
...
304A
Cover,ptc L-G-MCK70052502
...
312A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
313A
Cover Assembly,machinery(rear) L-G-ACQ89690101
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315B
Refrigerator Compressor Base Roller Wheel L-G-3J02312A
...
315C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
317A
Drier Assembly L-G-ADH73590304
...
318A
Drier Holder L-G-4930JA3034C
...
319A
Tray,drip L-G-MJS64251701
...
319C
Guide,fan L-G-MEA42772906
...
323B
Condenser Assembly,wire L-G-ACG75604504
...
328B
Refrigerator Motor Support Damper L-G-5040JA2009B
...
332A
Grille Assembly,fan L-G-AEB73204907
...
333A
Motor,dc L-G-EAU62963001
...
401B
Controller Assembly L-G-ACM73079245
...
402C
Pcb Assembly L-G-EBR71326804
...
405C
Refrigerator Motor Support Damper L-G-5040JA2004B
...
409A
Led Assembly L-G-EAV64632105
...
418B
Heater,sheath L-G-MEE62104906
...
420A
Motor,dc L-G-EAU63103302
...
501K
Case,pcb L-G-MBN62362502
...
501F
Cover Assembly,pcb L-G-ACQ74914740
...
501A
Pcb Assembly,main L-G-EBR76001336
...
605A
Refrigerator Roller Assembly L-G-AHJ30124502

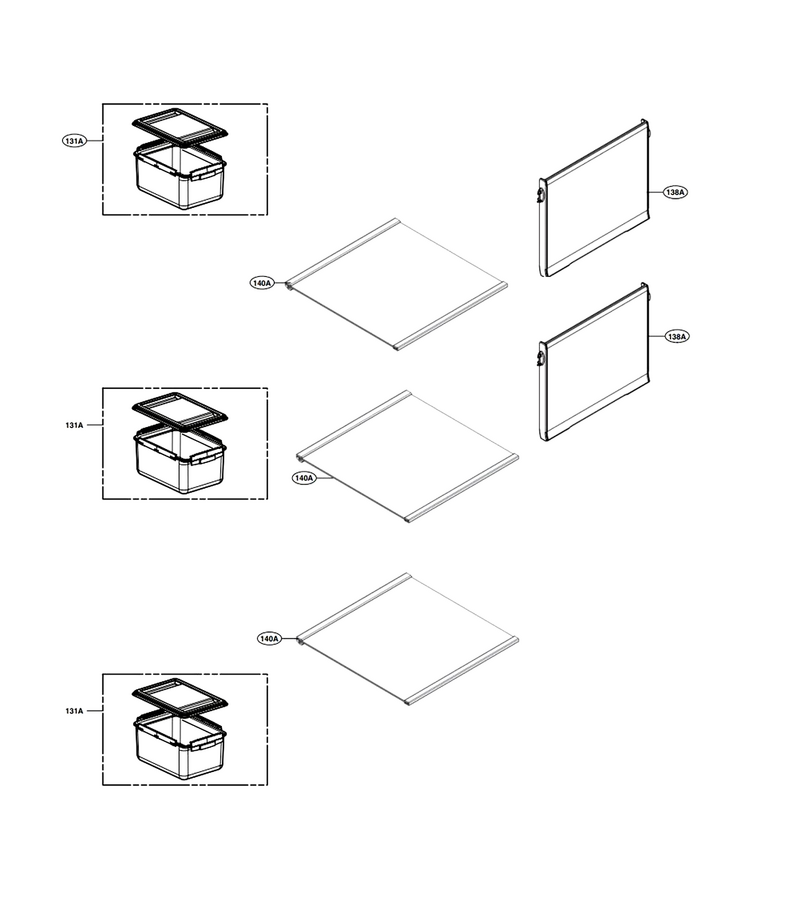

Main 2

...
...
131A
Bucket Assembly,side Dish L-G-AKC67523411
...
138A
Door Assembly,freeze Room L-G-ADC75325807
...
140A
Shelf Assembly,refrigerator L-G-AHT73634012

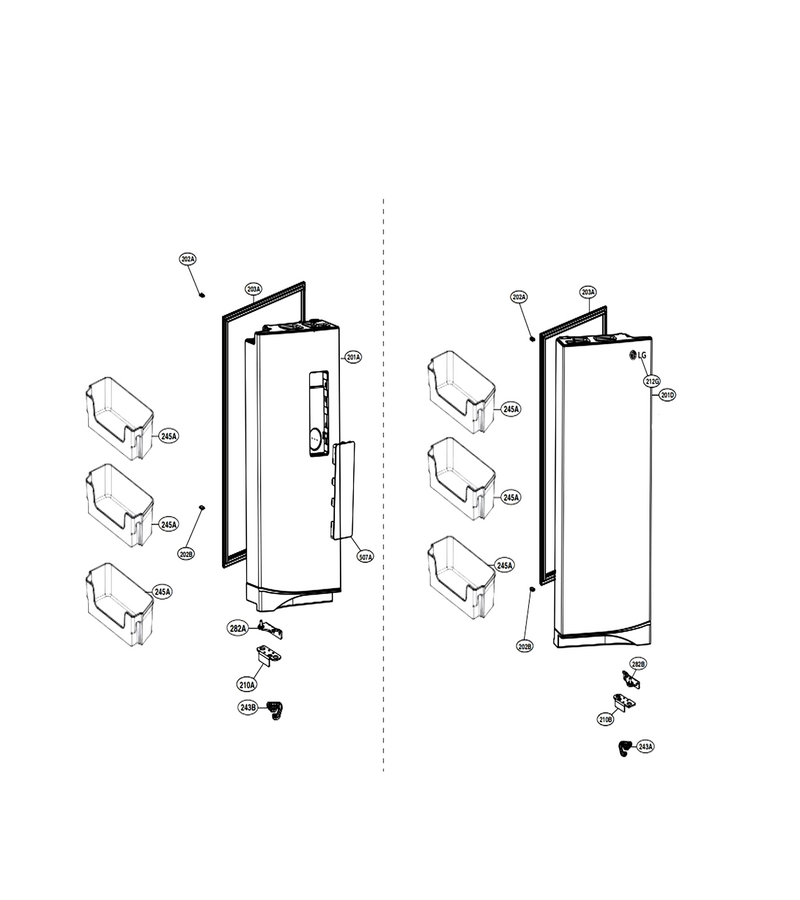

Main 3

...
...
201A
Door Foam Assembly,freezer L-G-ADD74135933
...
201D
Door Foam Assembly,freezer L-G-ADD75596401
...
202A
Stopper,door L-G-MJB63150103
...
202B
Stopper,door L-G-4620JA2029E
...
203A
Gasket Assembly,door L-G-ADX72910311
...
210A
Stopper,door L-G-MJB63070205
...
210B
Stopper,door L-G-MJB63070206
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
243A
Stopper,door L-G-MJB63070102
...
243B
Stopper,door L-G-MJB63070101
...
245A
Basket,door L-G-MAN64048301
...
282A
Hinge Assembly,center L-G-AEH75957401
...
282B
Hinge Assembly,center L-G-AEH75957402
...
507A
Frame Assembly,display L-G-ADV74688237

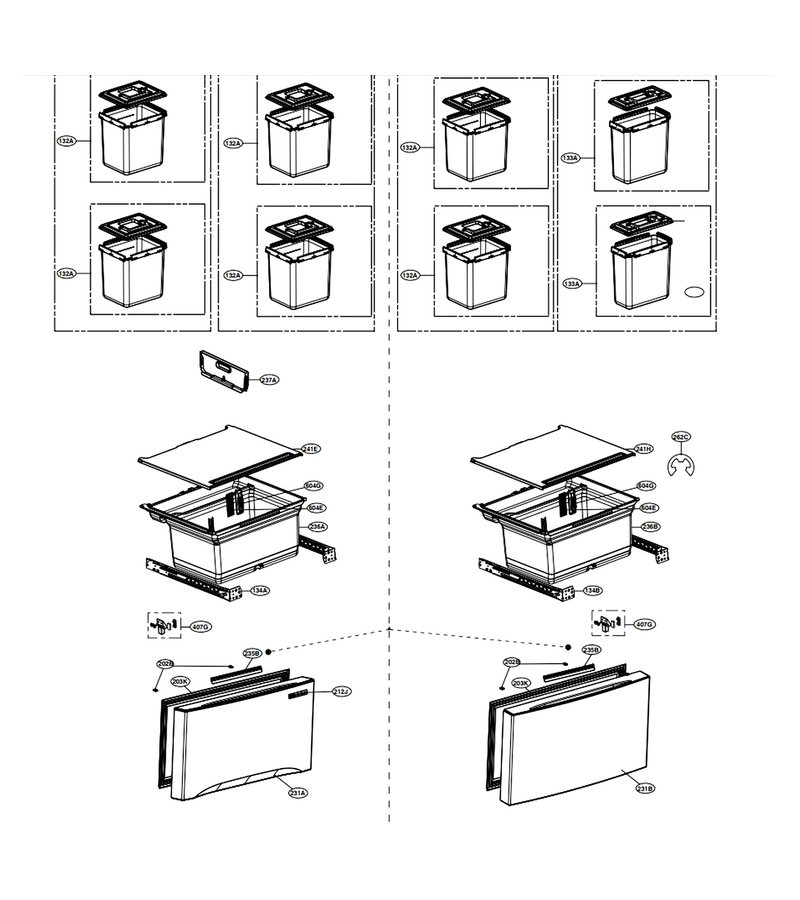

Main 4

...
...
132A
Bucket Assembly,side Dish L-G-AKC67523717
...
133A
Bucket Assembly,side Dish L-G-AKC67523718
...
134A
Rail Assembly,tv L-G-AHC73255104
...
134B
Rail Assembly,tv L-G-AHC73255105
...
202B
Stopper,door L-G-4620JA2029E
...
203K
Gasket Assembly,door L-G-ADX72910304
...
231A
Door Foam Assembly,refrigerator L-G-ADD74136004
...
231B
Door Foam Assembly,refrigerator L-G-ADD74136504
...
235B
Handle,decor L-G-MEB63234201
...
236A
Basket,door L-G-MAN62068301
...
236B
Basket,door L-G-MAN62068401
...
237A
Funnel L-G-MDR61962201
...
241E
Cover Assembly,bucket L-G-ACQ85329923
...
241H
Cover Assembly,bucket L-G-ACQ85329924
...
262C
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
407G
Cover,door Switch L-G-MCK68788002
...
604E
Deodorizer L-G-4756JA3001H
...
604G
Cover,deodorizer L-G-3550JA2143C
