LG LMNC246D8V0.ANWBDXB

Model: LMNC246D8V0.ANWBDXB

Save Part Not Listed?
product name

Popular Parts

Popular Parts

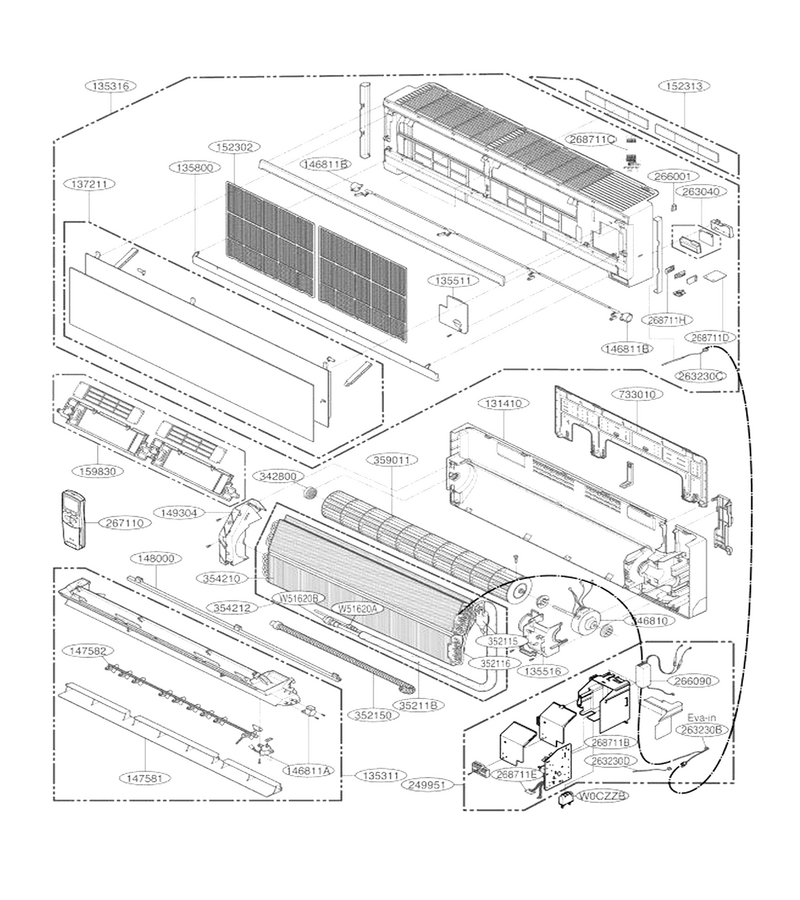

Main

...
...
W0CZZB
Capacitor,film,box L-G-3H01487G
...
W51620A
Needs Description L-G-4010AR3071B
...
35211B
Tube Assembly,tubing L-G-AJR32967404
...
131410
Chassis Assembly L-G-ABW31671701
...
135311
Grille Assembly,discharge(indoor) L-G-AEB31671801
...
135316
Grille Assembly,front(indoor) L-G-AEB59281606
...
135511
Cover Assembly,control(indoor) L-G-ACQ31672510
...
135516
Cover Assembly,motor L-G-3551A20154D
...
135800
Door L-G-MCV32699602
...
137211
Panel Assembly,front(indoor) L-G-AGL31672004
...
146811A
Motor Assembly L-G-4681A20055A
...
146811B
Motor Assembly, Dc, Stepping L-G-4681A20055D
...
147581
Horizontal Louver L-G-MFH32699201
...
147582
Vertical Louver L-G-5990A20050A
...
148000
Supporter L-G-MJH32699901
...
149304
Holder,evaporator L-G-4930A20065A
...
152302
Air Filter L-G-MDJ32699401
...
152313
Filter Assembly,deodorizer L-G-5231A20040N
...
159830
Filter Assembly, Air Cleaner L-G-5983A20017A
...
249951
Case Assembly,control(indoor) L-G-ABQ57810615
...
263040
Lcd,module-Tn L-G-6306A90009E
...
263230B
Thermistor Assembly,ntc L-G-EBG61106523
...
263230D
Thermistor L-G-EBG58713202
...
263230C
Thermistor Assembly,ntc L-G-EBG61106805
...
266001
Micro Switch L-G-6600K000001
...
266090
Hv Assy L-G-6609A10003Z
...
267110
Remote Controller Assembly L-G-AKB32788903
...
268711B
Pcb Assembly,main L-G-EBR38328604
...
268711C
Sub Pcb Assembly L-G-6871A00092B
...
268711D
Sub Pcb Assembly L-G-6871A00088A
...
268711E
Pcb Assembly,option L-G-EBR43370707
...
268711H
Sub Pcb Assembly L-G-6871A20259D
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Motor Assembly,ac,indoor L-G-4681A20067C
...
352115
Tube Assembly, Evapoartor (in) L-G-5211A39010A
...
352116
Tube Assembly, Evaporator (out L-G-5211A30756B
...
352150
Hose Assembly,drain L-G-AEM36740102
...
354210
Evaporator Assembly, First L-G-5421A20220A
...
354212
Evaporator Assembly,final L-G-ADL65876102
...
359011
Room Air Conditioner Blower Wheel L-G-5901A92441E
...
733010
Plate Assembly, Installation L-G-AGU36472501
