LG LMN120HE.AWHAEUS

Model: LMN120HE.AWHAEUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
W51620A
Socket,flare L-G-3A00375D
...
W51620B
Socket,flare L-G-3A00375A
...
35211B
Tube Assembly,tubing L-G-5211A15008A
...
131410
Chassis L-G-3141A20034A
...
135311
Grille Assembly,discharge(indoor) L-G-3531A11362A
...
135313
Inlet Grille L-G-3531A20309G
...
135316
Grille Assembly,front(indoor) L-G-3531A18015A
...
135500
Cover L-G-3550A30315A
...
135511
Cover Assembly,control(indoor) L-G-3551A20208F
...
135516
Cover Assembly L-G-3551A20156B
...
146811
Motor Assembly L-G-4681A20055A
...
147581
Louver L-G-5990A20068A
...
147582
Louver,verti L-G-4758A30057A
...
149303
Holder, Tubing L-G-4930A20022A
...
149304
Holder, Evaporator L-G-4930A30070A
...
152302
Room Air Conditioner Air Filter L-G-5230A20064A
...
152313
Filter Assembly L-G-5231A20040K
...
237900
Window,display L-G-3790A20129A
...
249951
Case Assembly,control(indoor) L-G-4995A20831A
...
263230A
Thermistor Assembly,ntc L-G-EBG61106543
...
263230B
Thermistor Assembly, Ntc L-G-EBG60661801
...
267110
Room Air Conditioner Remote Control L-G-6711A20128C
...
268711A
Display Pcd L-G-6871A20680D
...
268711B
Pcb Assembly,main L-G-6871A20782A
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Room Air Conditioner Indoor Fan Motor L-G-4681AR2295L
...
352150
Hose Assembly,drain L-G-AEM36740102
...
354210
Evaporator Assembly,first L-G-ADL30058601
...
354212
Evaporator Assembly,final L-G-5421A20282A
...
359011
Room Air Conditioner Blower Wheel L-G-5901A20017H
...
733010
Plate Assembly L-G-3301A20020A

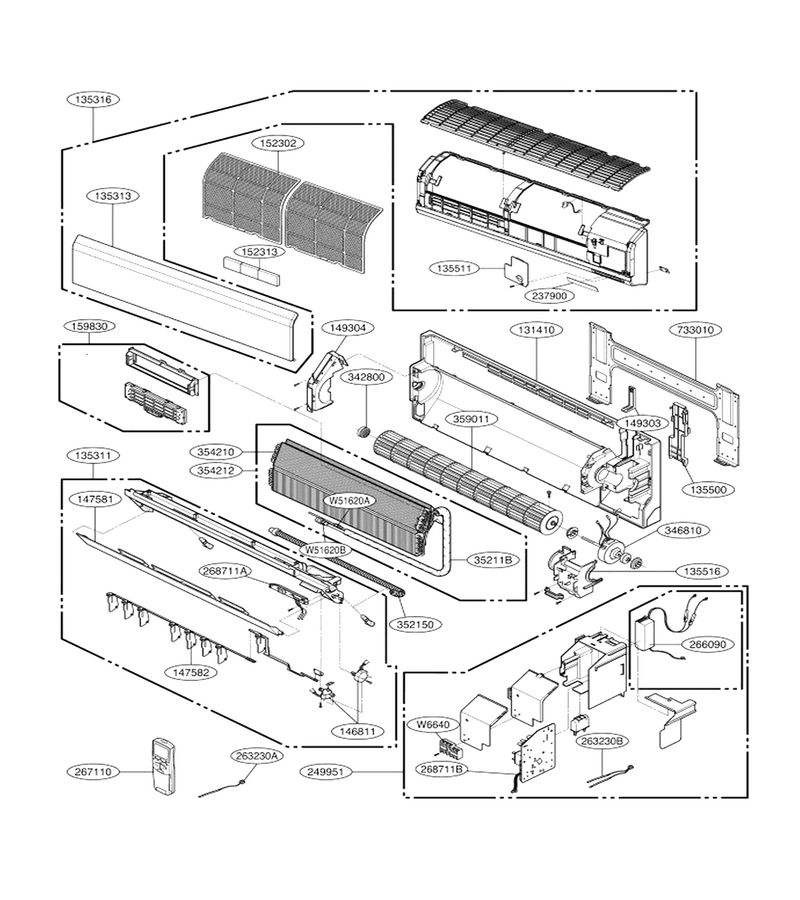

Schematic Image Zoomed
