product name

LG LMN090HE.AWHAEUS

Model: LMN090HE.AWHAEUS

Save Part Not Listed?
product name

Main

...
...
35211B
Tube Assembly,tubing L-G-AJR73944701
...
131410
Chassis Assembly L-G-ABW68676009
...
135311
Grille Assembly,discharge(indoor) L-G-AEB72004121
...
135313
Grille Assembly,inlet L-G-AEB72910202
...
135316
Grille Assembly,front(indoor) L-G-AEB73505217
...
147581
Louver,horizontal L-G-MFH59924301
...
147582
Louver,vertical L-G-MFH56981201
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG56983001
...
267110
Remote Controller Assembly L-G-AKB73835317
...
342800
Bearing L-G-4280A20004M
...
346810
Motor Assembly,dc,indoor L-G-EAU62004011
...
352150
Hose Assembly,drain L-G-AEM73493402
...
354210
Evaporator Assembly,first L-G-ADL68714801
...
359011
Fan Assembly,cross Flow L-G-ADP67813503
...
733010
Plate Assembly,installation L-G-AGU67813404

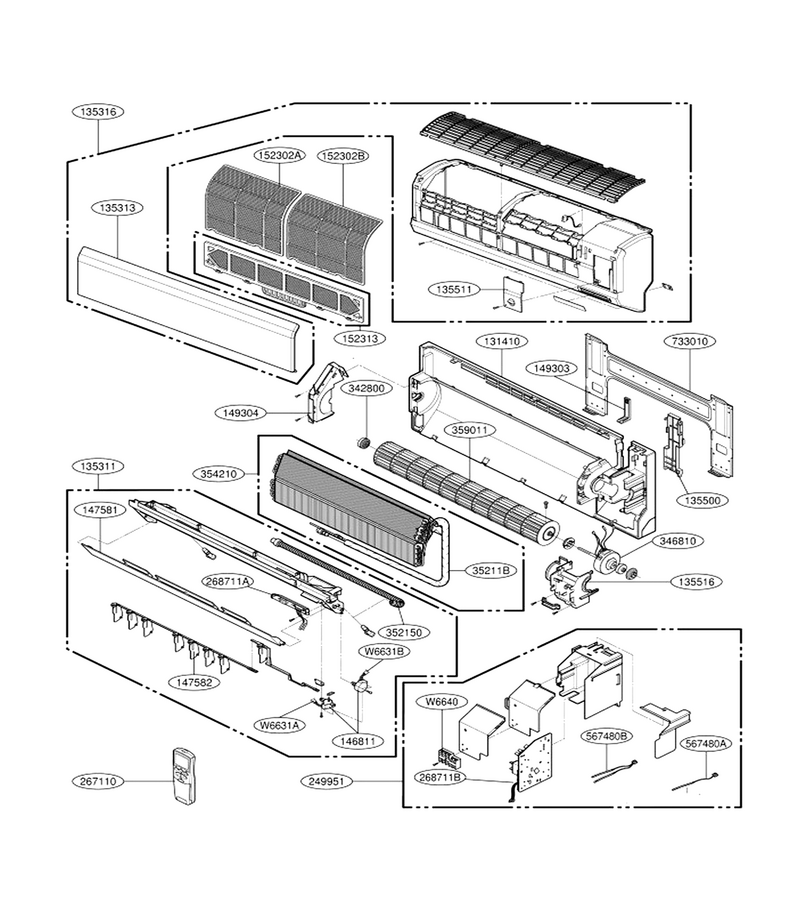

Schematic Image Zoomed
