product name

LG LMH1017CVW.AW1ELGA

Model: LMH1017CVW.AW1ELGA

Save Part Not Listed?
product name

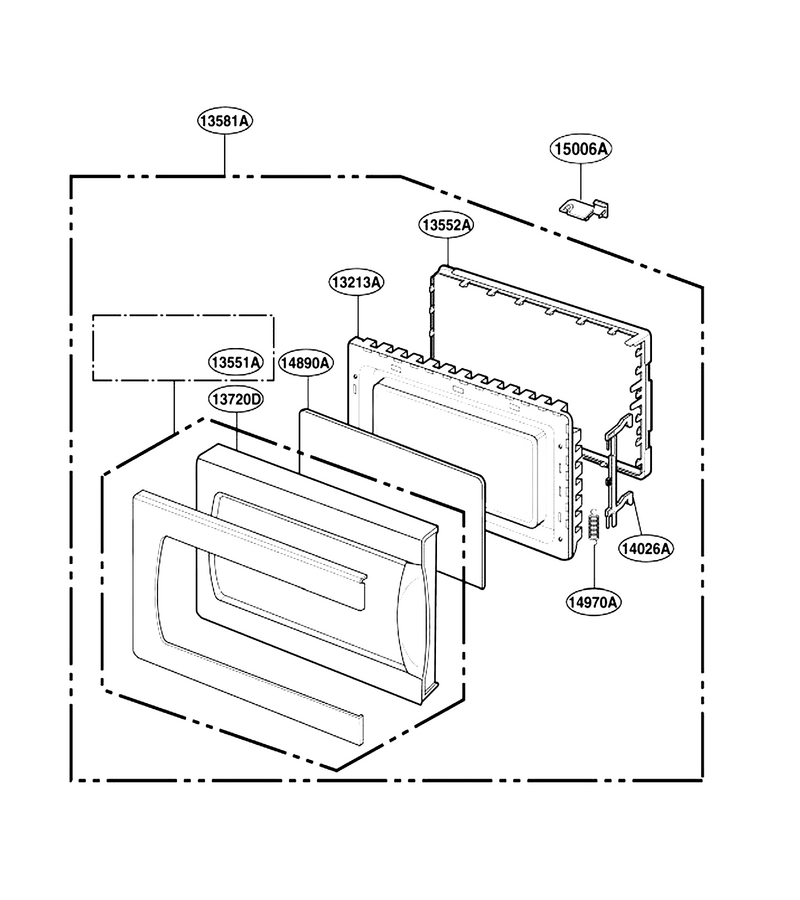

Door Parts

...
...
13213A
Microwave Door Frame L-G-3213W1A032L
...
13551A
Panel Assembly,door L-G-3721W1A009C
...
13552A
Cover L-G-3552W1A042A
...
13581A
Door Assembly L-G-3581W1A426S
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14890A
Microwave Glass L-G-4890W1A010M
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A017A

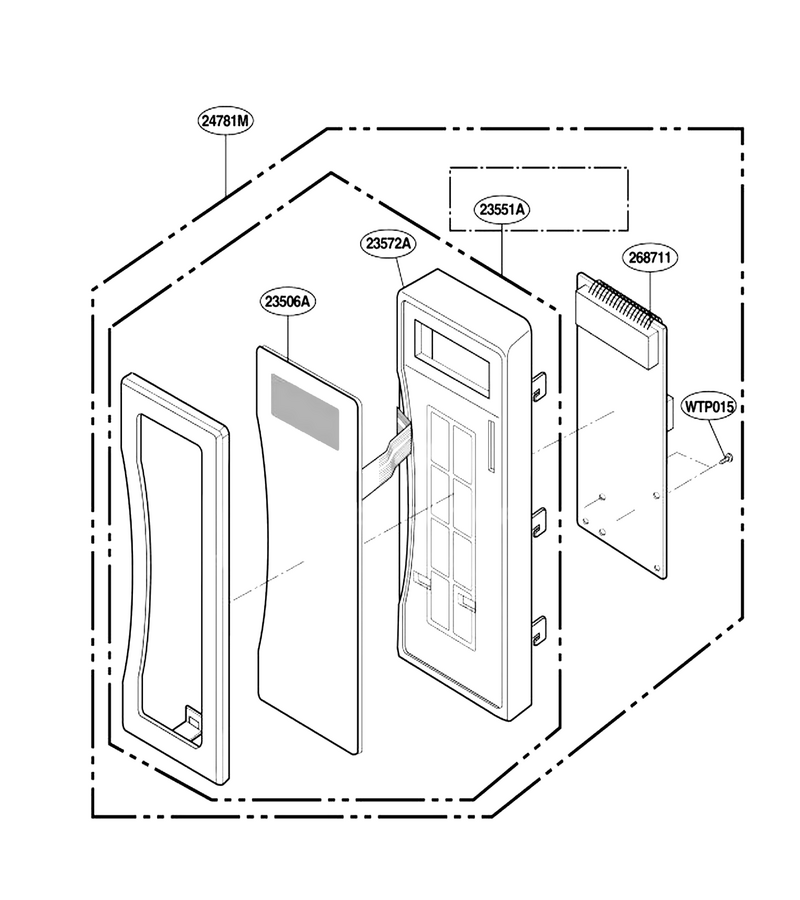

Control Parts

...
...
WTP015
Microwave Screw L-G-1TPL0402618
...
23551A
(23551a) Parts Assembly L-G-383EW5A230A
...
24781M
(24781m) Controller Assembly,keypad L-G-4781W0M065C
...
268711
(268711) Pcb Assembly,sub L-G-6871W1S290B

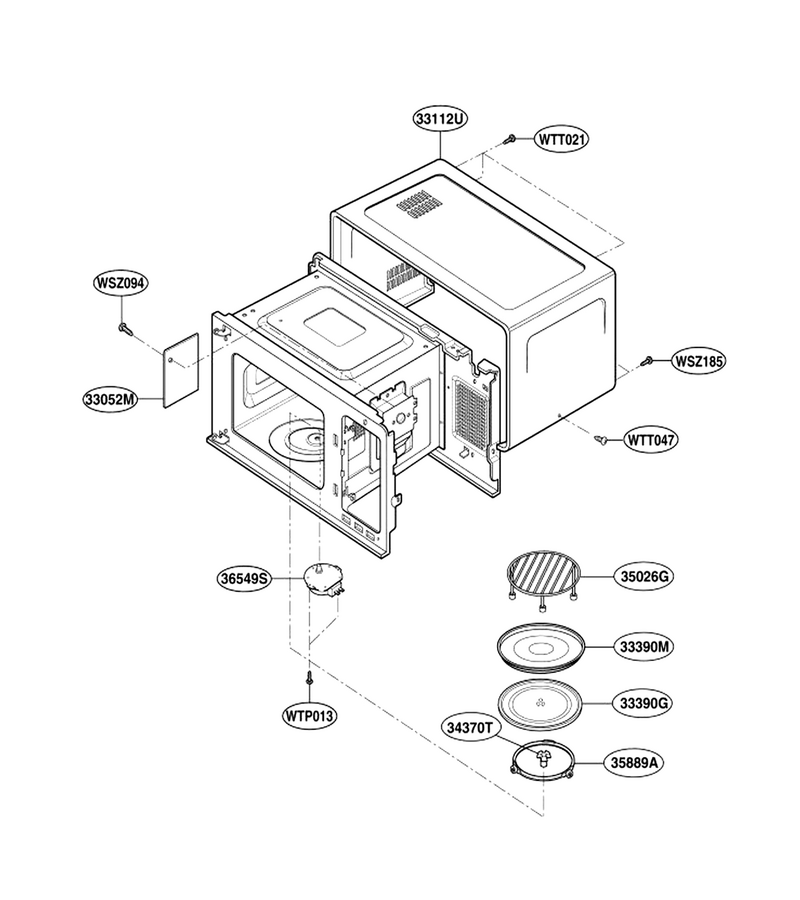

Oven Cavity Parts

...
...
WSZ094
Drawer Screw L-G-4B70572D
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT047
Tapping Screw L-G-1TTG0402416
...
33052M
Canopy L-G-3052W3M011E
...
33112U
Case,flat L-G-3112W1F061C
...
33390G
Glass Tray L-G-1B71018H
...
33390M
Microwave Turntable Tray L-G-3390W2P002F
...
34370T
Shaft L-G-4370W1A009A
...
35026G
Microwave Metal Rack L-G-3B71492A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A015K
...
36549S
Microwave Turntable Motor L-G-6549W1S013A

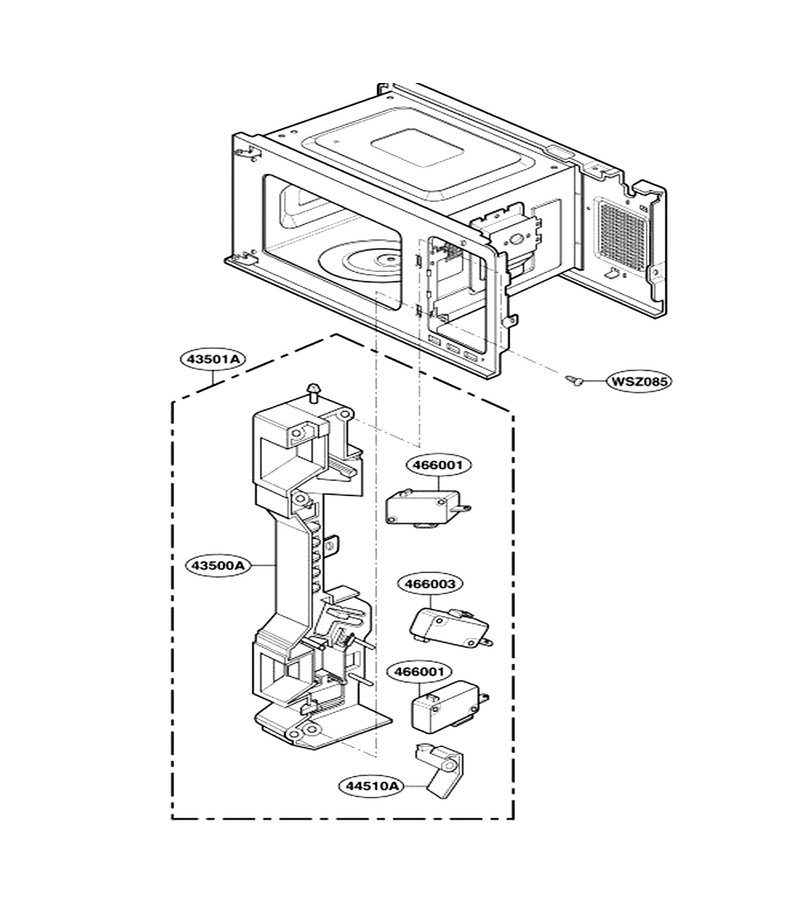

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A028B
...
43501A
Holder Assembly,locker L-G-3501W1A016V
...
44510A
Lever L-G-4510W4A005A
...
466001
Microwave Micro Switch L-G-6600W1K004C
...
466003
Microwave Door Interlock Switch L-G-6600W1K004B

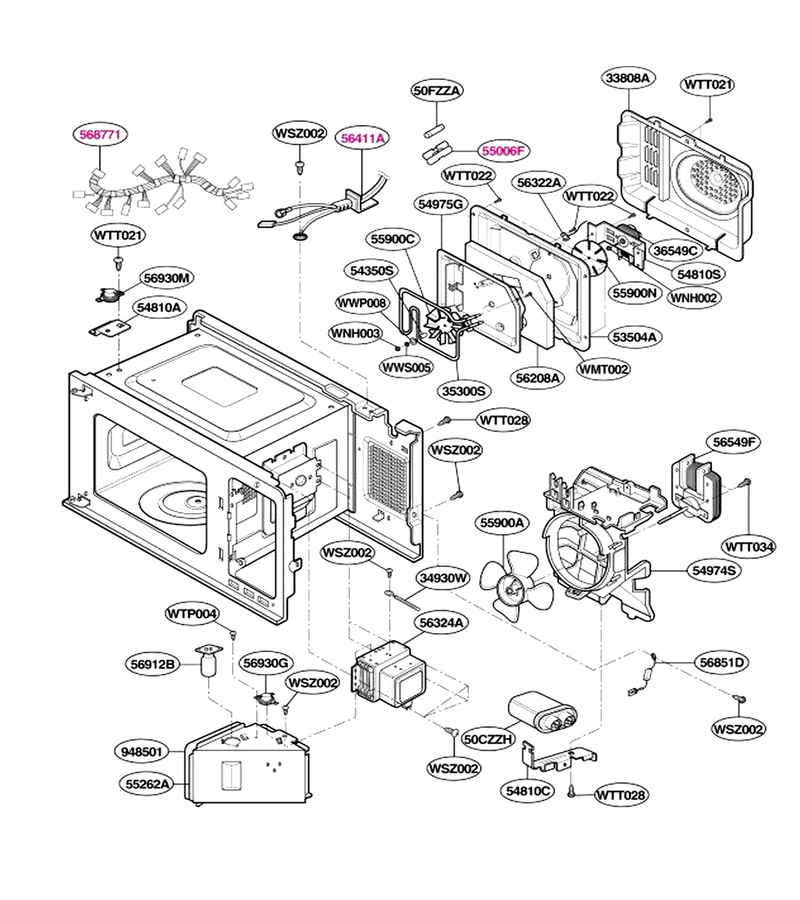

Interior Parts (i)

...
...
WMT002
Screw L-G-1MTC0402432
...
WNH002
Nut L-G-1NHA0400018
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTP004
Screw L-G-1TPL0302418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT022
Microwave Screw L-G-1TTL0402422
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT034
Screw L-G-1TTL0403418
...
WWP008
Washer L-G-1WPL0500032
...
50CZZH
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
50FZZA
Fuse[all] L-G-3B74133K
...
33808A
Microwave Cover L-G-3550W1A117A
...
34930W
Lug (circ) L-G-4B72510F
...
35300S
Heater L-G-5300W2S018E
...
36549C
Motor L-G-2B72066P
...
53504A
Chamber L-G-3300W1G057A
...
54350S
Ring Shaft L-G-4B73725A
...
54810A
Thermostat Bracket L-G-4810W1A224A
...
54810C
Bracket L-G-4810W4C003A
...
54810S
Bracket L-G-3B72717A
...
54974S
Guide L-G-4974W1S016C
...
54975G
Microwave Guide Assembly L-G-4975W1G002C
...
55262A
Air Duct L-G-5262W2A020A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
55900C
Fan Blade L-G-3B72561A
...
55900N
Fan Blade L-G-3B72559A
...
56208A
Glass L-G-6208W2A005D
...
56322A
Microwave Thermistor L-G-6322W2A001A
...
56324A
Microwave Magnetron L-G-6324W1A001H
...
56411A
Power Cord Assembly L-G-6411W1A018L
...
56549F
Fan Motor L-G-6549W1F015B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001Q
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930G
Thermostat L-G-6930W1A003V
...
56930M
Microwave Thermal Cut-Off L-G-6930W1A003C
...
568771
Harness,single L-G-6877W1A516B
...
948501
Cushion L-G-3B72244T

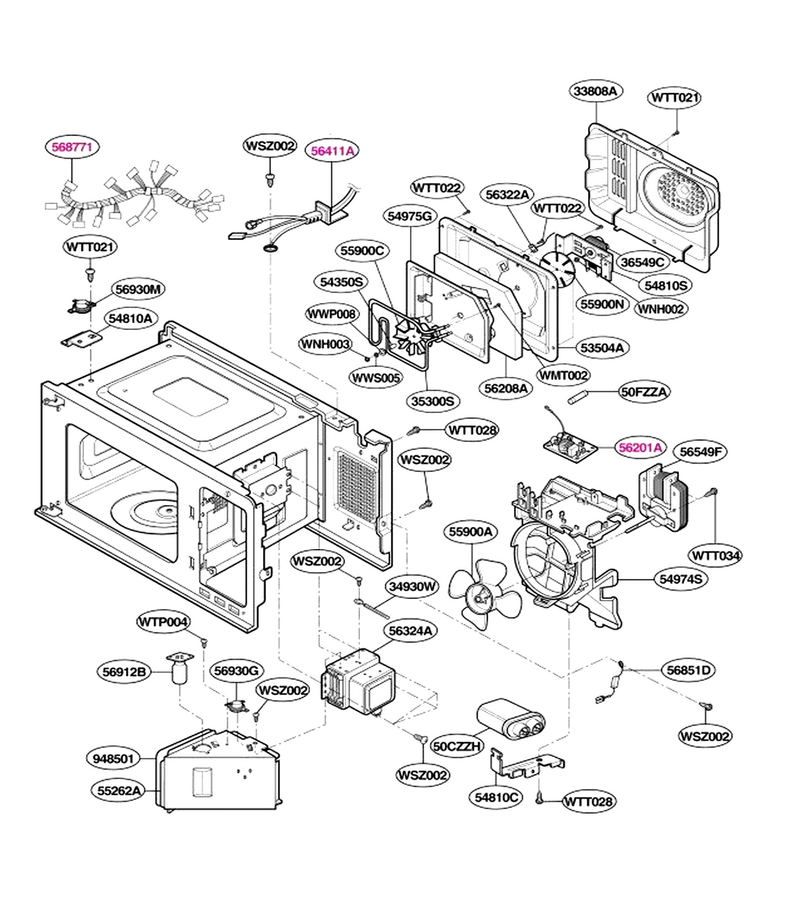

Interior Parts (ii)

...
...
WMT002
Screw L-G-1MTC0402432
...
WNH002
Nut L-G-1NHA0400018
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTP004
Screw L-G-1TPL0302418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT022
Microwave Screw L-G-1TTL0402422
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT034
Screw L-G-1TTL0403418
...
WWP008
Washer L-G-1WPL0500032
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004G
...
50FZZA
Fuse[all] L-G-3B74133K
...
33808A
Microwave Cover L-G-3550W1A117A
...
34930W
Lug (circ) L-G-4B72510F
...
35300S
Heater L-G-5300W2S018E
...
36549C
Motor L-G-2B72066P
...
53504A
Chamber L-G-3300W1G057A
...
54350S
Ring Shaft L-G-4B73725A
...
54810A
Thermostat Bracket L-G-4810W1A224A
...
54810C
Bracket L-G-4810W4C003A
...
54810S
Bracket L-G-3B72717A
...
54974S
Guide L-G-4974W1S016C
...
54975G
Microwave Guide Assembly L-G-4975W1G002C
...
55262A
Air Duct L-G-5262W2A020A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
55900C
Fan Blade L-G-3B72561A
...
55900N
Fan Blade L-G-3B72559A
...
56201A
Microwave Filter L-G-6201W2A018A
...
56208A
Glass L-G-6208W2A005D
...
56322A
Microwave Thermistor L-G-6322W2A001A
...
56324A
Microwave Magnetron L-G-6324W1A001H
...
56411A
Power Cord Assembly L-G-6411W1A018L
...
56549F
Fan Motor L-G-6549W1F015B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001Q
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930G
Thermostat L-G-6930W1A003V
...
56930M
Microwave Thermal Cut-Off L-G-6930W1A003C
...
568771
Harness,single L-G-6877W1A516B
...
948501
Cushion L-G-3B72244T

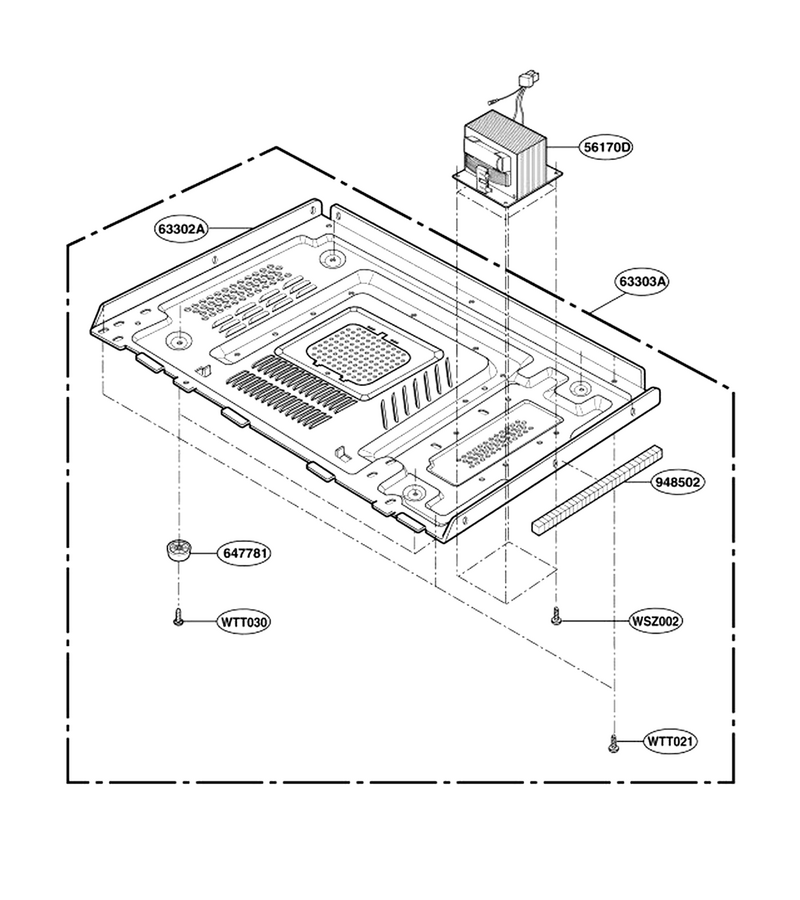

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT030
4.0x16mm Tap L-G-1TTL0403118
...
56170D
Transformer L-G-6170W1D050J
...
63302A
Base Plate L-G-3302W1A026N
...
63303A
Base Plate L-G-3303W1A064A
...
647781
Foot L-G-4B75290A
...
948502
Cushion L-G-3B72244G

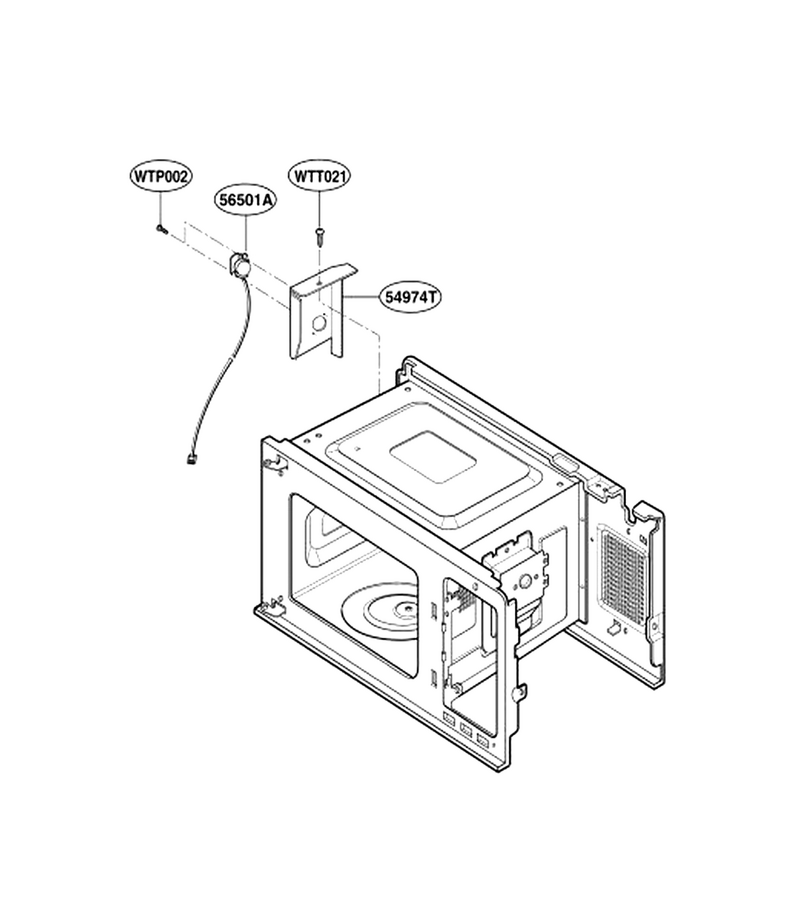

Sensor Parts

...
...
WTP002
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Sensor Bracket L-G-5208W1A026B
...
56501A
Sensor Assembly L-G-6501W1A013A
