LG LMDN096HV.EWHBEUS

Model: LMDN096HV.EWHBEUS

Save Part Not Listed?
product name

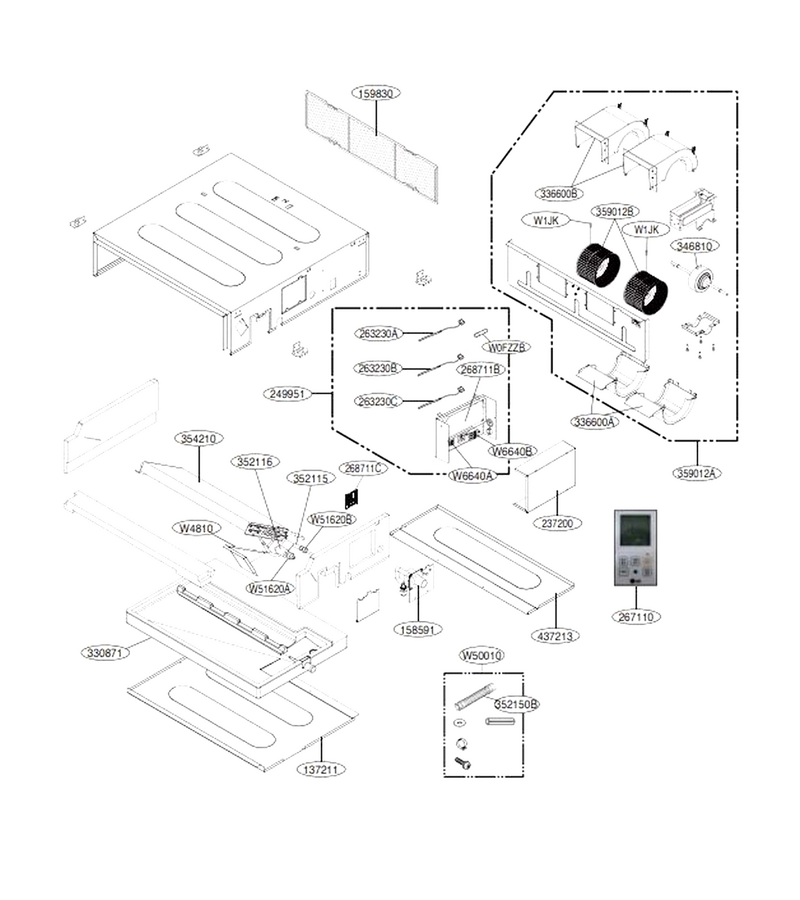

Main

...
...
W0FZZB
Fuse,time Delay L-G-6900AQ9028D
...
W1JK
Screw,set L-G-4H00516B
...
W4810
Bracket L-G-MAZ63470401
...
W50010
Accessory Assembly L-G-AAA73031501
...
W51620A
Socket,flare L-G-3A00375A
...
W51620B
Socket,flare L-G-4010AR3071C
...
W6640A
Connector,terminal Block L-G-EAG63452304
...
W6640B
Connector,terminal Block L-G-EAG38884441
...
137211
Panel Assembly,front(indoor) L-G-AGL73859103
...
158591
Pump Assembly,water L-G-AHA73673401
...
159830
Filter Assembly,air Cleaner L-G-ADQ73493503
...
237200
Panel,control L-G-MGC63188601
...
249951
Case Assembly,control(indoor) L-G-ABQ73941909
...
263230B
Thermistor Assembly,ntc L-G-EBG61287708
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
263230A
Thermistor Assembly,ntc L-G-EBG61106819
...
268711B
Pcb Assembly,main L-G-EBR66367411
...
268711C
Pcb Assembly,sub L-G-EBR78258501
...
330871
Pan Assembly,drain L-G-AGK73330503
...
336600A
Housing,wrapper L-G-3660A20059A
...
336600B
Housing,wrapper L-G-3660A20060A
...
346810
Motor Assembly,dc,indoor L-G-4681A20198D
...
352115
Tube Assembly,evaporator(in) L-G-AJR74203404
...
352116
Tube Assembly,evaporator(out) L-G-AJR74284503
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-ADL73741603
...
359012A
Fan Assembly,final L-G-ADP73513603
...
359012B
Fan Assembly,blower L-G-5901A20049A
...
437213
Panel Assembly,rear(indoor) L-G-AGL73957003
