LG LMDN095HV.AWHBEUS

Model: LMDN095HV.AWHBEUS

Save Part Not Listed?
product name

Main

...
...
W0FZZ
Fuse Assembly L-G-6901A20003K
...
W50011
Accessory Assembly,indoor L-G-5001A30049C
...
W4811A
Bracket Assembly L-G-4811A10031A
...
W4811
Bracket Assembly L-G-4811A10030A
...
W4810B
Bracket L-G-4810A30360B
...
W4810A
Bracket L-G-4810A30360A
...
W1JK
Screw,set L-G-4H00516B
...
131400
Cabinet L-G-3090A20021B
...
137211
Panel Assembly,front(indoor) L-G-3721A20334A
...
147901
Barrier,indoor L-G-4790A20071B
...
158591
Pump Assembly,water L-G-5859A10008B
...
159830
Filter Assembly,air Cleaner L-G-5231AP3330P
...
249951
Case Assembly,control(indoor) L-G-4995A20821P
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287708
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
267110
Remote Controller Assembly L-G-6711A20116R
...
268711C
Pcb Assembly,main L-G-EBR39319504
...
268711E
Pcb Assembly,option L-G-EBR57215501
...
330871
Pan Assembly,drain L-G-AGK30318401
...
336600A
Housing,wrapper L-G-3660A20059A
...
336600B
Housing,wrapper L-G-3660A20060A
...
346810A
Motor Assembly,dc,indoor L-G-4681A20198D
...
346810B
Motor Assembly,dc,indoor L-G-EAU62943701
...
349610
Bracket Assembly,motor(indoor) L-G-4961A20043A
...
352118A
Tube Assembly,manifold(indoor) L-G-5211A21813B
...
352118B
Tube Assembly,manifold(indoor) L-G-5211A21812B
...
352150A
Hose Assembly,drain L-G-5215A20008B
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20256A
...
359012A
Fan Assembly,blower L-G-5901A20049A
...
359012B
Fan Assembly,final L-G-5901A20056B
...
437213
Panel Assembly,rear(indoor) L-G-AGL30106001

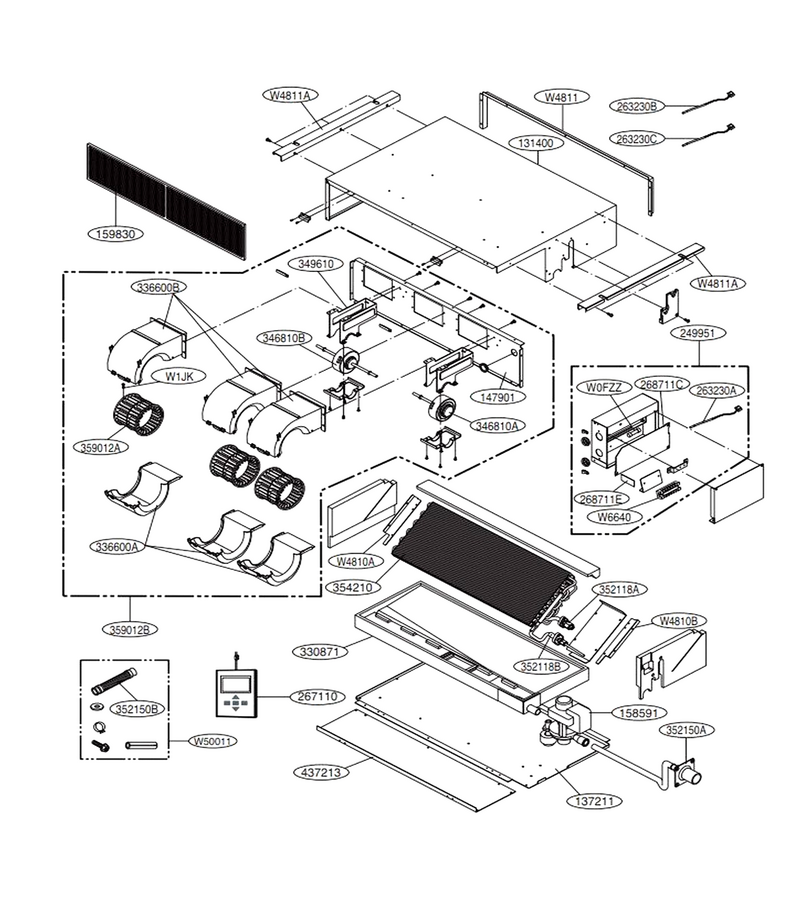

Schematic Image Zoomed
