product name

LG LMC2075BD.CBDELNA

Model: LMC2075BD.CBDELNA

Save Part Not Listed?
product name

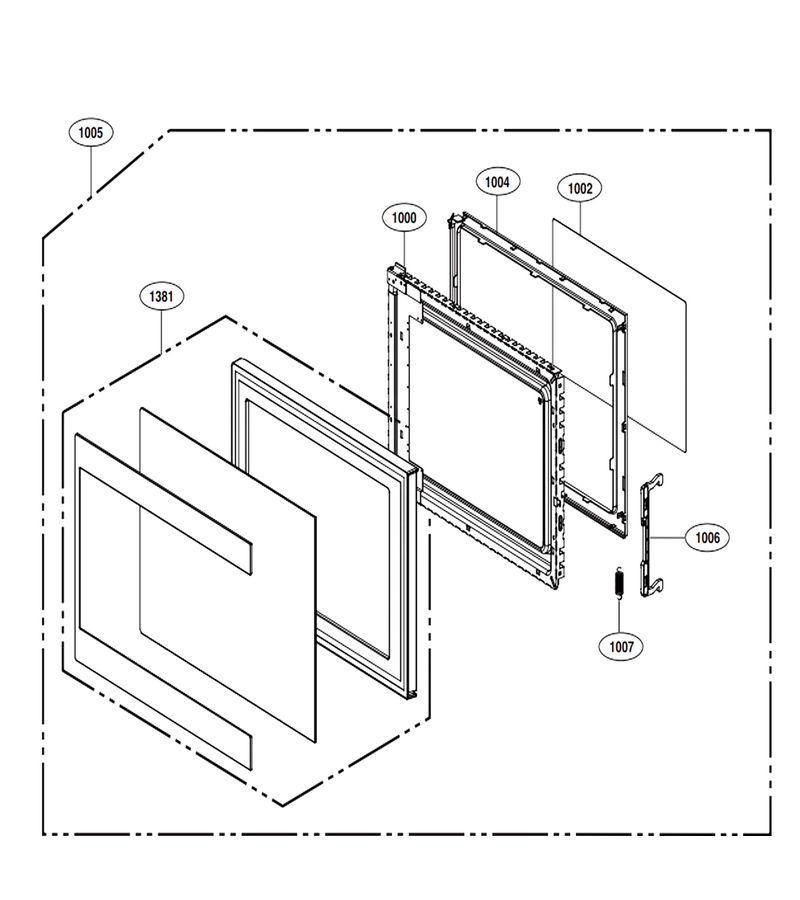

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W0A001L
...
1002
Seal Tape L-G-3536W1A009A
...
1004
Microwave Choke Cover L-G-3552W1A035B
...
1005
Full Door Assembly L-G-ADC75785601
...
1006
Latch L-G-4026W2A016A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1381
Sub Door Assembly L-G-ADC75785701

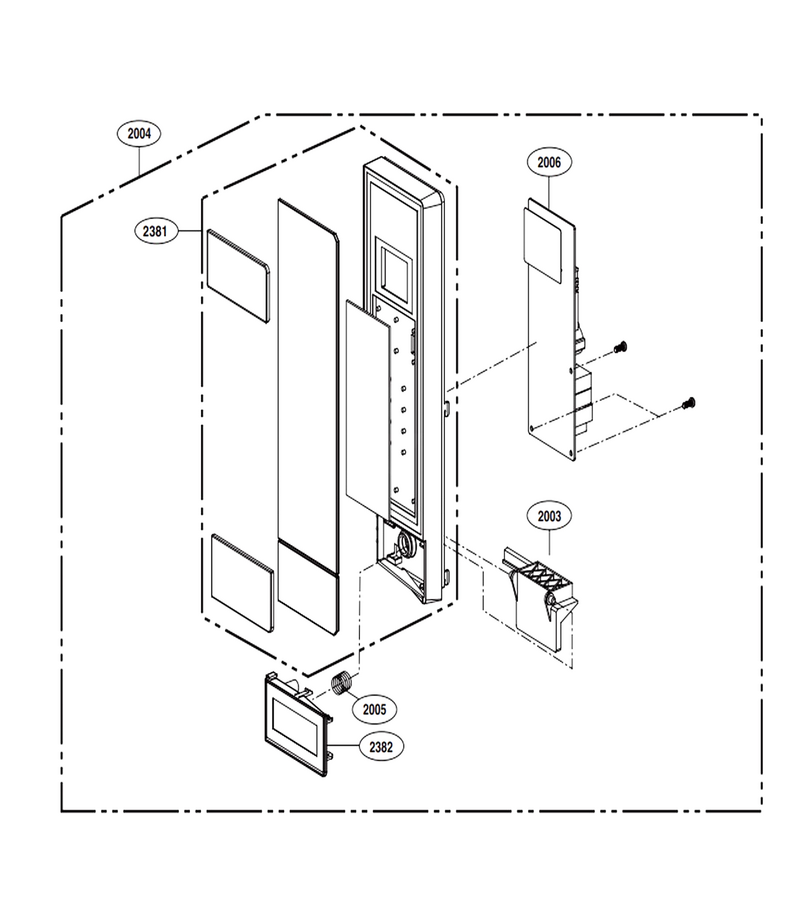

Control Panel Parts

...
...
2003
Lever L-G-4510W3L003A
...
2004
Touch Controller Assembly L-G-ACM75218735
...
2005
Spring L-G-MHY37118501
...
2006
Main Pcb Assembly L-G-EBR81816915
...
2381
Sub Controller Assembly L-G-ACM75218801
...
2382
Button Assembly L-G-ABH76119601

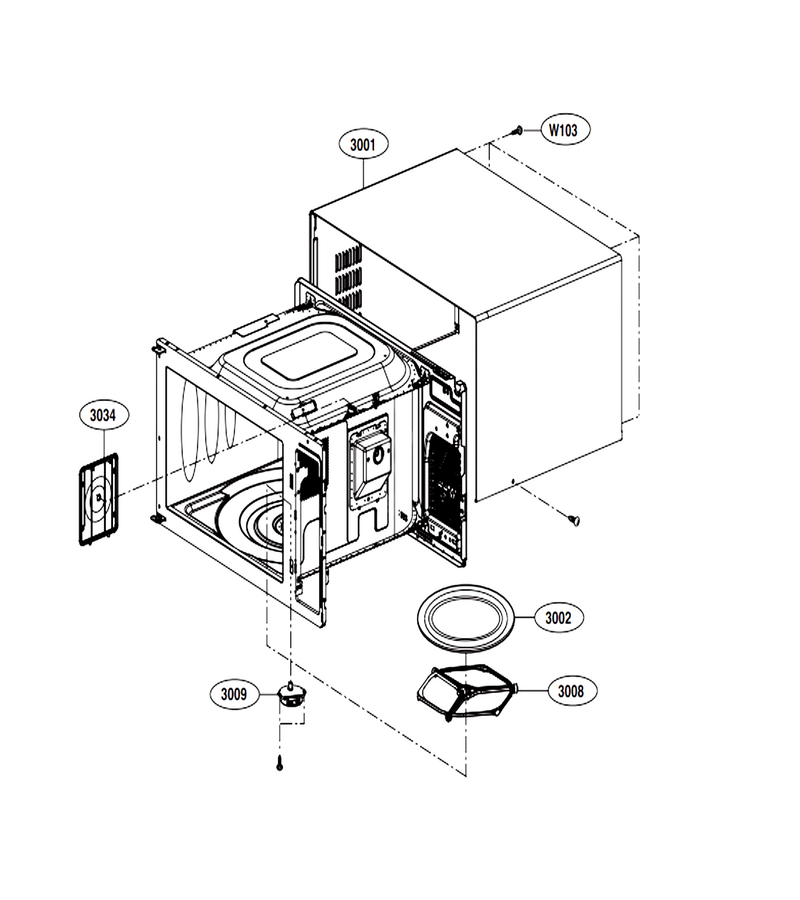

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
3001
U Bending Case L-G-3112W0U072P
...
3002
Microwave Glass Turntable Tray L-G-3390W1G006B
...
3008
Turntable Assembly L-G-AJS73149201
...
3009
Microwave Turntable Motor L-G-6549W1S017A
...
3034
Cover,resin L-G-3052W2A021D

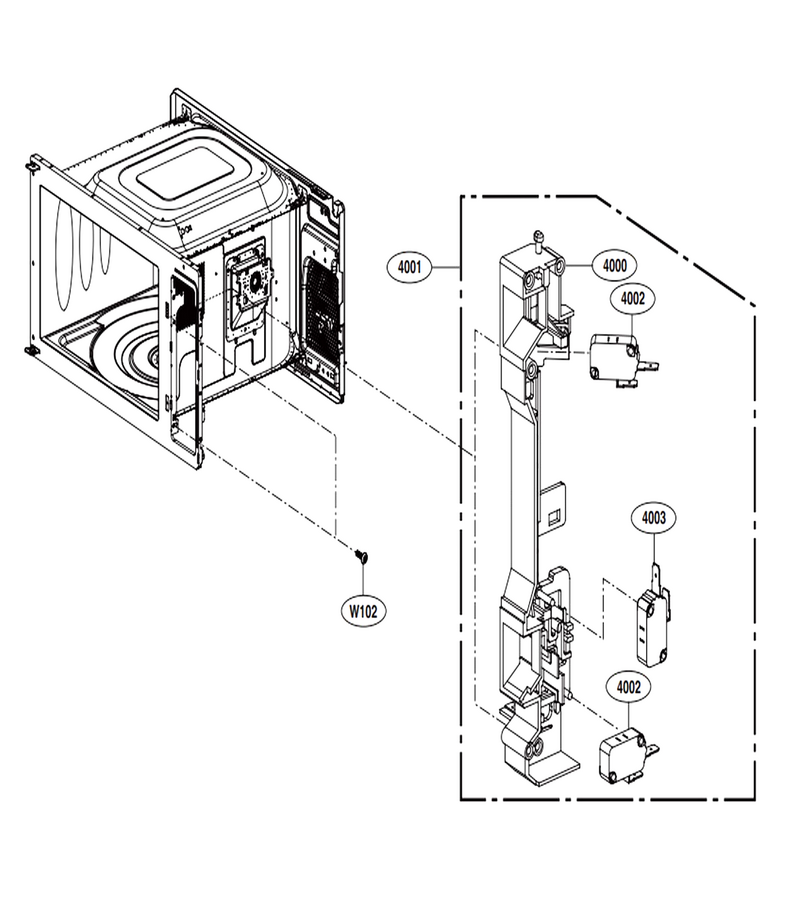

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A018C
...
4001
Microwave Door Latch Housing And Interlock Switch L-G-3501W1A053A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C

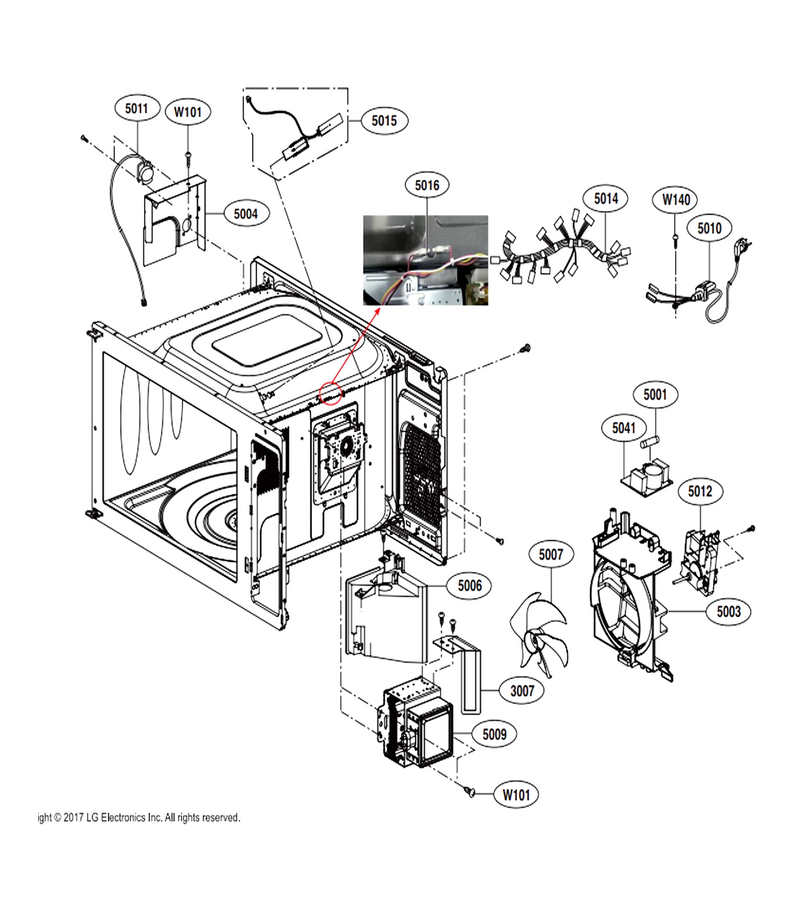

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
3007
Insulator L-G-MEV64392901
...
5001
Fuse,time Delay L-G-EAF42072605
...
5003
Guide,suction L-G-MEA64470601
...
5004
Duct L-G-5208W1A012B
...
5006
Duct L-G-5208W1A034B
...
5007
Fan,propeller L-G-MDG63082802
...
5009
Magnetron L-G-EAS61382910
...
5010
Power Cord Assembly L-G-EAD62027831
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
...
5012
Microwave Cooling Fan Motor L-G-EAU42744405
...
5014
Harness,single L-G-EAD63946011
...
5015
Holder Assembly,lamp L-G-AEJ74859403
...
5016
Thermostat L-G-6930W1A004X
...
5041
Filter Assembly,noise L-G-ADQ74813801

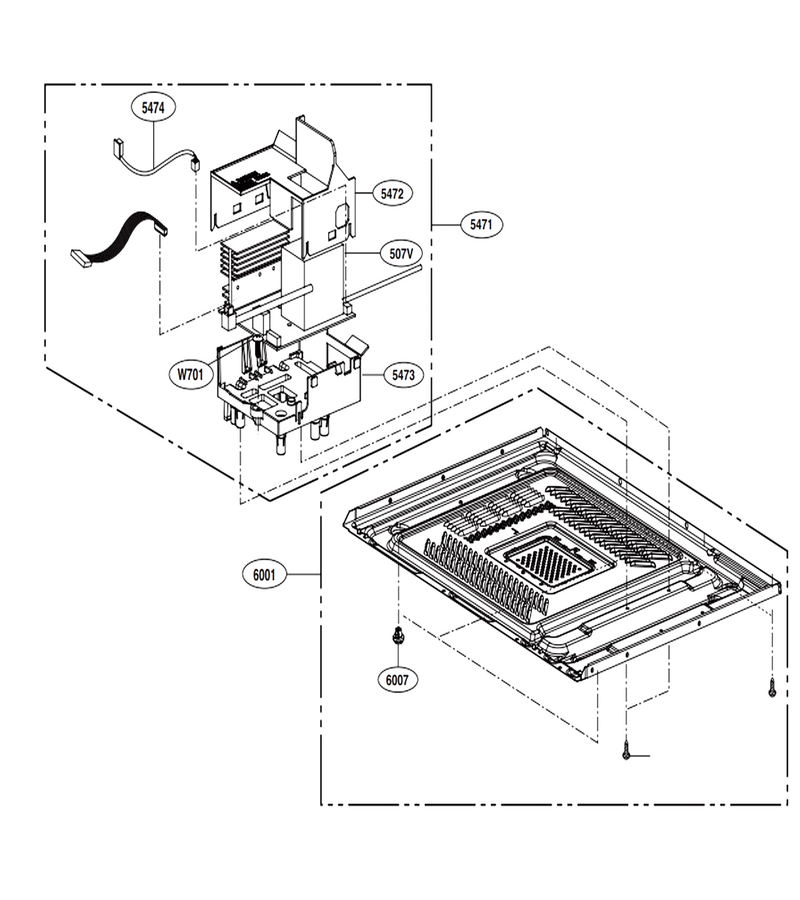

Base Plate Parts

...
...
W701
Customized Screw L-G-FAB33319201
...
507V
Pcb Assembly,inverter L-G-EBR82899406
...
5471
Pcb Supporter Assembly L-G-AJJ75478306
...
5472
Guide,air L-G-MEA64431003
...
5473
Supporter L-G-MJH64235103
...
5474
Harness,single L-G-EAD63789210
...
6001
Plate Assembly,base L-G-3303W1A076E
...
6007
Microwave Foot (white) L-G-5006W3A019A
