LG LMC1575ST.CS1ELNA

Model: LMC1575ST.CS1ELNA

Save Part Not Listed?
product name

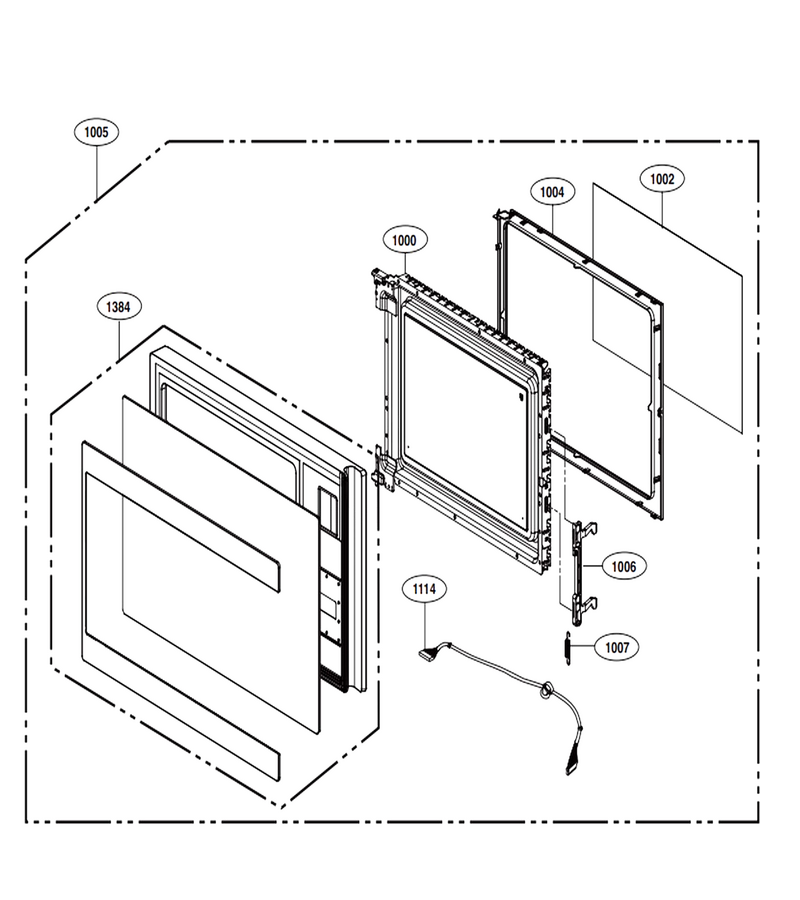

Door Parts

...
...
1000
Frame Assembly,door L-G-ADV76207502
...
1002
Tape,sealing L-G-MJN69967101
...
1004
Cover,choke L-G-MCK69565201
...
1005
Door Assembly,full L-G-ADC75586617
...
1006
Locker L-G-MFG63839001
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1114
Harness,single L-G-EAD63729219
...
1384
Door Assembly,sub L-G-ADC75586506

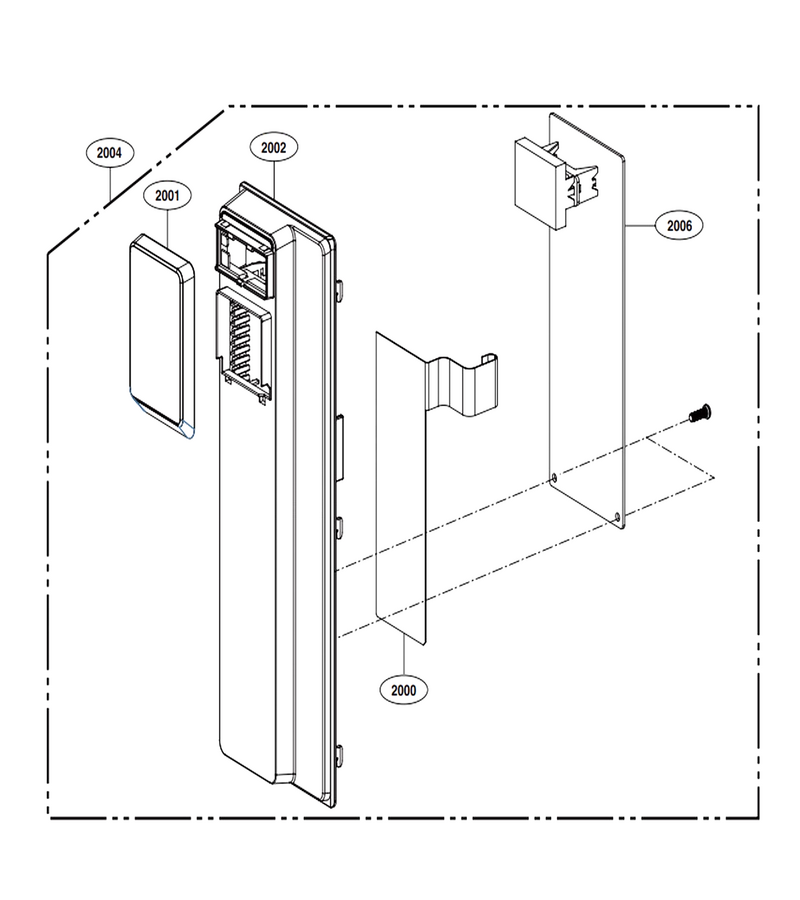

Control Panel Parts

...
...
2000
Membrane L-G-MFM63876903
...
2001
Cover,display L-G-MCK68990601
...
2002
Panel,control L-G-MGC64361520
...
2004
Touch Controller Assembly L-G-ACM74818858
...
2006
Main Pcb Assembly L-G-EBR80969686

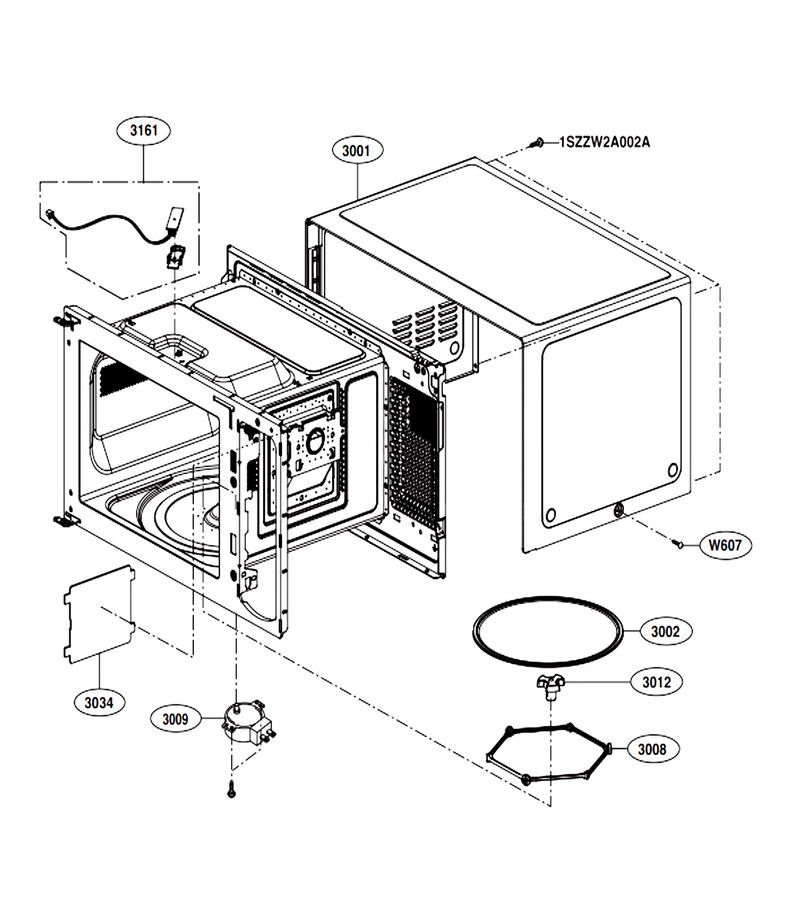

Oven Cavity Parts

...
...
W607
Screw,customized L-G-FAB33360002
...
3001
Case,u Bending L-G-MBN64566303
...
3008
Turntable Assembly L-G-AJS73129204
...
3009
Motor, Ac Synchronous L-G-6549W1S011E
...
3012
Microwave Turntable Motor Couple L-G-4370W1A006B
...
3034
Cover,insulator L-G-MCK69074904
...
3161
Holder Assembly,lamp L-G-AEJ74859402

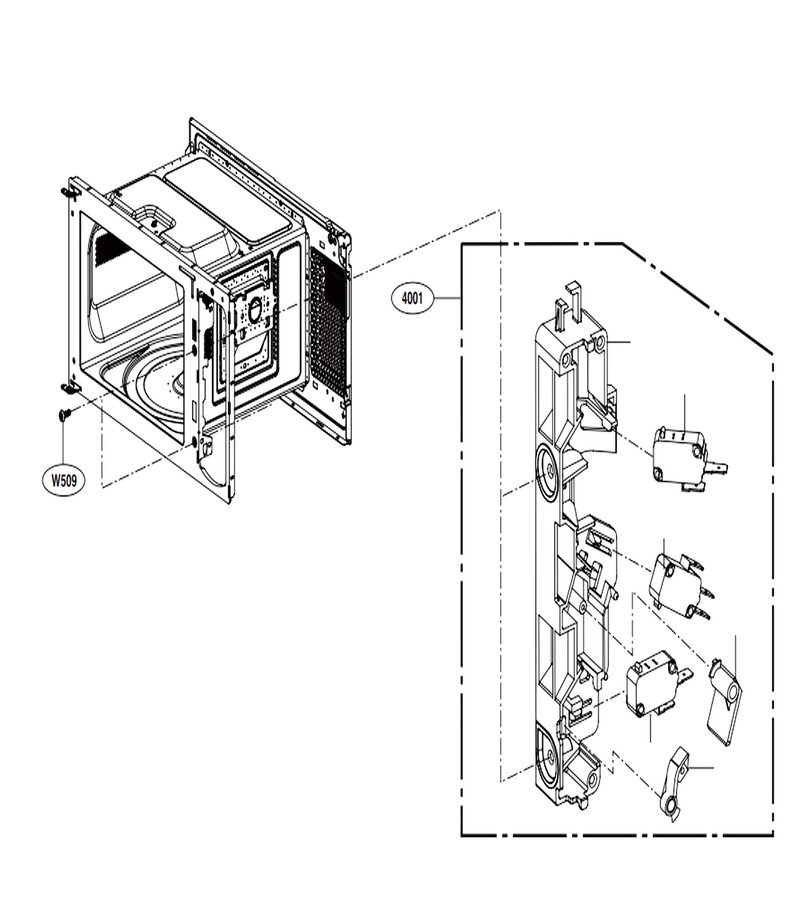

Latch Board Parts

...
...
W509
Screw,customized L-G-FAB33219701
...
4001
Holder Assembly,locker L-G-AEJ74780002

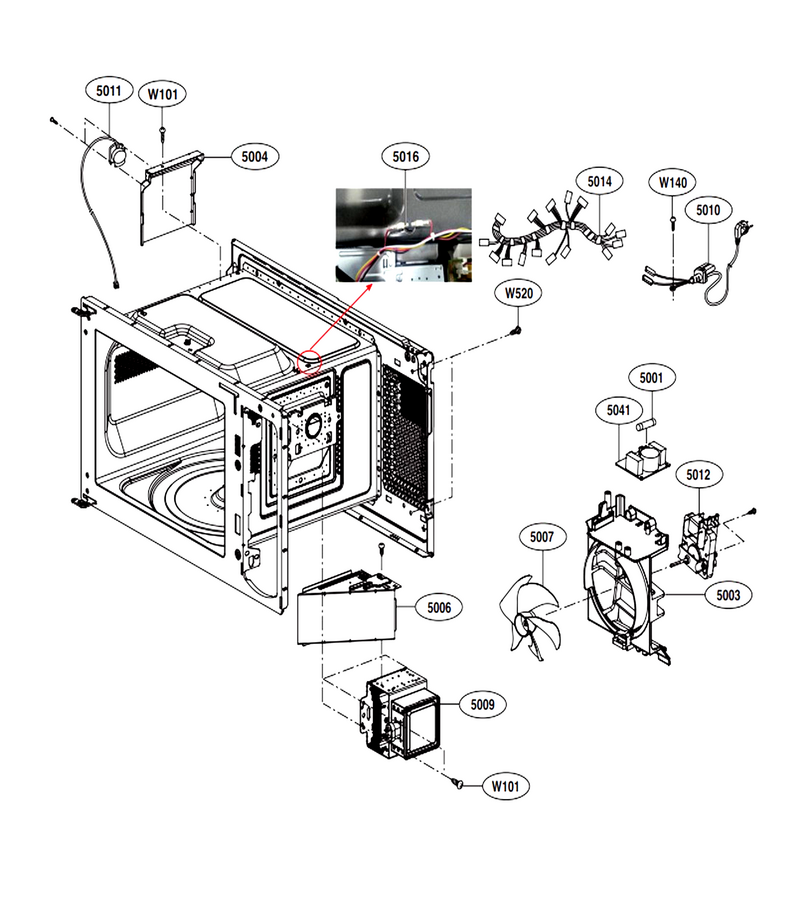

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
W520
Screw,tapping L-G-FAB33439001
...
5004
Bracket,sensor L-G-MAZ65170901
...
5006
Duct L-G-MCZ63931901
...
5009
Magnetron L-G-EAS61382910
...
5010
Power Cord Assembly L-G-EAD62027830
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-EAD63946012
...
5016
Thermostat L-G-6930W1A004X

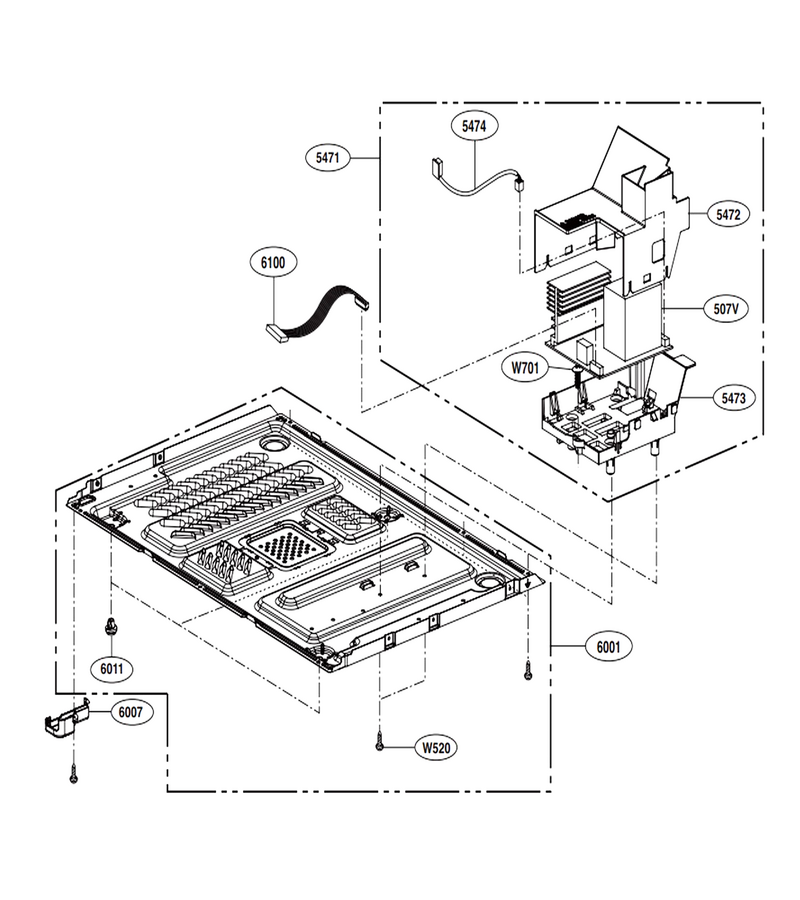

Base Plate Parts

...
...
W520
Screw,tapping L-G-FAB33439001
...
W701
Customized Screw L-G-FAB33319201
...
507V
Pcb Assembly,inverter L-G-EBR82899405
...
5471
Supporter Assembly,pcb L-G-AJJ75138530
...
5472
Guide,air L-G-MEA64431003
...
5473
Supporter L-G-MJH64235103
...
5474
Harness,single L-G-EAD63789209
...
6001
Plate Assembly,base L-G-AGU75510205
...
6007
Cap L-G-MBL67000901
...
6011
Foot Assembly L-G-ADU73009001
...
6100
Harness,single L-G-EAD63729207
