LG LHD65EBLY7.ABKAHDP

Model: LHD65EBLY7.ABKAHDP

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Dehumidifier Run Capacitor L-G-3H00660V
...
35211A
Tube Assembly,suction L-G-5211A10454B
...
130410
Base L-G-3041A10042A
...
131400
Cabinet L-G-3090A10042H
...
135312
Grille Assembly,front L-G-3531A18012N
...
144410
Dehumidifier Caster L-G-4441A30001B
...
148391
Tank Assembly,bucket L-G-4839A10004D
...
149980
Shroud L-G-4998A10034C
...
152302
Filter,air L-G-5230A20040B
...
165010
Harness L-G-6877A30013L
...
235512
Cover Assembly,display L-G-3551A20109C
...
238310
Escutcheon L-G-3831A20079U
...
249950
Case Assembly,control L-G-4995A20622Y
...
264110
Dehumidifier Power Cord L-G-6411A20001Z
...
266010
Dehumidifier Water Bucket Safety Switch L-G-6600A30003C
...
268711-2
Pcb Assembly,main L-G-6871A20888C
...
268711-1
Pcb Assembly,display L-G-6871A20600B
...
330870
Pan Assembly,drain L-G-3087A10019E
...
346811
Motor Assembly,ac L-G-EAU32357501
...
349600
Motor Bracket L-G-4960A20009D
...
352113
Tube Assembly,discharge L-G-5211A11069B
...
354210
Evaporator Assembly,first L-G-5421A10009R
...
359012
Dehumidifier Blower Wheel L-G-5900A20007B
...
435300
Grille,rear L-G-3530A10193D
...
436500
Handle L-G-3650A20004C
...
550140
Bushing L-G-4830A30005A
...
552204
Soleniod L-G-6421A20003K
...
554030
Condenser Assembly,first L-G-5403A20114F
...
554160
Compressor L-G-2520UCBA007
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L048A
...
752140
Connect Hose L-G-5214A20027B

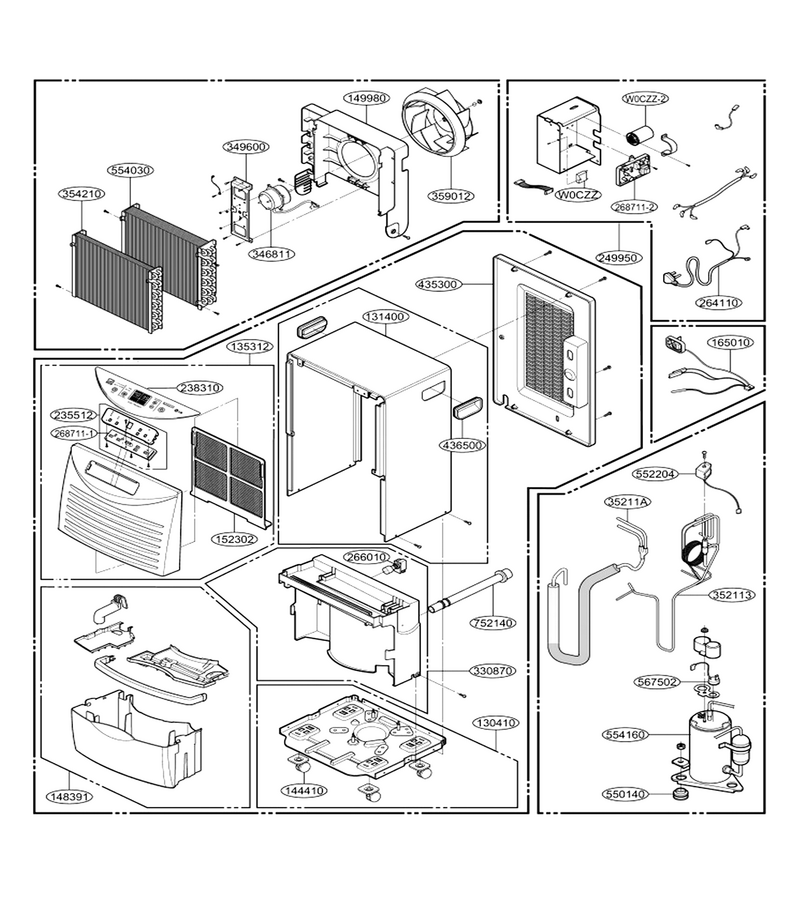

Schematic Image Zoomed
