LG LG530G

Model: LG530G

Save Part Not Listed?
product name

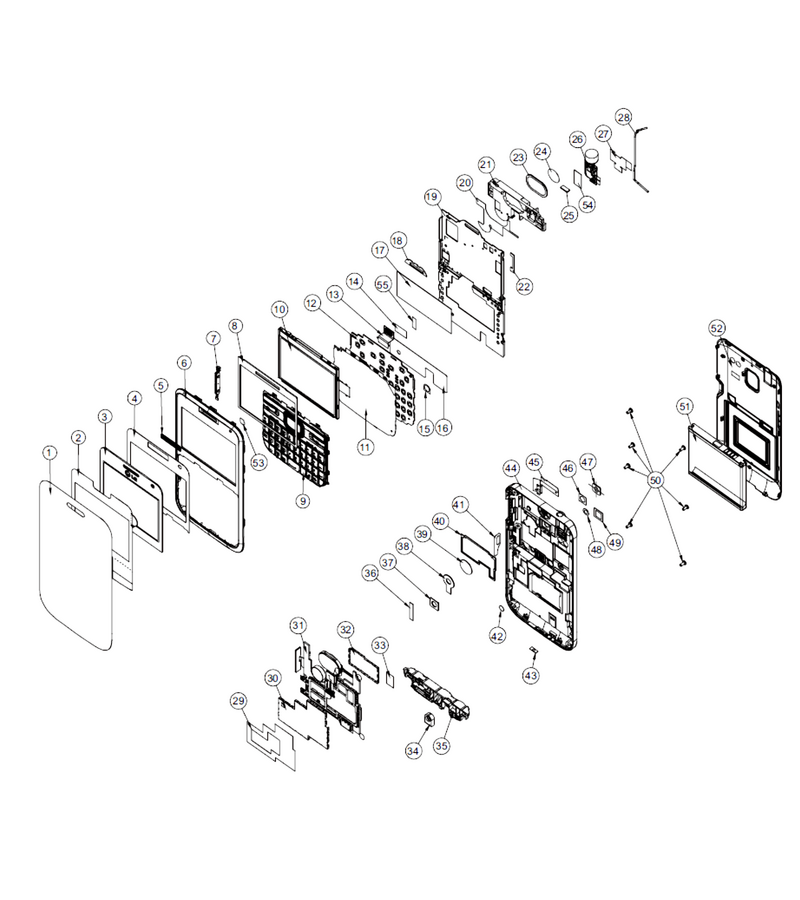

Main

...
...
1
Tape_Protection_Front L-G-MJN68158601
...
2
Cling Tape L-G-MJN68293301
...
3
Window, Lcd L-G-MKC64300701
...
4
Tape, Window Lcd L-G-MJN68097401
...
5
Sheet Speaker L-G-MHK63791601
...
6
Cover Front Assy (sub) L-G-ACQ86048401
...
7
Button Volume L-G-MBG64528401
...
8
Pad, Lcd L-G-MCQ66993401
...
9
Button Assy, Main L-G-AEX73977401
...
10
Lcd (2.3" Qvga) L-G-EAJ61929201
...
11
Dome Assy , Metal L-G-ADB73818301
...
12
Key Pcb Assy L-G-EBR74796801
...
13
Fpcb (main To Key) L-G-EBR74797301
...
14
Insulator, Fpcb Main L-G-MEV64099101
...
15
Tape, Mic L-G-MJN68104101
...
16
Tape, Key Pcb L-G-MJN68097501
...
17
Tape , Lcd L-G-MJN68097601
...
18
Pad, Speaker Frame L-G-MJN68134401
...
19
Frame Assy (sub) L-G-ADV74331001
...
20
Tape , Bracket L-G-MJN68133301
...
21
Bracket, Speaker L-G-MAZ63431401
...
22
Pad, Lcd Fpcb L-G-MCQ67125601
...
23
Filter, Speaker L-G-MDJ63406601
...
24
Tape, Motor L-G-MJN68133401
...
25
Pad, Wire Spk L-G-MCQ67004901
...
26
Earjack Module L-G-EBR74797001
...
27
Insulator Earjack L-G-MEV64191101
...
28
Coaxial Cable L-G-EAD61670501
...
29
Tape, Pcb Main L-G-MJN68098901
...
30
Can, Shield Top Cover L-G-MBK63254201
...
31
Main Pcb Assy L-G-EBR74828001
...
32
Can, Shield Bottom Cover L-G-MBK63254401
...
33
Insulator, Fpcb Main L-G-MEV64099101
...
34
Cap, Mic L-G-MBL65222701
...
35
Intenna (main) L-G-EAA62768101
...
36
Pad, Io Bott L-G-MCQ67032801
...
37
Pad, Camera L-G-MCQ66993701
...
38
Pad, Motor L-G-MCQ66993601
...
39
Pad, Speaker Rear L-G-MCQ66950001
...
40
Pad, Bracket L-G-MCQ66993501
...
41
Tape, Protection Usb L-G-MJN68267601
...
42
Label, As L-G-MLAB0001102
...
43
Filter, Mic L-G-MDJ63445401
...
44
Cover, Rear L-G-MCK67056401
...
45
Sub Ant (gps) L-G-EAA62809601
...
46
Tape, Camera Window L-G-MJN68133501
...
47
Window, Camera L-G-MKC64300801
...
48
Sheet, Mobile Switch L-G-MHK63731001
...
49
Sheet, Rear L-G-MHK63810501
...
50
Screw L-G-GMZZ0017701
...
51
Battery (49x38x46, 1000mah) L-G-SBPL0103401
...
52
Battery Cover L-G-MCK67056501
...
53
Insulator, Led L-G-MEV64314201
...
54
Tape, Earjack L-G-MJN68160701
...
55
Tape Keypcb Cable L-G-MJN68351701

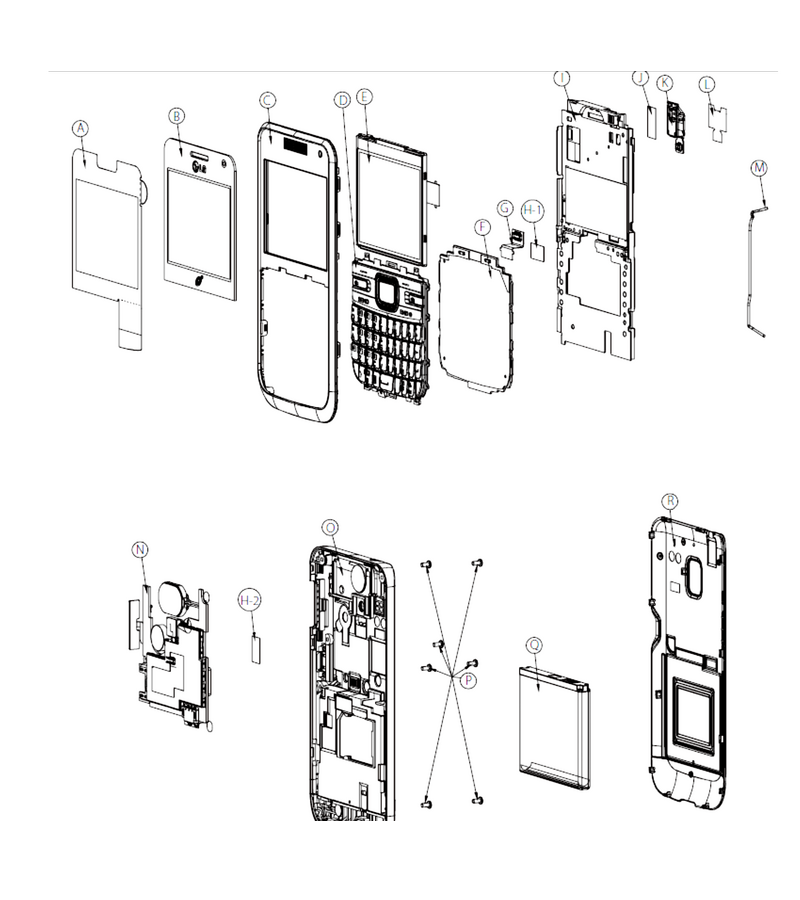

Assy

...
...
R
Battery Cover L-G-MCK67056501
...
Q
Battery (49x38x46, 1000mah) L-G-SBPL0103401
...
P
Screw L-G-GMZZ0017701
...
O
Cover Assy, Rear L-G-ACQ86048401
...
N
Main Pcb Assy L-G-EBR74828001
...
M
Coaxial Cable L-G-EAD61670501
...
L
Insulator, Earjack L-G-MEV64191101
...
K
Earjack Module L-G-EBR74797001
...
J
Tape, Earjack L-G-MJN68160701
...
I
Frame Assy L-G-ADV74307801
...
H
Insulator, Fpcb Main L-G-MEV64099101
...
G
Fpcb (main To Key) L-G-EBR74797301
...
F
Key Pcb Assy L-G-EBR74796801
...
E
Lcd L-G-EAJ61929201
...
D
Button Assy, Main L-G-AEX73977401
...
C
Cover Assy, Front L-G-ACQ85907501
...
B
Window, Lcd L-G-MKC64300701
...
A
Cling Tape L-G-MJN68293301
