product name

LG LG511C

Model: LG511C

Save Part Not Listed?
product name

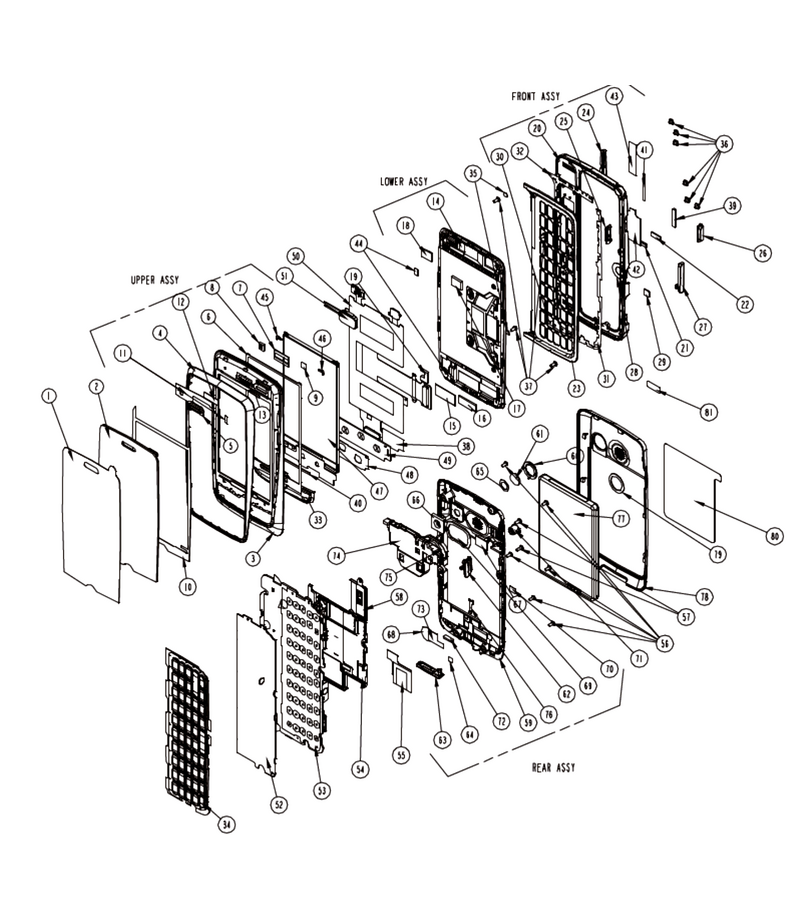

Main

...
...
1
Tape, Protection(slide) L-G-MTAB0379501
...
2
Window, Lcd(touch) L-G-MCJX0004301
...
3
Cover, Upper(slide) L-G-MCJX0004301
...
4
Deco (slide_Upper) L-G-MDAY0046501
...
5
Deco (receiver) L-G-MDAY0046701
...
6
Pad, Lcd L-G-MPBG0101901
...
7
Pad (receiver) Pad (receiver) L-G-MPBZ0249401
...
8
Filter (indicotor_Upper) L-G-MFBZ0005701
...
9
Tape (touch_Fpcb) L-G-MTAZ0258701
...
10
Tape (upper_1) L-G-MTAZ0258801
...
11
Tape (upper_2) L-G-MTAZ0259001
...
12
Filter (receiver) L-G-MFBZ0005801
...
13
Pad (touch) L-G-MPBZ0249201
...
14
Cover, Lower(slide)cover, Lower(slide) L-G-MCJY0003801
...
15
Pad, Connector L-G-MPBU0085601
...
16
Pad, Lcd Con L-G-MPBU0093901
...
17
Pad, Touch Con L-G-MCJK0117401
...
18
Pad, Indicator L-G-MMAA0008801
...
19
Pad, Holl Ic L-G-MTAZ0260401
...
20
Cover, Front L-G-MDAY0046601
...
21
Magnet, Switch L-G-MBJZ0015401
...
22
Tape, Magnet L-G-MBJZ0015501
...
23
Deco(front) L-G-MBJZ0015601
...
24
Button(volume) L-G-MCCG0023001
...
25
Button(camera) L-G-MPBJ0070501
...
26
Button(lock) L-G-MFBZ0013001
...
27
Cap, Sd L-G-MPBU0094001
...
28
Pad, Motor L-G-MPBZ0271201
...
29
Filter, Mic L-G-MPBZ0271401
...
30
Tape, Deco L-G-MTAA0222401
...
31
Tape, Deco L-G-MTAA022501
...
32
Tape, Deco L-G-MTAA0222601
...
33
Keypad Assy, Sub L-G-AKAD0001701
...
34
Keypad Assy, Main L-G-AKAC0004901
...
35
Cap, Screw L-G-MCCH0155101
...
36
Screw Machine L-G-GMEY0018101
...
37
Screw Machine L-G-GMEY0011201
...
38
Insulator, Lcd Con L-G-MIDZ0243101
...
39
Pad, Main Fpcb Pcb L-G-MPBZ0271601
...
40
Pad, Lcd Frame L-G-MPBZ0284401
...
41
Pad, Fpcb Slide L-G-MPBZ0291201
...
42
Insulator, Boss Slide 1 L-G-MIDZ0257201
...
43
Insulator, Boss Slide 2 L-G-MIDZ0257501
...
44
Insulator, Fpcb 1 L-G-MIDZ0257601
...
45
Pad, Lcd Rib Top1 L-G-MPBZ0301501
...
46
Pad, Lcd Rib Top2 L-G-MPBZ0301601
...
47
Lcd Module L-G-SVLM0036201
...
48
Dome Assy, Metal(sub) L-G-MPBZ0301501
...
49
Pcb Assy, Sub L-G-SAJY0036903
...
50
Pcb Assy, Flexible L-G-SACY0084508
...
51
Receiver L-G-SURY0010113
...
52
Dome Assy, Metal(main) L-G-ADCA0105201
...
53
Pcb Assy, Main L-G-SAFY0288510
...
54
Can, Shield Assy L-G-ACKA0027201
...
55
Sheet, Sd L-G-MSAZ0059201
...
56
Screw Machine L-G-GMEY0011201
...
57
Screw Machine L-G-GMEY0014301
...
58
Bracket, Main Connector L-G-MBFZ0040501
...
59
Cover, Rear L-G-MCJN0112303
...
60
Deco (camero) L-G-MDAY0046801
...
61
Window, Camero L-G-MWAE0054401
...
62
Cap, Eariack L-G-MCCC0069801
...
63
Cap (usb) L-G-MCCZ0034601
...
64
Label L-G-MLAB0004801
...
65
Tape, Camero(window) L-G-MTAK0032601
...
66
Pad, Camera L-G-MPBT0086201
...
67
Pad (earjack) L-G-MPBZ0249301
...
68
Pad, Motor L-G-MPBJ0070601
...
69
Pad, Spk L-G-MPBN0080601
...
70
Sheet, Rear L-G-MSAZ0059101
...
71
Cap, Mobile Switch L-G-MCCF0057001
...
72
Pad, Tension Rib L-G-MPBZ0278601
...
73
Sheet, Ten Rib L-G-MSAZ0060501
...
74
Antenna, Mobile, Fixed L-G-SNMF0057401
...
75
Speaker L-G-SUSY0027201
...
76
Sheet L-G-MSAZ0063201
...
77
Battery Pack,li-Polyner L-G-SBPP0028501
...
78
Cover, Battery L-G-MCJA0100701
...
79
Tape(spk) L-G-MTAZ0259601
...
80
Tape Peolection L-G-MTAB0395201
...
81
Label Qualcomm L-G-MLAN0000603

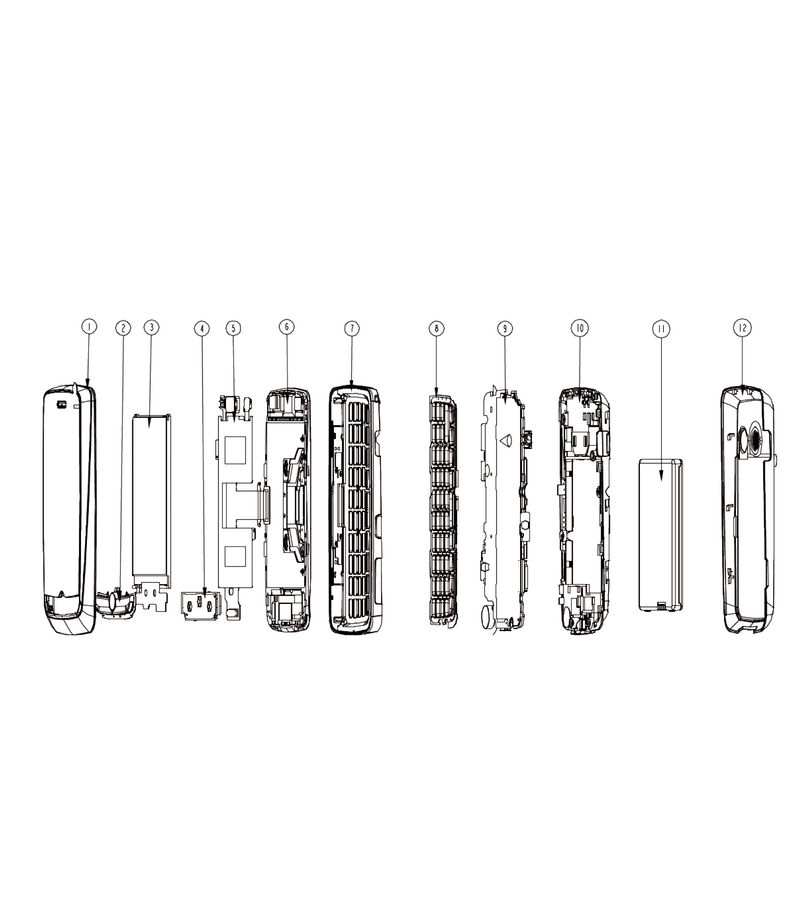

Assy Exploded View

...
...
1
Battery Pack, Li-Polymer L-G-ACGT0002201
...
2
Keypad Assy, Sub L-G-AKAD0001701
...
3
Lcd Module L-G-SVLM0036201
...
4
Pcb Assy, Sub L-G-SAJY0036903
...
5
Pcb Assy, Flexible L-G-SACY0084508
...
6
Pcb Assy, Flexible L-G-ACGU0002401
...
7
Cover Assy, Lower(slide) L-G-ACGK0148101
...
8
Keypad Assy, Main L-G-AKAC0004901
...
9
Pcb Assy, Main L-G-SAFY0288510
...
10
Pcb Assy, Main L-G-ACGM0146201
...
11
Battery Pack,li-Polyner L-G-SBPP0028501
...
12
Cover Assy, Battery L-G-ACGA004020
