LG LG501C

Model: LG501C

Save Part Not Listed?
product name

Main

...
...
1
Tape Protection (dummy) L-G-MJN67879401
...
2
Window Lcd L-G-MWAC0158002
...
3
Tape Window L-G-MTAD0139301
...
4
Deco Front L-G-MDAY0097401
...
5
Tape Deco L-G-MTAA0235101
...
6
Filter Receiver L-G-MFBZ0034901
...
7
Cap Receptacle L-G-MCCE0063903
...
8
Cap Earphone Jack L-G-MCCC0074502
...
9
Label Qualcomm L-G-MLAN0000604
...
10
Cover Front L-G-MCJK0141202
...
11
Frame Lcd L-G-MFEZ0044701
...
12
Pad Mic L-G-MPBZ0361901
...
13
Insert,nut L-G-MICE0016901
...
14
Pad Receiver L-G-MPBZ0361601
...
15
Button Side Volume L-G-MBJZ0051702
...
16
Tape Cutton Volume L-G-MJN67678001
...
17
Pad Lcd L-G-MPBG0118301
...
18
Keypad Assy Main L-G-AKAC0023002
...
19
Gasket Lcd L-G-MDS63531101
...
20
Lcd Module L-G-EAJ61787801
...
21
Tape Lcd L-G-MTAZ0378601
...
22
Dome Assy,metal L-G-ADCA0122601
...
23
Receiver L-G-SURY0010113
...
24
Pcb,main L-G-EAX64044701
...
25
Camera Module L-G-SVCY0026401
...
26
Insulator (lcd) L-G-MIDZ0283401
...
27
Can Assy Shield L-G-ACKA0037701
...
28
Connector L-G-ENZY0019901
...
29
Motor L-G-SJMY0007905
...
30
Pifa Antenna,multiple L-G-EAA62484601
...
31
Cap Mic L-G-MCCZ0051001
...
32
Pifa Antenna,rf L-G-EAA62385301
...
33
Pad Speaker L-G-MPBN0095901
...
34
Filter Speaker L-G-MFBZ0035001
...
35
Label,after Service L-G-MLAB0001102
...
36
Cap Camera L-G-MCCZ0050201
...
37
Pad Rear L-G-MPBZ0366601
...
38
Pad_Earjack L-G-MCQ66626801
...
39
Pad (mrd) L-G-MCQ66653901
...
40
Cover Rear L-G-MCJN0133001
...
41
Sheet Connector L-G-MHK63387801
...
42
Tape,camera L-G-MTAK0044401
...
43
Window Camera L-G-MWAE0068701
...
44
Cap,mobile Switch L-G-MBL64817501
...
45
Tape,protect(rear_Up) L-G-MJN67832301
...
46
Tape,protect(rear_Low) L-G-MJN67832401
...
47
Machine Screw L-G-GMEY0014301
...
48
Cover Battery L-G-MAJA0127702
...
49
Bag L-G-MAF62889801

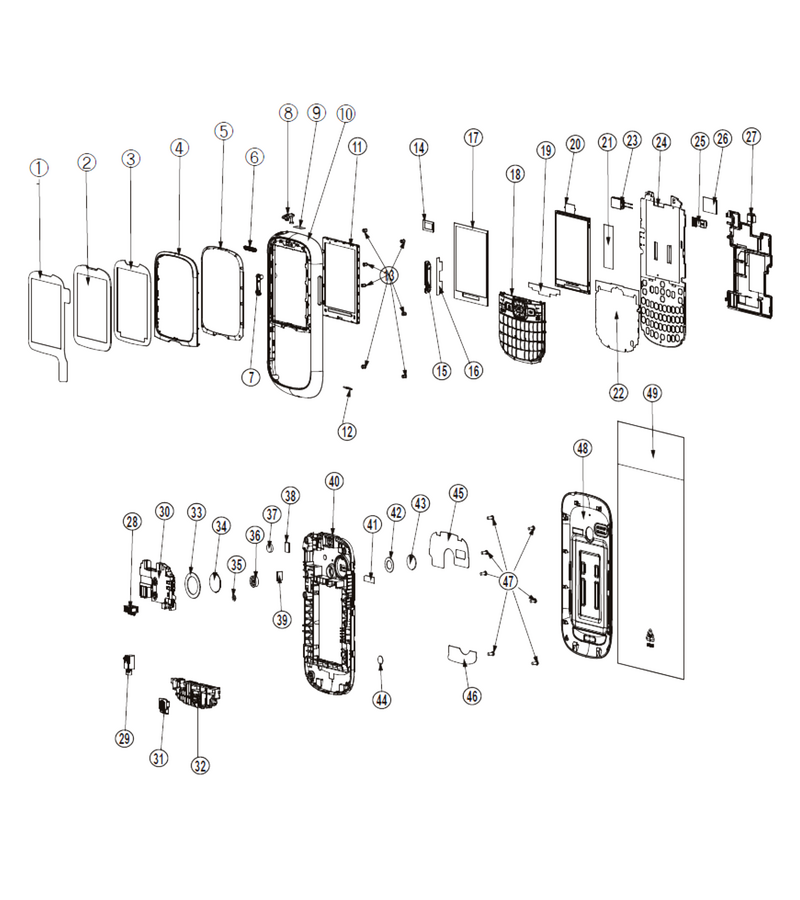

Schematic Image Zoomed
