LG LG500G

Model: LG500G

Save Part Not Listed?
product name

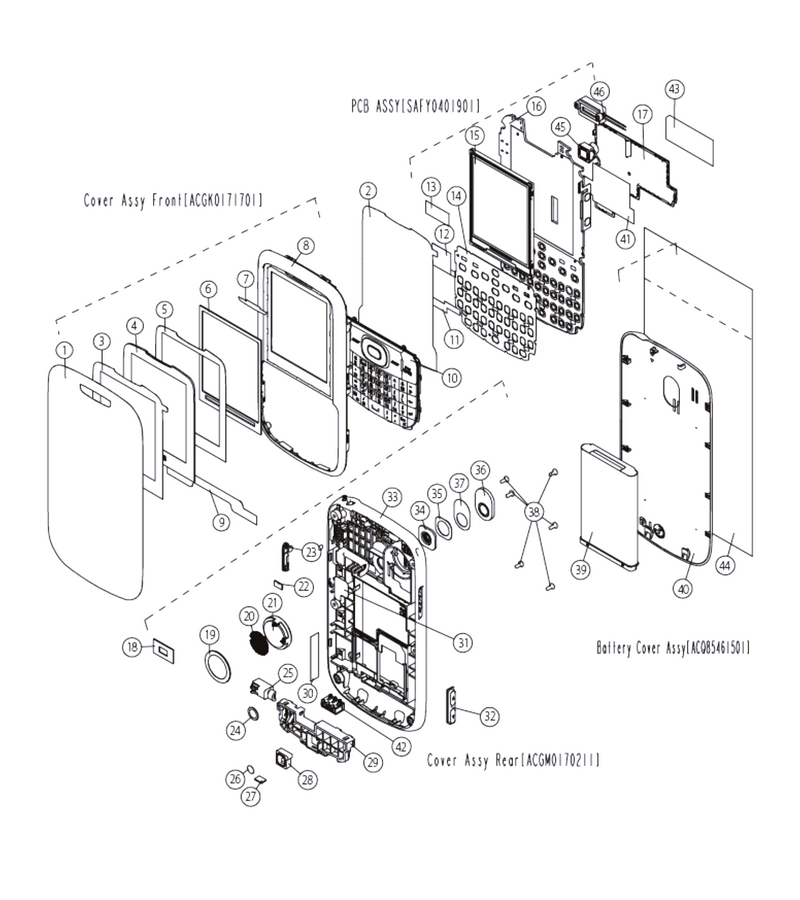

Main

...
...
1
Tape Protection Phone L-G-MTAB0445801
...
2
Cling Tape L-G-MJN67773801
...
3
Tape Protection Window Lcd L-G-MTAB0445801
...
4
Window Lcd L-G-MWAC0153001
...
5
Tape Window Lcd L-G-MTAD0134601
...
6
Pad Lcd L-G-MPBG0113901
...
7
Filter Receiver L-G-MFBZ0026701
...
8
Cover Front L-G-MCJK0135801
...
9
Tape Protection Keypad L-G-MTAB0045901
...
10
Keypad Assy L-G-AKAC0023811
...
11
Tape Shield Lcd L-G-MTAZ0377101
...
12
Tape Lcd L-G-MTAZ0358401
...
13
Tape Zif Conn L-G-MTAZ0358401
...
14
Dome Assy Metal L-G-ADCA0119101
...
15
Lcd, Module-Tft L-G-SVLM0036102
...
16
Pcb Assembly, Main, Insert L-G-SAFB0126711
...
17
Can Assy Shield L-G-ACKA0033301
...
18
Pad Receiver Cap L-G-MPBZ0337501
...
19
Pad Speaker L-G-MPBN0092201
...
20
Filter Speaker L-G-MFBZ0029711
...
21
Speaker L-G-SUSY0024805
...
22
Pad Receiver L-G-MPBZ0329901
...
23
Side Key Volume L-G-MBJZ0043111
...
24
Cap Rf Switch L-G-MCCZ0046011
...
25
Vibrator L-G-SJMY0007905
...
26
Label Ldi L-G-MLAB0001102
...
27
Pad Mic L-G-MPBZ00326401
...
28
Cap Mic L-G-MCCZ0045501
...
29
Pifa Antenna, Rf L-G-EAA62405001
...
30
Protection Side Key L-G-MTAB0427601
...
31
Tape Protect Camera L-G-MJN67687901
...
32
Side Key Volume L-G-MBJZ0043111
...
33
Cover Rear L-G-MCJN0128211
...
34
Cap Camera L-G-MCCZ0045901
...
35
Tape Camera Cap L-G-MTAZ0352901
...
36
Window Camera L-G-MWAE0065802
...
37
Tape Window Camera L-G-MTAZ0352901
...
38
Screw L-G-GMZZ0017701
...
39
Battery Li-Lon L-G-SBPL0090501
...
40
Cover Battery L-G-MCJA0120911
...
41
Tape Protection Insulation L-G-MTAB0439401
...
42
Connector, Terminal Block L-G-ENZY0019901
...
43
Label Approval L-G-MLAA0062301
...
44
Tape, Protect(poly-Pack) L-G-MJN67774601
...
45
Camera Module L-G-SVCY0022901
...
46
Receiver L-G-SURY0015701

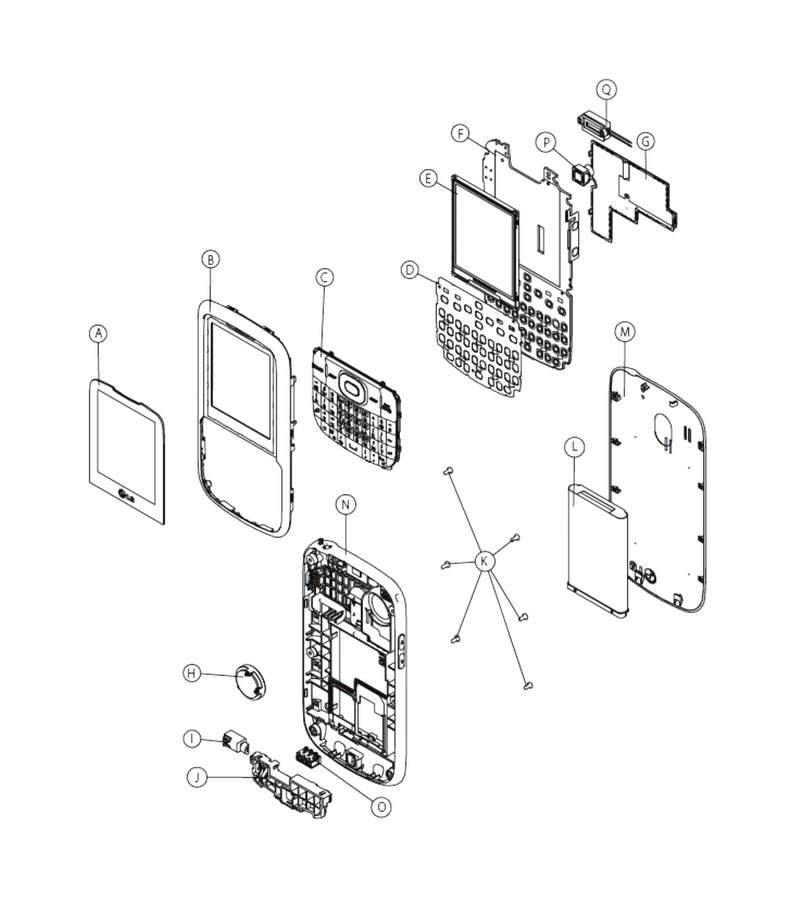

Assy Exploded View

...
...
Y
Vibrator L-G-SJMY0007905
...
Q
Receiver L-G-SURY0015701
...
P
Camera Module L-G-SVCY0022901
...
O
Connector, Terminal Block L-G-ENZY00199001
...
N
Cover Assy Rear L-G-ACGM0170211
...
M
Cover Battery L-G-MCJA0120911
...
L
Battery Li-Lon L-G-SBPL0090501
...
K
Screw L-G-GMZZ0017701
...
J
Pifa Antenna, Rf L-G-EAA62405001
...
H
Speaker L-G-SUSY0024805
...
G
Can Assy Shield L-G-ACKA0033301
...
F
Pcb Assy L-G-SAFY0401901
...
E
Lcd, Module-Tft L-G-SVLM0036102
...
D
Dome Assy Metal L-G-ADCA0119101
...
C
Keypad Assy L-G-AKAC0023811
...
B
Cover Assy Front L-G-ACGK0180411
...
A
Window Lcd L-G-MWAC0153001
