LG LFXS29626B.AWBCNA1

Model: LFXS29626B.AWBCNA1

Save Part Not Listed?
product name

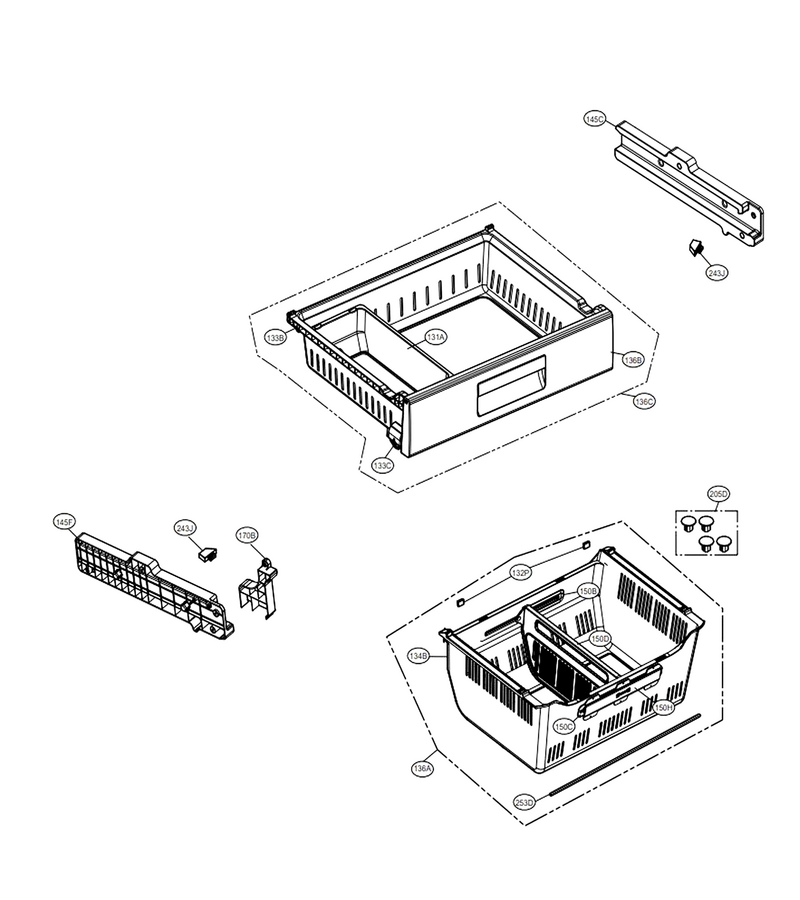

Freezer Parts

...
...
131A
Tray,freezer L-G-MJS62873301
...
132P
Refrigerator Crisper Drawer Bumper L-G-MBL62065801
...
133B
Refrigerator Freezer Tray Roller Wheel L-G-AHJ72909101
...
133C
Refrigerator Freezer Drawer Roller L-G-AHJ72909001
...
134B
Tray,drawer L-G-MJS62815801
...
136A
Tray Assembly,drawer L-G-AJP73914801
...
136B
Tray Assembly,drawer L-G-AJP72909710
...
136C
Tray Assembly,drawer L-G-AJP72909821
...
145C
Holder,rail L-G-MEG63064502
...
145F
Holder,rail L-G-MEG63064501
...
150B
Refrigerator Drawer Cover L-G-MCK67228901
...
150C
Refrigerator Drawer Cover L-G-MCK67228902
...
150D
Refrigerator Drawer Guide L-G-MEA62993001
...
150H
Guide Assembly L-G-AEC73837701
...
170B
Guide,air L-G-MEA63174601
...
205D
Refrigerator Cap Cover L-G-MBL64822401
...
243J
Stopper,door L-G-MJB63050101
...
253D
Refrigerator Supporter L-G-MJH62833618

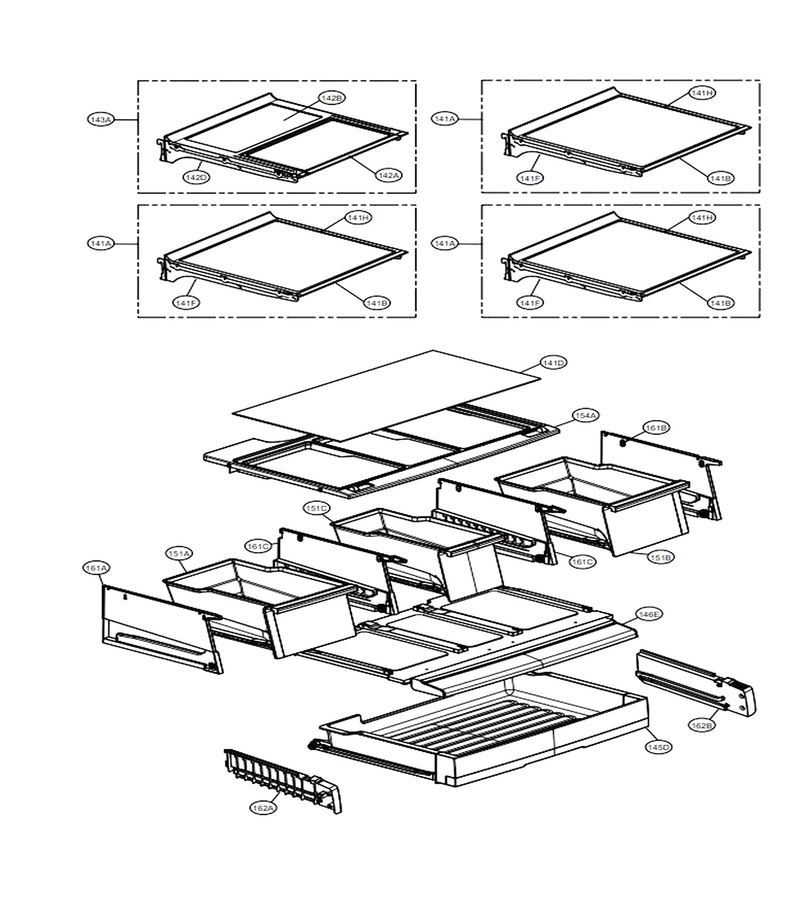

Refrigerator Parts

...
...
141A
Shelf Assembly,refrigerator L-G-AHT73233921
...
141B
Shelf Assembly,refrigerator L-G-AHT73253808
...
141D
Shelf,glass L-G-MHL42613251
...
141F
Shelf,net L-G-MHL62832301
...
141H
Shelf,net L-G-MHL62832302
...
142A
Shelf Assembly,refrigerator L-G-AHT73234108
...
142B
Shelf Assembly,refrigerator L-G-AHT73234208
...
142D
Shelf Assembly,net L-G-AHT73596001
...
143A
Shelf Assembly,refrigerator L-G-AHT73234019
...
145D
Tray Assembly,fresh Room L-G-AJP73314412
...
146E
Cover Assembly,tray L-G-ACQ85448407
...
151A
Tray Assembly,vegetable L-G-AJP73334407
...
151B
Tray Assembly,vegetable L-G-AJP73334409
...
151C
Tray Assembly,vegetable L-G-AJP73334408
...
154A
Cover Assembly,tv L-G-ACQ85428609
...
161A
Refrigerator Crisper Drawer Track, Left L-G-AEC73317601
...
161B
Refrigerator Vegetable Tray Guide Assembly L-G-AEC73317602
...
161C
Refrigerator Drawer Slide Rail L-G-AEC73317501
...
162A
Refrigerator Drawer Slide Rail, Left L-G-AEC73317701
...
162B
Guide Assembly,rail L-G-AEC73317719

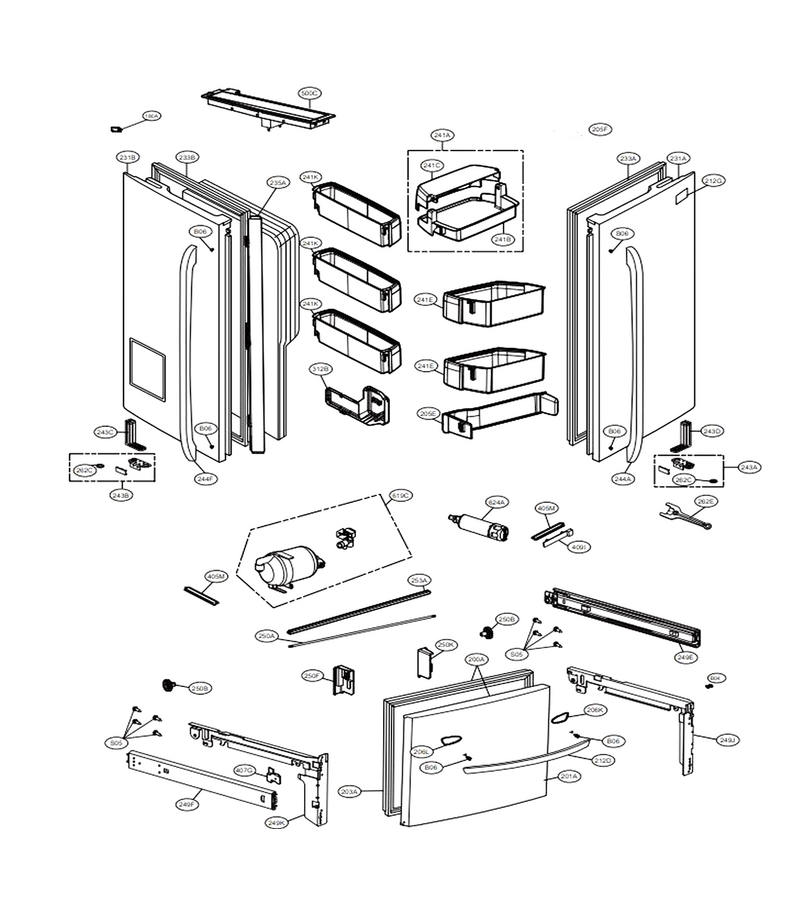

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
S05
Laundry Appliance Screw L-G-FAB30025701
...
200A
Door Assembly,freezer L-G-ADC73448247
...
201A
Door Foam Assembly,freezer L-G-ADD73358002
...
203A
Gasket,door L-G-MDS38201426
...
205E
Basket,door L-G-MAN62649301
...
206K
Refrigerator Decorative Handle L-G-MCR64337203
...
206L
Refrigerator Decorative Handle L-G-MCR64337204
...
212D
Refrigerator Door Handle L-G-AED37133118
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
231A
Door Foam Assembly,refrigerator L-G-ADD73358317
...
231B
Door Foam Assembly,refrigerator L-G-ADD73358295
...
233A
Gasket Assembly,door L-G-ADX72930461
...
233B
Gasket Assembly,door L-G-ADX72930460
...
235A
Plate Assembly,front L-G-AGU74268115
...
241A
Refrigerator Door Bin L-G-AAP73351301
...
241B
Refrigerator Door Bin L-G-MAN62288201
...
241C
Refrigerator Dairy Bin Cover L-G-MAN62288301
...
241E
Basket Assembly,door L-G-AAP73252204
...
241K
Basket Assembly,door L-G-AAP73252306
...
243A
Stopper Assembly,door L-G-AJC68689636
...
243B
Refrigerator Stopper Assembly L-G-AJC68689635
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
244A
Handle Assembly,refrigerator L-G-AED37082975
...
249E
Rail,slide L-G-MGT61844013
...
249F
Rail,slide L-G-MGT61844014
...
249J
Connector,rail L-G-MCD62287605
...
249K
Connector,rail L-G-MCD62287606
...
250A
Refrigerator Freezer Drawer Slide Bar L-G-4270JA3009P
...
250B
Refrigerator Ice Gear L-G-MDT62287201
...
250F
Cover Assembly L-G-ACQ73657701
...
250K
Cover Assembly L-G-ACQ73657702
...
253A
Support Cover L-G-MJH62553605
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262E
Refrigerator Spanner Wrench L-G-MHU38218908
...
312B
Refrigerator Water Reservoir Cover L-G-ACQ85432701
...
405M
Refrigerator Light Cover L-G-MCK66769001
...
407G
Cover,door Switch L-G-MCK67539802
...
409I
Refrigerator Led Light L-G-EAV61652805
...
500C
Case Assembly,pcb L-G-ABQ72940020
...
619C
Valve Assembly,water L-G-AJU74532701
...
624A
Refrigerator Water Filter L-G-ADQ36006101

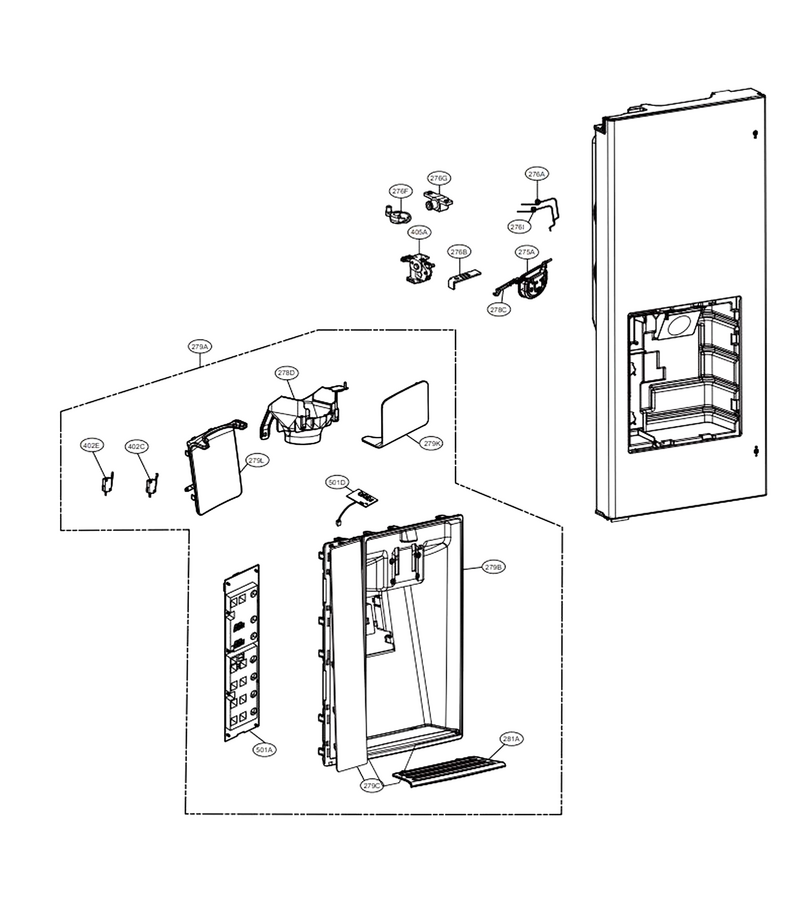

Dispenser Parts

...
...
275A
Refrigerator Dispenser Ice Chute Door L-G-ABN72938905
...
276A
Lever Spring L-G-MHY62603705
...
276B
Holder Lever L-G-MEG63262301
...
276F
Refrigerator Dispenser Lever Retainer L-G-MFF61863101
...
276G
Refrigerator Dispenser Lever Bracket L-G-MEG61958701
...
276I
Refrigerator Dispenser Lever Spring L-G-MHY62603706
...
278C
Refrigerator Dispenser Ice Chute Door Hinge Lever L-G-MFC62250201
...
278D
Refrigerator Dispenser Ice Chute Funnel L-G-MDR62062701
...
279A
Cover Assembly,display L-G-ACQ85430261
...
279B
Cover,dispenser L-G-MCK66542803
...
279C
Cover,display L-G-MCK66585132
...
279K
Button,lever L-G-MBG64348706
...
279L
Button,lever L-G-MBG64108002
...
281A
Decor,drain L-G-MCR64355303
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
402E
Refrigerator Dispenser Switch L-G-6600JB3001F
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
501A
Pcb Assembly,display L-G-EBR79159712
...
501D
Pcb Assembly,sub L-G-EBR60388513

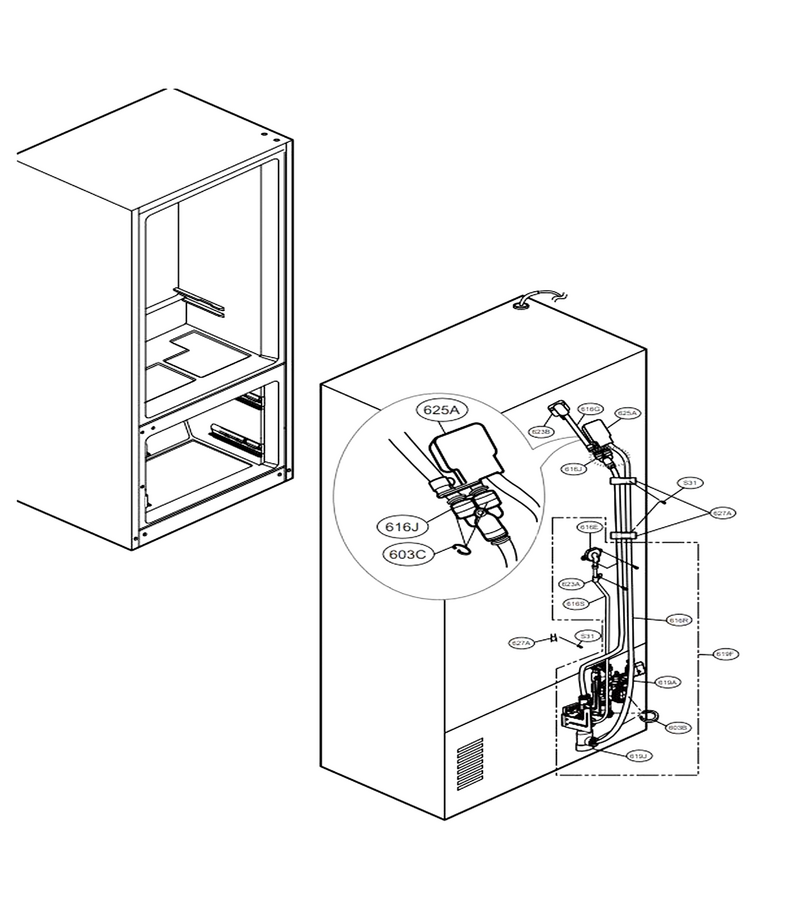

Valve & Water Tube Parts

...
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616E
Refrigerator Ice Maker Water Tube Fitting L-G-MEG61879201
...
616G
Refrigerator Water Tubing L-G-AJR56656503
...
616J
Connector,tube L-G-4932JA3009R
...
616R
Tube,plastic L-G-MJU39256425
...
616S
Tube,plastic L-G-MJU39256424
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992603
...
619F
Valve Assembly,water L-G-AJU73432804
...
619J
Valve,water L-G-MJX61892901
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Clamp L-G-4930JA3054A

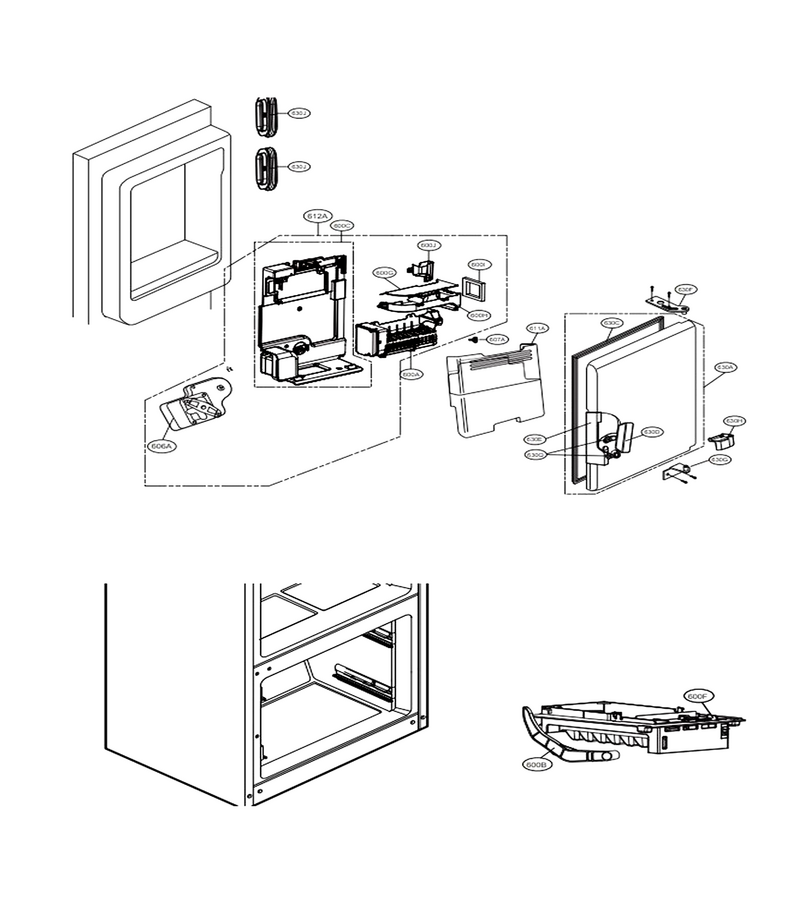

Ice Maker & Ice Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ73130004
...
600B
Refrigerator Ice Maker Shut-Off Arm L-G-4510JA3003D
...
600C
Cover Assembly,motor L-G-ACQ90087901
...
600F
Ice Maker Assembly,kit L-G-AEQ72909602
...
600G
Duct,multi L-G-MCZ63273301
...
600H
Duct,multi L-G-MCZ63273401
...
600I
Gasket,foam L-G-MDS64013907
...
600J
Guide,water L-G-MEA63570501
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Refrigerator Ice Container Assembly L-G-AKC73369908
...
630A
Refrigerator Ice Room Door Assembly L-G-ADC72987149
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111103
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Lever Cover L-G-MCK63734907
...
630F
Hinge Assembly L-G-AEH72976201
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH73577903
...
630H
Cover L-G-MCK66593601
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73250601
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B

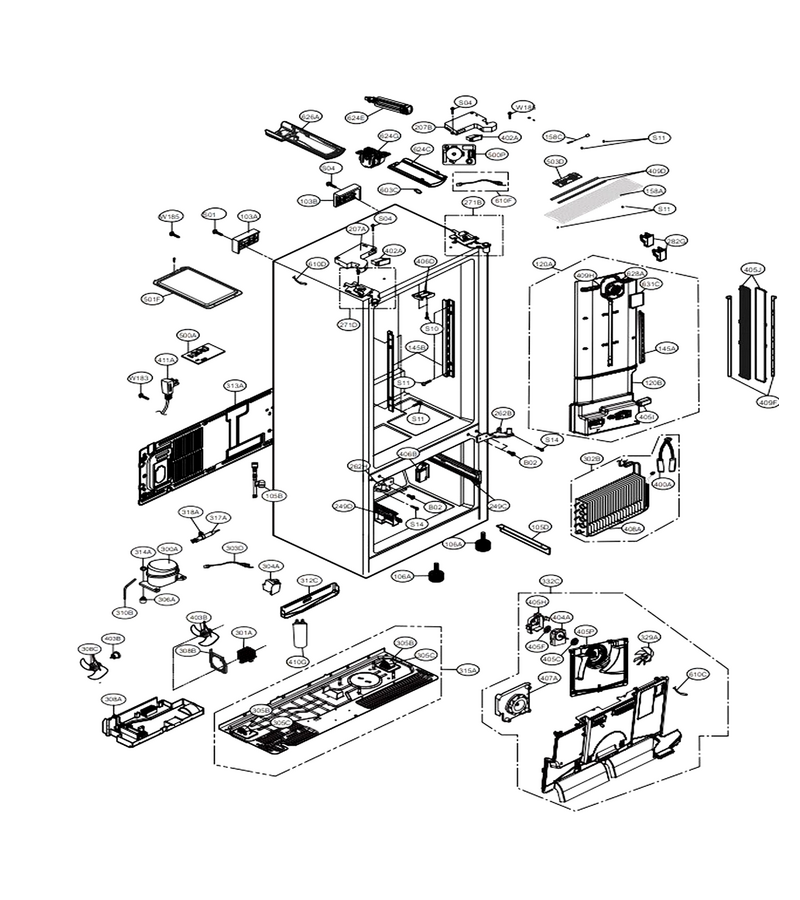

Case Parts

...
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004Q
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010J
...
103A
Refrigerator Handle L-G-3650JA2113P
...
103B
Refrigerator Handle L-G-3650JA2113N
...
105B
Refrigerator Cabinet Drain Tube Assembly L-G-AJR74166101
...
105D
Skirt,lower L-G-5070JA3002A
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Duct Assembly,multi L-G-ADJ73252222
...
120B
Harness Assembly L-G-EAD60703911
...
145A
Refrigerator Shelf Holder L-G-MEG62685901
...
145B
Refrigerator Shelf Holder L-G-MEG62685801
...
158A
Refrigerator Lamp Cover L-G-MCK67195101
...
158C
Refrigerator Temperature Sensor L-G-EBD60925804
...
207A
Cover,hinge L-G-MCK68187606
...
207B
Cover,hinge L-G-MCK68412402
...
249C
Guide Assembly,rail L-G-AEC73317811
...
249D
Holder,rail L-G-MEG63303502
...
262B
Hinge Assembly,center L-G-AEH73577618
...
262H
Hinge Assembly,center L-G-AEH73577620
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282G
Refrigerator Duct Cap L-G-MBL65039901
...
300A
Refrigerator Compressor L-G-TCA36511303
...
301A
Refrigerator Condenser Coil L-G-ACG73645002
...
302B
Evaporator Assembly L-G-ADL73600907
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
308A
Refrigerator Drain Pan L-G-MJS62233503
...
308B
Refrigerator Fan Guide L-G-MEA42772904
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312C
Tray Assembly,drain L-G-3391JJ2013S
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly L-G-AAN37031304
...
317A
Drier Assembly L-G-5851JA2007L
...
318A
Drier Holder L-G-4930JA3034C
...
329A
Refrigerator Fan Assembly L-G-ADP73513701
...
332C
Grille Assembly,fan L-G-AEB72913940
...
400A
Controller Assembly L-G-ACM73919214
...
402A
Refrigerator Door Switch L-G-EBF61314804
...
403B
Motor,dc L-G-EAU62863103
...
404A
Motor,dc L-G-EAU63103208
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-3550JA2273A
...
405I
Refrigerator Lamp Cover L-G-MCK61881401
...
405J
Refrigerator Lamp Cover L-G-MCK67195001
...
405P
Shroud,freezer L-G-MHN62642001
...
406B
Refrigerator Door Switch L-G-EBF61314803
...
406D
Refrigerator Door Holder L-G-MEG63261302
...
407A
Bracket Assembly,motor L-G-ABA72913424
...
408A
Heater,sheath L-G-MEE62225127
...
409D
Refrigerator Led Light Assembly L-G-EAV61916703
...
409F
Refrigerator Freezer Light Board L-G-EAV61916704
...
409H
Refrigerator Led Assembly L-G-EAV62112101
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
411A
Power Cord Assembly L-G-EAD62329149
...
500A
Pcb Assembly,main L-G-EBR84457302
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
501F
Refrigerator Electronic Control Board Cover L-G-3551JA2144M
...
503D
Refrigerator Sensor Cover L-G-MCK67228501
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
610C
Refrigerator Temperature Sensor And Cover L-G-ACQ73244001
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610F
Pcb Assembly L-G-EBR71326804
...
624C
Cover,filter L-G-MCK66849403
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Filter Assembly,head L-G-ADQ73673606
...
626A
Refrigerator Water Filter Outer Cover L-G-MCK66584901
...
628A
Cover,led L-G-MCK66592002
...
631C
Refrigerator Air Filter L-G-ADQ73214404
