LG LFXS24623B.AWBCNA1

Model: LFXS24623B.AWBCNA1

Save Part Not Listed?
product name

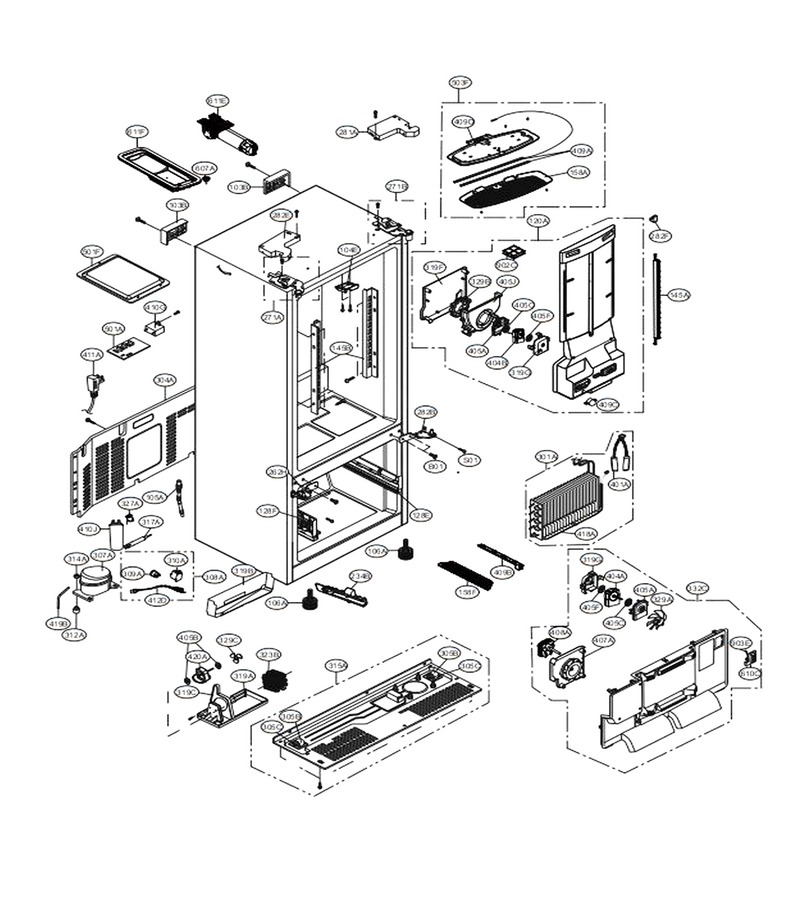

Case Parts

...
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
120A
Duct Assembly,multi L-G-ADJ72909831
...
128E
Holder Assembly L-G-AEJ74940602
...
128F
Holder,rail L-G-MEG64760002
...
145A
Refrigerator Shelf Holder L-G-MEG64000201
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004D
...
158A
Refrigerator Lamp Cover L-G-MCK63645501
...
158F
Cover,lamp L-G-MCK69348401
...
234B
Duct Connector L-G-MCZ62372201
...
262H
Refrigerator Door Hinge L-G-AEH71135340
...
271A
Hinge Assembly,upper L-G-AEH75256504
...
271B
Hinge Assembly,upper L-G-AEH75256503
...
281A
Cover Assembly,hinge L-G-ACQ87133817
...
282B
Refrigerator Door Hinge, Center L-G-AEH71135338
...
282E
Cover Assembly,hinge L-G-ACQ87133811
...
301A
Refrigerator Evaporator L-G-ADL74581401
...
304A
Refrigerator Cover L-G-ACQ77080101
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA36691603
...
309A
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-AAN73232106
...
317A
Refrigerator Drier Assembly L-G-5851JA2008V
...
319A
Refrigerator Drip Tray L-G-MJS61991901
...
319B
Refrigerator Drain Tray Assembly L-G-3391JJ2013F
...
319C
Guide,fan L-G-MEA62651102
...
319F
Refrigerator Motor Bracket L-G-MAZ62265301
...
319G
Refrigerator Motor Cover L-G-MCK66690601
...
323B
Refrigerator Condenser Coil L-G-ACG74444902
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1003A
...
329B
Refrigerator Fan Assembly L-G-ADP73293501
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Grille Assembly,fan L-G-AEB73564904
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005N
...
404A
Motor,dc L-G-EAU63103203
...
404B
Motor,dc L-G-EAU63103204
...
405A
Refrigerator Motor Bracket L-G-MAZ63127401
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405J
Refrigerator Shroud L-G-MHN61922201
...
407A
Bracket Assembly,motor L-G-ABA74030402
...
408A
Motor,dc L-G-EAU63103205
...
409A
Refrigerator Led Assembly L-G-EAV62052302
...
409B
Refrigerator Led Light L-G-EAV61652805
...
409C
Led Assembly L-G-EAV62394001
...
409D
Refrigerator Lamp Case L-G-MBN62023801
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
410J
Refrigerator Run Capacitor L-G-EAE32501017
...
411A
Power Cord Assembly L-G-EAD61445253
...
419B
Pipe,compressor Sealing L-G-MGE62010602
...
420A
Motor,dc L-G-EAU63103202
...
501A
Pcb Assembly,main L-G-EBR81182781
...
503F
Cover Assembly,lamp L-G-ACQ33676523
...
607A
Refrigerator Holder Assembly L-G-AEJ73579702
...
611E
Refrigerator Water Filter Housing Assembly L-G-ADQ36763411
...
611F
Refrigerator Water Filter Cover L-G-ADQ36772702
...
902C
Refrigerator Air Filter L-G-ADQ73214404
...
903E
Refrigerator Temperature Sensor L-G-6500JB2002X

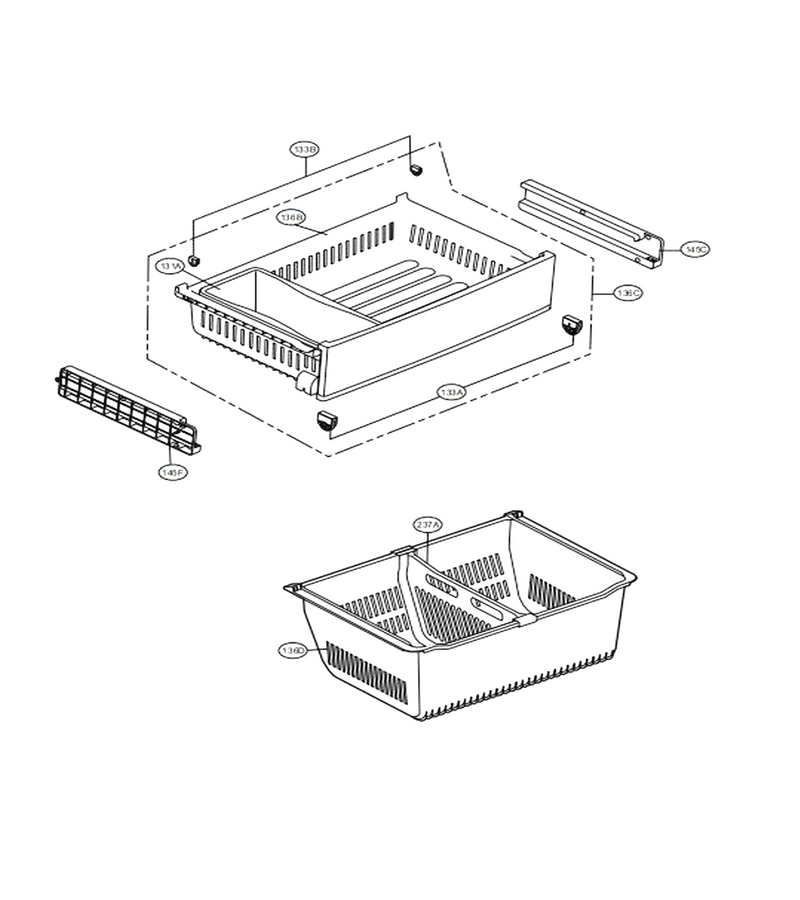

Freezer Parts

...
...
131A
Refrigerator Freezer Drawer Bin L-G-MJS62312001
...
136B
Refrigerator Drawer Tray Assembly L-G-AJP72909713
...
136C
Freezer Drawer Tray Assembly L-G-AJP72909827
...
136D
Tray,drawer L-G-MJS63852101
...
237A
Guide,drawer L-G-MEA62651201

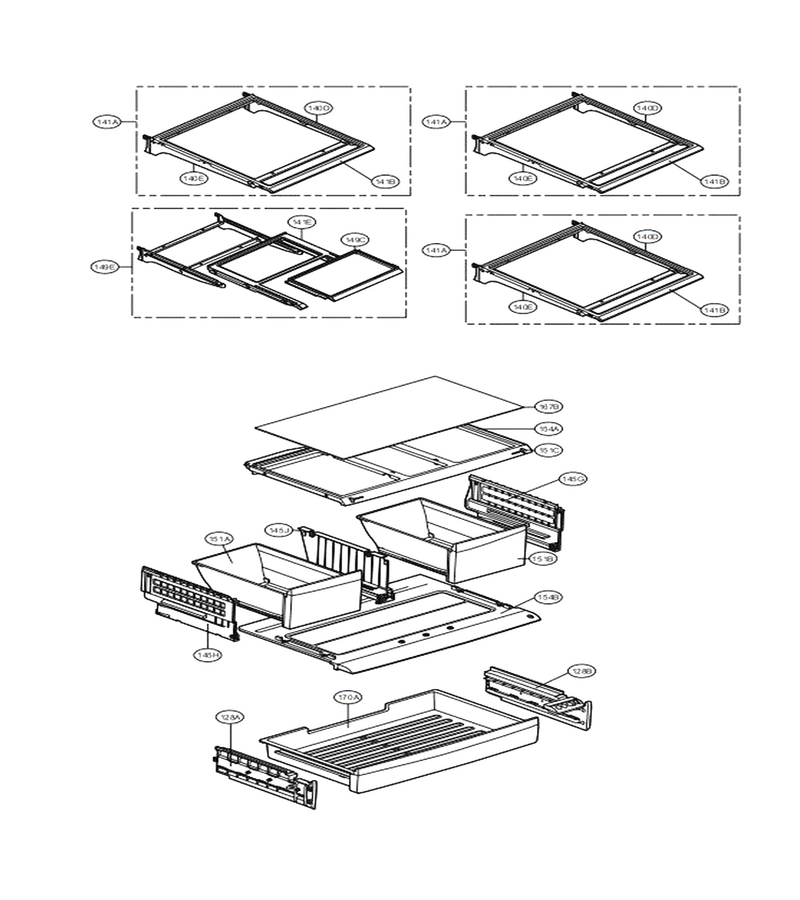

Refrigerator Parts

...
...
128A
Refrigerator Pantry Drawer Guide, Left L-G-AEC73438101
...
128B
Rail Guide Assembly L-G-AEC73438105
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
141A
Refrigerator Shelf Assembly L-G-AHT73314106
...
141B
Refrigerator Shelf L-G-MHL61991604
...
141E
Refrigerator Shelf L-G-MHL62011902
...
145G
Guide Assembly L-G-AEC73437902
...
145H
Guide Assembly L-G-AEC73437901
...
145J
Rail Guide Assembly L-G-AEC73437801
...
149C
Refrigerator Shelf L-G-MHL62011803
...
149E
Shelf Assembly, Right L-G-AHT73334104
...
151A
Refrigerator Crisper Drawer, Left L-G-AJP73455404
...
151B
Refrigerator Crisper Drawer, Right L-G-AJP73455405
...
151C
Refrigerator Shutter Knob L-G-MEY62354001
...
154A
Crisper Cover L-G-ACQ85626204
...
154B
Refrigerator Deli Drawer Cover L-G-ACQ73152603
...
167B
Refrigerator Glass Shelf L-G-MHL42613217
...
170A
Refrigerator Tray Assembly L-G-AJP73455005

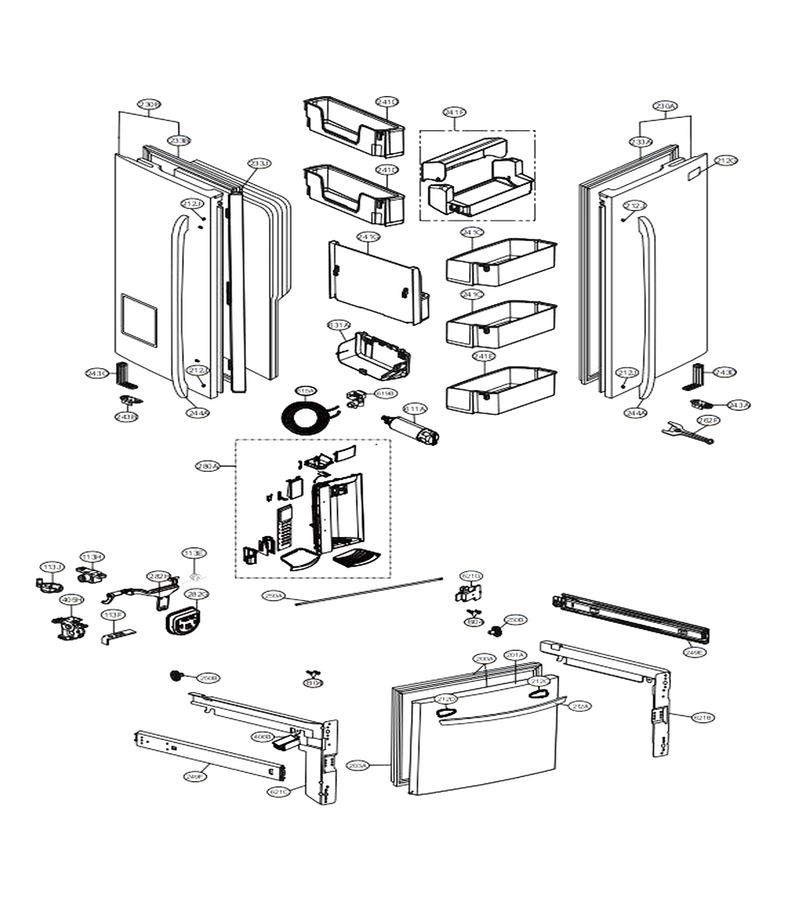

Door Parts

...
...
B04
Laundry Appliance Screw L-G-FAB30025701
...
113E
Refrigerator Spring L-G-4970JA3011K
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
113H
Refrigerator Holder Bracket L-G-MEG62760401
...
113J
Refrigerator Link L-G-MFF62123001
...
200A
Door Assembly,freezer L-G-ADC52734146
...
201A
Door Foam Assembly,freezer L-G-ADD36429945
...
203A
Gasket Assembly,door L-G-ADX73350963
...
212A
Handle Assembly,freezer L-G-AED37133146
...
212C
Decor,handle L-G-MCR65036303
...
212D
Decor,handle L-G-MCR65036304
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
212J
Stopper,handle L-G-MJB63190002
...
230A
Door Assembly,refrigerator(right) L-G-ADC52734349
...
230B
Door Assembly,refrigerator(left) L-G-ADC73669533
...
233A
Gasket Assembly,door L-G-ADX73350635
...
233B
Gasket Assembly,door L-G-ADX73350636
...
233J
Refrigerator Flipper Assembly L-G-AGU73530709
...
241C
Refrigerator Door Bin L-G-AAP73051306
...
241D
Refrigerator Door Basket Assembly L-G-AAP73051604
...
241E
Refrigerator Door Bin L-G-AAP73051504
...
241F
Refrigerator Door Basket Assembly L-G-AAP73051402
...
243A
Refrigerator Stopper Assembly L-G-AJC68689618
...
243B
Refrigerator Stopper Assembly L-G-AJC68689617
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
244A
Refrigerator Door Handle Assembly L-G-AED37082930
...
250A
Bar L-G-4270JJ3001K
...
262F
Spanner L-G-MHU62101101
...
280A
Cover Assembly,display L-G-ACQ87414604
...
282G
Cap Assembly,duct L-G-ABN72938908
...
282H
Refrigerator Dispenser Lever L-G-MFC62009501
...
405H
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
611A
Filter Assembly,water L-G-ADQ36006113
...
615A
Refrigerator Water Tank L-G-4838JA2003E
...
619B
Valve Assembly,water L-G-5221JB2010U
...
621C
Connector,rail L-G-MCD61841107
...
621G
Cover,door Switch L-G-MCK67227902
...
631A
Refrigerator Water Reservoir Cover L-G-MCK63645801

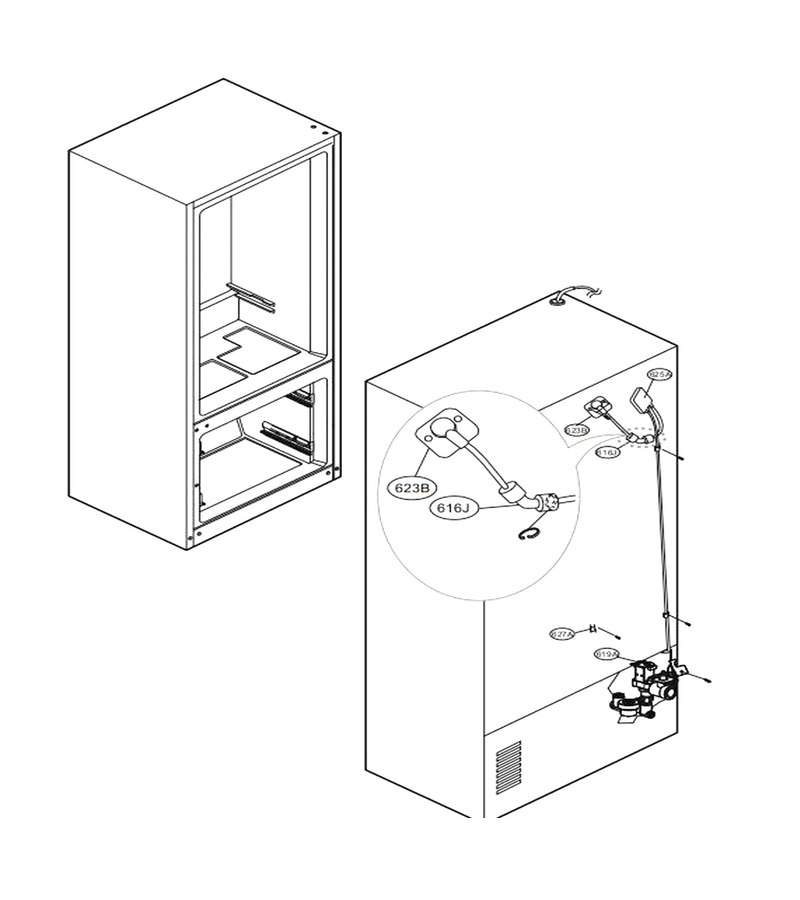

Valve & Water Tube Parts

...
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992601
...
623B
Cap,cover L-G-MBL67039201
...
625A
Cover,tube L-G-MCK69290701
...
627A
Refrigerator Water Tubing Holder L-G-4770JA3001E

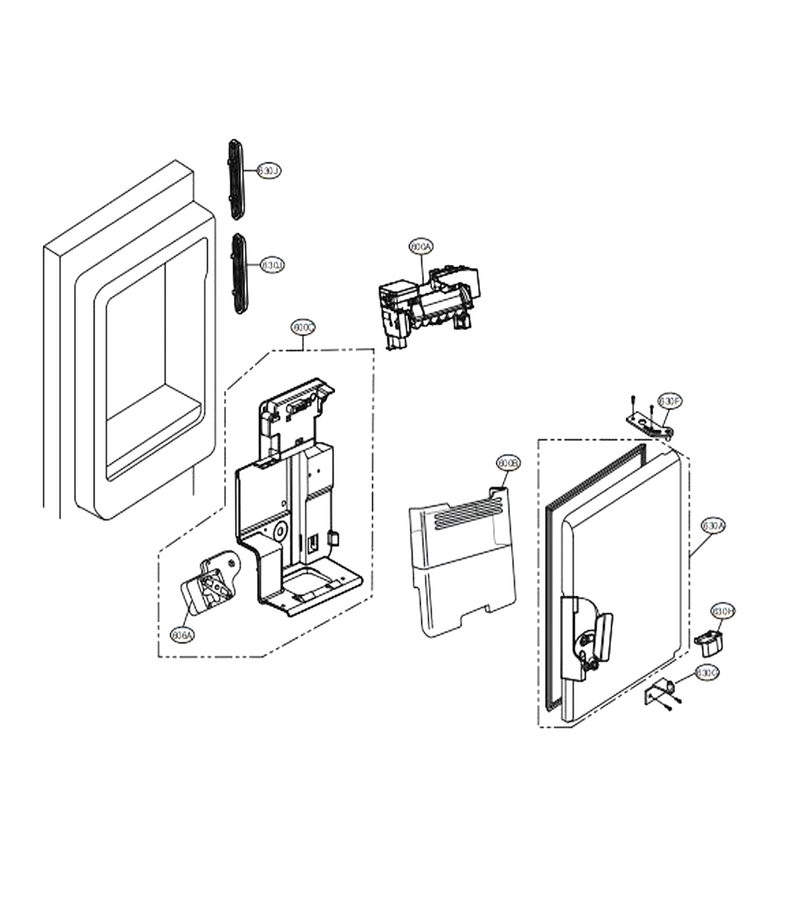

Ice Maker & Ice Bin Parts

...
...
600A
Refrigerator Ice Maker L-G-AEQ72910412
...
600B
Refrigerator Ice Container Assembly L-G-AKC72949312
...
600C
Motor,ac L-G-EAU60783847
...
606A
Motor, Ac Indoor L-G-EAU60784233
...
630A
Refrigerator Door Assembly L-G-ACQ85995305
...
630F
Hinge Asy,up L-G-AEH73696402
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH36582701
...
630H
Cover L-G-MCK66668601
...
630J
Gasket Assembly,door L-G-ADX73571205
