LG LFXC24726S.ASTCNA1

Model: LFXC24726S.ASTCNA1

Save Part Not Listed?
product name

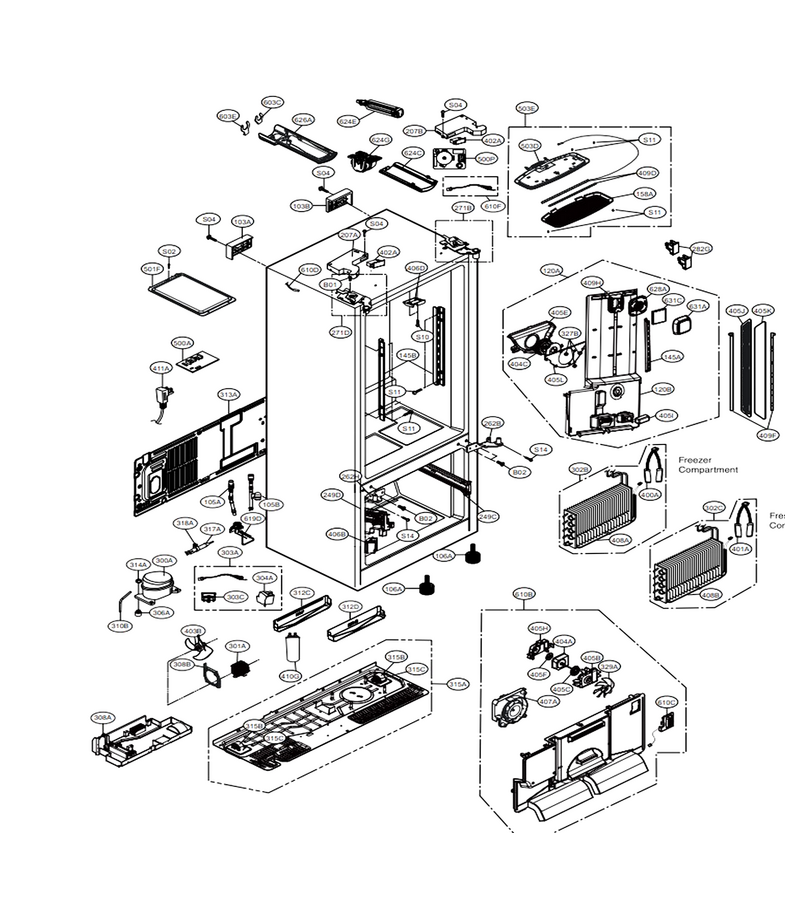

Case Parts

...
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010F
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Drain Tube L-G-5251JA3003D
...
105B
Refrigerator Cabinet Drain Tube Assembly L-G-AJR74166101
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Duct Assembly,multi L-G-ADJ73252234
...
120B
Refrigerator Multi Duct L-G-MCZ62293801
...
145A
Refrigerator Shelf Holder L-G-MEG62685901
...
145B
Refrigerator Shelf Holder L-G-MEG62685801
...
207A
Cover,hinge L-G-MCK68412401
...
249C
Guide Assembly,rail L-G-AEC73317806
...
249D
Holder,rail L-G-MEG62900503
...
262B
Refrigerator Door Hinge, Center L-G-AEH73577614
...
262H
Refrigerator Door Hinge, Center L-G-AEH73577616
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282G
Refrigerator Duct Cap L-G-MBL65039901
...
301A
Refrigerator Condenser Coil L-G-ACG73645002
...
302B
Evaporator Assembly L-G-ADL73341411
...
303C
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
304A
Cover,ptc L-G-MCK70052505
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
308A
Refrigerator Drain Pan L-G-MJS62233503
...
310B
Pipe,compressor Sealing L-G-MGE62010606
...
312C
Refrigerator Evaporator Drip Pan L-G-3391JJ2013J
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
318A
Drier Holder L-G-4930JA3034C
...
327B
Refrigerator Damper L-G-5040JA3063B
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005R
...
403B
Refrigerator Condenser Fan Motor Assembly L-G-EAU62025701
...
404A
Refrigerator Evaporator Fan Motor L-G-EAU61524007
...
404C
Motor Assembly,dc L-G-EAU64824401
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ61845401
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-MCK61880502
...
405I
Refrigerator Lamp Cover L-G-MCK61881401
...
405K
Refrigerator Light Cover L-G-MCK66584302
...
405L
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ63010801
...
406B
Switch,magnet L-G-EBF61314816
...
406D
Refrigerator Door Holder L-G-MEG63261302
...
407A
Bracket Assembly,motor L-G-ABA72913415
...
408A
Heater,sheath L-G-MEE62225112
...
408B
Heater,sheath L-G-MEE62105207
...
409D
Led Assembly L-G-EAV62052301
...
409F
Refrigerator Freezer Light Board L-G-EAV61916704
...
409H
Refrigerator Led Light L-G-EAV61572001
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
411A
Power Cord Assembly L-G-EAD61445236
...
500A
Pcb Assembly,main L-G-EBR78940610
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
501F
Refrigerator Electronic Control Board Cover L-G-3551JA2144M
...
503D
Refrigerator Lamp Case L-G-MBN62347601
...
503E
Refrigerator Led Light And Cover Assembly L-G-ACQ85449501
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603E
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
610B
Grille Assembly,fan L-G-AEB72913929
...
610C
Refrigerator Temperature Sensor And Cover L-G-ACQ73244001
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610F
Pcb Assembly L-G-EBR71326804
...
619D
Pcb Assembly L-G-AJU73872501
...
624C
Cover,filter L-G-MCK66849403
...
624G
Filter Assembly,head L-G-ADQ73673601
...
626A
Refrigerator Water Filter Outer Cover L-G-MCK66584901

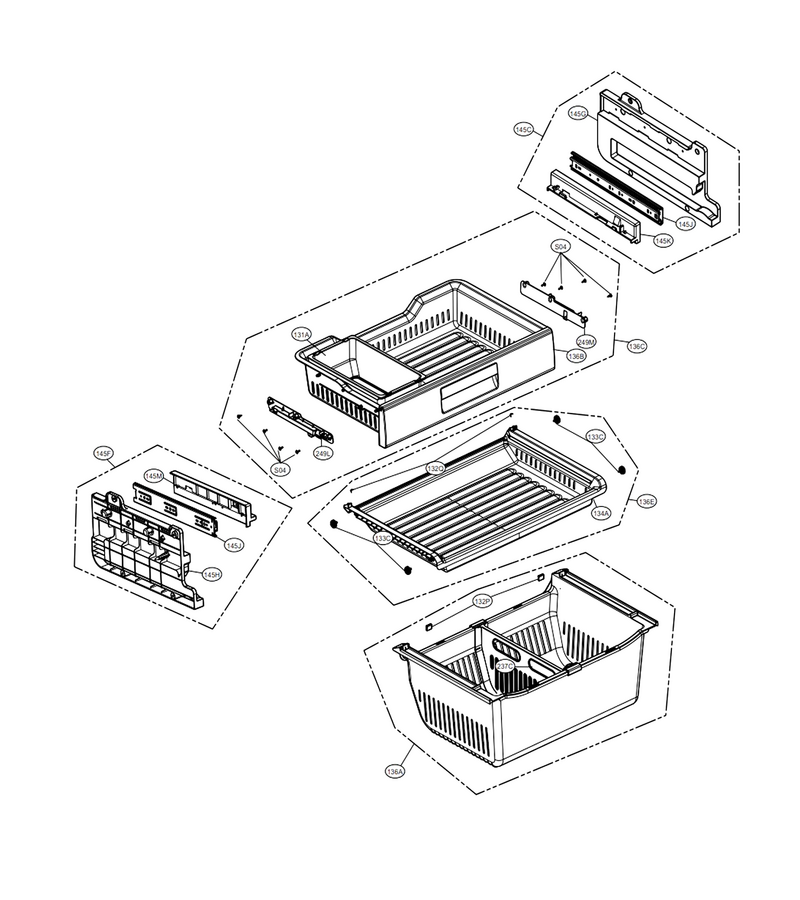

Freezer Parts

...
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
131A
Refrigerator Freezer Basket L-G-MJS42404102
...
132P
Refrigerator Crisper Drawer Bumper L-G-MBL62065801
...
132Q
Stopper,door L-G-MJB62650404
...
133C
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73070401
...
134A
Tray,drawer L-G-MJS62431901
...
136A
Tray Assembly,drawer L-G-AJP72909905
...
136B
Tray Assembly,drawer L-G-AJP73334708
...
136C
Tray Assembly,drawer L-G-AJP73334610
...
136E
Tray Assembly,drawer L-G-AJP73334502
...
145C
Guide Assembly,rail L-G-AEC73337404
...
145F
Guide Assembly,rail L-G-AEC73337403
...
145G
Holder,rail L-G-MEG62900402
...
145H
Holder,rail L-G-MEG62900401
...
145J
Rail,slide L-G-5218JA1008C
...
145K
Connector,rail L-G-4932JA1009B
...
145M
Connector,rail L-G-4932JA1009A
...
237C
Guide,drawer L-G-MEA62770401
...
249L
Holder,rail L-G-MEG62900601

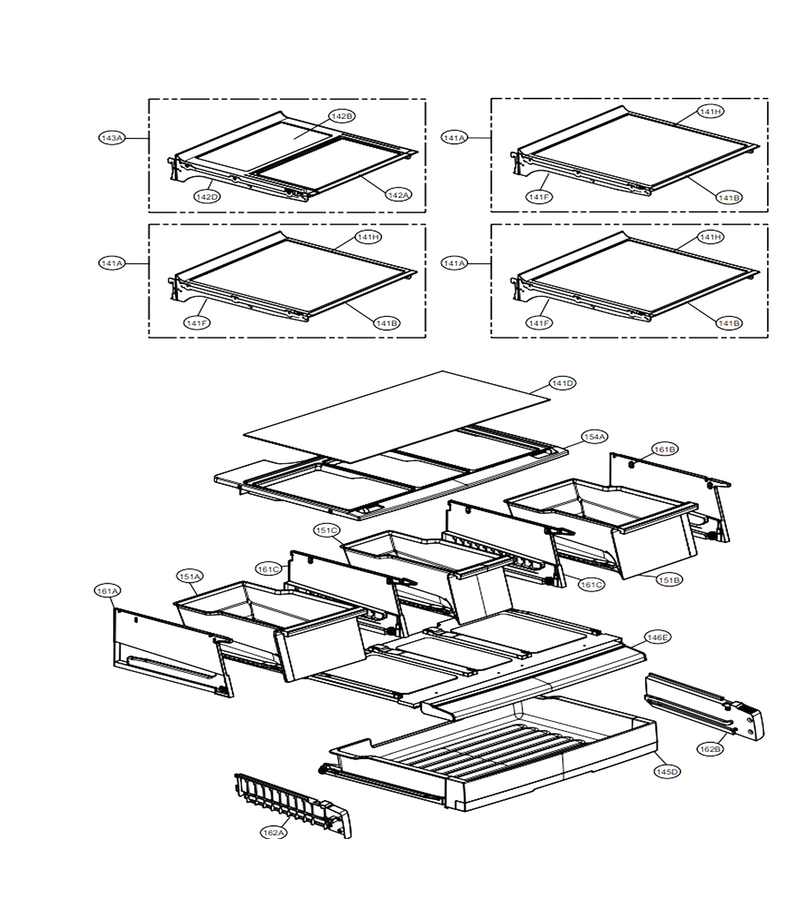

Refrigerator Parts

...
...
141A
Shelf Assembly,refrigerator L-G-AHT73233939
...
141D
Shelf,glass L-G-MHL42613229
...
143A
Tray Assembly,fresh Room L-G-AJP73314427
...
146E
Cover Assembly,tray L-G-ACQ85448403
...
151A
Tray Assembly,vegetable L-G-AJP73334413
...
151B
Tray Assembly,vegetable L-G-AJP73334415
...
151C
Tray Assembly,vegetable L-G-AJP73334414
...
154A
Cover Assembly,tv L-G-ACQ85428613
...
161A
Guide Assembly,tv L-G-AEC73317603
...
161B
Guide Assembly,tv L-G-AEC73317604
...
161C
Guide Assembly,rail L-G-AEC73317502
...
162A
Guide Assembly,rail L-G-AEC73317705
...
162B
Guide Assembly,rail L-G-AEC73317720

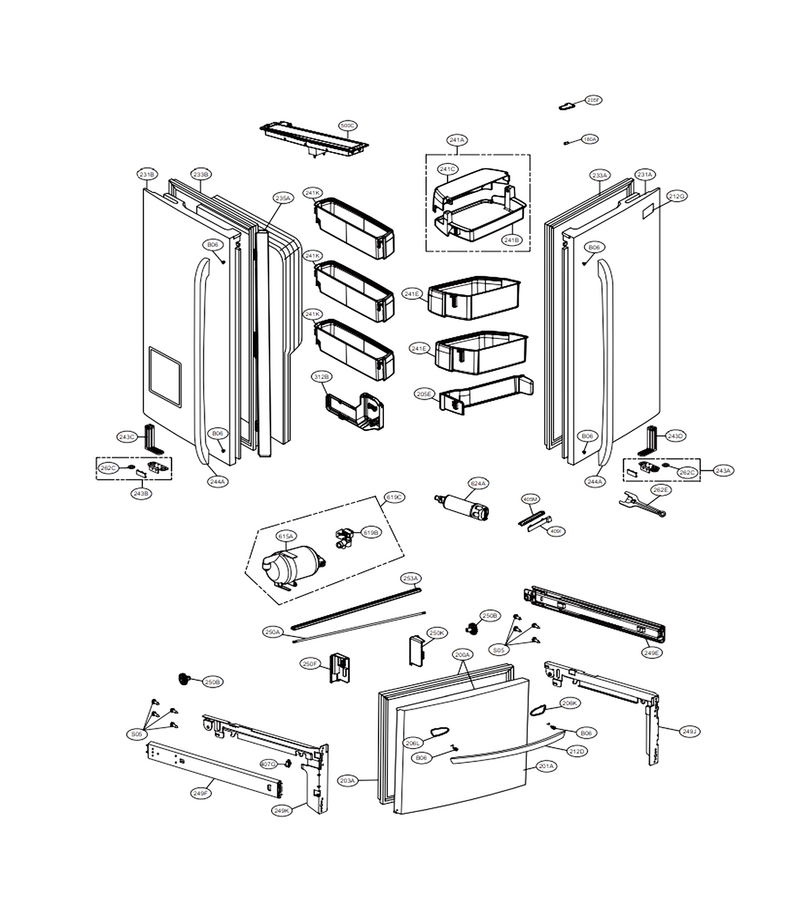

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
S05
Laundry Appliance Screw L-G-FAB30025701
...
180A
Rt Side Uppr L-G-RAB32775604
...
200A
Door Assembly,freezer L-G-ADC73448240
...
201A
Door Foam Assembly,freezer L-G-ADD73358020
...
203A
Gasket,door L-G-MDS38201426
...
205E
Basket,door L-G-MAN62649301
...
206K
Refrigerator Decorative Handle L-G-MCR64337201
...
206L
Refrigerator Decorative Handle L-G-MCR64337202
...
212D
Refrigerator Door Handle Assembly L-G-AED37133117
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
231A
Door Foam Assembly,refrigerator L-G-ADD73358315
...
231B
Door Foam Assembly,refrigerator L-G-ADD73358279
...
233A
Gasket Assembly,door L-G-ADX72930461
...
233B
Gasket Assembly,door L-G-ADX72930460
...
235A
Plate Assembly,front L-G-AGU74268133
...
241A
Refrigerator Door Bin L-G-AAP73351301
...
241B
Refrigerator Door Bin L-G-MAN62288201
...
241C
Refrigerator Dairy Bin Cover L-G-MAN62288301
...
241E
Basket Assembly,door L-G-AAP73252210
...
241K
Refrigerator Door Bin L-G-AAP73252311
...
243B
Refrigerator Door Stop L-G-AJC68689632
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
249E
Rail,slide L-G-5218JA1009L
...
249F
Rail,slide L-G-5218JA1009M
...
249J
Connector,rail L-G-MCD62328902
...
249K
Connector,rail L-G-MCD62328907
...
250A
Refrigerator Ice Gear L-G-MDT62287201
...
250F
Cover Assembly L-G-ACQ73657701
...
250K
Cover Assembly L-G-ACQ73657702
...
253A
Support Cover L-G-MJH62553605
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262E
Refrigerator Spanner Wrench L-G-MHU38218908
...
312B
Refrigerator Water Reservoir Cover L-G-ACQ85432701
...
405M
Refrigerator Light Cover L-G-MCK66769001
...
407G
Cover,door Switch L-G-MCK67227902
...
409I
Refrigerator Led Light L-G-EAV61652805
...
500C
Case Assembly,pcb L-G-ABQ72940031
...
619C
Valve Assembly,water L-G-AJU74532701
...
624A
Filter Assembly,water L-G-ADQ36006113

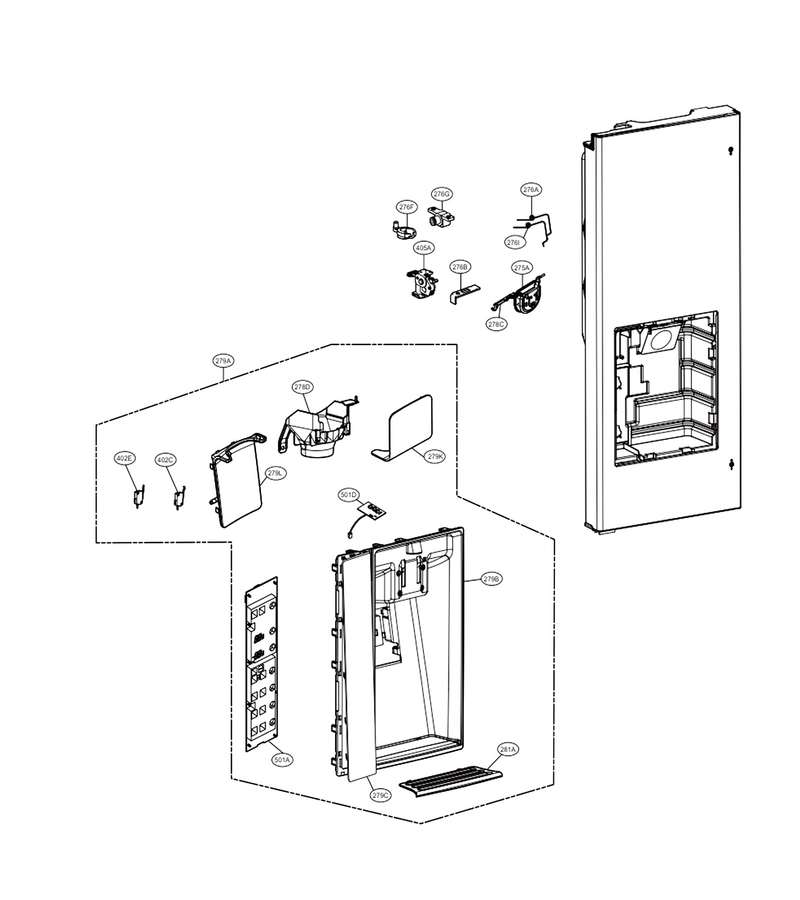

Dispenser Parts

...
...
275A
Refrigerator Dispenser Ice Chute Door L-G-ABN72938905
...
276A
Lever Spring L-G-MHY62603705
...
276B
Holder Lever L-G-MEG63262301
...
276F
Refrigerator Dispenser Lever Retainer L-G-MFF61863101
...
276G
Refrigerator Dispenser Lever Bracket L-G-MEG61958701
...
276I
Refrigerator Dispenser Lever Spring L-G-MHY62603706
...
278C
Refrigerator Dispenser Ice Chute Door Hinge Lever L-G-MFC62250201
...
278D
Refrigerator Dispenser Ice Chute Funnel L-G-MDR62062701
...
279A
Cover Assembly,display L-G-ACQ85430256
...
279B
Refrigerator Dispenser Display Assembly L-G-MCK66542801
...
279C
Cover,display L-G-MCK66585130
...
281A
Refrigerator Dispenser Drip Tray L-G-MCR64355301
...
402E
Refrigerator Dispenser Switch L-G-6600JB3001F
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
501A
Pcb Assembly,display L-G-EBR79159702
...
501D
Pcb Assembly,sub L-G-EBR60388513

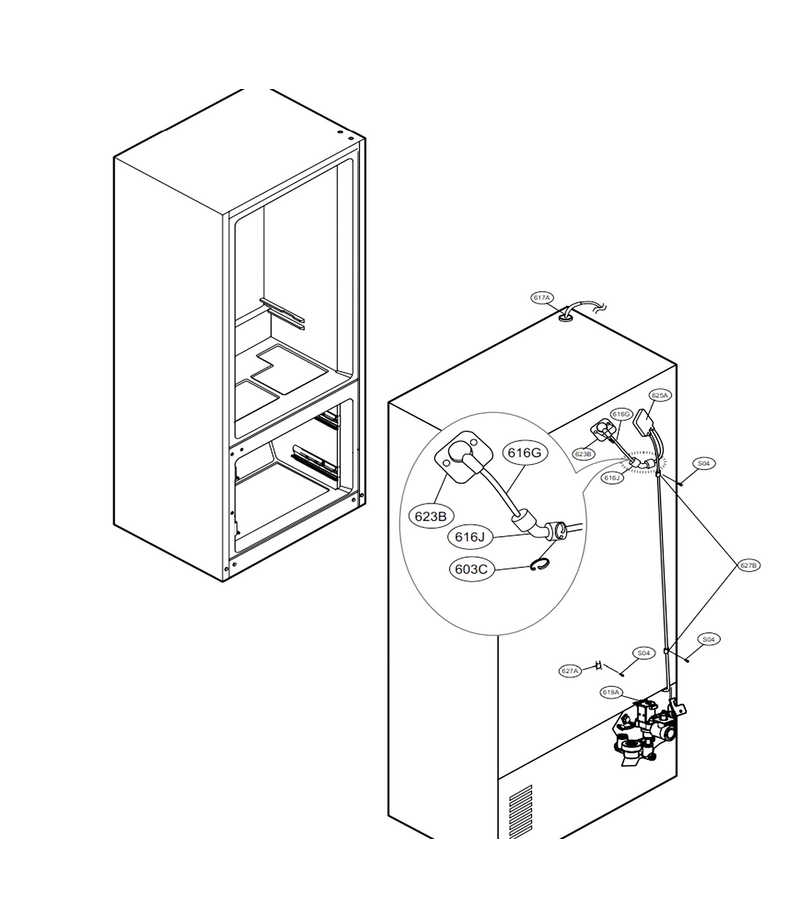

Valve & Water Tube Parts

...
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
603C
Refrigerator Ice Maker Fill Tube L-G-AJR56656502
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992603
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B

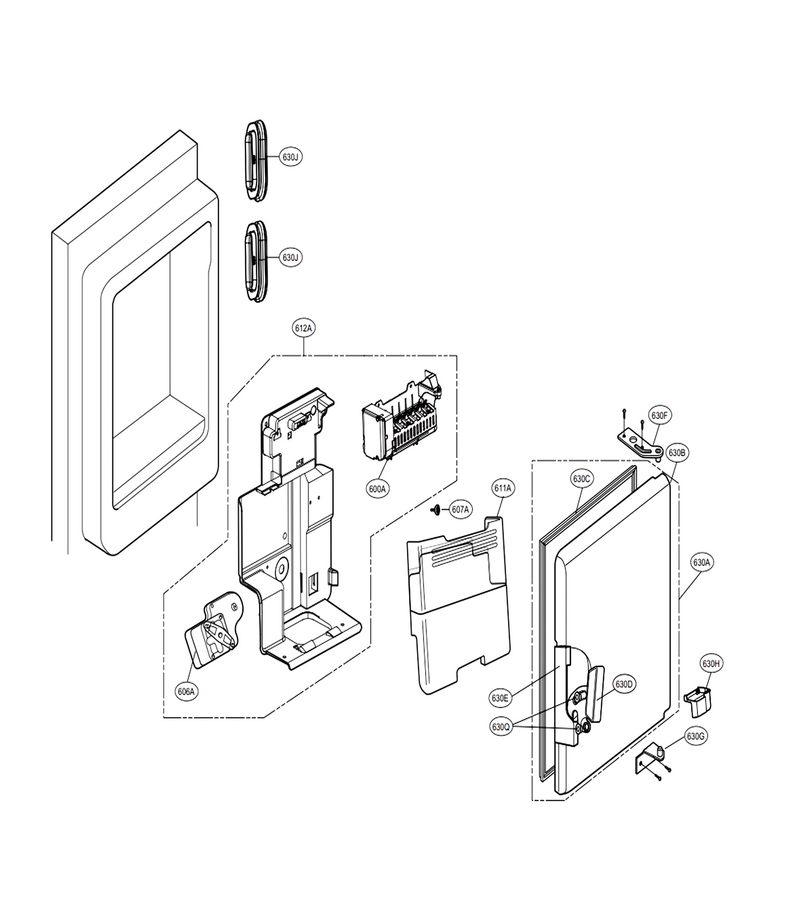

Ice Maker & Ice Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ73130004
...
600C
Cover Assembly,motor L-G-ACQ90087901
...
600G
Duct,multi L-G-MCZ63273301
...
600H
Duct,multi L-G-MCZ63273401
...
600I
Gasket,foam L-G-MDS64013907
...
600J
Motor, Ac Indoor L-G-EAU60784231
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Refrigerator Ice Container Assembly L-G-AKC73369908
...
630A
Refrigerator Ice Room Door Assembly L-G-ADC72987149
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111103
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Lever Cover L-G-MCK63734907
...
630F
Refrigerator Hinge Assembly, Lower L-G-AEH73577903
...
630H
Cover L-G-MCK66593601
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73250601
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B
