LG LFX31915SB.AWBCNA0

Model: LFX31915SB.AWBCNA0

Save Part Not Listed?
product name

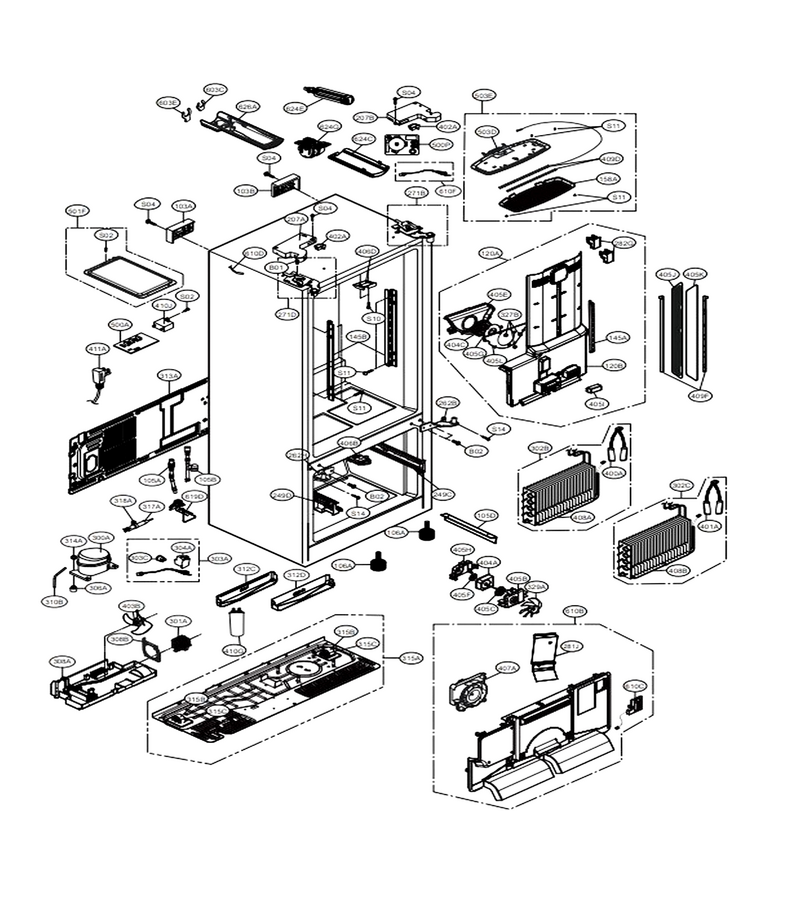

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S02
Refrigerator Screw L-G-4J00415D
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010F
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Rear Handle L-G-3650JA2061W
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105B
Refrigerator Cabinet Drain Tube Assembly L-G-AJR74166101
...
105D
Skirt,lower L-G-5070JA3002W
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Duct Assembly,multi L-G-ADJ73252222
...
120B
Harness Assembly L-G-EAD60703911
...
145A
Refrigerator Shelf Holder L-G-MEG62685901
...
145B
Refrigerator Shelf Holder L-G-MEG62685801
...
158A
Refrigerator Lamp Cover L-G-MCK67195101
...
207A
Refrigerator Door Hinge Cover, Left L-G-3550JJ1097Q
...
207B
Cover,hinge L-G-MCK63780305
...
249C
Guide Assembly,rail L-G-AEC73317811
...
249D
Holder,rail L-G-MEG63303502
...
262B
Refrigerator Door Hinge, Center L-G-AEH73577614
...
262H
Refrigerator Door Hinge, Center L-G-AEH73577616
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
281J
Tray,drain L-G-MJS62711702
...
282G
Refrigerator Duct Cap L-G-MBL65039901
...
300A
Refrigerator Compressor L-G-TCA35271201
...
301A
Refrigerator Condenser Coil L-G-ACG73645002
...
302B
Evaporator Assembly L-G-ADL73600903
...
302C
Evaporator Assembly L-G-ADL73341411
...
303A
Thermistor Assembly,ptc L-G-EBG60663230
...
303C
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
308A
Refrigerator Drain Pan L-G-MJS62233503
...
308B
Refrigerator Fan Guide L-G-MEA42772904
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312C
Tray Assembly,drain L-G-3391JJ2013S
...
312D
Refrigerator Drain Pan L-G-3391JJ2013H
...
313A
Refrigerator Compressor Access Cover L-G-ACQ86284803
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly L-G-AAN37031304
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
317A
Drier Assembly L-G-5851JA2007L
...
318A
Refrigerator Holder L-G-4930JA3034A
...
327B
Refrigerator Damper L-G-5040JA3063B
...
329A
Refrigerator Fan Assembly L-G-ADP73513701
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005N
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005S
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
403B
Refrigerator Condenser Fan L-G-EAU61505101
...
404A
Motor,dc L-G-EAU61524002
...
404C
Motor,dc L-G-EAU36179308
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ61845401
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405E
Refrigerator Shroud L-G-MHN62142202
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Fan Motor Support L-G-MAZ62266201
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-3550JA2273A
...
405I
Refrigerator Lamp Cover L-G-MCK61881401
...
405J
Refrigerator Lamp Cover L-G-MCK67195001
...
405K
Refrigerator Light Cover L-G-MCK66584302
...
405L
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ63010801
...
406B
Refrigerator Door Switch L-G-EBF61314803
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
407A
Bracket Assembly,motor L-G-ABA72913414
...
408A
Refrigerator Defrost Heater L-G-5300JK1005D
...
408B
Heater,sheath L-G-MEE62105207
...
409D
Refrigerator Led Light Assembly L-G-EAV61916703
...
409F
Refrigerator Freezer Light Board L-G-EAV61916704
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
410J
Refrigerator Auger Motor Run Capacitor L-G-0CZZJB2014K
...
411A
Power Cord Assembly L-G-EAD61445236
...
500A
Pcb Assembly,main L-G-EBR77042523
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
501F
Pcb Assembly,display L-G-EBR72955415
...
503D
Refrigerator Sensor Cover L-G-MCK67228501
...
503E
Cover Assembly,lamp L-G-ACQ85449503
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603E
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
610B
Grille Assembly,fan L-G-AEB73785605
...
610C
Refrigerator Temperature Sensor And Cover L-G-ACQ73244001
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610F
Refrigerator Temperature Sensor L-G-EBR71326801
...
619D
Refrigerator Refrigerant Valve L-G-AJU34510512
...
624C
Cover,filter L-G-MCK66849403
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Refrigerator Water Filter Head L-G-MDJ62165101
...
626A
Refrigerator Water Filter Outer Cover L-G-MCK66584901

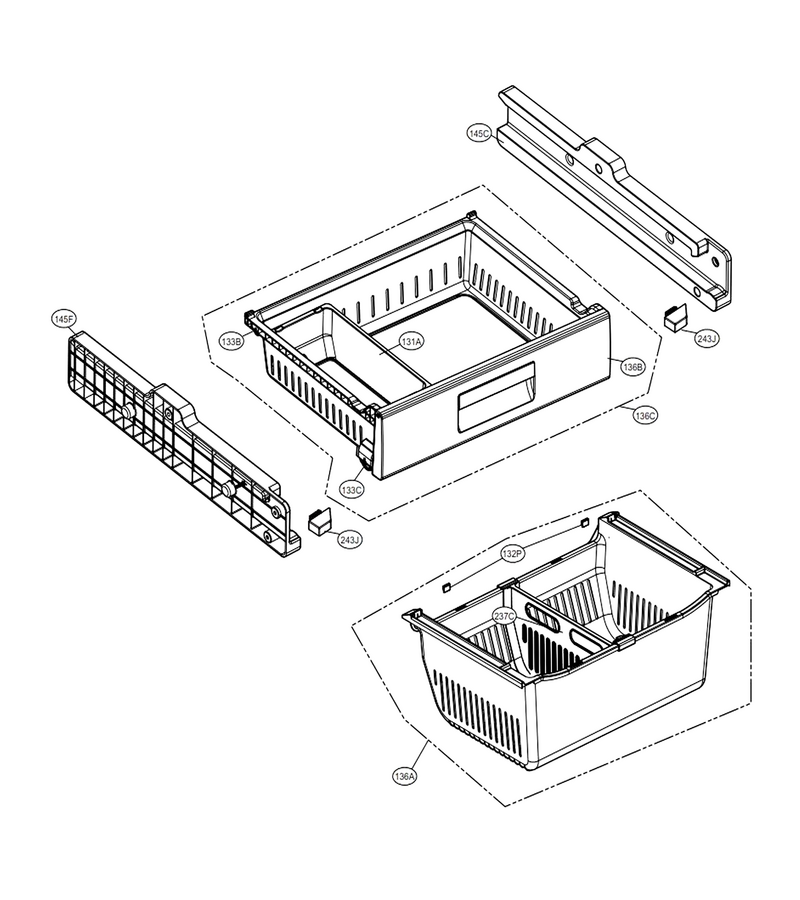

Freezer Parts

...
...
131A
Refrigerator Freezer Tray L-G-MJS42270802
...
132P
Refrigerator Crisper Drawer Bumper L-G-MBL62065801
...
133B
Refrigerator Freezer Tray Roller Wheel L-G-AHJ72909101
...
133C
Refrigerator Freezer Drawer Roller L-G-AHJ72909001
...
136A
Refrigerator Crisper Drawer L-G-AJP72909903
...
136B
Tray Assembly,drawer L-G-AJP72909708
...
136C
Tray Assembly,drawer L-G-AJP72909818
...
145C
Holder,rail L-G-MEG63064502
...
145F
Holder,rail L-G-MEG63064501
...
237C
Refrigerator Freezer Drawer Divider L-G-MEA62573201
...
243J
Stopper,door L-G-MJB63050101

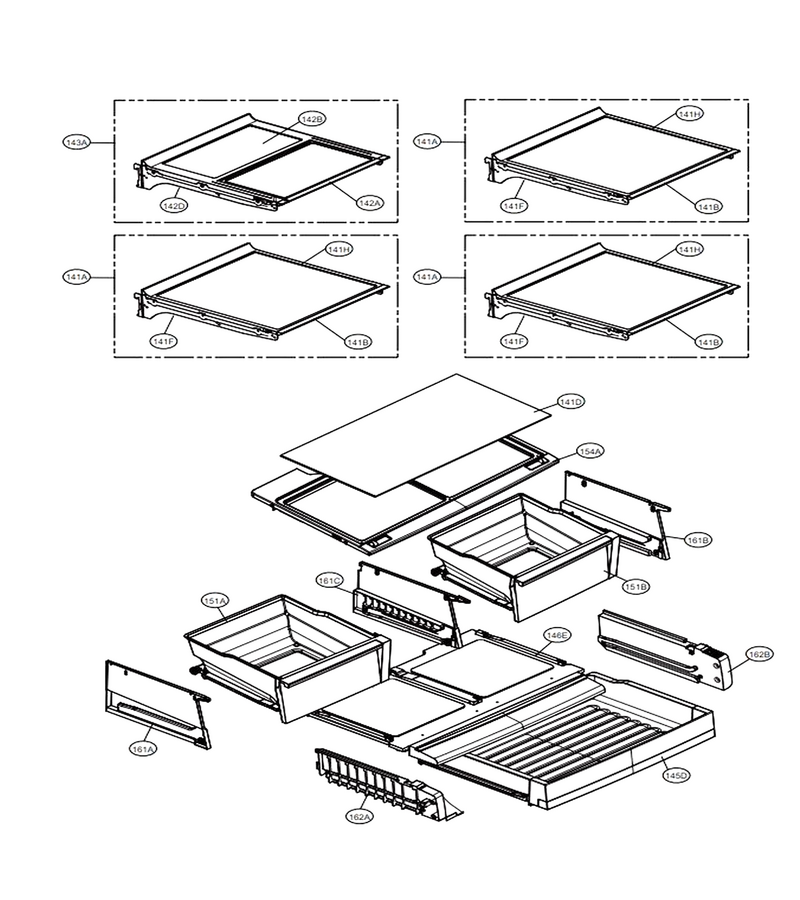

Refrigerator Parts

...
...
141A
Shelf Assembly,refrigerator L-G-AHT73233906
...
141B
Shelf Assembly,refrigerator L-G-AHT73253805
...
141D
Refrigerator Glass Shelf L-G-MHL42613220
...
141F
Refrigerator Shelf Net L-G-MHL62412601
...
141H
Refrigerator Shelf Net L-G-MHL62412602
...
142A
Shelf Assembly,refrigerator L-G-AHT73234105
...
142B
Shelf Assembly,refrigerator L-G-AHT73234205
...
142D
Refrigerator Shelf Assembly L-G-5027JJ2012Z
...
143A
Shelf Assembly,refrigerator L-G-AHT73234005
...
145D
Tray Assembly,fresh Room L-G-AJP73314406
...
146E
Cover Assembly,tray L-G-ACQ85448406
...
151A
Tray Assembly,vegetable L-G-AJP73374605
...
151B
Tray Assembly,vegetable L-G-AJP73374606
...
154A
Cover Assembly,tv L-G-ACQ85428605
...
161A
Refrigerator Crisper Drawer Track, Left L-G-AEC73317601
...
161B
Refrigerator Vegetable Tray Guide Assembly L-G-AEC73317602
...
161C
Refrigerator Drawer Slide Rail L-G-AEC73317501
...
162A
Refrigerator Drawer Slide Rail, Left L-G-AEC73317701
...
162B
Refrigerator Pantry Drawer Guide, Right L-G-AEC73317702

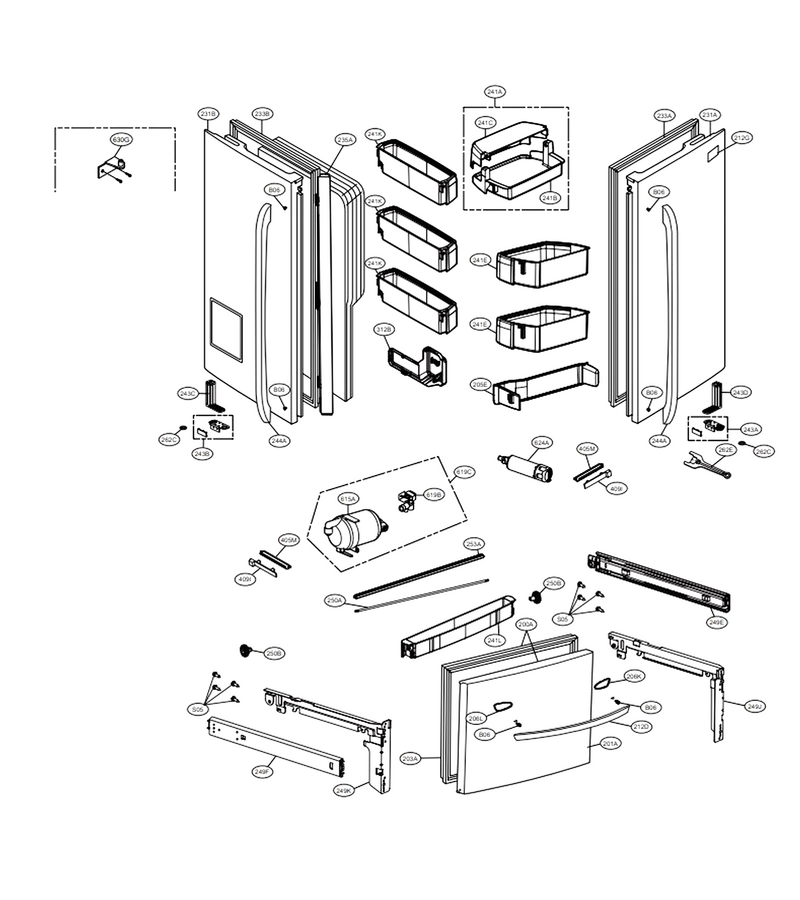

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
S05
Laundry Appliance Screw L-G-FAB30025701
...
200A
Door Assembly,freezer L-G-ADC73448202
...
201A
Door Foam Assembly,freezer L-G-ADD73358002
...
203A
Gasket,door L-G-MDS38201416
...
205E
Basket,door L-G-MAN62649301
...
206K
Refrigerator Decorative Handle L-G-MCR64337203
...
206L
Refrigerator Decorative Handle L-G-MCR64337204
...
212D
Refrigerator Door Handle L-G-AED37133118
...
231A
Door Foam Assembly,refrigerator L-G-ADD73358302
...
231B
Door Foam Assembly,refrigerator L-G-ADD73358202
...
233A
Gasket Assembly,door L-G-ADX72930418
...
233B
Gasket Assembly,door L-G-ADX72930417
...
235A
Plate Assembly,front L-G-AGU73530703
...
241A
Refrigerator Door Bin L-G-AAP73351301
...
241B
Refrigerator Door Bin L-G-MAN62288201
...
241C
Refrigerator Dairy Bin Cover L-G-MAN62288301
...
241E
Basket Assembly,door L-G-AAP73252204
...
241K
Basket Assembly,door L-G-AAP73252306
...
241L
Basket Assembly,door L-G-AAP73371803
...
243A
Stopper Assembly,door L-G-AJC68689636
...
243B
Refrigerator Stopper Assembly L-G-AJC68689635
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
244A
Handle Assembly,refrigerator L-G-AED37082913
...
249E
Refrigerator Freezer Drawer Slide Rail, Right L-G-MGT61844003
...
249F
Refrigerator Freezer Drawer Slide Rail, Left L-G-MGT61844004
...
249J
Connector,rail L-G-MCD62287603
...
249K
Connector,rail L-G-MCD62287604
...
250A
Refrigerator Freezer Drawer Slide Bar L-G-4270JA3009P
...
250B
Refrigerator Ice Gear L-G-MDT62287201
...
253A
Support Cover L-G-MJH62553605
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262E
Refrigerator Spanner Wrench L-G-MHU38218908
...
312B
Refrigerator Water Reservoir Cover L-G-ACQ85432701
...
405M
Refrigerator Light Cover L-G-MCK66769001
...
409I
Led Assembly L-G-EAV61652803
...
615A
Tank,water L-G-MJM62524601
...
619B
Refrigerator Water Inlet Valve L-G-MJX41869206
...
619C
Valve Assembly,water L-G-AJU73272503
...
624A
Refrigerator Water Filter L-G-ADQ36006101
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH73577903

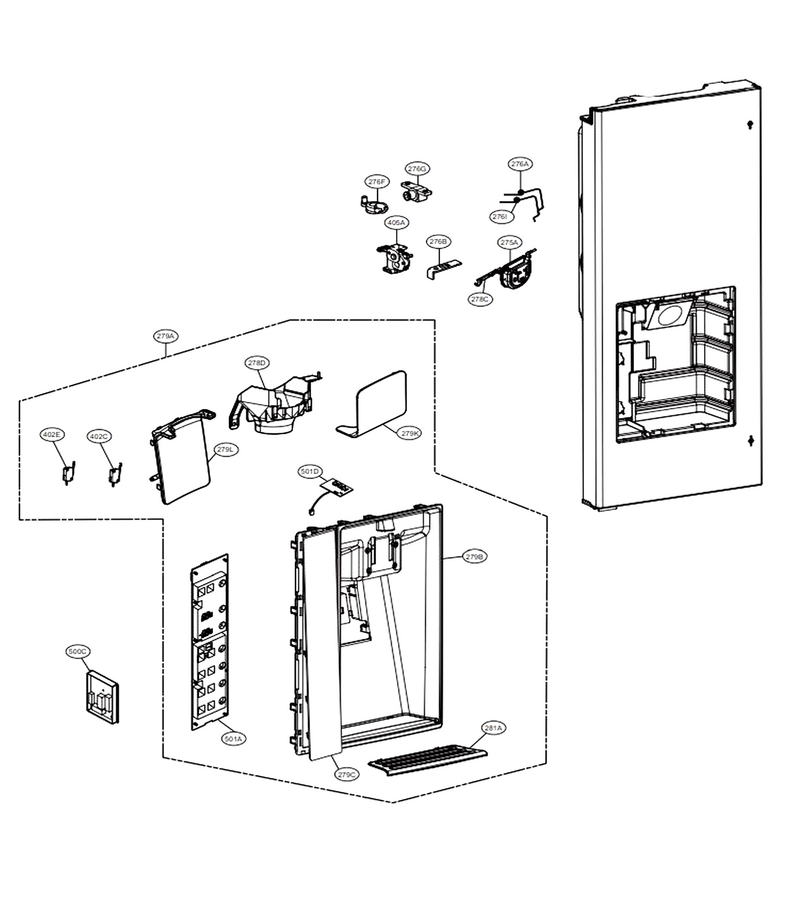

Dispenser Parts

...
...
275A
Refrigerator Dispenser Ice Chute Door L-G-ABN72938905
...
276A
Lever Spring L-G-MHY62603705
...
276B
Holder Lever L-G-MEG63262301
...
276F
Refrigerator Dispenser Lever Retainer L-G-MFF61863101
...
276G
Refrigerator Dispenser Lever Bracket L-G-MEG61958701
...
276I
Refrigerator Dispenser Lever Spring L-G-MHY62603706
...
278C
Refrigerator Dispenser Ice Chute Door Hinge Lever L-G-MFC62250201
...
278D
Refrigerator Dispenser Ice Chute Funnel L-G-MDR62062701
...
279A
Cover Assembly,display L-G-ACQ85430211
...
279B
Cover,dispenser L-G-MCK66542803
...
279C
Cover,display L-G-MCK66585108
...
279K
Button,lever L-G-MBG64107902
...
279L
Button,lever L-G-MBG64108002
...
281A
Decor,drain L-G-MCR64355303
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
402E
Refrigerator Dispenser Switch L-G-6600JB3001F
...
405A
Motor,dc L-G-EAU59551207
...
500C
Refrigerator Dispenser Control Board L-G-ABQ72940005
...
501A
Pcb Assembly,display L-G-EBR72955409
...
501D
Refrigerator Pcb Assembly L-G-EBR60388503

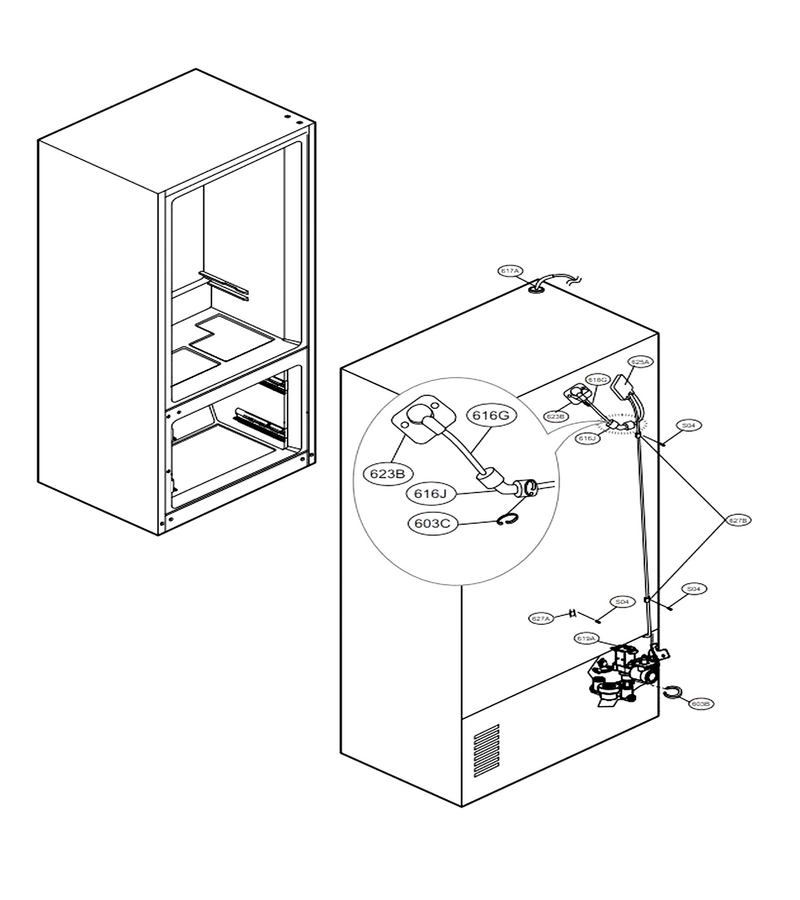

Valve & Water Tube Parts

...
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616G
Refrigerator Water Tubing L-G-AJR56656503
...
616J
Connector,tube L-G-MCD62426801
...
617A
Refrigerator Spring L-G-4970JA3004N
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992603
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

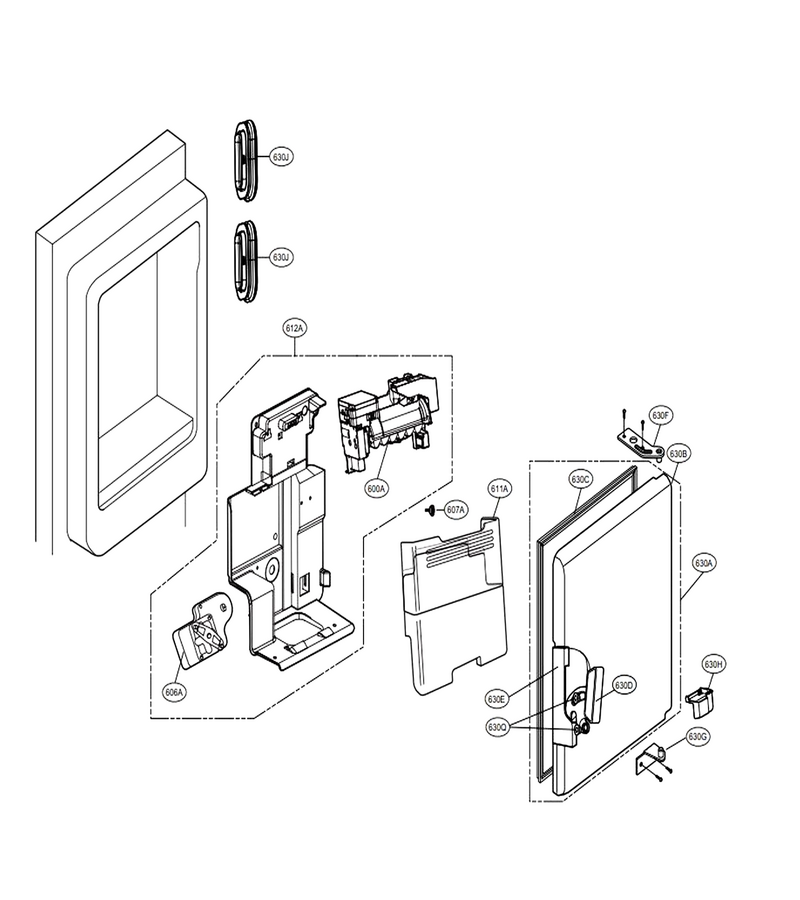

Ice Maker & Ice Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ73110203
...
606A
Refrigerator Auger Motor L-G-EAU61083514
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Bucket Assembly,ice L-G-AKC73369907
...
612A
Refrigerator Auger Motor L-G-EAU60783827
...
630A
Refrigerator Ice Room Door Assembly L-G-ADC72987110
...
630B
Refrigerator Ice Room Door Assembly L-G-ADD72915904
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111101
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Refrigerator Door Lever Cover L-G-MCK63734904
...
630F
Hinge Assembly L-G-AEH72976201
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH73577903
...
630H
Cover L-G-MCK66593601
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73250601
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
