LG LFX28978SB.AWBCNA5

Model: LFX28978SB.AWBCNA5

Save Part Not Listed?
product name

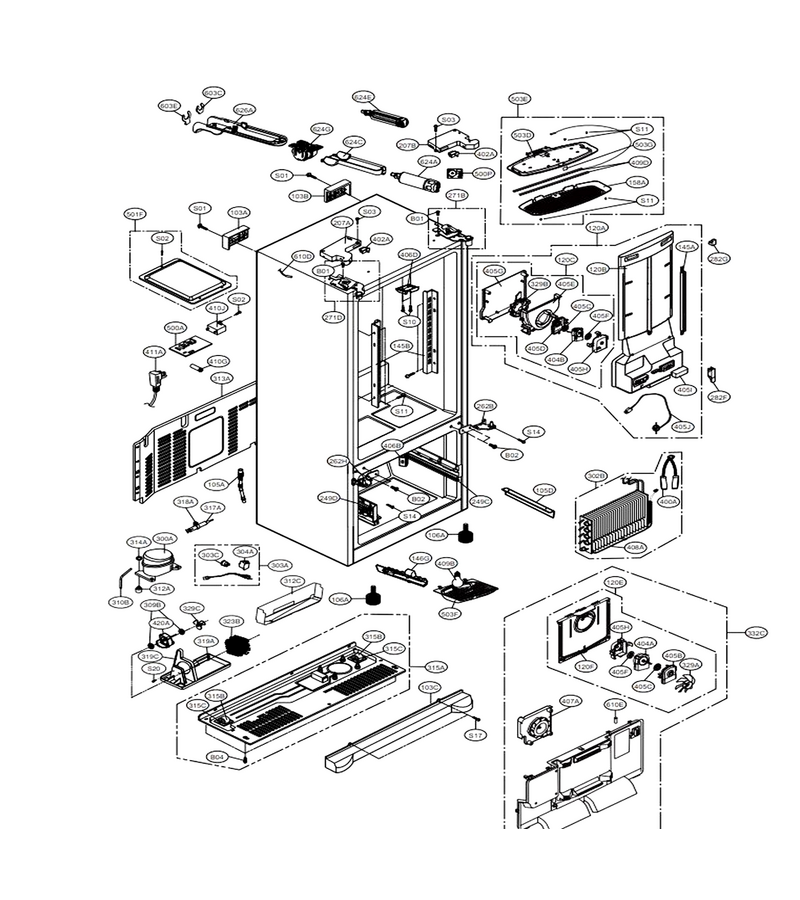

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004Q
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S01
Refrigerator Screw L-G-4J00415D
...
S02
Refrigerator Screw L-G-4J00415D
...
S03
Refrigerator Door Hinge Cover Mounting Screw L-G-4J01424B
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Screw L-G-4J00415D
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010J
...
S17
Refrigerator Screw L-G-4J00415D
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Refrigerator Handle L-G-3650JA2113N
...
103B
Refrigerator Handle L-G-3650JA2113P
...
103C
Cover Assembly L-G-ACQ55957511
...
105A
Refrigerator Drain Tube L-G-5251JA3003E
...
105D
Skirt,lower L-G-5070JA3002X
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Duct Assembly,multi L-G-ADJ72909821
...
120B
Refrigerator Multi-Duct L-G-MCZ61845004
...
120C
Refrigerator Fresh Food Room Fan Motor Assembly L-G-ABA72913501
...
120E
Bracket Assembly,motor L-G-ABA72913307
...
120F
Shroud,freezer L-G-MHN62042301
...
145A
Refrigerator Shelf Support L-G-4930JA2080C
...
145B
Refrigerator Shelf Holder L-G-4930JA2081F
...
146G
Duct Connector L-G-MCZ62651901
...
158A
Refrigerator Lamp Cover L-G-MCK61881301
...
207A
Refrigerator Door Hinge Cover, Left L-G-3550JJ1097E
...
207B
Cover,hinge L-G-3550JJ1097Z
...
249C
Refrigerator Holder Rail L-G-MEG61844802
...
249D
Holder,rail L-G-MEG61844801
...
262B
Refrigerator Hinge L-G-AEH71135342
...
262H
Refrigerator Hinge L-G-AEH71135344
...
271B
Hinge Assembly L-G-AEH60614108
...
271D
Hinge Assembly L-G-AEH60614107
...
282F
Refrigerator Duct Cap L-G-MBL61865401
...
282G
Refrigerator Duct Cap L-G-MBL61865301
...
300A
Refrigerator Compressor L-G-TCA35271201
...
302B
Thermistor Assembly,ptc L-G-ADL73661104
...
303A
Thermistor Assembly,ptc L-G-EBG60663214
...
303C
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
309B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
312C
Drain Tray Assembly L-G-3391JJ2013L
...
313A
Refrigerator Cover Assembly, Rear L-G-3551JJ2018E
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Compressor Base Assembly L-G-AAN74048803
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
317A
Drier Assembly L-G-5851JA2007G
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-MJS61845701
...
319C
Refrigerator Fan Guide L-G-MEA62550101
...
323B
Condenser Assembly,wire L-G-ACG72915209
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1021A
...
329B
Refrigerator Evaporator Fan Blade L-G-5901JA1020A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Grille Assembly,fan L-G-AEB72913912
...
400A
Controller Assembly L-G-6615JB2005X
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Motor,dc L-G-EAU61524001
...
404B
Refrigerator Evaporator Fan Motor L-G-4681JB1027J
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2055A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405D
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2055A
...
405E
Shroud,r L-G-MHN61841101
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Motor Bracket L-G-MAZ61845501
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-3550JA2273A
...
405I
Refrigerator Lamp Cover L-G-MCK61881401
...
405J
Refrigerator Led Assembly L-G-EAV60663406
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
407A
Bracket Assembly,motor L-G-ABA72913404
...
408A
Heater,sheath L-G-5300JK1005L
...
409B
Refrigerator Incandescent Lamp L-G-6912JB2004P
...
409D
Refrigerator Led Assembly L-G-EAV48995107
...
410G
Refrigerator Run Capacitor L-G-EAE58905704
...
410J
Capacitor,electric Appliance Film,box L-G-0CZZJB2014P
...
411A
Power Cord Assembly L-G-EAD61445217
...
420A
Motor,dc L-G-EAU61644104
...
500A
Pcb Assembly,main L-G-EBR73304210
...
500P
Pcb Assembly,sub L-G-EBR64730401
...
501F
Pcb Cover Assembly L-G-3551JA2144Q
...
503D
Refrigerator Lamp Case L-G-MBN61844901
...
503E
Refrigerator Lamp Cover L-G-ACQ33676511
...
503F
Refrigerator Light Cover L-G-MCK62375001
...
503G
Refrigerator Decorative Control L-G-MCR61954801
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603E
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610E
Refrigerator Temperature Sensor L-G-6500JB2002X
...
624A
Refrigerator Water Filter L-G-ADQ36006101
...
624C
Refrigerator Water Reservoir Cover L-G-MCK42262701
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Refrigerator Water Filter Head L-G-MDJ62165101
...
626A
Refrigerator Water Reservoir Cover L-G-MCK42264401

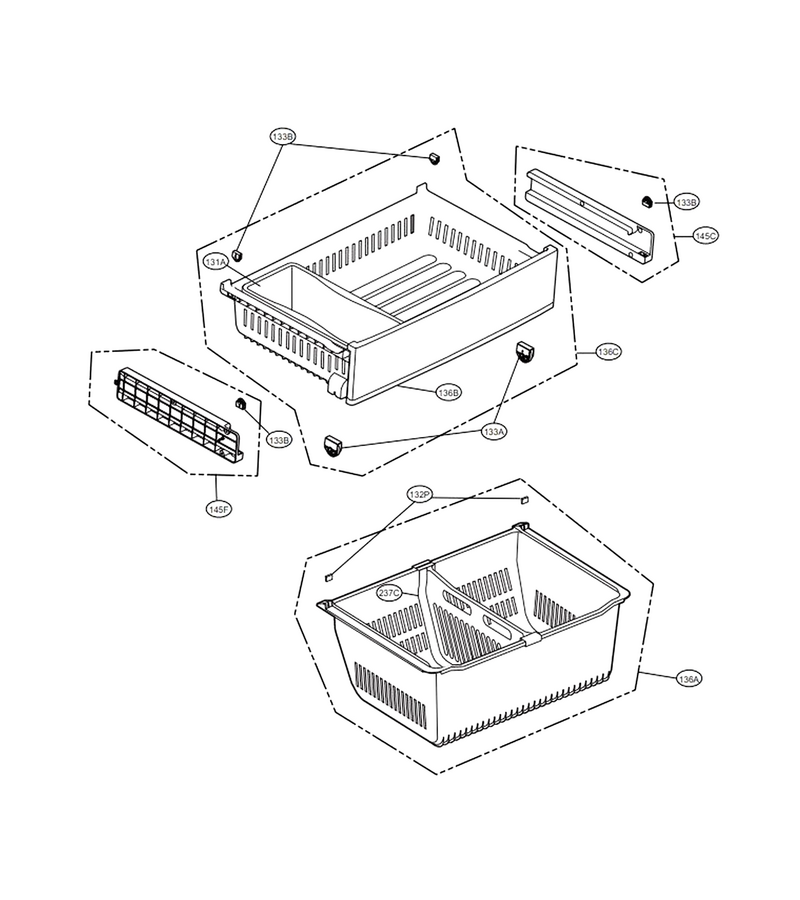

Freezer Parts

...
...
131A
Tray,freezer L-G-MJS61850901
...
132P
Refrigerator Crisper Drawer Bumper L-G-MBL62065801
...
133A
Refrigerator Freezer Drawer Roller L-G-AHJ72909001
...
133B
Refrigerator Freezer Tray Roller Wheel L-G-AHJ72909101
...
136A
Tray Assembly,drawer L-G-AJP72909901
...
136B
Tray,drawer L-G-AJP72909707
...
136C
Cover Assembly,tv L-G-AJP72909809
...
145C
Guide Assembly,rail L-G-AEC72912202
...
145F
Guide,rail L-G-MEA62231201
...
237C
Refrigerator Pantry Drawer Divider L-G-MEA61842101

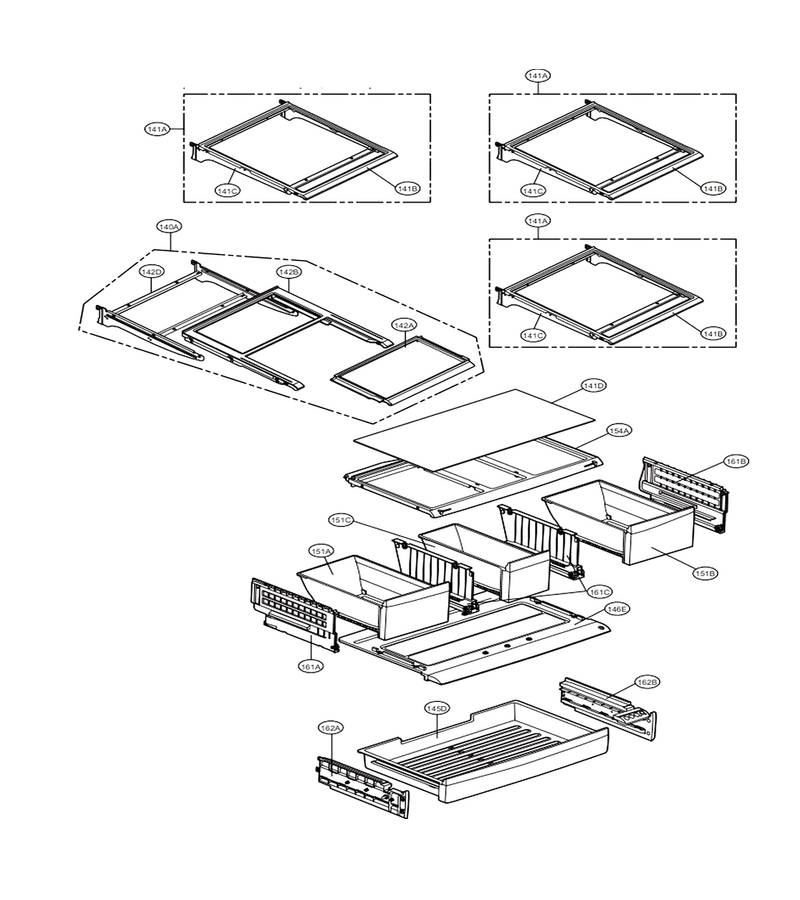

Refrigerator Parts

...
...
140A
Shelf Assembly,refrigerator L-G-AHT72910610
...
141A
Shelf Assembly,refrigerator L-G-AHT72910311
...
141B
Shelf,refrigerator L-G-AHT72910206
...
141C
Shelf Assy,n L-G-5027JJ2012R
...
141D
Refrigerator Glass Shelf L-G-MHL42613212
...
142A
Shelf Assembly,refrigerator L-G-AHT72910406
...
142B
Shelf Assembly L-G-AHT72910501
...
142D
Refrigerator Shelf Assembly L-G-5027JJ2012S
...
145D
Tray Assembly,fresh Room L-G-AJP72909610
...
146E
Refrigerator Deli Drawer Cover L-G-ACQ73152601
...
151A
Refrigerator Crisper Drawer, Left L-G-AJP72910212
...
151B
Refrigerator Crisper Drawer, Right L-G-AJP72910214
...
151C
Refrigerator Crisper Drawer, Small L-G-AJP72910213
...
154A
Cover Assembly,tv L-G-ACQ73152508
...
161A
Refrigerator Crisper Drawer Track, Left L-G-AEC72910001
...
161B
Refrigerator Drawer Slide Rail L-G-AEC72910002
...
161C
Refrigerator Rail Guide Assembly L-G-AEC72910301
...
162A
Refrigerator Pantry Drawer Guide, Left L-G-AEC72910104
...
162B
Refrigerator Crisper Drawer Humidity Control L-G-AEC72910105

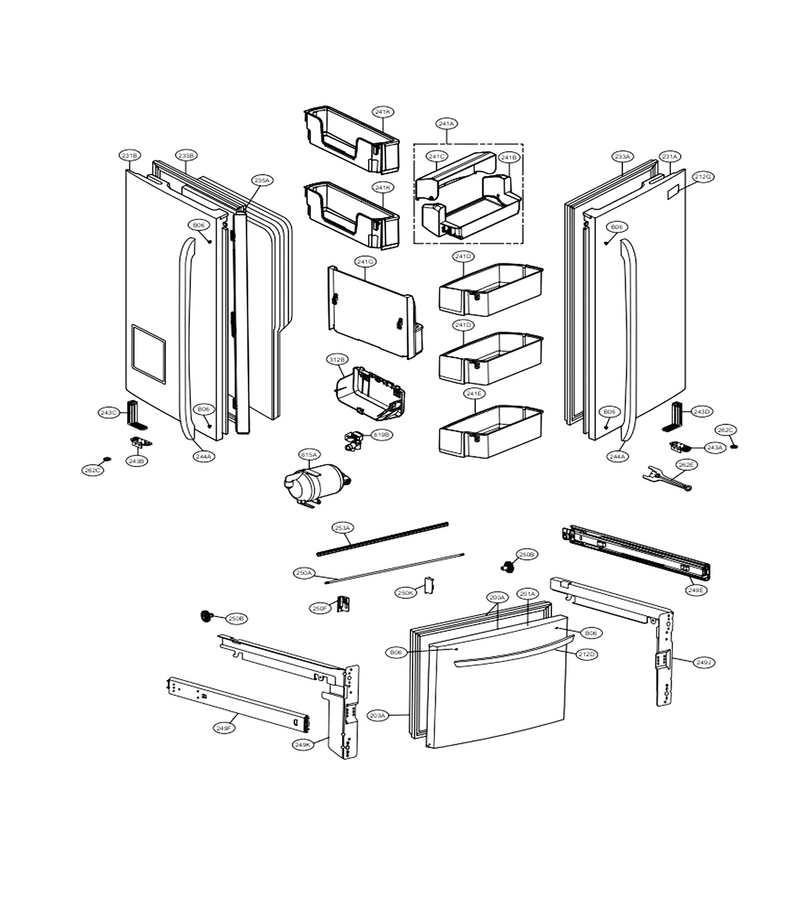

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
200A
Door Assembly,freezer L-G-ADC71974635
...
201A
Door Foam Assembly,freezer L-G-ADD71917428
...
203A
Refrigerator Freezer Door Gasket L-G-MDS38201402
...
212D
Refrigerator Door Handle L-G-AED37133118
...
212G
Refrigerator Nameplate L-G-MFT62346501
...
231A
Door Foam Assembly,refrigerator L-G-ADD72936156
...
231B
Door Foam Assembly,refrigerator L-G-ADD72935965
...
233A
Refrigerator Door Gasket, Right L-G-ADX72930407
...
233B
Refrigerator Door Gasket, Left L-G-ADX72930404
...
235A
Refrigerator Flipper Assembly L-G-AGU73530709
...
241A
Refrigerator Door Bin L-G-AAP33686302
...
241B
Refrigerator Door Bin L-G-MAN38142901
...
241C
Refrigerator Door Bin Cover L-G-MAN38143001
...
241D
Basket,door L-G-AAP72909216
...
241E
Refrigerator Door Bin L-G-AAP72909211
...
241G
Basket,door L-G-AAP72931605
...
241K
Refrigerator Door Bin L-G-AAP72931502
...
243A
Refrigerator Stopper Assembly L-G-AJC68689618
...
243B
Refrigerator Stopper Assembly L-G-AJC68689617
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821901
...
243D
Refrigerator Door Hinge, Right Center L-G-AEH36821903
...
244A
Handle Assembly,refrigerator L-G-AED37082913
...
249E
Refrigerator Freezer Drawer Slide Rail, Right L-G-MGT61844003
...
249F
Refrigerator Freezer Drawer Slide Rail, Left L-G-MGT61844004
...
249J
Refrigerator Crisper Drawer Rail Support L-G-MCD62287601
...
249K
Refrigerator Crisper Drawer Rail Support L-G-MCD62287602
...
250A
Refrigerator Freezer Drawer Roller Support L-G-4270JA3009M
...
250B
Refrigerator Ice Gear L-G-MDT62287201
...
250F
Cover Assembly L-G-ACQ73657701
...
250K
Cover Assembly L-G-ACQ73657702
...
253A
Support Cover L-G-MJH62553605
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262E
Spanner L-G-MHU38218904
...
312B
Refrigerator Water Reservoir Cover L-G-MCK62964801
...
615A
Refrigerator Water Reservoir L-G-AJL72911502

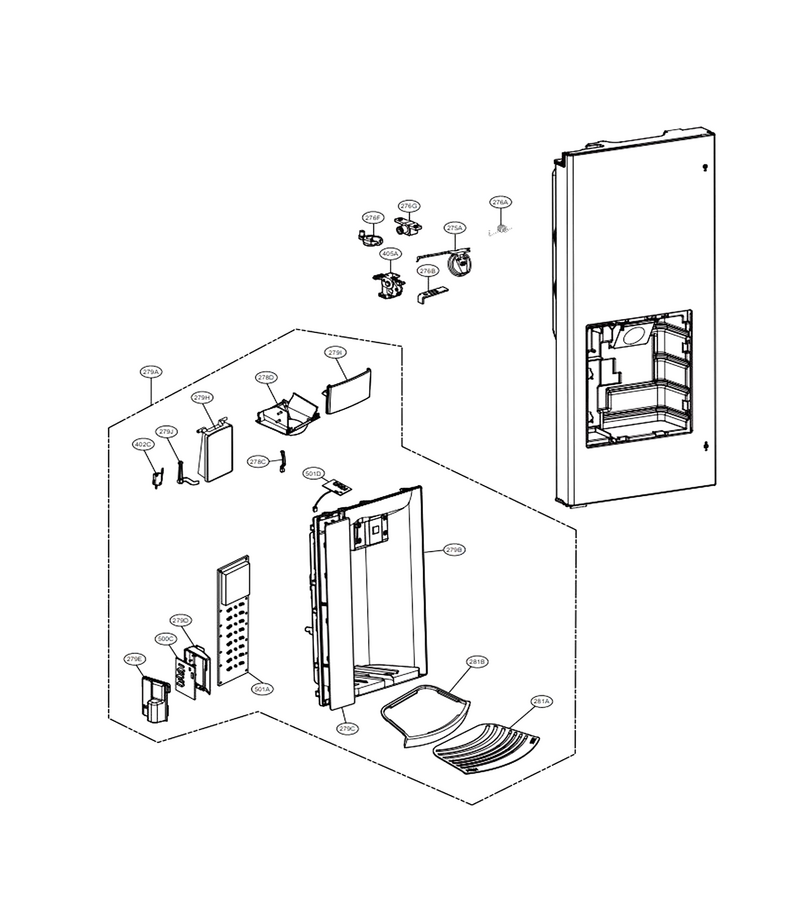

Dispenser Parts

...
...
275A
Refrigerator Dispenser Ice Chute Door L-G-ABN72938901
...
276A
Refrigerator Spring L-G-4970JA3011C
...
276B
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
276F
Refrigerator Dispenser Lever Retainer L-G-MFF61863101
...
276G
Refrigerator Dispenser Lever Bracket L-G-MEG61958701
...
278C
Refrigerator Dispenser Lever L-G-MFC38030001
...
278D
Refrigerator Dispenser Ice Chute Funnel L-G-MDR61842201
...
279A
Cover Assembly,display L-G-ACQ75432121
...
279B
Dispenser Cover L-G-MCK62965303
...
279C
Refrigerator Display Cover L-G-MCK63604303
...
279D
Pcb Case L-G-MBN38026801
...
279E
Refrigerator Electronic Control Board Cover L-G-MCK38209801
...
279H
Refrigerator Ice Dispenser Lever L-G-MBG62527602
...
279I
Refrigerator Dispenser Lever L-G-MBG62527502
...
279J
Refrigerator Dispenser Lever L-G-MBG38252601
...
281A
Refrigerator Drain Decor L-G-MCR62326503
...
281B
Refrigerator Drain Tray L-G-MJS61871903
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001F
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
500C
Refrigerator Power Control Board L-G-EBR60070707
...
501A
Pcb Assembly,display L-G-EBR65749303
...
501D
Refrigerator Dispenser Control Board L-G-EBR60388502

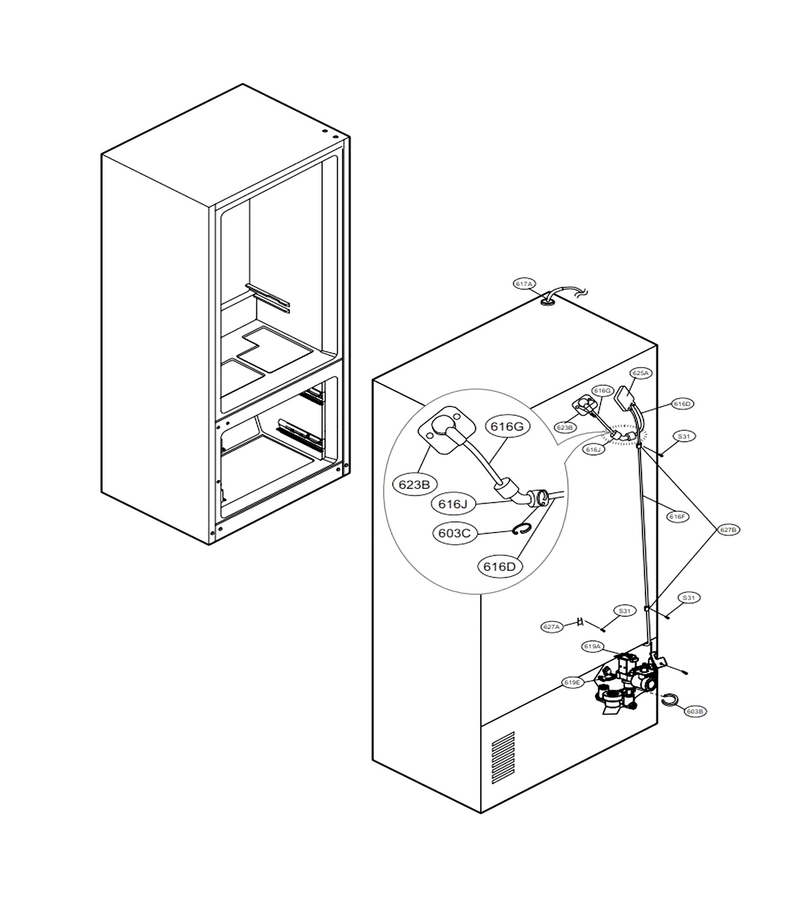

Valve & Water Tube Parts

...
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616D
Refrigerator Ice Maker Fill Tube L-G-MJU39256412
...
616F
Refrigerator Water Tubing L-G-MJU62070601
...
616G
Refrigerator Water Tubing L-G-AJR56656503
...
616J
Refrigerator Water Tube Fitting L-G-4932JA3009A
...
617A
Refrigerator Spring L-G-4970JA3004N
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992601
...
619E
Refrigerator Wire Harness L-G-EAD61548201
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

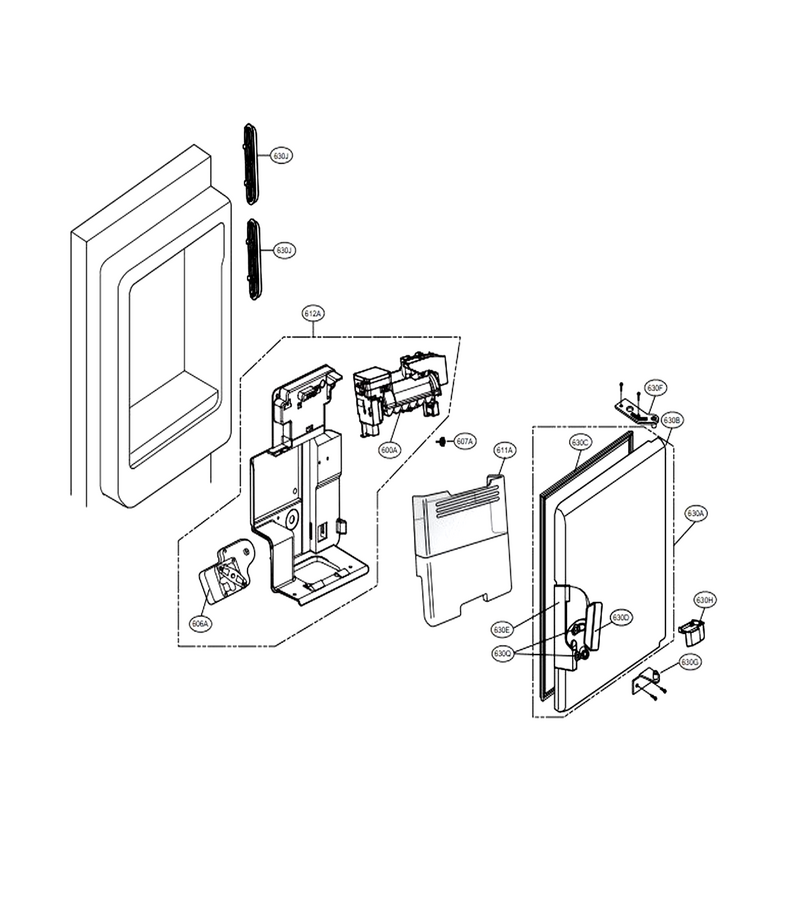

Ice Maker & Ice Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ73110203
...
606A
Refrigerator Auger Motor L-G-EAU61083514
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Bucket Assembly,ice L-G-AKC72949315
...
612A
Motor,ac L-G-EAU60783826
...
630A
Door Assembly,freeze Room L-G-ADC72987117
...
630B
Refrigerator Freezer Door Foam Assembly L-G-ADD72915908
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111101
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Refrigerator Door Lever Cover L-G-MCK63734904
...
630F
Hinge Assy,u L-G-AEH72976202
...
630G
Hinge Assembly,lower L-G-4775JA2102C
...
630H
Refrigerator Convenience Door Hinge Cover L-G-MCK62966501
...
630J
Gasket Assembly,door L-G-ADX72970504
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
