LG LFX28978SB.AWBCNA4

Model: LFX28978SB.AWBCNA4

Save Part Not Listed?
product name

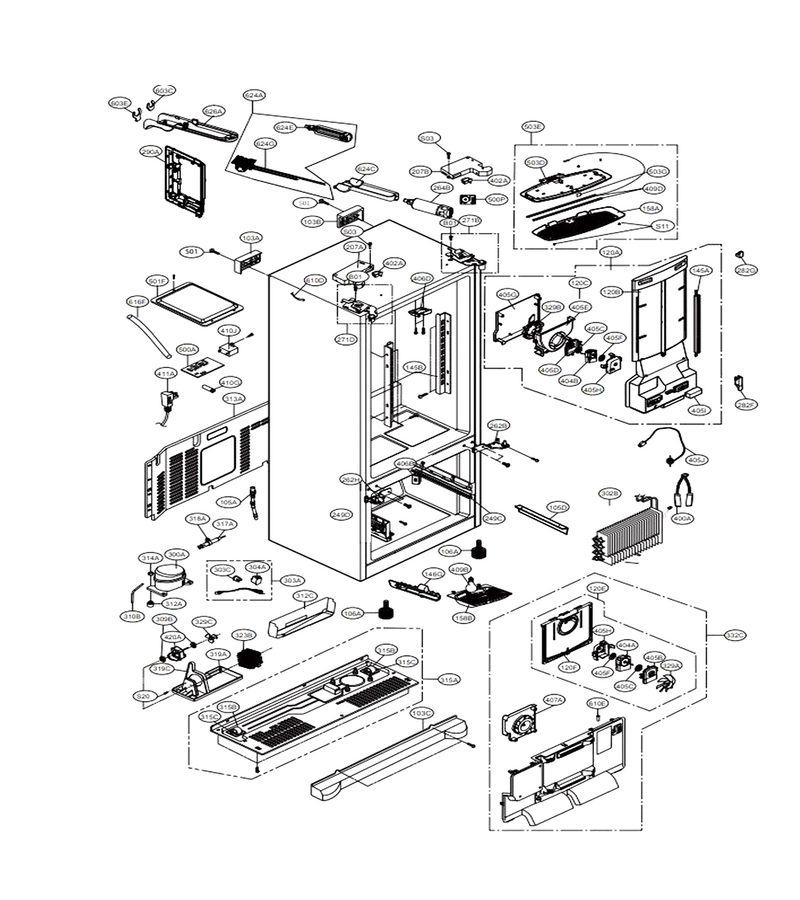

Case Parts

...
...
B01
Screw,customized L-G-1SZZJQ3009A
...
S01
Refrigerator Screw L-G-1SZZJQ2015B
...
S03
Refrigerator Door Hinge Cover Mounting Screw L-G-4J01424B
...
S11
Screw,customized L-G-1SZZJQ2010C
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Refrigerator Rear Handle L-G-3650JA2061T
...
103B
Refrigerator Rear Handle L-G-3650JA2061S
...
103C
Cover Assembly,lower L-G-ACQ85891303
...
105A
Tube Assembly L-G-AJR74125001
...
106A
Refrig Leg L-G-AFC73349801
...
120A
Duct Assembly,multi L-G-ADJ73592107
...
120B
Duct,insulation L-G-MCZ62691801
...
120C
Bracket Assembly,motor L-G-ABA74268302
...
120E
Bracket Assembly,motor L-G-ABA74268204
...
120F
Shroud,freezer L-G-MHN62422002
...
145A
Refrigerator Shelf Holder L-G-MEG63100001
...
145B
Refrigerator Shelf Holder L-G-MEG63060501
...
146G
Duct Connector L-G-MCZ62651901
...
158A
Cover,lamp L-G-MCK67125501
...
158B
Refrigerator Light Cover L-G-MCK67467601
...
207A
Cover,hinge L-G-MCK67447703
...
207B
Refrigerator Hinge Cover L-G-MCK67447702
...
249C
Refrigerator Holder Rail L-G-MEG61844802
...
249D
Holder,rail L-G-MEG61844801
...
262B
Refrigerator Hinge L-G-AEH71135342
...
262H
Refrigerator Hinge L-G-AEH71135344
...
264B
Refrigerator Water Filter L-G-ADQ36006101
...
271B
Refrigerator Door Hinge, Upper L-G-AEH74216502
...
271D
Refrigerator Hinge Assembly, Upper L-G-AEH74216501
...
282F
Refrigerator Duct Cap L-G-MBL61865401
...
282G
Refrigerator Duct Cap L-G-MBL61865301
...
290A
Case,pcb L-G-MBN63022801
...
300A
Compressor,set Assembly L-G-TCA35511701
...
302B
Evaporator Assembly L-G-ADL73741401
...
303A
Thermistor Assembly,ptc L-G-EBG61486614
...
303C
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
304A
Cover,ptc L-G-3550JA2110D
...
309B
Refrigerator Damper Motor L-G-MCQ65884301
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
312C
Refrigerator Water Reservoir Cover L-G-MCK67107201
...
313A
Drain Tray Assembly L-G-AJP73574401
...
314A
Refrigerator Machine Compartment Cover L-G-ACQ85930901
...
315A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315B
Refrigerator Base Assembly L-G-AAN74109204
...
315C
Refrigerator Roller L-G-MHA62513601
...
317A
Pin L-G-1PZZJQ3018D
...
318A
Refrigerator Filter Dryer L-G-ADH69749103
...
319A
Drier Holder L-G-4930JQ3020F
...
319C
Refrigerator Defrost Drain Pan L-G-MJS62591901
...
323B
Refrigerator Fan Guide L-G-MEA63170401
...
329A
Refrigerator Condenser Coil L-G-ACG73784701
...
329B
Fan Assembly L-G-ADP73694301
...
329C
Fan Assembly L-G-ADP73773801
...
332C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
400A
Controller Assembly L-G-6615JB2005X
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Motor,dc L-G-EAU61524001
...
404B
Refrigerator Evaporator Fan Motor L-G-4681JB1027J
...
405B
Bracket,motor L-G-MAZ63664701
...
405C
Refrigerator Evaporator Fan Motor Grommet L-G-5040JQ2002B
...
405D
Bracket,motor L-G-MAZ63664701
...
405E
Shroud Assembly,fan L-G-AHV73289801
...
405F
Refrigerator Damper Motor L-G-5040JQ2003B
...
405G
Bracket,motor L-G-MAZ63463501
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-3550JA2273A
...
405I
Cover,lamp L-G-MCK67480001
...
405J
Refrigerator Led Assembly L-G-EAV62112101
...
406B
Refrigerator Push Button Switch L-G-6600JR1002L
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
407A
Bracket Assembly,motor L-G-ABA74248404
...
409B
Refrigerator Incandescent Lamp L-G-6912JB2004P
...
409D
Refrigerator Led Assembly L-G-EAV61873612
...
410G
Refrigerator Capacitor L-G-EAE32501010
...
410J
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Power Cord Assembly L-G-EAD61445217
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Roller Assembly L-G-AHJ73229903
...
500P
Pcb Assembly,sub L-G-EBR64730421
...
501F
Refrigerator Power Control Board Cover L-G-ACQ86388101
...
503D
Refrigerator Lamp Case L-G-MBN61844901
...
503E
Cover Assembly,lamp L-G-ACQ85930601
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603E
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610E
Refrigerator Temperature Sensor L-G-6500JB2002X
...
616F
Refrigerator Water Tubing L-G-MJU62711401
...
624A
Filter Assembly,water L-G-ADQ36011703
...
624C
Refrigerator Filter Cover L-G-MCK67447801
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Filter Assembly,head L-G-ADQ73673604
...
626A
Refrigerator Water Reservoir Cover L-G-MCK42264401

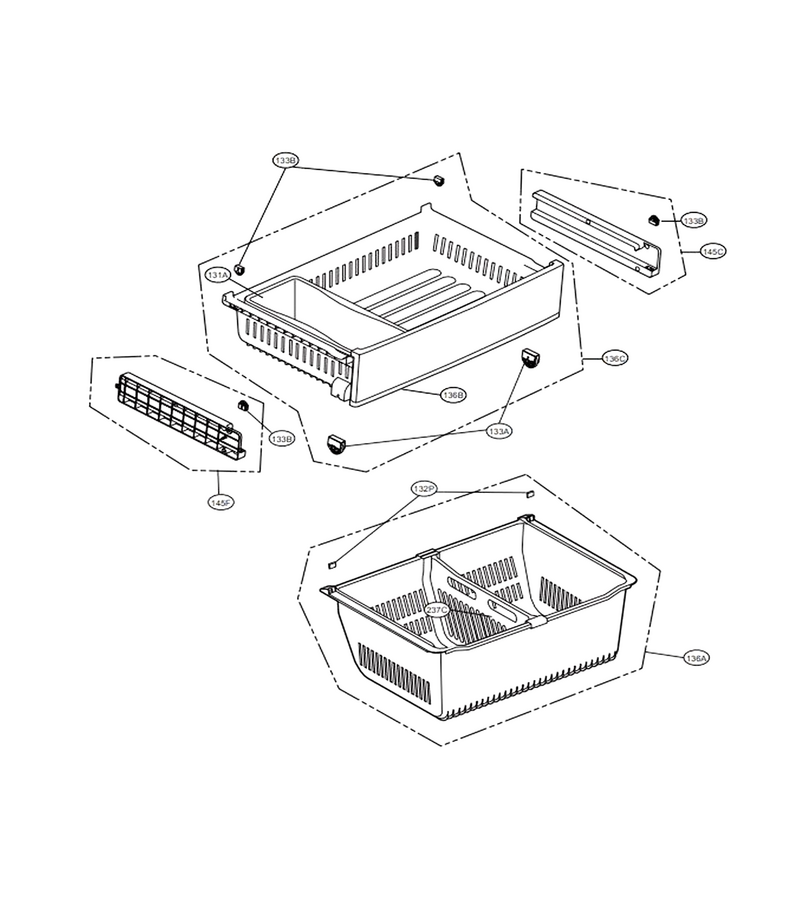

Freezer Parts

...
...
131A
Refrigerator Ice Bin L-G-MJS62591801
...
132P
Refrigerator Cap L-G-MBL65277501
...
133A
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73329901
...
133B
Home Electronics Roller Assembly L-G-AHJ73349901
...
136A
Refrigerator Freezer Drawer Assembly L-G-AJP73594401
...
136B
Refrigerator Drawer Tray Assembly L-G-AJP73574504
...
136C
Refrigerator Freezer Drawer Bin L-G-AJP73594506
...
145C
Refrigerator Freezer Basket Slide Rail, Right L-G-AEC73617602
...
145F
Refrigerator Freezer Drawer Slide Rail, Left L-G-AEC73617601
...
237C
Refrigerator Pantry Drawer Divider L-G-MEA61842101

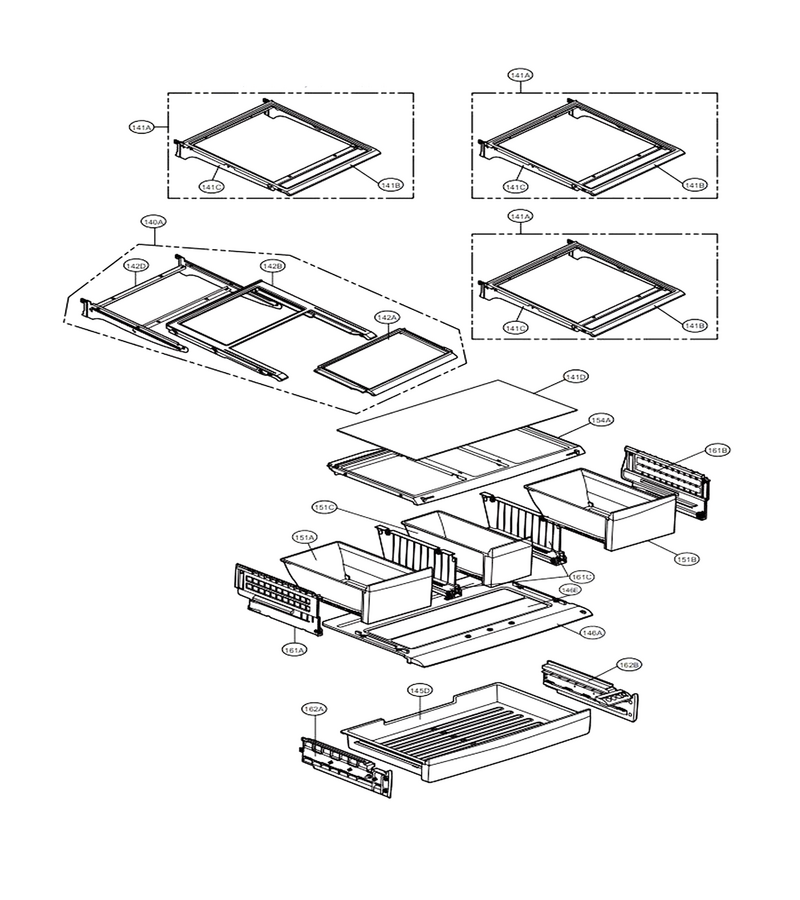

Refrigerator Parts

...
...
140A
Shelf Assembly,refrigerator L-G-AHT73454001
...
141A
Shelf Assembly,refrigerator L-G-AHT73453801
...
141B
Shelf,refrigerator L-G-MHL62651401
...
141C
Shelf Assembly,net L-G-AHT73633801
...
141D
Refrigerator Glass Shelf L-G-MHL62691504
...
142A
Shelf Assembly,refrigerator L-G-AHT73454401
...
142B
Shelf Assembly,refrigerator L-G-AHT73454201
...
142D
Shelf Assembly,net L-G-AHT73633802
...
145D
Tray Assembly L-G-AJP73574805
...
146A
Cover,tray L-G-MCK67107401
...
146E
Cover,tray L-G-MCK67107401
...
151A
Tray Assembly,vegetable L-G-AJP73574601
...
151B
Tray Assembly,vegetable L-G-AJP73574701
...
151C
Tray Assembly,vegetable L-G-AJP73754404
...
154A
Cover Assembly,tv L-G-ACQ85891601
...
161A
Refrigerator Crisper Drawer Track, Left L-G-AEC73637501
...
161B
Refrigerator Drawer Slide Rail L-G-AEC73637502
...
161C
Refrigerator Rail Guide Assembly L-G-AEC73637401
...
162A
Guide Assembly,rail L-G-AEC73597501
...
162B
Refrigerator Drawer Slide Rail L-G-AEC73597502

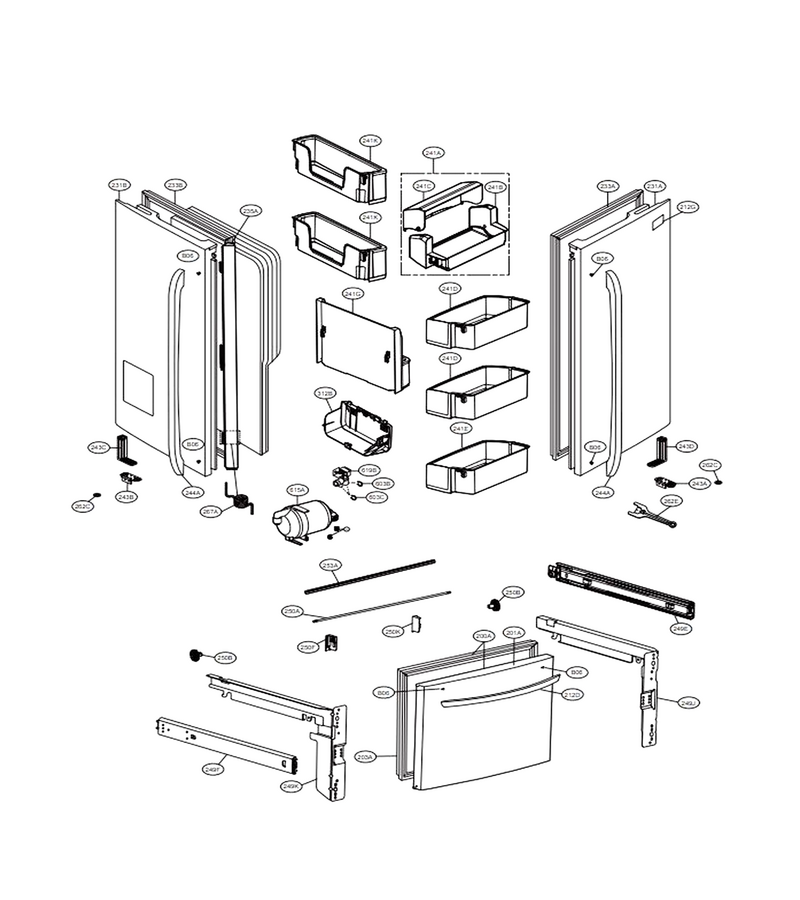

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
200A
Door Assembly,freezer L-G-ADC73905502
...
201A
Door Foam Assembly,freezer L-G-ADD73655903
...
203A
Gasket,door L-G-MDS38201418
...
212D
Handle Assembly,freezer L-G-AED73593103
...
212G
Refrigerator Nameplate L-G-MFT62346501
...
231A
Door Foam Assembly,refrigerator L-G-ADD73656003
...
231B
Door Foam Assembly,refrigerator L-G-ADD73695833
...
233A
Gasket Assembly,door L-G-ADX72930426
...
233B
Gasket Assembly,door L-G-ADX72930423
...
235A
Plate Assembly,front L-G-AGU74110901
...
241A
Basket Assembly,door L-G-AAP73631301
...
241B
Basket,door L-G-MAN62608201
...
241C
Basket,window L-G-MAN62608301
...
241D
Basket Assembly,door L-G-AAP73631501
...
241E
Basket Assembly,door L-G-AAP73631601
...
241G
Basket Assembly,door L-G-AAP73631801
...
241K
Basket Assembly,door L-G-AAP73631701
...
243A
Stopper Assembly,door L-G-AJC73112304
...
243B
Stopper Assembly,door L-G-AJC73112303
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
244A
Handle Assembly,refrigerator L-G-AED73593203
...
249J
Refrigerator Crisper Drawer Rail Support L-G-MCD62287601
...
249K
Refrigerator Crisper Drawer Rail Support L-G-MCD62287602
...
250A
Refrigerator Bar L-G-MAK62627101
...
250B
Refrigerator Ice Gear L-G-MDT62627101
...
250F
Cover Assembly,tray L-G-ACQ85839103
...
250K
Cover Assembly,tray L-G-ACQ85839104
...
253A
Support Cover L-G-MJH62755901
...
262C
Refrigerator Ring L-G-MGZ62766901
...
262E
Spanner L-G-MHU38218904
...
267A
Refrigerator Spring L-G-MHY62044106
...
312B
Refrigerator Water Reservoir Cover L-G-MCK62964801
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
615A
Refrigerator Water Reservoir L-G-AJL72911502
...
619B
Refrigerator Water Inlet Valve L-G-5221JB2010G

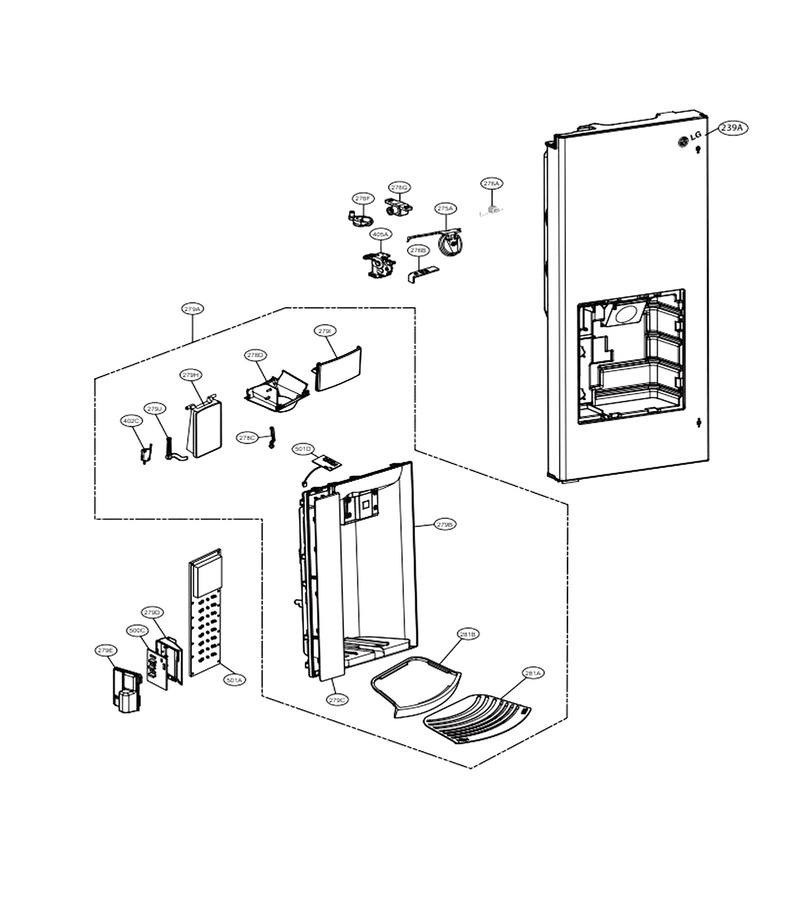

Dispenser Parts

...
...
239A
Refrigerator Nameplate L-G-MFT62346501
...
275A
Cap Assembly,duct L-G-ABN73678301
...
276A
Refrigerator Spring L-G-4970JA3011K
...
276B
Holder Lever L-G-MEG63262301
...
276F
Refrigerator Link L-G-MFF62463201
...
276G
Holder,bracket L-G-MEG63342401
...
278C
Refrigerator Dispenser Lever L-G-MFC38030001
...
278D
Refrigerator Dispenser Ice Chute Funnel L-G-MDR61842201
...
279A
Cover Assembly,display L-G-ACQ75432121
...
279B
Dispenser Cover L-G-MCK62965303
...
279C
Refrigerator Display Cover L-G-MCK63604303
...
279D
Pcb Case L-G-MBN38026801
...
279E
Refrigerator Electronic Control Board Cover L-G-MCK38209801
...
279H
Refrigerator Ice Dispenser Lever L-G-MBG62527602
...
279I
Refrigerator Dispenser Lever L-G-MBG62527502
...
279J
Refrigerator Dispenser Lever L-G-MBG38252601
...
281A
Refrigerator Drain Decor L-G-MCR62326503
...
281B
Refrigerator Drain Tray L-G-MJS61871903
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001F
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
500C
Refrigerator Power Control Board L-G-EBR60070707
...
501A
Pcb Assembly,display L-G-EBR65749303
...
501D
Refrigerator Dispenser Control Board L-G-EBR60388502

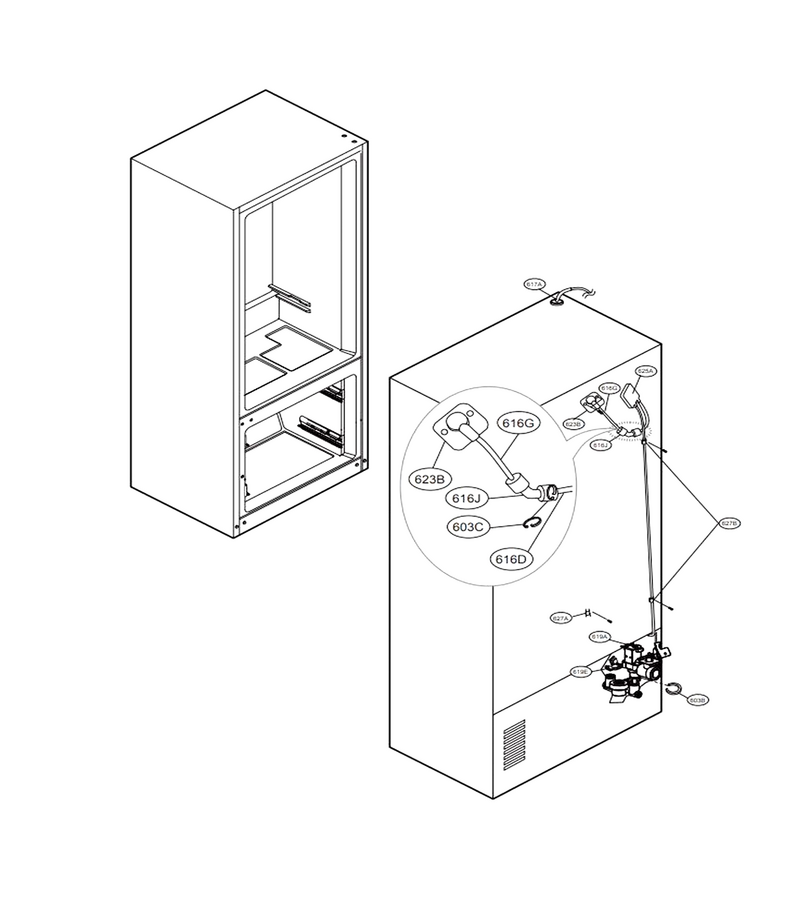

Valve & Water Tube Parts

...
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616D
Refrigerator Plastic Tube L-G-MJU62711501
...
616G
Refrigerator Ice Maker Fill Tube L-G-AJR73964201
...
616J
Refrigerator Water Tube Fitting L-G-4932JA3009A
...
617A
Refrigerator Spring L-G-4970JQ3016J
...
619A
Refrigerator Refrigerant Valve L-G-AJU34510512
...
619E
Refrigerator Wire Harness L-G-EAD61548201
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Tube Cover L-G-MCK67502201
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Holder Pipe L-G-MEG63342201

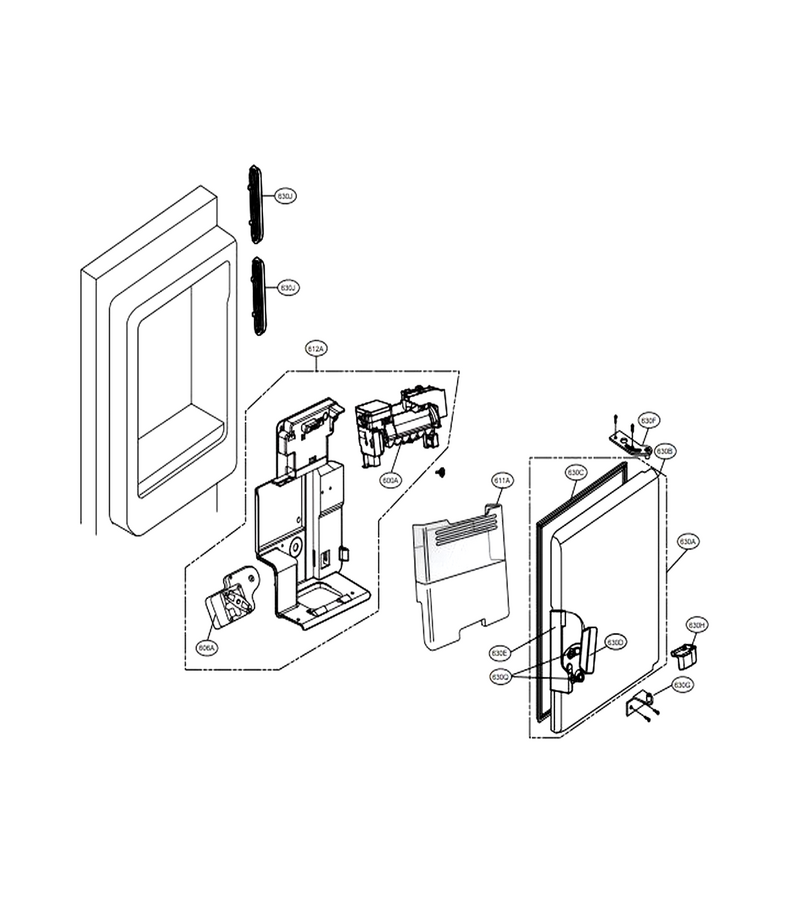

Ice Maker & Ice Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ73110203
...
606A
Refrigerator Auger Motor L-G-EAU60784222
...
611A
Refrigerator Ice Container Assembly L-G-AKC73249303
...
612A
Motor,ac L-G-EAU61843003
...
630A
Door Assembly,freeze Room L-G-ADC74207902
...
630B
Refrigerator Door Foam Assembly L-G-ADD74016102
...
630C
Gasket,door L-G-MDS64239202
...
630D
Handle L-G-MEB62915403
...
630E
Lever Cover L-G-MCK67584403
...
630F
Hinge Assy,u L-G-AEH72976202
...
630G
Hinge Assembly, Lower L-G-AEH74156201
...
630H
Refrigerator Convenience Door Hinge Cover L-G-MCK62966501
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73571201
...
630Q
Refrigerator Roller L-G-MHA62652801
