LG LFX28968SB.AWBCNA1

Model: LFX28968SB.AWBCNA1

Save Part Not Listed?
product name

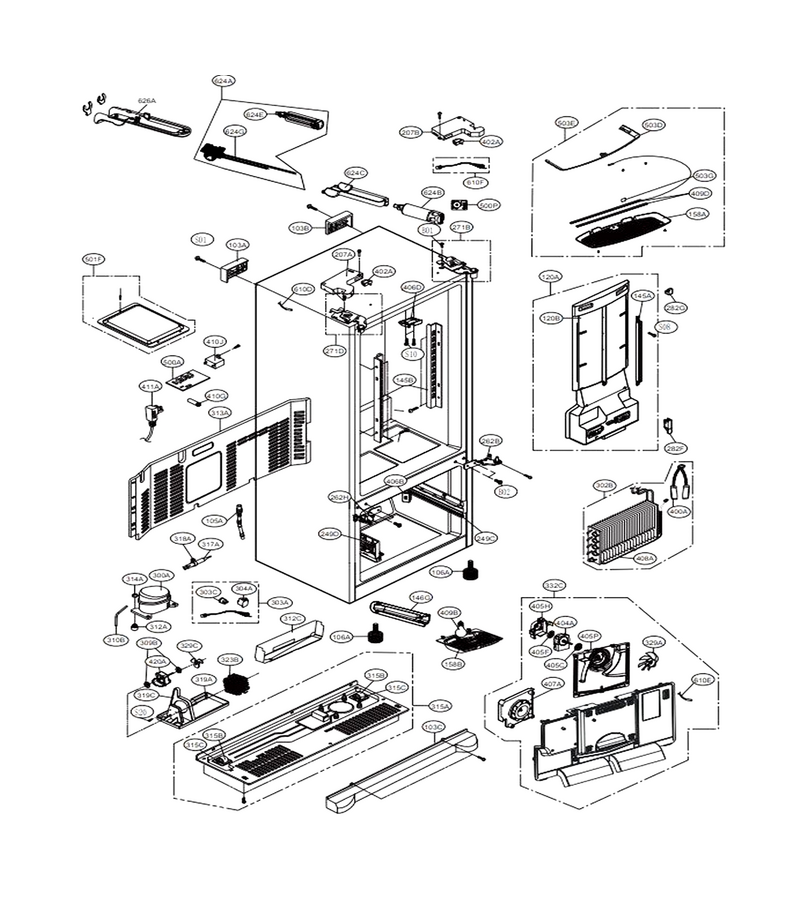

Case Parts

...
...
B01
Screw,customized L-G-1SZZJQ3009A
...
B02
Screw,customized L-G-1SZZJQ3002V
...
S01
Refrigerator Screw L-G-1SZZJQ2015B
...
S08
Refrigerator Screw L-G-1SZZJQ2002A
...
S10
Screw,customize L-G-1SZZJQ3023B
...
103A
Refrigerator Rear Handle L-G-3650JA2061T
...
103B
Refrigerator Rear Handle L-G-3650JA2061S
...
103C
Cover Assembly,lower L-G-ACQ85891303
...
105A
Tube Assembly L-G-AJR74125001
...
106A
Refrig Leg L-G-AFC73349801
...
120A
Refrigerator Air Duct L-G-ADJ73592106
...
120B
Duct Insulation L-G-MCZ62713001
...
145A
Refrigerator Shelf Holder L-G-MEG63100001
...
145B
Refrigerator Shelf Holder L-G-MEG63060501
...
146G
Connector Duct L-G-MCZ62872001
...
158A
Refrigerator Lamp Cover L-G-MCK67153601
...
158B
Refrigerator Light Cover L-G-MCK67467601
...
207A
Cover,hinge L-G-MCK67447703
...
207B
Cover,hinge L-G-MCK67447704
...
249C
Refrigerator Freezer Drawer Slide Rail, Right L-G-MEG63342502
...
249D
Refrigerator Holder Rail L-G-MEG63342501
...
262B
Hinge Assembly,center L-G-AEH73577639
...
262H
Hinge Assembly,center L-G-AEH73577640
...
271B
Refrigerator Door Hinge, Upper L-G-AEH74216502
...
271D
Refrigerator Hinge Assembly, Upper L-G-AEH74216501
...
282F
Refrigerator Duct Cap L-G-MBL61865401
...
282G
Refrigerator Duct Cap L-G-MBL61865301
...
300A
Refrigerator Compressor L-G-TCA35533601
...
302B
Refrigerator Evaporator Assembly L-G-ADL73762001
...
303A
Thermistor Assembly,ptc L-G-EBG61486613
...
303C
Refrigerator Overload Protector L-G-6750CL0001C
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
309B
Refrigerator Damper Motor L-G-MCQ65884301
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Refrigerator Compressor Grommet L-G-5041JA3001B
...
312C
Drain Tray Assembly L-G-AJP73574401
...
313A
Refrigerator Machine Compartment Cover L-G-ACQ85930901
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Base Assembly L-G-AAN74109204
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Pin L-G-1PZZJQ3018D
...
317A
Refrigerator Filter Dryer L-G-ADH69749103
...
318A
Drier Holder L-G-4930JQ3020F
...
319A
Refrigerator Defrost Drain Pan L-G-MJS62591901
...
319C
Refrigerator Fan Guide L-G-MEA63170401
...
323B
Refrigerator Condenser Coil L-G-ACG73784701
...
329A
Fan Assembly L-G-ADP73713301
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Refrigerator Freezer Evaporator Cover And Fan Assembly L-G-AEB73764503
...
400A
Controller Assembly L-G-6615JB2005X
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Motor,dc L-G-EAU61524002
...
405C
Refrigerator Evaporator Fan Motor Grommet L-G-5040JQ2002B
...
405F
Refrigerator Damper Motor L-G-5040JQ2003B
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-3550JA2273A
...
405P
Refrigerator Freezer Shroud L-G-MHN62442001
...
406B
Refrigerator Push Button Switch L-G-6600JR1002L
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
407A
Bracket Assembly,motor L-G-ABA74248402
...
408A
Heater,sheath L-G-5300JK1005L
...
409B
Refrigerator Incandescent Lamp L-G-6912JB2004P
...
409D
Refrigerator Led Assembly L-G-EAV61873612
...
410G
Refrigerator Capacitor L-G-EAE32501010
...
410J
Refrigerator Run Capacitor L-G-0CZZJB2014S
...
411A
Refrigerator Power Cord L-G-EAD62108303
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Refrigerator Electronic Control Board L-G-EBR74796401
...
500P
Refrigerator Pcb Assembly L-G-EBR64730422
...
501F
Refrigerator Power Control Board Cover L-G-ACQ86388101
...
503D
Refrigerator Decorative Cover L-G-MCR64776601
...
503E
Cover Assy,l L-G-ACQ86133501
...
503G
Refrigerator Control Decor L-G-MCR64788601
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610E
Refrigerator Temperature Sensor L-G-6500JB2002X
...
610F
Refrigerator Temperature Sensor L-G-EBR71326801
...
624A
Filter Assembly,water L-G-ADQ36011708
...
624C
Refrigerator Filter Cover L-G-MCK67447801
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Filter Assembly,head L-G-ADQ73673604
...
626A
Refrigerator Water Reservoir Cover L-G-MCK42264401

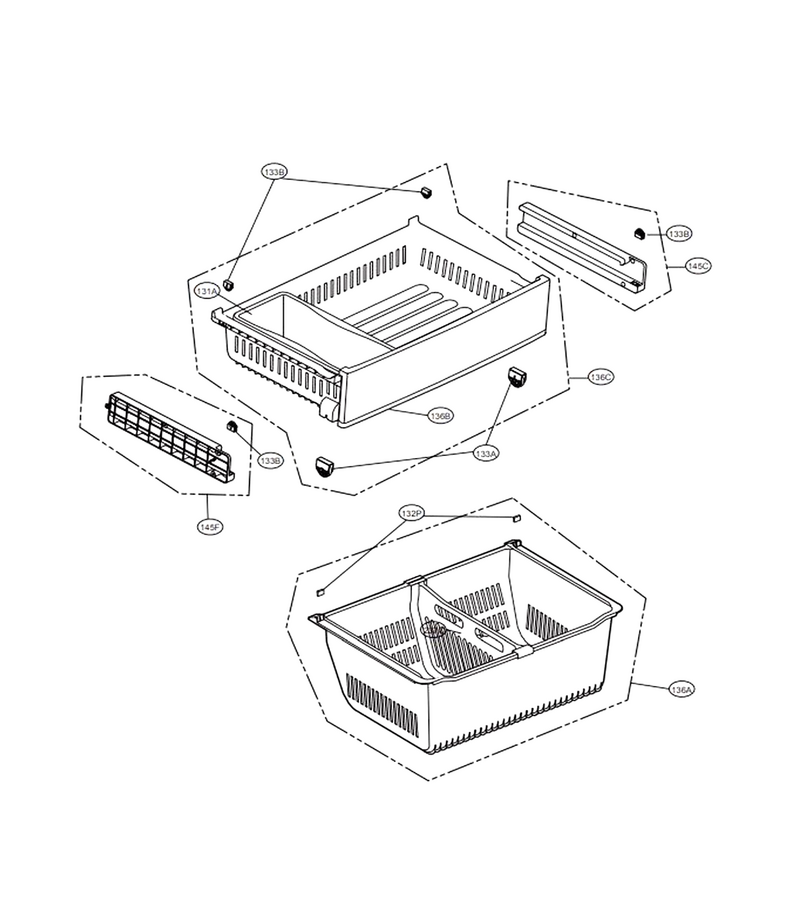

Freezer Parts

...
...
131A
Refrigerator Ice Bin L-G-MJS62591801
...
132P
Refrigerator Cap L-G-MBL65277501
...
133A
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73329901
...
133B
Home Electronics Roller Assembly L-G-AHJ73349901
...
136A
Refrigerator Freezer Drawer Assembly L-G-AJP73594401
...
136B
Refrigerator Drawer Tray Assembly L-G-AJP73574504
...
136C
Refrigerator Freezer Drawer Bin L-G-AJP73594506
...
145C
Refrigerator Freezer Basket Slide Rail, Right L-G-AEC73617602
...
145F
Refrigerator Freezer Drawer Slide Rail, Left L-G-AEC73617601
...
237C
Refrigerator Freezer Drawer Divider L-G-4974JJ1031A

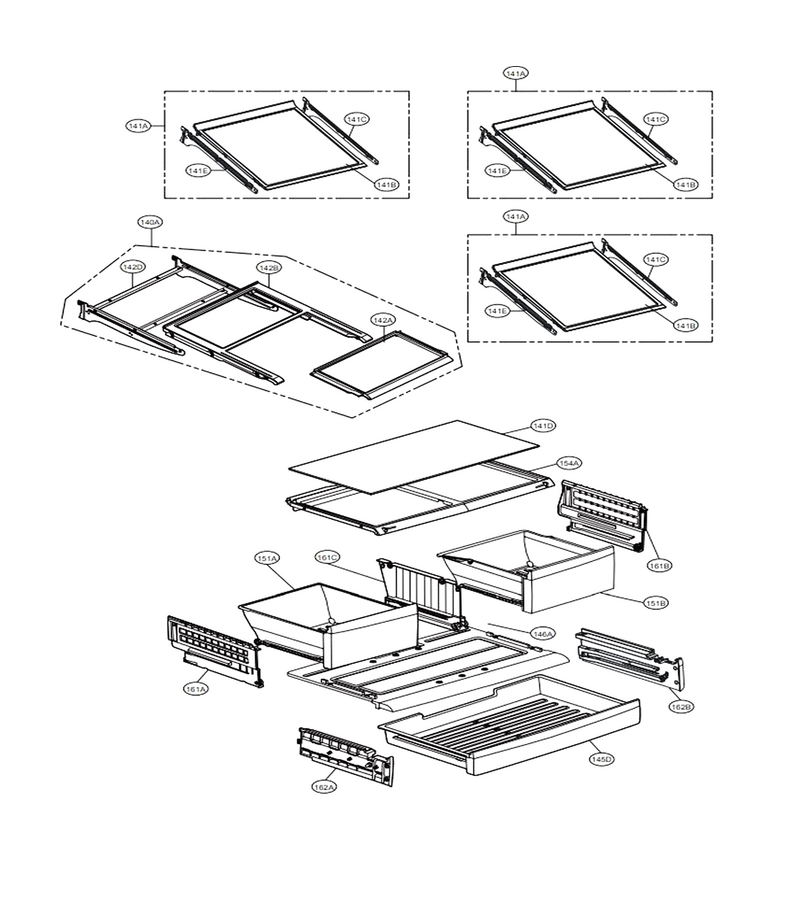

Refrigerator Parts

...
...
140A
Shelf Assembly,refrigerator L-G-AHT36706713
...
141A
Shelf Assembly,refrigerator L-G-AHT36764315
...
141B
Refrigerator Shelf L-G-MHL62551801
...
141C
Shelf,net L-G-MHL62832902
...
141D
Refrigerator Glass Shelf L-G-MHL62691504
...
141E
Shelf,net L-G-MHL62832901
...
142A
Refrigerator Shelf Assembly L-G-AHT73454404
...
142B
Refrigerator Shelf Assembly L-G-AHT73454202
...
142D
Shelf Assembly,net L-G-AHT73633802
...
145D
Tray Assembly L-G-AJP73574805
...
151A
Refrigerator Crisper Drawer, Left L-G-AJP73694502
...
151B
Refrigerator Crisper Drawer, Right L-G-AJP73694501
...
154A
Cover,deli L-G-ACQ85891605
...
161A
Refrigerator Crisper Drawer Track, Left L-G-AEC73637501
...
161B
Refrigerator Drawer Slide Rail L-G-AEC73637502
...
161C
Refrigerator Rail Guide Assembly L-G-AEC73637401
...
162A
Refrigerator Drawer Slide Rail L-G-AEC73597502
...
162B
Rail Guide Assembly L-G-AEC73597503

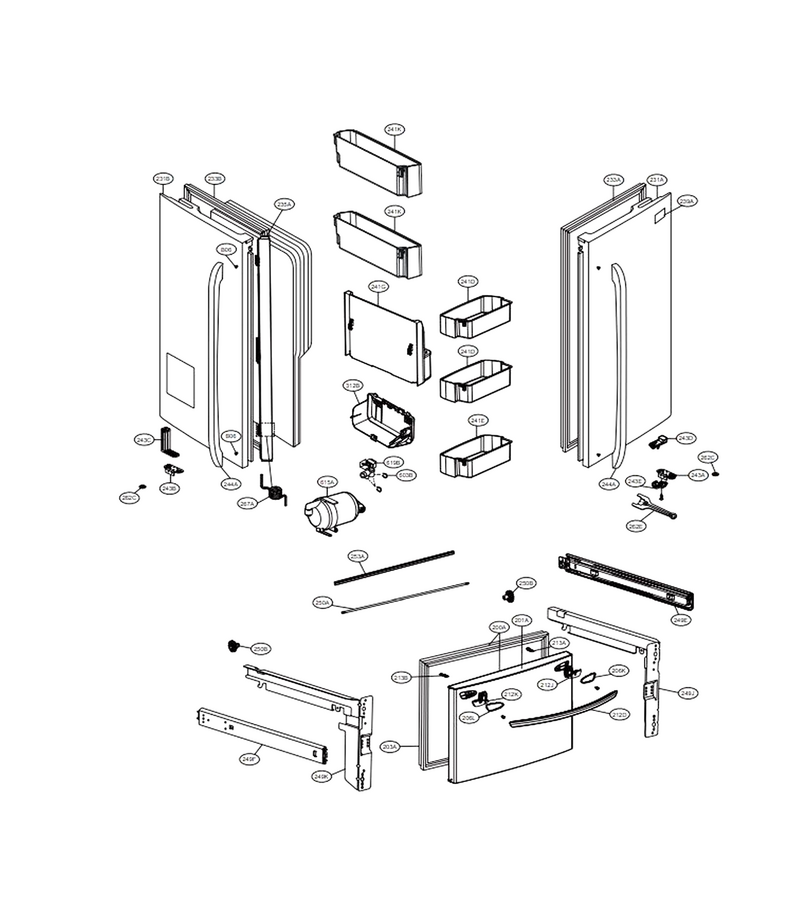

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
200A
Door Assembly,freezer L-G-ADC73928103
...
201A
Door Foam Assembly,freezer L-G-ADD73719003
...
203A
Gasket,door L-G-MDS64172918
...
206K
Decor,handle L-G-MCR64995703
...
206L
Decor,handle L-G-MCR64995704
...
212D
Handle Assembly,freezer L-G-AED73593103
...
212J
Bracket Assembly,handle L-G-ABA74231705
...
212K
Bracket Assembly,handle L-G-ABA74231706
...
213A
Slider L-G-MHS62002205
...
213B
Slider L-G-MHS62002206
...
231A
Door Assembly,refrigerator(right) L-G-ADC73905606
...
231B
Door Assembly,refrigerator(left) L-G-ADC73886009
...
233A
Gasket Assembly,door L-G-ADX73550626
...
233B
Gasket Assembly,door L-G-ADX73550623
...
235A
Refrigerator Flipper Assembly L-G-AGU73530709
...
241D
Refrigerator Door Bin L-G-AAP73631502
...
241E
Refrigerator Door Bin L-G-AAP73631602
...
241G
Refrigerator Door Bin L-G-AAP73631802
...
241K
Refrigerator Door Bin L-G-AAP73631702
...
243A
Stopper Assembly,door L-G-AJC73112304
...
243B
Stopper Assembly,door L-G-AJC73112303
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Hinge Cam L-G-MBJ62121901
...
243E
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Handle Assembly,refrigerator L-G-AED73593203
...
249E
Refrigerator Freezer Drawer Slide Rail, Right L-G-MGT61844003
...
249F
Refrigerator Freezer Drawer Slide Rail, Left L-G-MGT61844004
...
249J
Connector,rail L-G-MCD62466801
...
249K
Connector,rail L-G-MCD62466802
...
250A
Refrigerator Bar L-G-MAK62627101
...
250B
Refrigerator Ice Gear L-G-MDT62627101
...
253A
Support Cover L-G-MJH62755901
...
262C
Refrigerator Ring L-G-MGZ62766901
...
262E
Refrigerator Spanner L-G-MHU61981201
...
267A
Refrigerator Spring L-G-MHY62044106
...
312B
Refrigerator Water Reservoir Cover L-G-MCK67107201
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
615A
Refrigerator Water Reservoir L-G-AJL72911502
...
619B
Refrigerator Water Inlet Valve L-G-5221JB2010G

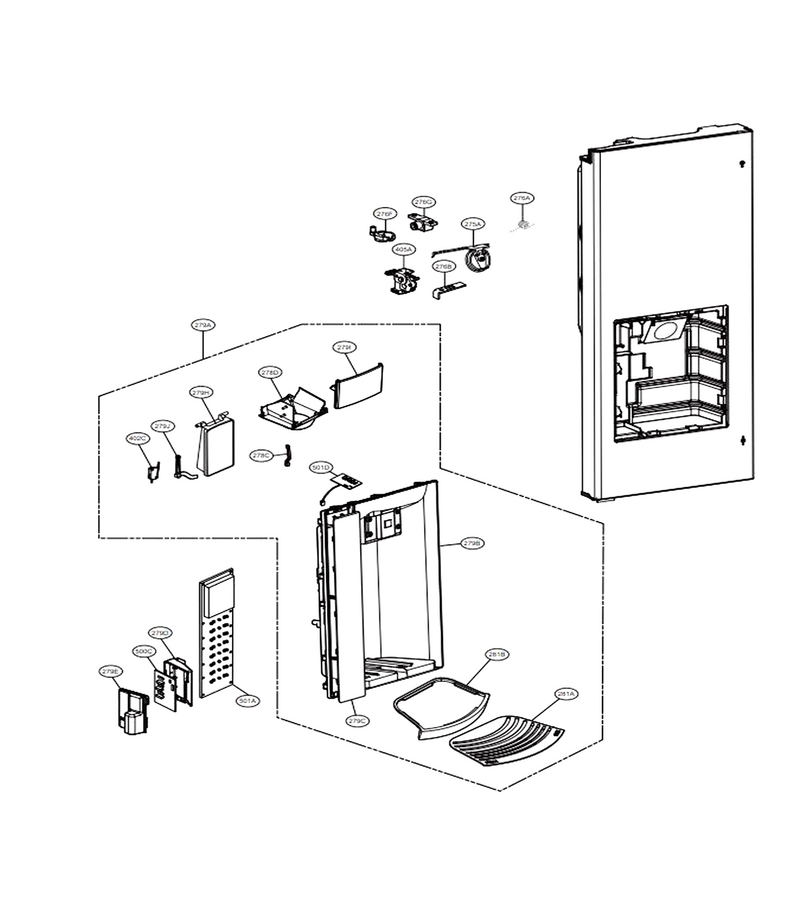

Dispenser Parts

...
...
275A
Cap Assembly,duct L-G-ABN73678301
...
276A
Refrigerator Spring L-G-4970JA3011K
...
276B
Holder,lever L-G-4930JQ3043A
...
276F
Refrigerator Dispenser Lever Retainer L-G-MFF61863101
...
276G
Refrigerator Dispenser Lever Bracket L-G-MEG61958701
...
278C
Refrigerator Dispenser Lever L-G-MFC38030001
...
278D
Refrigerator Dispenser Ice Chute Funnel L-G-MDR61842201
...
279A
Cover Assembly,display L-G-ACQ75432175
...
279B
Dispenser Cover L-G-MCK62965303
...
279C
Cover,pcb L-G-MCK63726801
...
279D
Pcb Case L-G-MBN38026801
...
279E
Refrigerator Electronic Control Board Cover L-G-MCK38209801
...
279H
Button,lever L-G-MBG64570003
...
279I
Button,lever L-G-MBG64569903
...
279J
Refrigerator Dispenser Lever L-G-MBG38252601
...
281A
Refrigerator Drain Decor L-G-MCR62326503
...
281B
Refrigerator Drain Tray L-G-MJS61871903
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001F
...
405A
Motor,dc L-G-EAU61644301
...
500C
Refrigerator Dispenser Control Board L-G-EBR60070711
...
501A
Refrigerator Dispenser Display Control Board L-G-EBR74852601
...
501D
Refrigerator Dispenser Control Board L-G-EBR60388502

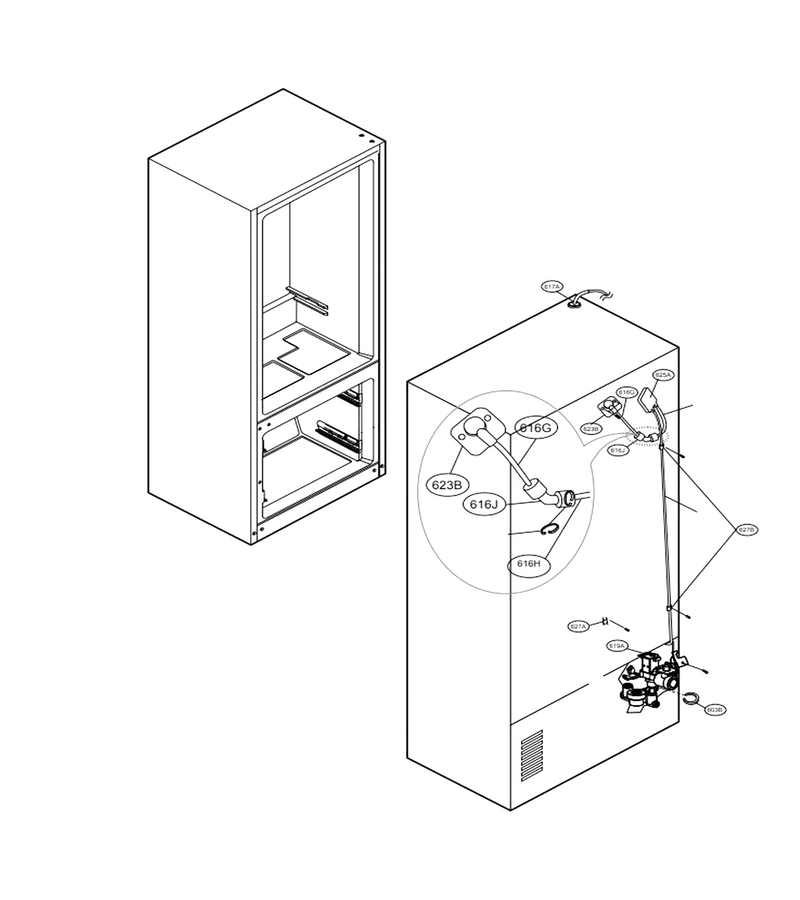

Valve & Water Tube Parts

...
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
616G
Refrigerator Ice Maker Fill Tube L-G-AJR73964201
...
616H
Refrigerator Plastic Tube L-G-MJU62711501
...
616J
Connector,tube L-G-MCD62426801
...
617A
Refrigerator Spring L-G-4970JQ3016J
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992601
...
623B
Refrigerator Cap Cover L-G-MBL65442401
...
625A
Tube Cover L-G-MCK67502201
...
627A
Holder Pipe L-G-MEG63263001
...
627B
Holder Pipe L-G-MEG63342201

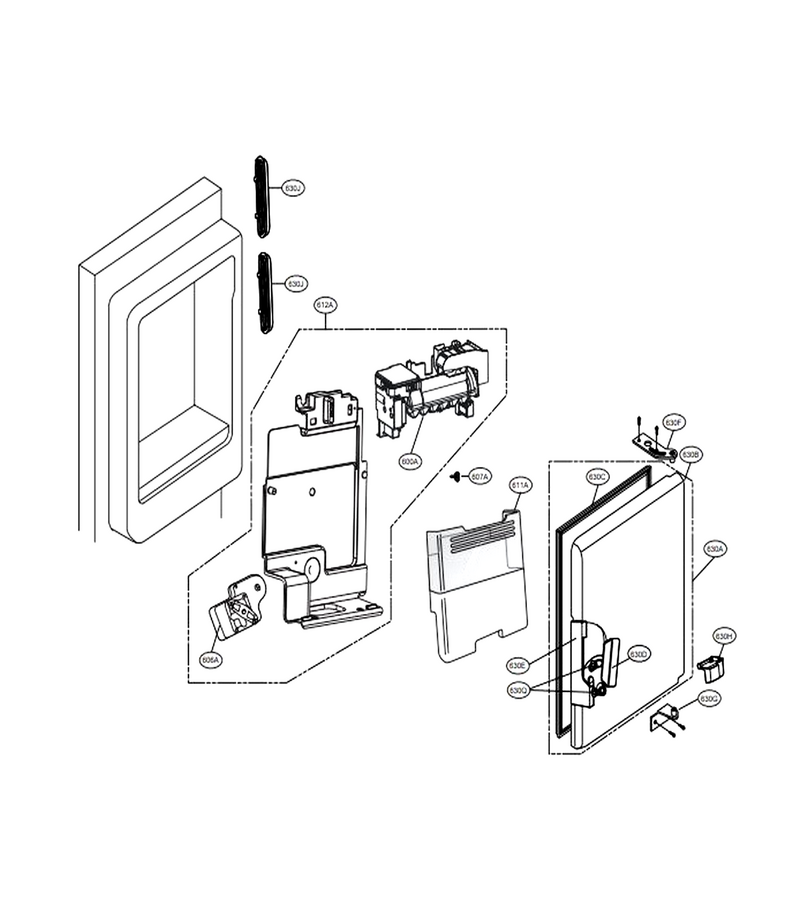

Ice Maker & Ice Bin Parts

...
...
600A
Refrigerator Ice Maker Assembly L-G-AEQ72910411
...
606A
Refrigerator Auger Motor L-G-EAU60784222
...
607A
Holder Assembly,bracket L-G-4931JA3005A
...
611A
Refrigerator Ice Container Assembly L-G-AKC73249303
...
612A
Refrigerator Ac Motor L-G-EAU61843002
...
630A
Door Assembly,freeze Room L-G-ADC74207902
...
630B
Refrigerator Door Foam Assembly L-G-ADD74016102
...
630C
Refrigerator Door Gasket L-G-MDS64239201
...
630D
Handle L-G-MEB62915403
...
630E
Lever Cover L-G-MCK67584403
...
630F
Refrigerator Hinge Assembly, Upper L-G-AEH74136301
...
630G
Hinge Assembly, Lower L-G-AEH74156201
...
630H
Refrigerator Convenience Door Hinge Cover L-G-MCK62966501
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73571201
...
630Q
Refrigerator Roller L-G-MHA62652801
