product name

LG LFX25978SB.AWBCNA0

Model: LFX25978SB.AWBCNA0

Save Part Not Listed?
product name

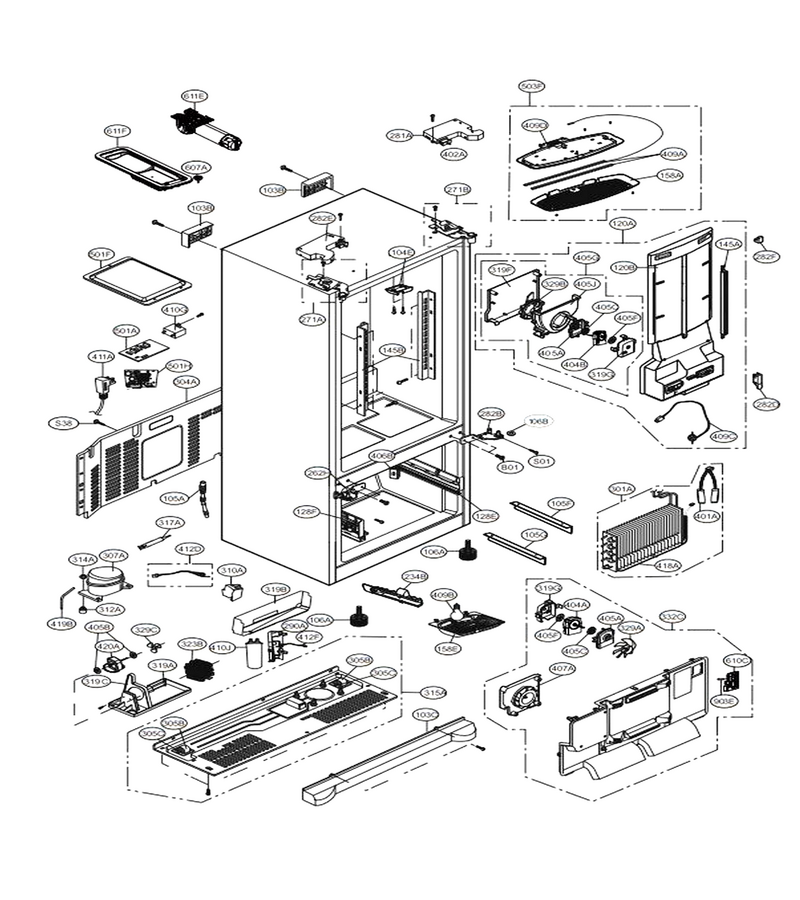

Case Parts

...
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
103C
Cover,lower L-G-MCK63765902
...
104E
Refrigerator Door Closure L-G-MEG61899901
...
105A
Refrigerator Drain Tube L-G-5251JA3003E
...
105G
Refrigerator Lower Skirt L-G-5070JJ3004D
...
106B
Refrigerator Washer L-G-4J00382C
...
120A
Duct Assembly,multi L-G-ADJ72909812
...
128E
Refrigerator Holder Assembly L-G-AEJ73460201
...
128F
Holder L-G-MEG62760301
...
145A
Shelf Assembly,refrigerator L-G-AHT73314101
...
145B
Shelf Assembly,refrigerator L-G-AHT72910207
...
158A
Refrigerator Lamp Cover L-G-MCK63645501
...
158E
Cover,lamp L-G-MCK66846501
...
234B
Duct Connector L-G-MCZ62372201
...
262H
Refrigerator Hinge L-G-AEH71135344
...
271A
Hinge Assembly,upper L-G-AEH75256504
...
271B
Hinge Assembly,upper L-G-AEH75256503
...
281A
Cover Assembly,hinge L-G-ACQ34533350
...
282B
Refrigerator Hinge L-G-AEH71135342
...
282E
Cover Assembly,hinge L-G-ACQ34533345
...
290A
Holder,capacitor L-G-MEG62398701
...
301A
Evaporator Assembly L-G-ADL73161702
...
304A
Refrigerator Cover L-G-ACQ77080101
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Compressor,set Assembly L-G-TCA34871401
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2284A
...
312A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN73232101
...
317A
Drier Assembly L-G-ADH73590307
...
319A
Refrigerator Drip Tray L-G-MJS61991901
...
319B
Refrigerator Drain Tray Assembly L-G-3391JJ2013F
...
319C
Refrigerator Fan Guide L-G-MEA62651101
...
319F
Refrigerator Motor Bracket L-G-MAZ62265301
...
319G
Refrigerator Motor Cover L-G-MCK66690601
...
323B
Condenser Assembly,wire L-G-ACG73104504
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1003A
...
329B
Refrigerator Fan Assembly L-G-ADP73293501
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
332C
Refrigerator Evaporator Cover L-G-AEB73564901
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005N
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
404B
Refrigerator Evaporator Fan Motor L-G-4681JB1027J
...
405A
Refrigerator Motor Bracket L-G-MAZ63127401
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Bracket Assembly,motor L-G-ABA72913505
...
405J
Refrigerator Shroud L-G-MHN61922201
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
407A
Refrigerator Evaporator Fan Motor Bracket L-G-ABA74030401
...
409A
Led Assembly L-G-EAV48995108
...
409B
Refrigerator Led Assembly L-G-EAV62112101
...
409C
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Lamp Case L-G-MBN62023801
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014S
...
410J
Refrigerator Run Capacitor L-G-EAE58905704
...
411A
Power Cord Assembly L-G-EAD61445205
...
412D
Refrigerator Compressor Wire Harness L-G-EAD61050801
...
412F
Harness Assembly L-G-EAD61211601
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
419B
Pipe,compressor Sealing L-G-MGE62010602
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
501A
Pcb Assembly,main L-G-EBR65002716
...
501H
Pcb Assembly,sub L-G-EBR65640204
...
503F
Cover Assembly,lamp L-G-ACQ33676523
...
607A
Refrigerator Holder Assembly L-G-AEJ73579702
...
611E
Refrigerator Water Filter Housing Assembly L-G-ADQ36763411
...
611F
Refrigerator Water Filter Cover L-G-ADQ36772702
...
903E
Refrigerator Temperature Sensor L-G-6500JB2002X

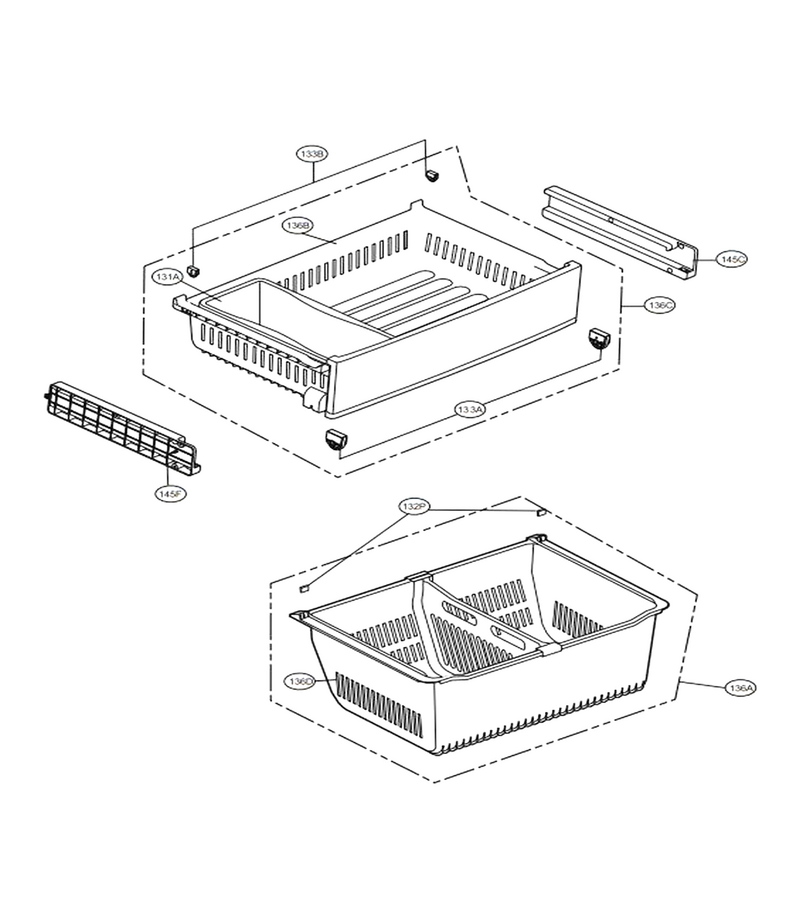

Freezer Parts

...
...
131A
Refrigerator Freezer Drawer Bin L-G-MJS62312001
...
136A
Tray Assembly,drawer L-G-AJP72909907
...
136B
Tray Assembly,drawer L-G-AJP72909704
...
136C
Tray Assembly,drawer L-G-AJP72909811
...
136D
Tray,drawer L-G-MJS63852101
...
145C
Guide Assembly,rail L-G-AEC73437602
...
145F
Guide Assembly,rail L-G-AEC73437603

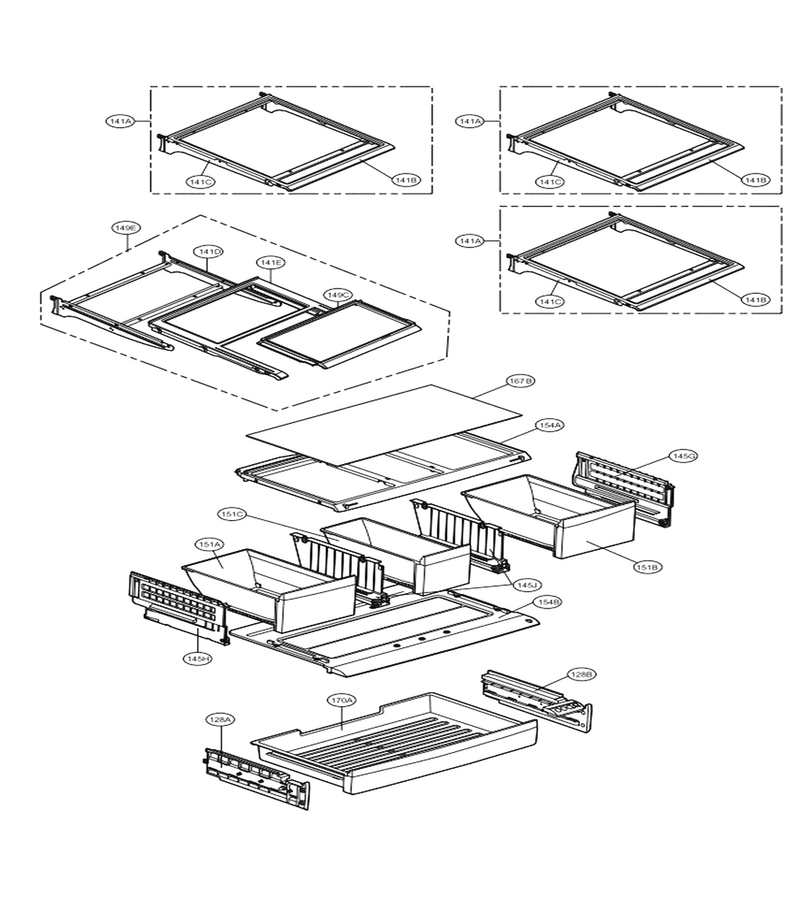

Refrigerator Parts

...
...
128A
Refrigerator Pantry Drawer Guide, Left L-G-AEC73438101
...
128B
Guide Assembly,rail L-G-AEC73438102
...
141A
Shelf Assembly,refrigerator L-G-AHT73314101
...
141B
Shelf Assembly,refrigerator L-G-AHT72910207
...
141C
Shelf Assembly,net L-G-AHT73334001
...
141D
Shelf Assembly,net L-G-AHT73334004
...
141E
Shelf Assembly,refrigerator L-G-AHT73314001
...
145G
Guide Assembly L-G-AEC73437902
...
145H
Guide Assembly L-G-AEC73437901
...
145J
Rail Guide Assembly L-G-AEC73437801
...
149C
Shelf Assembly,refrigerator L-G-AHT72910407
...
149E
Shelf Assembly,refrigerator L-G-AHT73334101
...
151A
Tray Assembly,vegetable L-G-AJP73455401
...
151B
Tray Assembly,vegetable L-G-AJP73455403
...
151C
Tray Assembly,vegetable L-G-AJP73455402
...
154A
Cover Assembly,tv L-G-ACQ85626201
...
154B
Refrigerator Deli Drawer Cover L-G-ACQ73152603
...
167B
Refrigerator Glass Shelf L-G-MHL42613217
...
170A
Tray Assembly,fresh Room L-G-AJP73455001

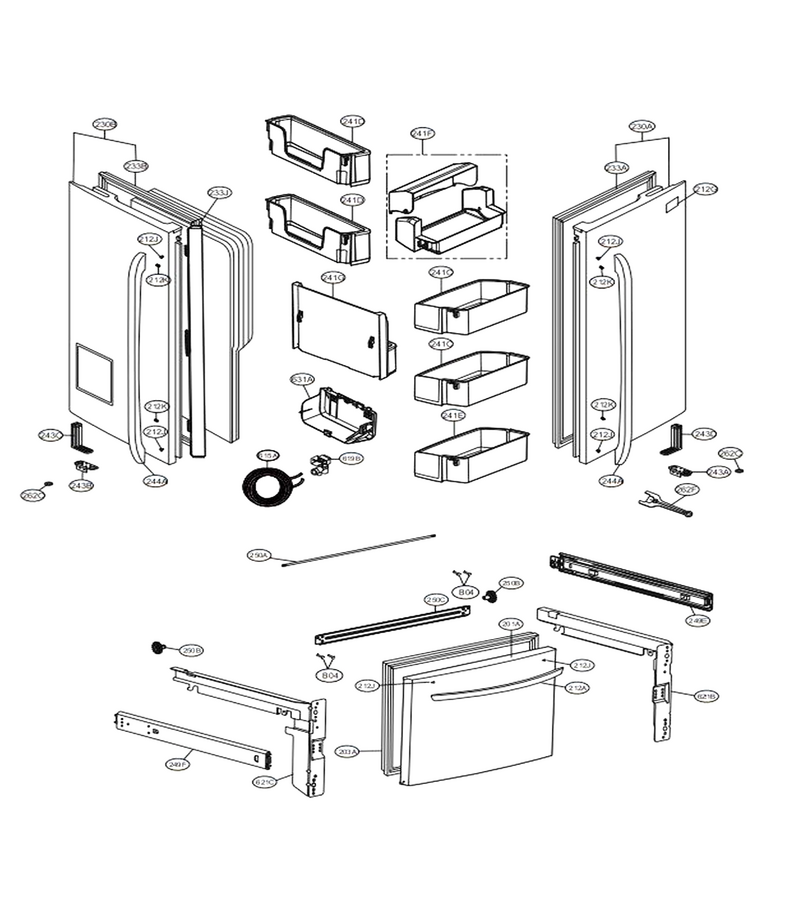

Door Parts

...
...
B04
Laundry Appliance Screw L-G-FAB30025701
...
201A
Door Foam Assembly,freezer L-G-ADD36429941
...
203A
Gasket Assembly,door L-G-ADX73350963
...
212A
Handle Assembly,freezer L-G-AED37133124
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230A
Door Assembly,refrigerator(right) L-G-ADC52734320
...
230B
Door Assembly,refrigerator(left) L-G-ADC73669508
...
233A
Gasket Assembly,door L-G-ADX73350635
...
233B
Gasket Assembly,door L-G-ADX73350636
...
233J
Refrigerator Flipper Assembly L-G-AGU73530709
...
241C
Basket Assembly,door L-G-AAP73051301
...
241D
Basket Assembly,door L-G-AAP73051601
...
241E
Basket Assembly,door L-G-AAP73051501
...
241F
Basket Assembly,door L-G-AAP73051401
...
241G
Basket Assembly,door L-G-AAP73031604
...
243A
Refrigerator Stopper Assembly L-G-AJC68689618
...
243B
Refrigerator Stopper Assembly L-G-AJC68689617
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
244A
Refrigerator Door Handle Assembly L-G-AED37082930
...
250A
Refrigerator Freezer Drawer Slide Bar L-G-4270JA3009Q
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262F
Spanner L-G-MHU62101101
...
615A
Refrigerator Water Tank L-G-4838JA2003E
...
619B
Valve Assembly,water L-G-5221JB2010U
...
621C
Connector,rail L-G-MCD61841107
...
631A
Refrigerator Water Reservoir Cover L-G-MCK63645801

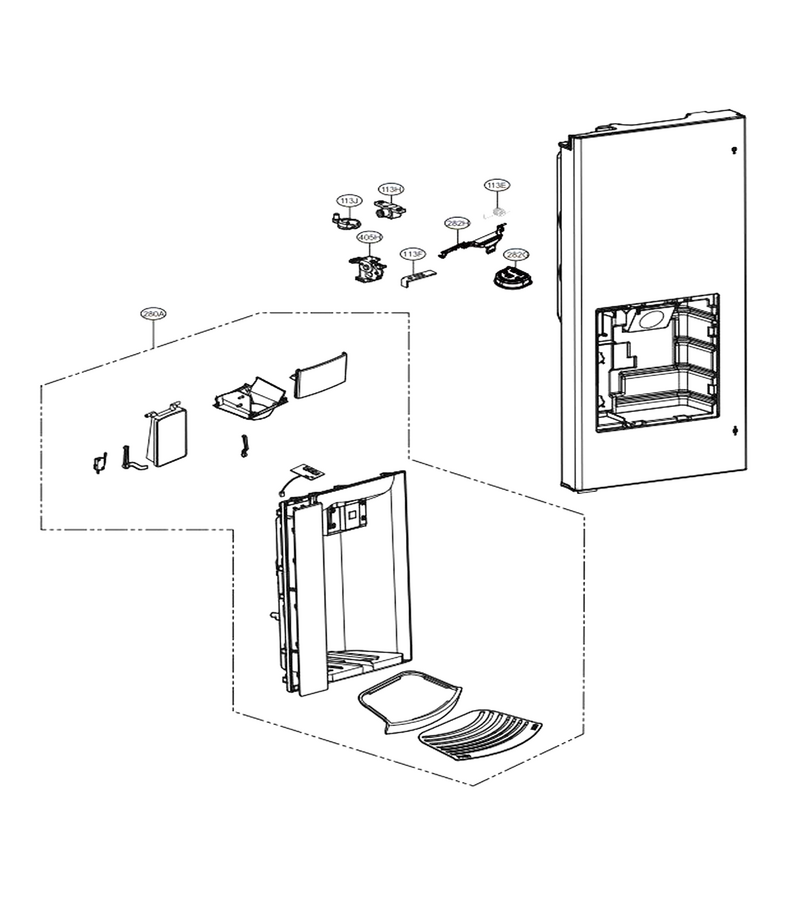

Dispenser Parts

...
...
113E
Refrigerator Spring L-G-4970JA3011K
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
113H
Refrigerator Holder Bracket L-G-MEG62760401
...
113J
Refrigerator Link L-G-MFF62123001
...
280A
Cover Assembly,display L-G-ACQ75432111
...
282G
Cap Assembly,duct L-G-ABN72938908
...
282H
Refrigerator Dispenser Lever L-G-MFC62009501
...
405H
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204

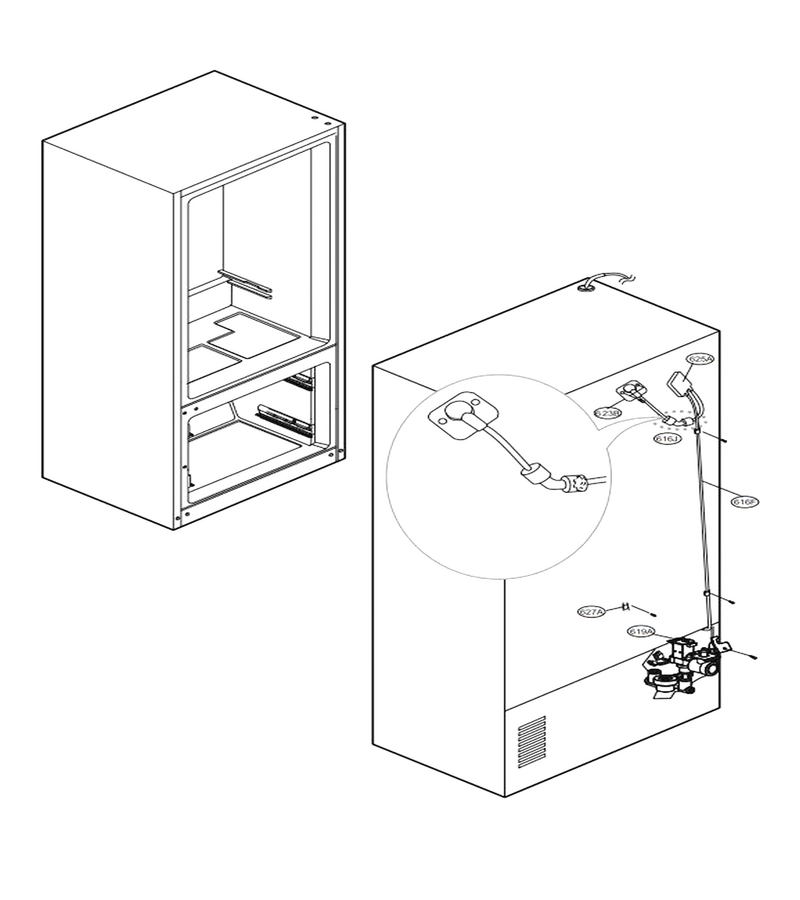

Valve & Water Tube Parts

...
...
616F
Tube,plastic L-G-MJU62709001
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992601
...
623B
Cap,cover L-G-MBL67039201
...
625A
Cover,tube L-G-MCK69290701
...
627A
Refrigerator Water Tubing Holder L-G-4770JA3001E

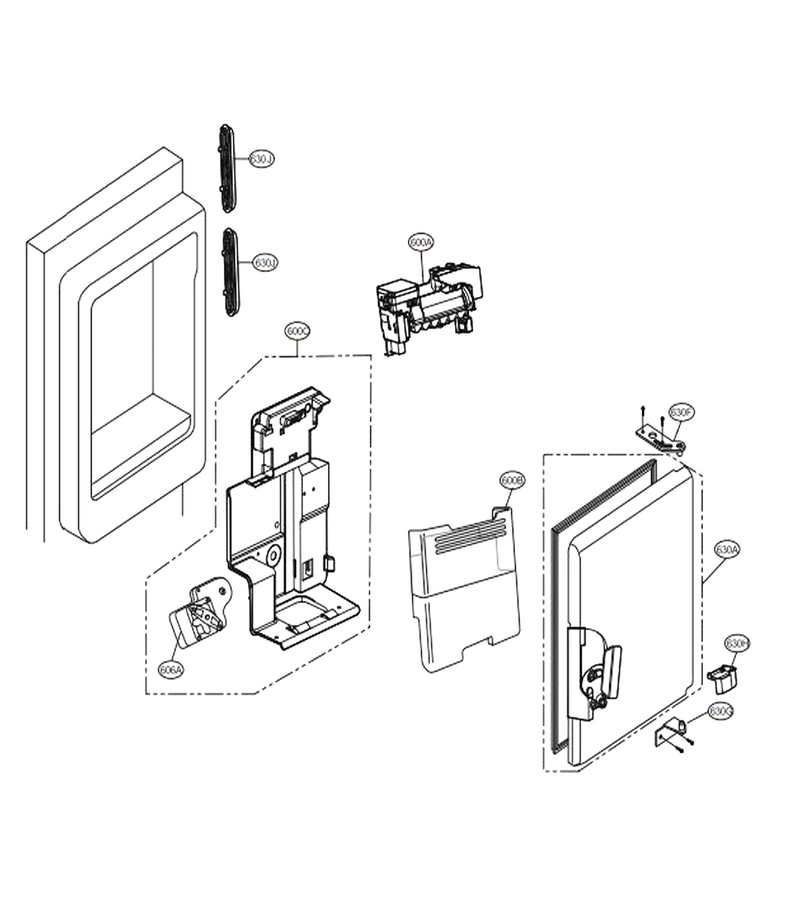

Ice Maker & Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ72910409
...
600B
Refrigerator Ice Container Assembly L-G-AKC72949312
...
600C
Motor,ac L-G-EAU60783816
...
606A
Refrigerator Auger Motor L-G-EAU60784204
...
630A
Cover Assembly,bucket Ice L-G-ACQ85995303
...
630F
Hinge Asy,up L-G-AEH73696402
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH36582701
...
630H
Cover L-G-MCK66668601
...
630J
Gasket Assembly,door L-G-ADX73571205
