LG LFX25974SB.AWBCNA5

Model: LFX25974SB.AWBCNA5

Save Part Not Listed?
product name

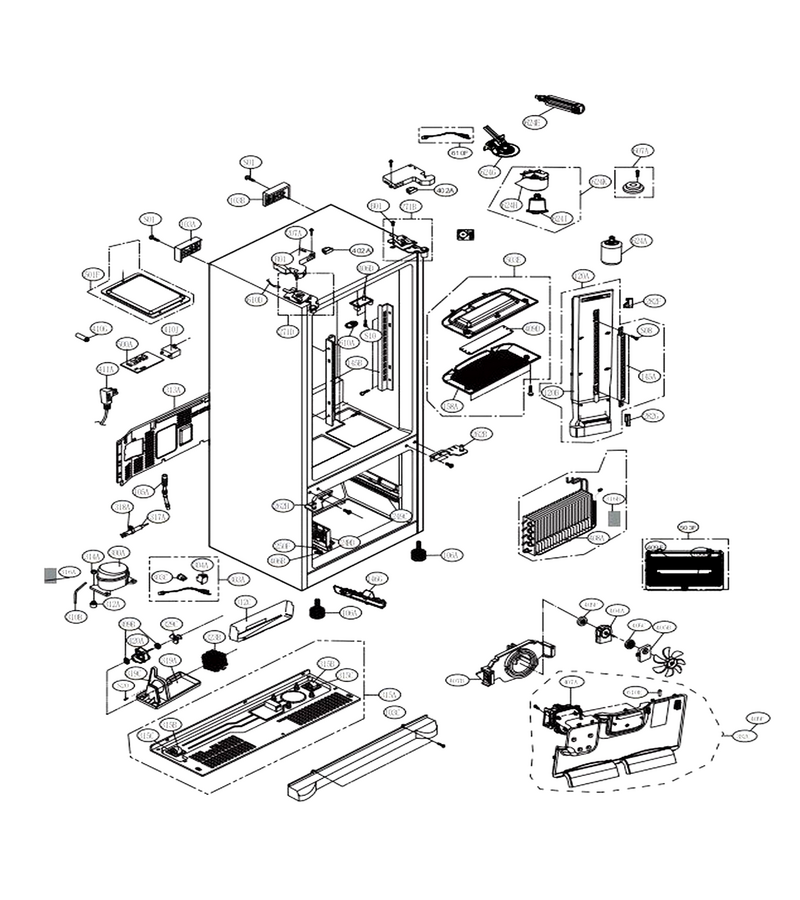

Case Parts

...
...
B01
Screw,customized L-G-1SZZJQ3009A
...
B02
Screw,customized L-G-1SZZJQ3002R
...
S01
Refrigerator Screw L-G-1SZZJQ2015B
...
S08
Refrigerator Screw L-G-1SZZJQ2002A
...
S10
Screw,customize L-G-1SZZJQ3023B
...
102A
Refrigerator Holder Bracket L-G-4930JA3093A
...
103A
Refrigerator Rear Handle L-G-3650JA2061T
...
103B
Refrigerator Rear Handle L-G-3650JA2061S
...
103C
Cover Assembly,lower L-G-ACQ85891303
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Refrig Leg L-G-AFC73349801
...
120A
Duct Assembly,multi L-G-ADJ73852107
...
120B
Duct,multi L-G-MCZ62951808
...
131A
Bucket,ice L-G-MKK61841801
...
145A
Refrigerator Shelf Support L-G-4930JA2080C
...
145B
Refrigerator Shelf Holder L-G-MEG63060501
...
158A
Refrigerator Light Cover L-G-MCK38019301
...
158B
Cover,lamp L-G-EBR77033103
...
207A
Cover,hinge L-G-MCK68187606
...
207B
Cover,hinge L-G-MCK68412402
...
262E
Refrigerator Spanner L-G-MHU61981201
...
262H
Hinge Assembly,center L-G-AEH71135372
...
271B
Refrigerator Door Hinge, Upper L-G-AEH74216502
...
271D
Refrigerator Hinge Assembly, Upper L-G-AEH74216501
...
282F
Refrigerator Duct Cap L-G-5006JA3111A
...
282G
Refrigerator Duct Cap L-G-MBL38019501
...
300A
Compressor,set Assembly L-G-TCA35893202
...
302B
Evaporator Assembly L-G-ADL73762005
...
303A
Thermistor Assembly,ptc L-G-EBG61486613
...
303C
Refrigerator Overload Protector L-G-6750CL0001C
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
309B
Refrigerator Damper Motor L-G-MCQ65884301
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
312B
Refrigerator Water Reservoir Cover L-G-MCK67107201
...
312C
Tray Assembly,drain L-G-AJP73574402
...
313A
Refrigerator Machine Compartment Cover L-G-ACQ85930901
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN74109205
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Pin L-G-1PZZJQ3018D
...
317A
Refrigerator Filter Dryer L-G-ADH69749103
...
318A
Drier Holder L-G-4930JQ3020F
...
319A
Refrigerator Drip Tray L-G-MJS37355401
...
319C
Refrigerator Fan Guide L-G-MEA42257901
...
323B
Condenser Assembly,wire L-G-ACG73964501
...
329A
Spring,fan L-G-MHY63083901
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Grille Assembly,fan L-G-AEB73944601
...
400A
Grille Assembly,fan L-G-AEB73944701
...
402A
Switch,magnet L-G-EBF62234501
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
404A
Motor,dc L-G-EAU60694512
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129B
...
405C
Refrigerator Evaporator Fan Motor Grommet L-G-5040JQ2002B
...
405F
Refrigerator Damper Motor L-G-5040JQ2003B
...
406B
Refrigerator Push Button Switch L-G-6600JR1002L
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
407A
Duct Assembly,connector L-G-ADJ73832202
...
407B
Refrigerator Bracket L-G-4810JJ0003B
...
408A
Heater,sheath L-G-5300JK1005Z
...
409D
Led Assembly L-G-EAV62052204
...
409E
Cover,lamp L-G-MCK68069401
...
410G
Refrigerator Capacitor L-G-EAE32501010
...
410J
Refrigerator Run Capacitor L-G-0CZZJB2014S
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly,main L-G-EBR74796470
...
501D
Pcb Assembly,sub L-G-EBR60388521
...
501F
Refrigerator Power Control Board Cover L-G-ACQ86388101
...
501G
Damper,rubber L-G-MCQ67290001
...
503E
Cover Assembly,lamp L-G-ACQ85930606
...
503F
Cover Assembly,lamp L-G-ACQ87128801
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JA2247A
...
610D
Sensor L-G-EBD60664501
...
610E
Refrigerator Temperature Sensor L-G-6500JB2002X
...
610F
Refrigerator Temperature Sensor L-G-EBR71326801
...
624A
Refrigerator Water Filter L-G-ADQ72910901
...
624C
Cover,filter L-G-MCK67694802
...
624G
Filter Assembly,head L-G-ADQ73553708
...
624K
Filter Assembly,head L-G-ADQ73793402
...
627A
Holder Pipe L-G-MEG63263001

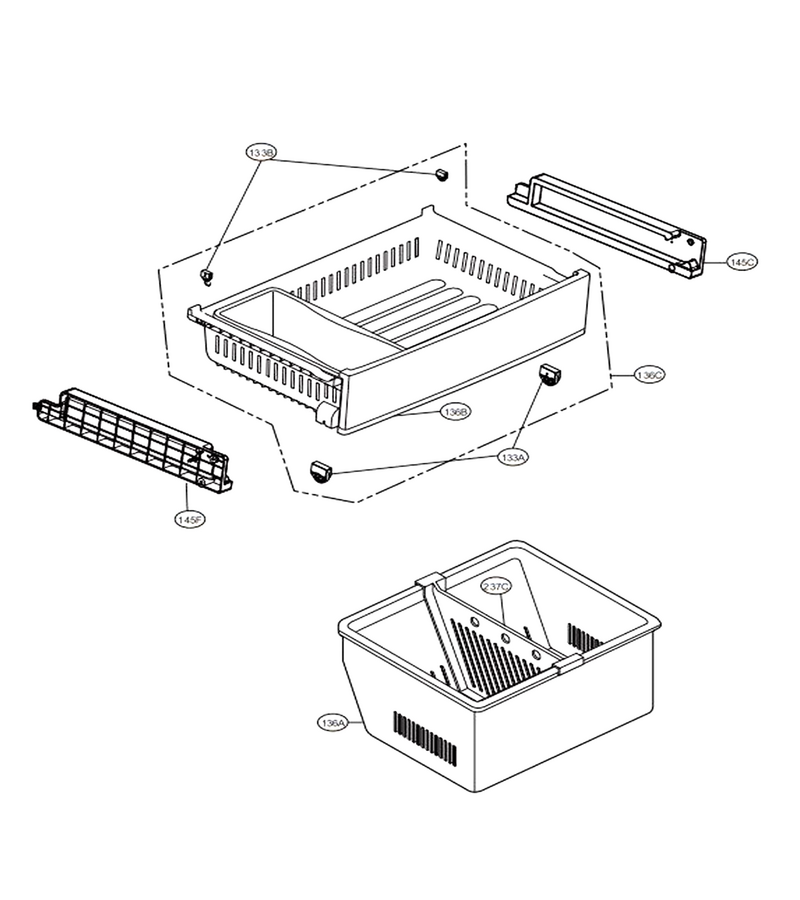

Freezer Parts

...
...
132P
Refrigerator Cap L-G-MBL65277501
...
133A
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73329901
...
133B
Home Electronics Roller Assembly L-G-AHJ73349901
...
136A
Tray Assembly,drawer L-G-AJP73934401
...
136B
Tray,drawer L-G-MJS62931903
...
136C
Cover Assembly,tv L-G-ACQ86549601
...
145C
Guide,rail L-G-MEA62231202
...
145F
Guide,rail L-G-MEA62231201
...
237C
Refrigerator Freezer Drawer Divider L-G-4974JJ1031A

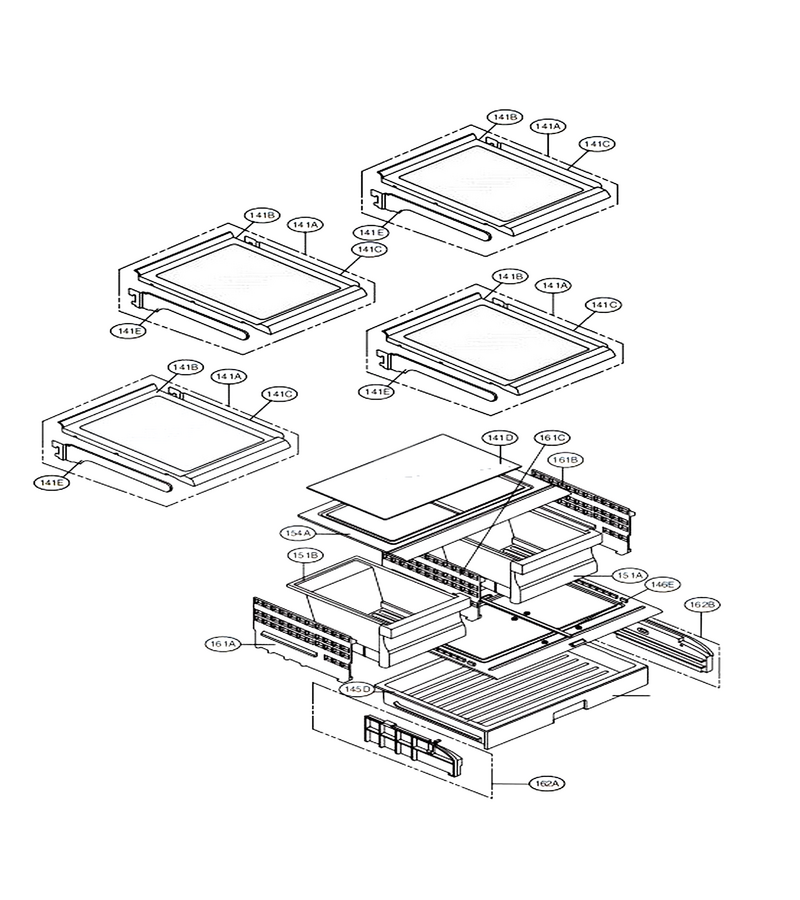

Refrigerator Parts

...
...
141A
Shelf Assembly,refrigerator L-G-AHT73554102
...
141B
Refrigerator Shelf L-G-MHL47278104
...
141C
Shelf,net L-G-5026JA2052C
...
141D
Shelf,glass L-G-MHL62931401
...
141E
Shelf,net L-G-5026JA2053C
...
145D
Tray Assembly,fresh Room L-G-AJP73874601
...
146E
Cover Assembly,tray L-G-ACQ86509718
...
146G
Connector Duct L-G-MCZ62872001
...
151A
Tray Assembly,vegetable L-G-AJP73914501
...
151B
Tray Assembly,vegetable L-G-AJP73914502
...
154A
Cover Assembly,tv L-G-ACQ86549510
...
161A
Guide Assembly,tv L-G-AEC73877402
...
161B
Guide Assembly,tv L-G-AEC73877401
...
161C
Guide Assembly,rail L-G-AEC73877501
...
162A
Guide Assembly,rail L-G-AEC73857401
...
162B
Guide Assembly,rail L-G-AEC73857402

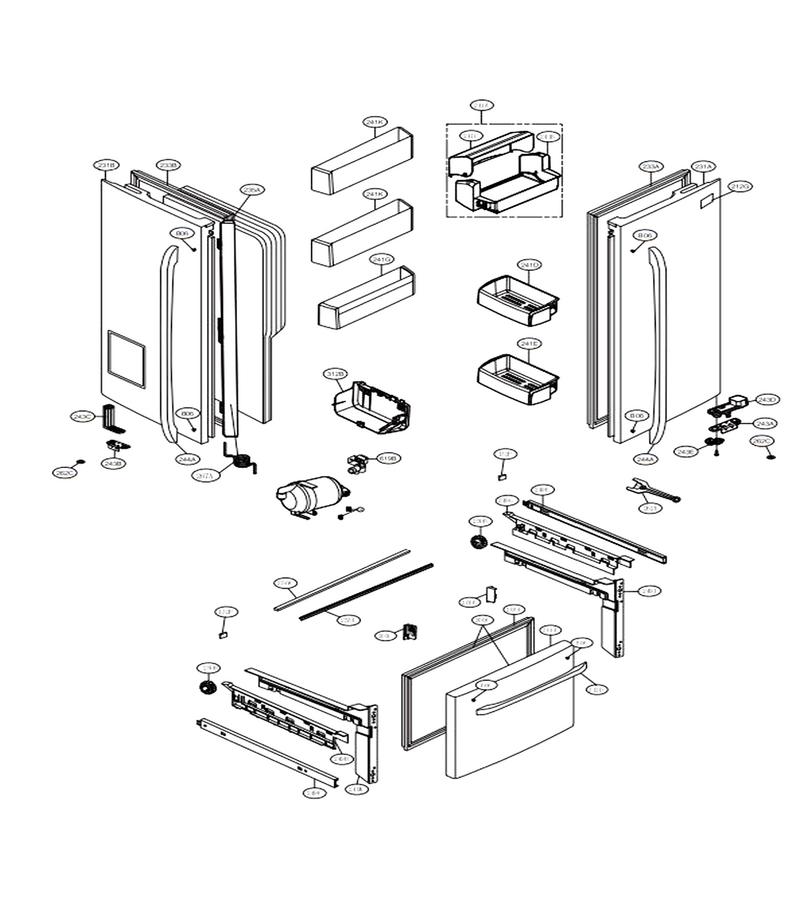

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
200A
Door Assembly,freezer L-G-ADC74125622
...
201A
Door Foam Assembly,freezer L-G-ADD73995804
...
203A
Gasket,door L-G-MDS64172922
...
205B
Refrigerator Freezer Door Support End Cap, Left L-G-5006JJ2013B
...
205C
Refrigerator Freezer Door Support End Cap, Right L-G-5006JJ2013A
...
212D
Handle Assembly,freezer L-G-AED73593103
...
231A
Door Foam Assembly,refrigerator L-G-ADD73995924
...
231B
Door Foam Assembly,refrigerator L-G-ADD73996023
...
233A
Gasket Assembly,door L-G-ADX73550627
...
233B
Gasket Assembly,door L-G-ADX73550628
...
235A
Plate Assembly,front L-G-AGU74110901
...
239A
Refrigerator Nameplate L-G-MFT62346509
...
241A
Basket Assembly,door L-G-AAP73631301
...
241B
Basket,door L-G-MAN62608201
...
241C
Basket,window L-G-MAN62608301
...
241D
Refrigerator Door Bin L-G-MAN62069201
...
241E
Basket,door L-G-MAN62449601
...
241G
Basket,door L-G-MAN62388501
...
241K
Basket,door L-G-MAN62388601
...
243A
Stopper Assembly,door L-G-AJC73112304
...
243B
Stopper Assembly,door L-G-AJC73112303
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Hinge Cam L-G-MBJ62121901
...
243E
Handle Assembly,refrigerator L-G-AED73593203
...
244A
Holder,rail L-G-MEG62302102
...
249C
Holder,rail L-G-MEG62302101
...
249D
Rail,slide L-G-5218JA1010L
...
249G
Cover Assembly,connector L-G-ACQ86548502
...
249H
Cover Assembly,connector L-G-ACQ86548501
...
249J
Connector,rail L-G-MCD62287401
...
249K
Connector,rail L-G-MCD62287402
...
250A
Bar L-G-MAK62627102
...
250B
Refrigerator Ice Gear L-G-MDT62627101
...
250F
Harness Assembly L-G-EAD62089801
...
253A
Supporter,cover Tv L-G-MJH62755902
...
262B
Hinge Assembly,center L-G-AEH71135366
...
262C
Refrigerator Ring L-G-MGZ62766901
...
267A
Refrigerator Spring L-G-MHY62044106
...
615A
Refrigerator Water Reservoir L-G-AJL72911502
...
619B
Refrigerator Water Inlet Valve L-G-5221JB2010G

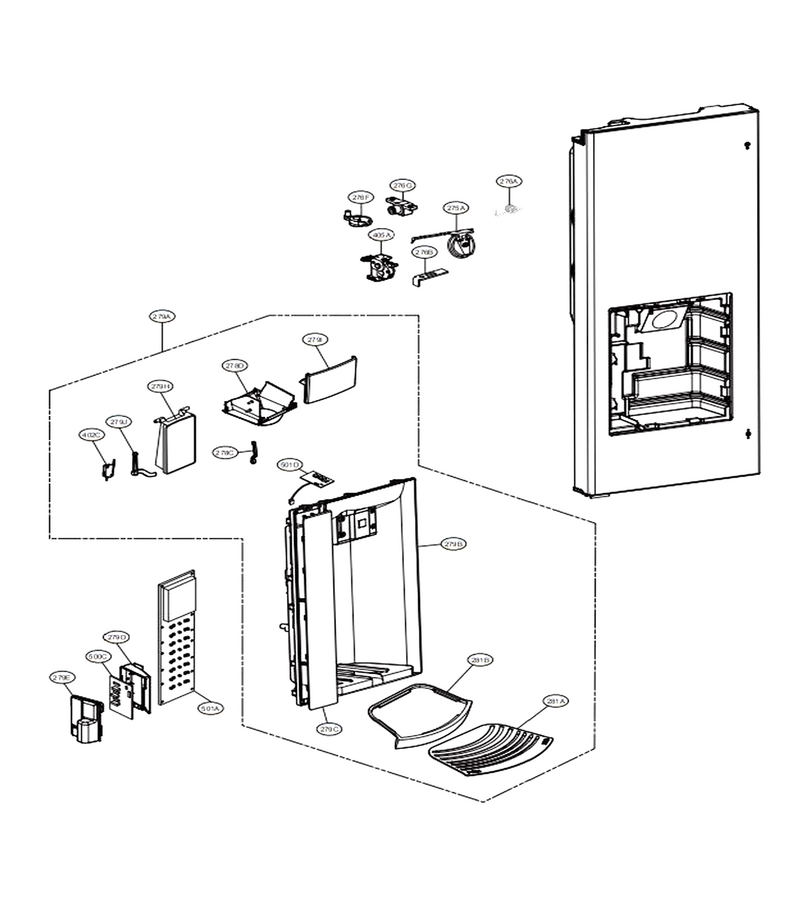

Dispenser Parts

...
...
275A
Refrigerator Dispenser Ice Chute Door Kit L-G-ABN73678303
...
276A
Refrigerator Spring L-G-4970JA3011K
...
276B
Holder Lever L-G-MEG63262301
...
276F
Refrigerator Link L-G-MFF62463201
...
276G
Holder,bracket L-G-MEG63342401
...
278C
Lever,dispenser L-G-MFC62709701
...
278D
Funnel L-G-MDR62242301
...
279A
Cover Assembly,display L-G-ACQ86599618
...
279B
Dispenser Cover L-G-MCK62965303
...
279C
Cover,display L-G-MCK67566101
...
279D
Case,pcb L-G-MBN62987901
...
279E
Cover,pcb L-G-MCK66567001
...
279H
Button,lever L-G-MBG64843403
...
279I
Button,lever L-G-MBG64843503
...
279J
Button,lever L-G-MBG64707201
...
281A
Decor,drain L-G-MCR65033503
...
281B
Tray,drain L-G-MJS62812603
...
500C
Pcb Assembly,sub L-G-ACQ86390707
...
501A
Pcb Assembly,display L-G-EBR67357934
...
503D
Refrigerator Light Housing L-G-MBN38018601

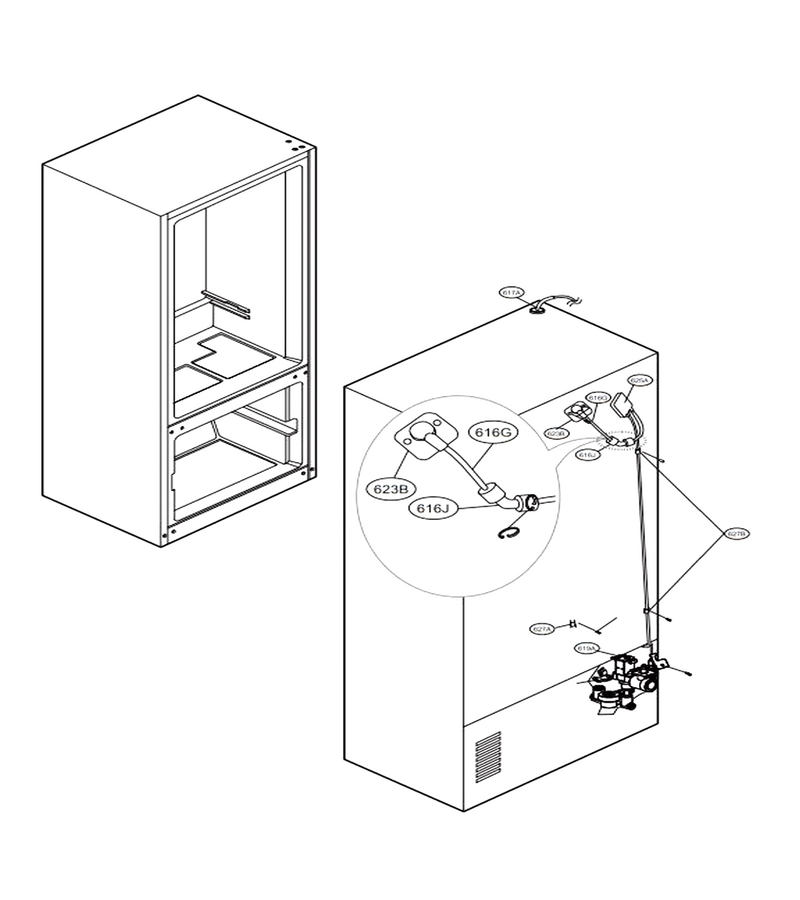

Valve & Water Tube Parts

...
...
616G
Refrigerator Ice Maker Fill Tube L-G-AJR73964201
...
617A
Refrigerator Spring L-G-4970JQ3016J
...
619A
Valve Assembly,water L-G-AJU73432801
...
623B
Refrigerator Cap Cover L-G-MBL65442401
...
625A
Tube Cover L-G-MCK67502201
...
627B
Holder Pipe L-G-MEG63342201

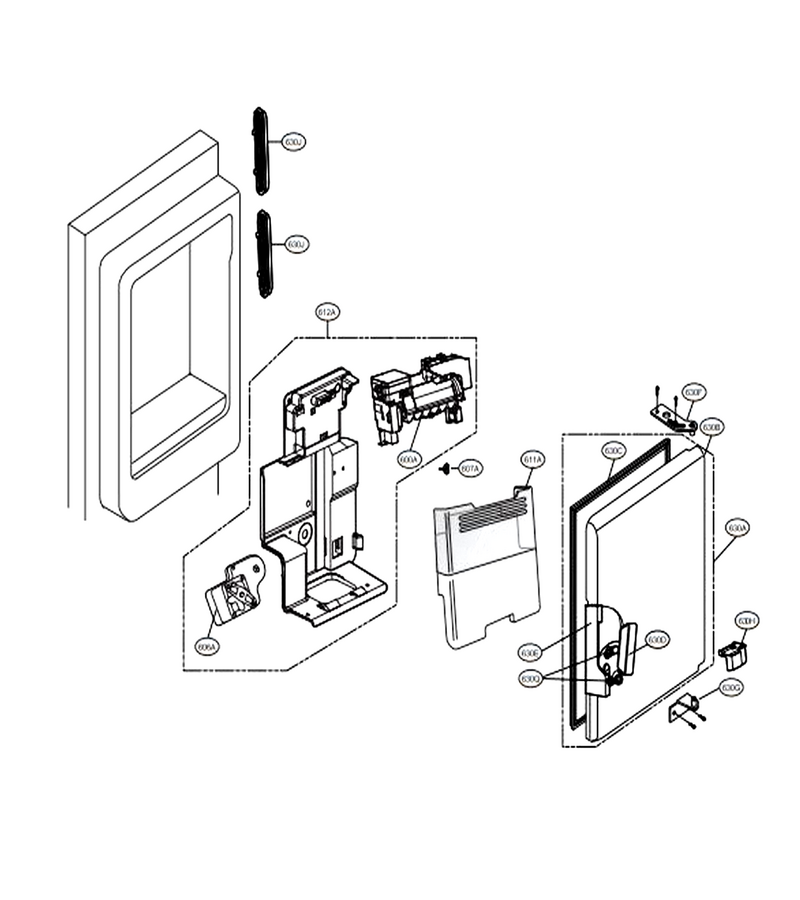

Ice Maker & Ice Bin Parts

...
...
600A
Refrigerator Ice Maker L-G-AEQ73110210
...
606A
Motor, Ac Indoor L-G-EAU61083522
...
607A
Holder,bracket L-G-MEG63221701
...
611A
Refrigerator Ice Container Assembly L-G-AKC73249303
...
612A
Motor,ac L-G-EAU61843014
...
630A
Door Assembly,freeze Room L-G-ADC74207902
...
630B
Refrigerator Door Foam Assembly L-G-ADD74016102
...
630C
Gasket,door L-G-MDS64239202
...
630D
Handle L-G-MEB62915403
...
630E
Lever Cover L-G-MCK67584403
...
630F
Refrigerator Hinge Assembly, Upper L-G-AEH74136301
...
630G
Hinge Assembly, Lower L-G-AEH74156201
...
630H
Refrigerator Convenience Door Hinge Cover L-G-MCK67480101
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73571201
...
630Q
Refrigerator Roller L-G-MHA62652801
