Models

Parts

product name

LG LFX25961AL.AAVCLGA

Model: LFX25961AL.AAVCLGA

Save Part Not Listed?
product name

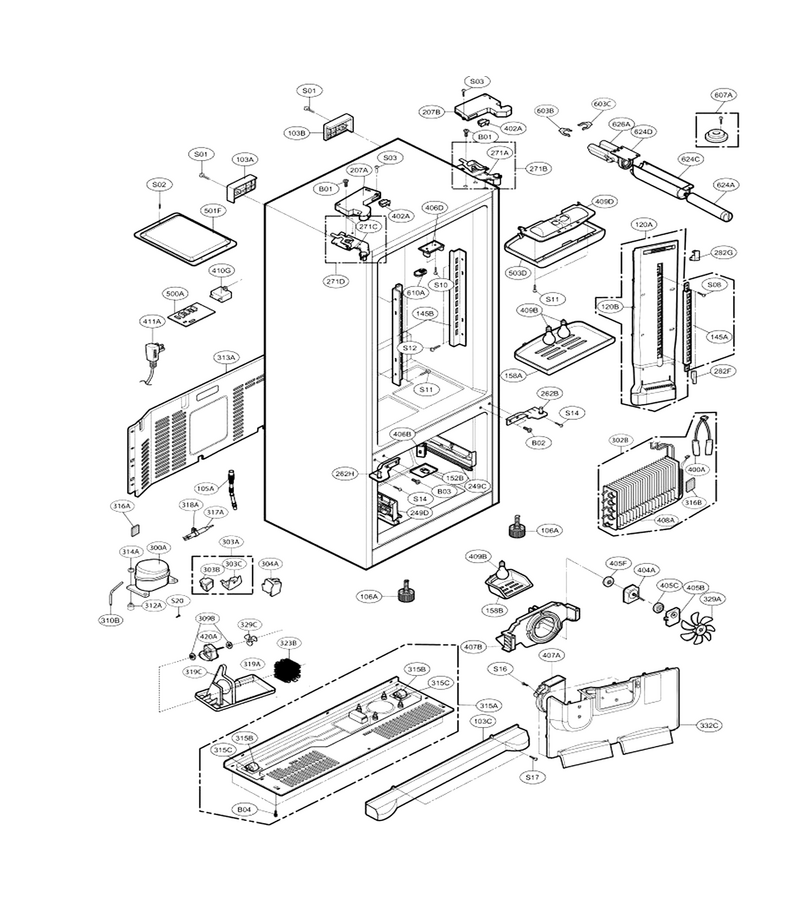

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004G
...
B03
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S01
Refrigerator Screw L-G-4J00415D
...
S02
Refrigerator Screw L-G-4J00415D
...
S03
Refrigerator Door Hinge Cover Mounting Screw L-G-4J01424B
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S12
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010C
...
S16
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
S17
Refrigerator Screw L-G-4J00415D
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Rear Handle L-G-3650JA2061W
...
103C
Refrigerator Toe Grille L-G-ACQ55957504
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Duct Assembly,multi L-G-ADJ36702001
...
120B
Refrigerator Multi Duct L-G-MCZ54121501
...
145B
Refrigerator Shelf Holder L-G-4930JA2081C
...
152B
Refrigerator Temperature Sensor Cover L-G-MCK39131501
...
158A
Cover,lamp L-G-3550JJ1070B
...
158B
Refrigerator Light Cover L-G-3550JA1386B
...
207A
Refrigerator Door Hinge Cover, Left L-G-3550JJ1097Q
...
207B
Refrigerator Door Hinge Cover, Right L-G-3550JJ1097R
...
249C
Holder,rail L-G-4930JA1066A
...
249D
Holder,rail L-G-MEG56923602
...
262B
Hinge Assembly,center L-G-AEH71135302
...
262H
Hinge Assembly,center L-G-AEH71135304
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282F
Refrigerator Duct Cap L-G-MBL38019501
...
282G
Refrigerator Duct Cap L-G-5006JA3111A
...
300A
Refrigerator Compressor L-G-TCA31748001
...
302B
Refrigerator Evaporator L-G-5421JJ1003B
...
303A
Thermistor Assembly,ptc L-G-EBG31940225
...
303B
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
303C
Refrigerator Compressor Overload Protector L-G-6750C-0004R
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312A
Refrigerator Compressor Rubber Mounting Damper L-G-5040JA3071A
...
313A
Refrigerator Shelf Support Rail L-G-3551JJ2018A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-3103JJ1001H
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
316B
Noise Damper L-G-5072JA3003G
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319C
Refrigerator Fan Guide L-G-MEA42257901
...
323B
Refrigerator Condenser Coil L-G-ACG36653801
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Grille Assembly,fan L-G-AEB34270102
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005H
...
402A
Refrigerator Door Switch (gray) L-G-6600JB3007K
...
404A
Motor,dc L-G-4681JK1004E
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406B
Refrigerator Door Light Switch L-G-6600JB1010H
...
406D
Refrigerator Door Pivot Block L-G-4931JA3006A
...
407A
Duct Assembly,connector L-G-5209JA1044A
...
407B
Refrigerator Bracket L-G-4810JJ0003B
...
408A
Refrigerator Defrost Heater L-G-5300JK1005D
...
409B
Refrigerator Light Bulb L-G-6912JB2004K
...
409D
Refrigerator Light Housing L-G-3034JA1009A
...
410G
Capacitor,electric Appliance Film,radial L-G-0CZZJB2012K
...
411A
Power Cord Assembly L-G-6411JB1042L
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly,main L-G-EBR41956423
...
501F
Refrigerator Power Control Board Cover L-G-3551JA2144C
...
503D
Refrigerator Light Housing L-G-3110JJ1014A
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JA2247A
...
624A
Refrigerator Water Filter L-G-5231JA2006A
...
624C
Refrigerator Filter Cover L-G-3550JD1128C
...
624D
Refrigerator Water Filter Head L-G-5230JA2003A
...
626A
Refrigerator Water Filter Cover L-G-3550JA2279A

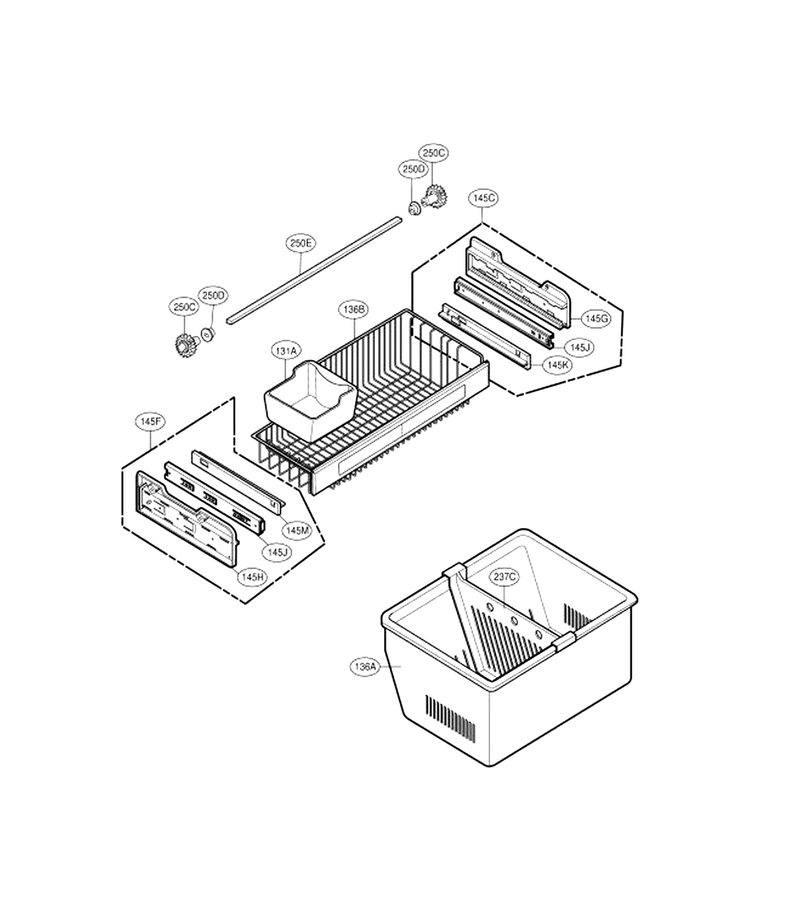

Freezer Parts

...
...
131A
Bucket,ice L-G-5074JA2004A
...
136A
Refrigerator Freezer Drawer Assembly L-G-3391JJ2011M
...
136B
Tray Assembly,drawer L-G-3391JA2054H
...
145C
Guide Assembly,rail L-G-4975JA1040B
...
145F
Guide Assembly,rail L-G-4975JA1040A
...
145G
Guide,rail L-G-4974JA1154B
...
145H
Guide,rail L-G-4974JA1154A
...
145J
Rail,slide L-G-5218JA1007B
...
145K
Refrigerator Freezer Basket Support Rail, Right L-G-4932JA1010B
...
145M
Refrigerator Freezer Basket Support Rail, Left L-G-4932JA1010A
...
237C
Refrigerator Freezer Drawer Divider L-G-4974JJ1031A
...
250C
Gear,ice L-G-4470JA2008A

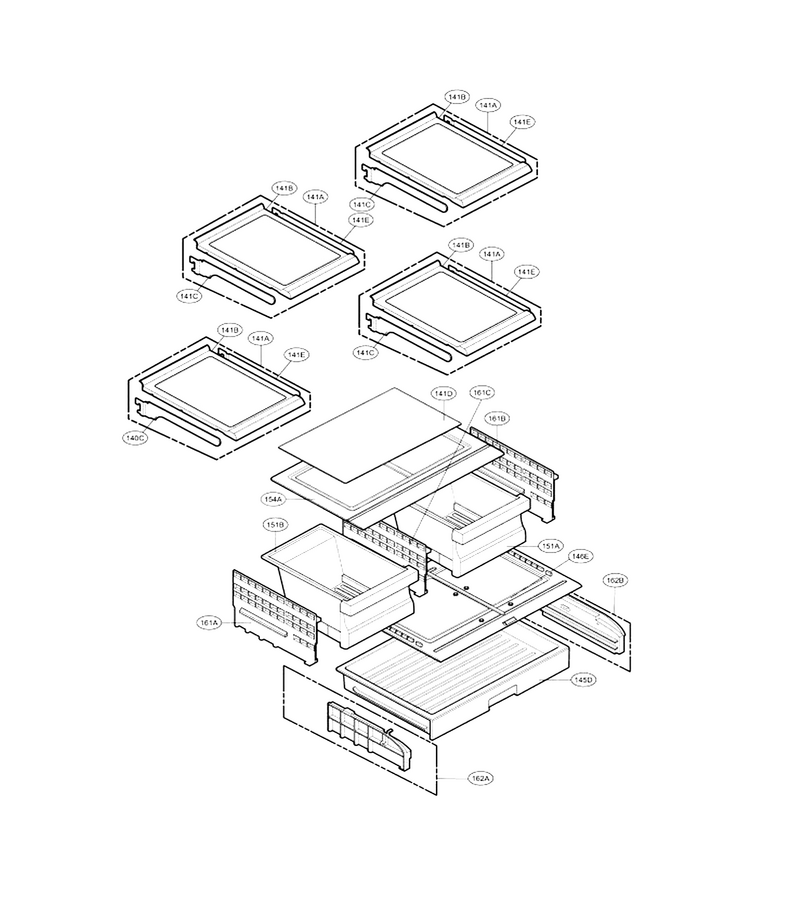

Refrigerator Parts

...
...
141B
Shelf,refrigerator L-G-MHL47278102
...
141C
Shelf,net L-G-5026JA2053B
...
141D
Refrigerator Glass Shelf L-G-4890JJ1007Y
...
141E
Shelf,net L-G-5026JA2052B
...
145D
Refrigerator Deli Drawer L-G-AJP36700901
...
146E
Cover Assembly,tray L-G-ACQ36701706
...
151A
Tray Assembly,vegetable L-G-AJP36702111
...
151B
Tray Assembly,vegetable L-G-AJP36702112
...
154A
Cover Assembly,tv L-G-ACQ36701110
...
161A
Guide Assembly,tv L-G-AEC36906401
...
161B
Guide Assembly,tv L-G-AEC36906402
...
161C
Guide Assembly,rail L-G-AEC36702202
...
162A
Refrigerator Drawer Slide Rail L-G-AEC36702301
...
162B
Refrigerator Pantry Drawer Guide L-G-AEC36702302

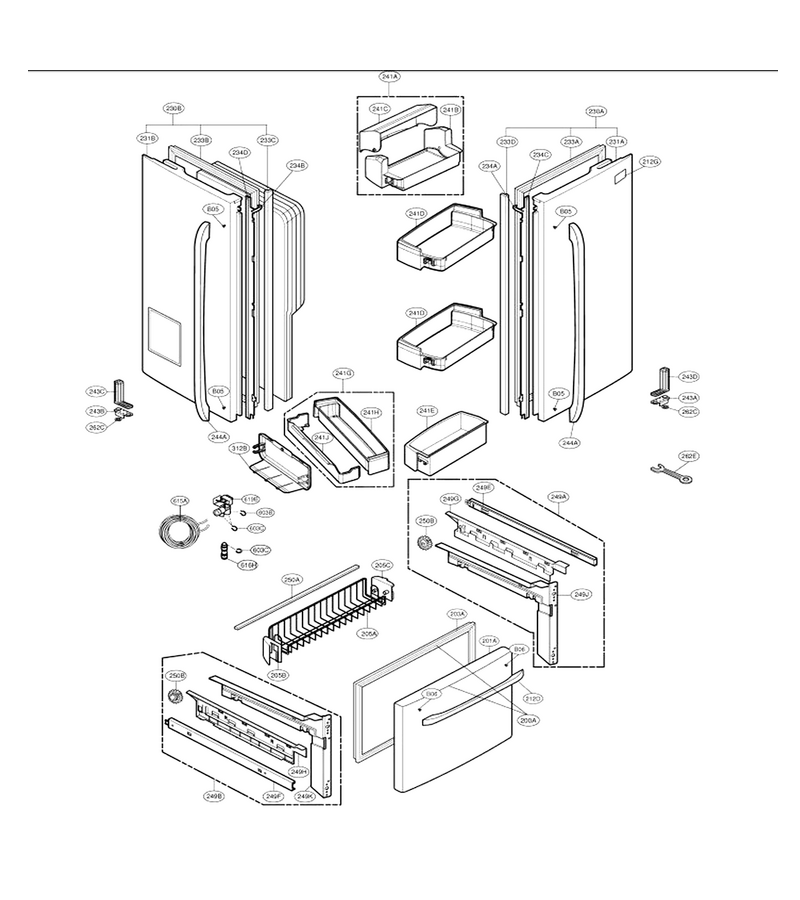

Door Parts

...
...
B05
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
B06
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
200A
Door Assembly,freezer L-G-ADC55707336
...
201A
Door Foam Assembly,freezer L-G-ADD55708320
...
203A
Gasket,door L-G-MDS38201406
...
205A
Refrigerator Freezer Door Bin L-G-5004JJ1061B
...
205B
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JA2017A
...
205C
Refrigerator Door Hinge L-G-5004JA2017B
...
212D
Refrigerator Door Handle Assembly L-G-AED37133117
...
212G
Refrigerator Nameplate L-G-3846JD1007H
...
230A
Door Assembly,refrigerator(right) L-G-ADC55872842
...
230B
Door Assembly,refrigerator(left) L-G-ADC67681404
...
231A
Door Foam Assembly,refrigerator L-G-ADD36700631
...
231B
Door Foam Assembly,refrigerator L-G-ADD36652746
...
233A
Refrigerator Door Gasket, Right L-G-4987JJ2002S
...
233B
Refrigerator Door Gasket, Left L-G-4987JJ2002T
...
233C
Refrigerator Flipper Seal Cover L-G-MCK59045801
...
233D
Refrigerator Flipper Seal Cover L-G-MCK59045802
...
234A
Refrigerator Door Cam Latch, Right L-G-4430JJ2004A
...
234B
Refrigerator Door Cam Latch, Left L-G-4430JJ2004B
...
234C
Refrigerator Flipper Seal Frame L-G-4931JJ2002E
...
234D
Refrigerator Flipper Seal Frame L-G-4931JJ2002F
...
241A
Refrigerator Door Bin L-G-AAP33686302
...
241C
Refrigerator Door Bin Cover L-G-MAN38143001
...
241D
Refrigerator Door Bin L-G-AAP36817401
...
241E
Refrigerator Door Bin L-G-AAP36817601
...
241G
Refrigerator Door Bin L-G-AAP33726606
...
241H
Refrigerator Door Bin L-G-AAP33726605
...
241J
Refrigerator Door Bin L-G-MAN38154501
...
243A
Stopper,door L-G-MJB42493702
...
243B
Stopper,door L-G-MJB42493701
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821901
...
244A
Refrigerator Door Handle Assembly L-G-AED37082916
...
249A
Connector Assembly L-G-ACJ33058114
...
249B
Connector Assembly L-G-ACJ33058113
...
249G
Cover,connector L-G-3550JA1455C
...
249H
Cover,connector L-G-3550JA1455D
...
249J
Connector,rail L-G-MCD36888904
...
249K
Connector,rail L-G-MCD36888903
...
250A
Refrigerator Freezer Drawer Gear Support Bar L-G-MAK39123901
...
250B
Connector Assembly L-G-4403JA3005A
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262E
Refrigerator Spanner Wrench L-G-MHU38218901
...
312B
Refrigerator Water Reservoir Cover L-G-MCK42342101
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
615A
Refrigerator Water Tank L-G-4838JA2003B
...
616H
Refrigerator Water Tube Fitting L-G-MCD38280801
...
619B
Refrigerator Water Inlet Valve L-G-5221JB2010G

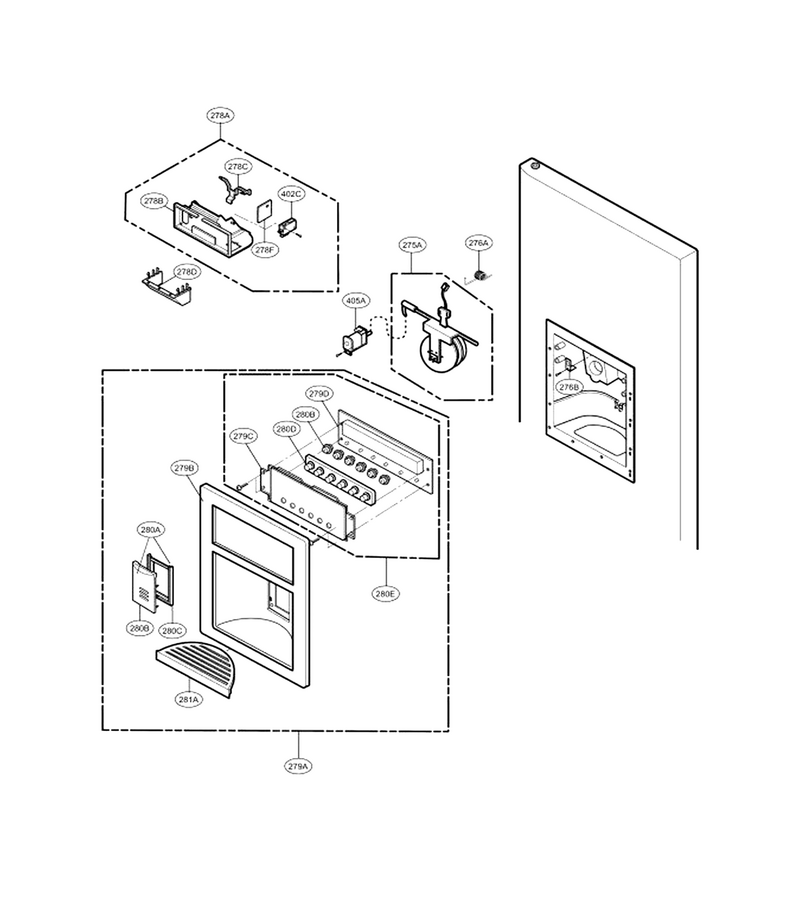

Dispenser Parts

...
...
275A
Cap Assembly,duct L-G-5007JA3006X
...
276A
Refrigerator Spring L-G-4970JA3011C
...
276B
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
278A
Funnel Assembly L-G-3017JA2008B
...
278B
Frame,funnel L-G-3210JA1072B
...
278C
Refrigerator Dispenser Lever L-G-4510JA2022A
...
278D
Funnel L-G-3016JA2004E
...
278F
Refrigerator Dispenser Display Control Board As... L-G-6871JB2074A
...
279A
Cover Assembly,dispenser L-G-ACQ32871505
...
279B
Cover,dispenser L-G-3550JA1443B
...
279D
Pcb Assembly,display L-G-EBR35226002
...
280B
Refrigerator Holder L-G-4930JA2074B
...
280C
Refrigerator Dispenser Lever L-G-5020JA2040E
...
281A
Decor,drain L-G-3806JA2118B
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001E
...
405A
Refrigerator Dispenser Ice Chute Door Solenoid L-G-6421JB2002L

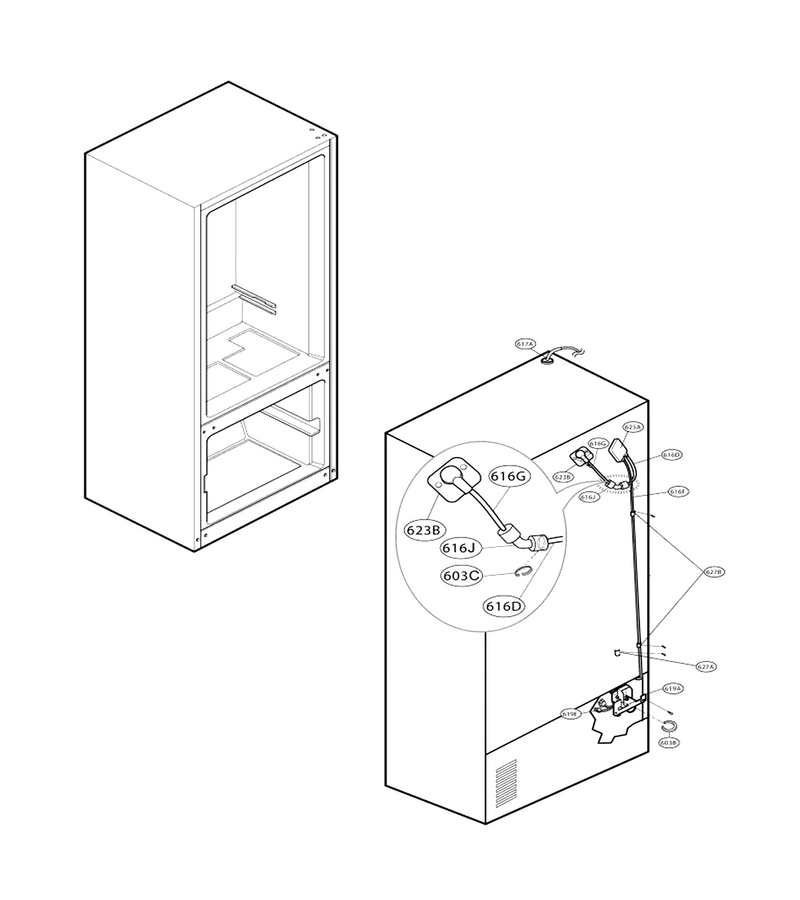

Ice And Icemaker Parts

...
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616D
Refrigerator Water Tubing L-G-5210JA3005L
...
616F
Refrigerator Water Tubing L-G-5210JA3004U
...
616G
Refrigerator Ice Maker Fill Tube L-G-AJR56656501
...
616J
Refrigerator Water Tube Fitting L-G-4932JA3009A
...
619A
Refrigerator Water Inlet Valve L-G-5221JA2011J
...
619E
Refrigerator Water Inlet Valve Wire Harness L-G-6877JB3036V
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

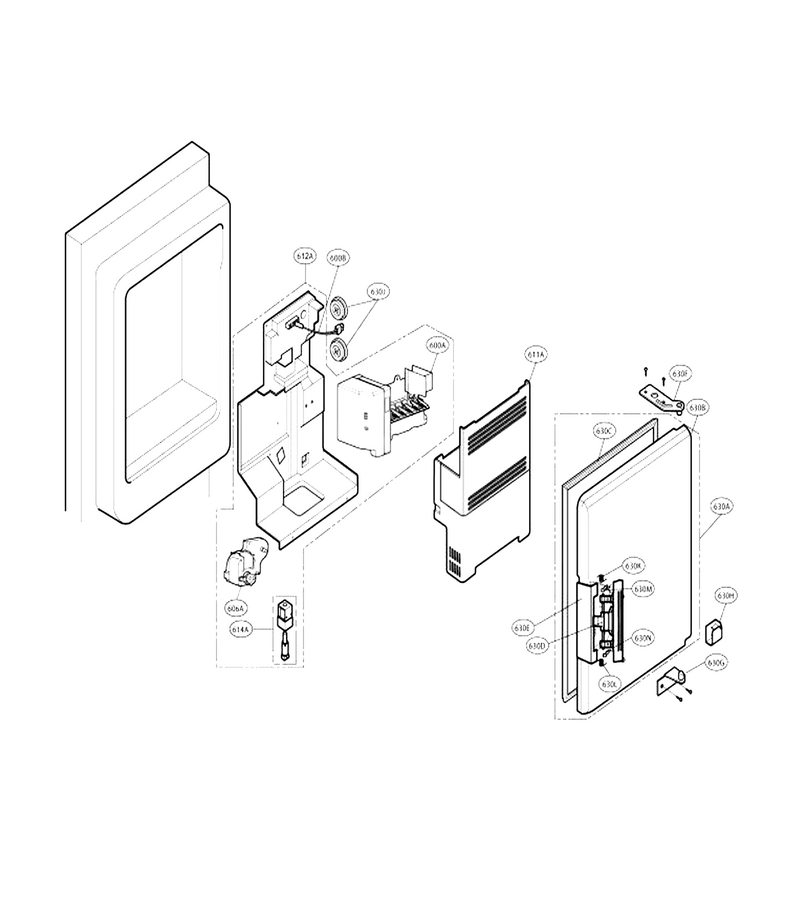

Ice Bin Parts

...
...
600A
Refrigerator Ice Maker Kit L-G-AEQ36756901
...
600B
Refrigerator Temperature Sensor L-G-6500JB1008A
...
606A
Motor,ac L-G-4681JA1006D
...
611A
Refrigerator Ice Container Assembly L-G-5075JA1044K
...
614A
Refrigerator Ice Dispenser Solenoid L-G-6421JA3001N
...
630A
Refrigerator Ice Room Door Assembly L-G-ADC33751110
...
630B
Door Foam Assembly L-G-ADD33178704
...
630C
Refrigerator Ice Bank Door Gasket L-G-4987JA2012B
...
630D
Refrigerator Ice Bank Door Handle L-G-MEB49049001
...
630E
Refrigerator Decorative Handle L-G-MCR42600501
...
630F
Refrigerator Hinge L-G-4775JA2101A
...
630G
Hinge Assembly, Lower L-G-4775JA2102A
...
630H
Refrigerator Cover Bar L-G-MCK38202501
...
630J
Refrigerator Ice Room Air Duct Gaske L-G-4987JA3025H
...
630K
Refrigerator Spring L-G-4970JA3044A
...
630L
Refrigerator Spring L-G-4970JA3045A
...
630M
Refrigerator Ice Room Door Handle Clamp L-G-4860JA3010A
...
630N
Refrigerator Ice Room Door Handle Clamp L-G-4860JA3010B
