product name

LG LFX25960TT.ATICLGA

Model: LFX25960TT.ATICLGA

Save Part Not Listed?
product name

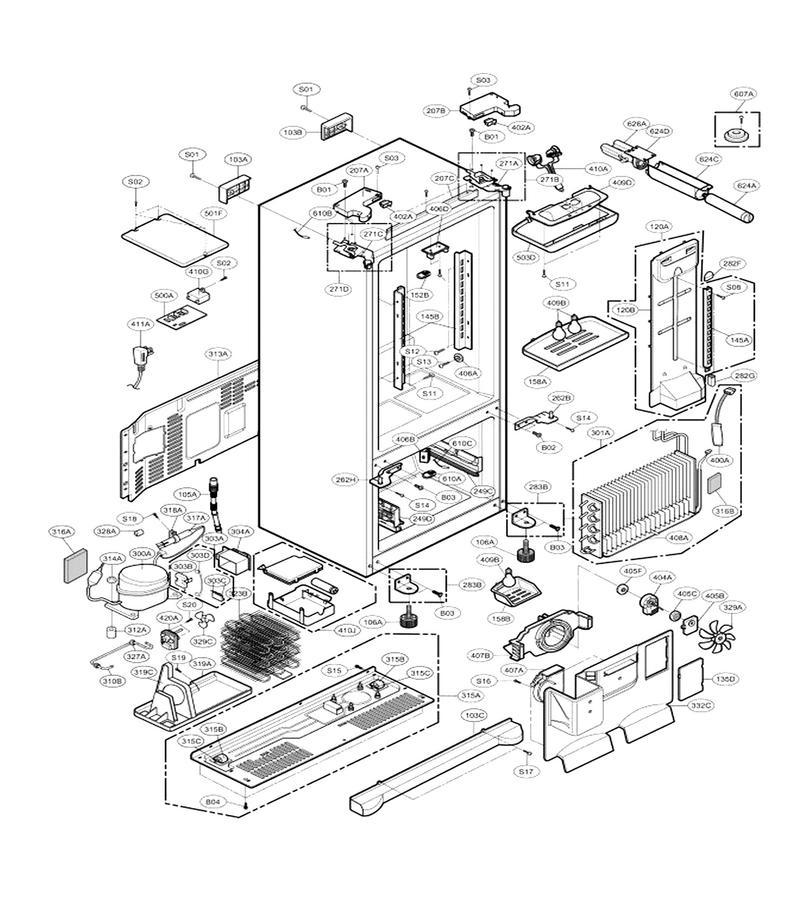

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004G
...
B03
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S01
Refrigerator Screw L-G-1SZZJA3005K
...
S02
Refrigerator Screw L-G-4J00415D
...
S03
Refrigerator Door Hinge Cover Mounting Screw L-G-4J01424B
...
S08
Refrigerator Ice Maker Bracket Screw L-G-1SZZJJ3005E
...
S11
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
S12
Refrigerator Screw L-G-4J01424A
...
S13
Refrigerator Screw L-G-4J01424A
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010C
...
S15
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
S16
Refrigerator Screw L-G-4J00415D
...
S17
Refrigerator Screw L-G-4J00415D
...
S18
Refrigerator Screw L-G-4J00415D
...
S19
Refrigerator Screw L-G-4J00415D
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Rear Handle L-G-3650JA2061W
...
103C
Cover,lower L-G-3550JJ0008L
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Refrigerator Leg Assembly L-G-4779JJ2001B
...
120A
Duct Assembly,multi L-G-5209JJ1009D
...
120B
Refrigerator Multi Duct L-G-5208JA1156A
...
135D
Refrigerator Cover Assembly L-G-3551JJ2028A
...
145A
Refrigerator Shelf Support L-G-4930JA2080C
...
145B
Refrigerator Shelf Holder L-G-4930JA2081C
...
152B
Refrigerator Temperature Sensor Cover L-G-MCK39131501
...
158A
Cover,lamp L-G-3550JJ1070B
...
158B
Refrigerator Light Cover L-G-3550JA1386B
...
207A
Refrigerator Door Hinge Cover, Left L-G-3550JJ1097Q
...
207B
Refrigerator Door Hinge Cover, Right L-G-3550JJ1097R
...
207C
Decor Assembly,case L-G-3806JA2146E
...
249C
Holder,rail L-G-4930JA1066A
...
249D
Holder,rail L-G-4930JA1066B
...
262B
Refrigerator Door Hinge L-G-4775JJ2017P
...
262H
Refrigerator Door Hinge L-G-4775JJ2017R
...
271A
Refrigerator Door Hinge, Upper Left L-G-4775JJ2014B
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271C
Refrigerator Door Hinge, Upper Right L-G-4775JJ2014A
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282F
Decor,duct L-G-3806JL1037C
...
282G
Refrigerator Duct Cap L-G-5006JA3111A
...
283B
Refrigerator Hinge, Left L-G-4774JJ3002A
...
300A
Refrigerator Compressor L-G-TCA31748001
...
301A
Refrigerator Evaporator L-G-5421JJ1003B
...
303A
Thermistor Assembly,ptc L-G-EBG31940225
...
303B
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
303C
Refrigerator Compressor Overload Protector L-G-6750C-0004R
...
303D
Refrigerator Drawing Assembly L-G-6877JB2051F
...
304A
Cover,p.t. L-G-3550JA2158A
...
310B
Pipe,joint L-G-5201JJ1010N
...
312A
Refrigerator Compressor Rubber Mounting Damper L-G-5040JA3071A
...
313A
Refrigerator Shelf Support Rail L-G-3551JJ2018A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-3103JJ1001H
...
315B
Refrigerator Roller L-G-4580JJ3001A
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003B
...
317A
Refrigerator Filter Dryer L-G-5851JA2008R
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Tray,drip L-G-3390JA0040A
...
319C
Guide,fan L-G-4974JJ1036A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1004B
...
327A
Refrigerator Damping L-G-5040JA3056A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Fan Assembly L-G-5901JA1013A
...
329C
Grille,fan L-G-3530JA0034A
...
332C
Grille Assembly,fan L-G-AEB34270101
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005H
...
402A
Refrigerator Light Switch L-G-6600JB3007B
...
404A
Motor,dc L-G-4681JK1004E
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406A
Holder,bracket L-G-4930JA1073A
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
406D
Refrigerator Door Pivot Block L-G-4931JA3006A
...
407A
Duct Assembly,connector L-G-5209JA1044A
...
407B
Refrigerator Bracket L-G-4810JJ0003A
...
408A
Refrigerator Defrost Heater L-G-5300JK1005D
...
409B
Refrigerator Light Bulb L-G-6912JB2004K
...
409D
Refrigerator Light Housing L-G-3034JA1009A
...
410A
Refrigerator Lamp Socket L-G-EAG40099101
...
410G
Capacitor,electric Appliance Film,radial L-G-0CZZJB2012K
...
410J
Case Assembly,pcb L-G-3111JB1017J
...
411A
Power Cord Assembly L-G-6411JB1042L
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly,main L-G-EBR34917102
...
501F
Refrigerator Power Control Board Cover L-G-3551JA2144C
...
503D
Refrigerator Light Housing L-G-3110JJ1014A
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JA2247A
...
610B
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610C
Sensor Module L-G-6500JB2002B
...
624A
Refrigerator Water Filter L-G-5231JA2006A
...
624C
Refrigerator Filter Cover L-G-3550JD1128C
...
624D
Refrigerator Water Filter Head L-G-5230JA2003A
...
626A
Refrigerator Water Filter Cover L-G-3550JA2279A

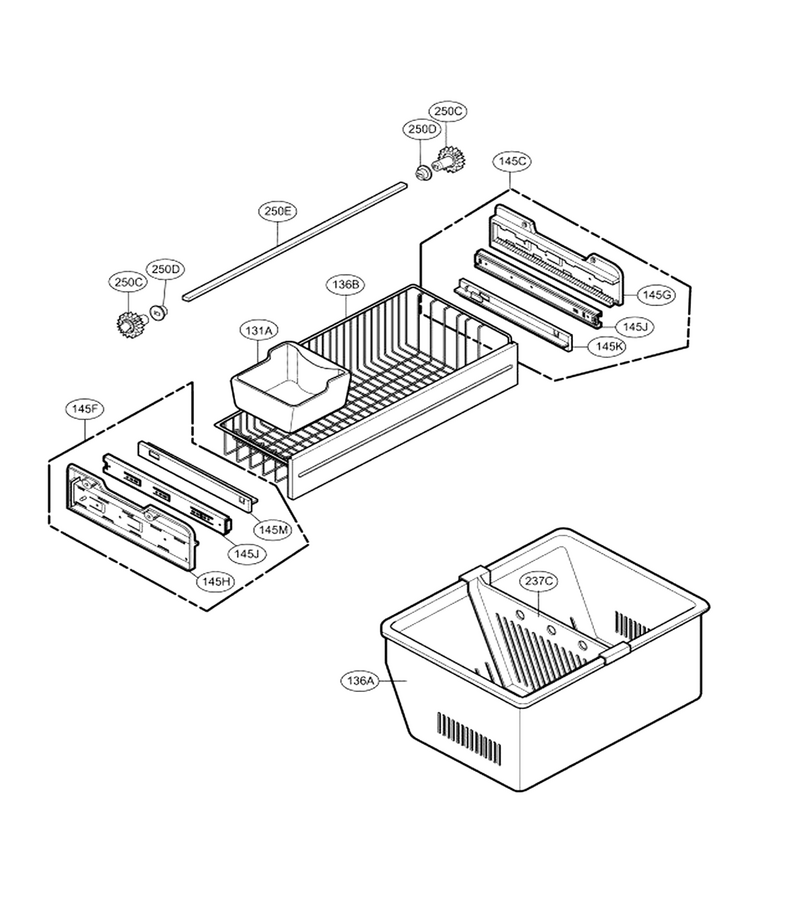

Freezer Parts

...
...
131A
Bucket,ice L-G-5074JA2004A
...
136A
Refrigerator Freezer Drawer Assembly L-G-3391JJ2011B
...
136B
Tray Assembly,drawer L-G-3391JA2054A
...
145C
Guide Assembly,rail L-G-4975JA1040F
...
145F
Guide Assembly,rail L-G-4975JA1040E
...
145G
Guide,rail L-G-4974JA1154B
...
145H
Guide,rail L-G-4974JA1154A
...
145J
Rail,slide L-G-5218JA1008B
...
145K
Connector,rail L-G-4932JA1009B
...
145M
Connector,rail L-G-4932JA1009A
...
237C
Refrigerator Freezer Drawer Divider L-G-4974JJ1031A
...
250C
Gear,ice L-G-4470JA2008A
...
250D
Cap,cover L-G-5006JA2069A
...
250E
Bar L-G-MAK36519001

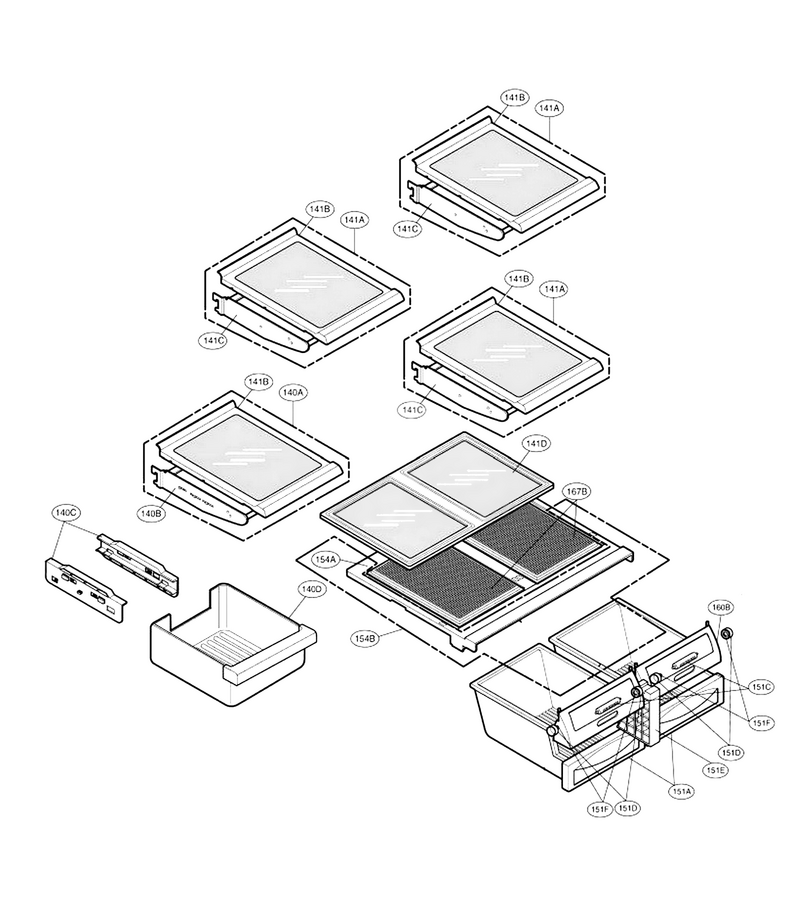

Refrigerator Parts

...
...
140A
Shelf Assembly,refrigerator L-G-5027JJ2014F
...
140B
Shelf Assembly,net L-G-5027JJ2012D
...
140C
Guide Assembly,rail L-G-4975JA2028A
...
140D
Tray Assembly,meat L-G-3391JA2055A
...
141A
Refrigerator Shelf L-G-5027JJ2014H
...
141B
Shelf-R L-G-5026JJ1050A
...
141C
Refrigerator Glass Shelf L-G-5027JJ2012F
...
141D
Refrigerator Crisper Cover Glass L-G-4890JD1072C
...
151A
Refrigerator Crisper Drawer L-G-3391JJ2012D
...
151C
Knob,shutter L-G-4940JA2026D
...
151D
Refrigerator Crisper Drawer Roller L-G-4580JA3042A
...
151E
Refrigerator Shelf Support L-G-4980JA2092A
...
151F
Refrigerator Screw L-G-1SZZJA3011B
...
154A
Cover,tv L-G-3550JA0106A
...
154B
Cover Assembly,tv L-G-3551JJ2020C
...
160B
Cover Assembly,tray L-G-3551JJ2019D
...
167B
Refrigerator Crisper Drawer Cover Insert L-G-3550JJ1069A

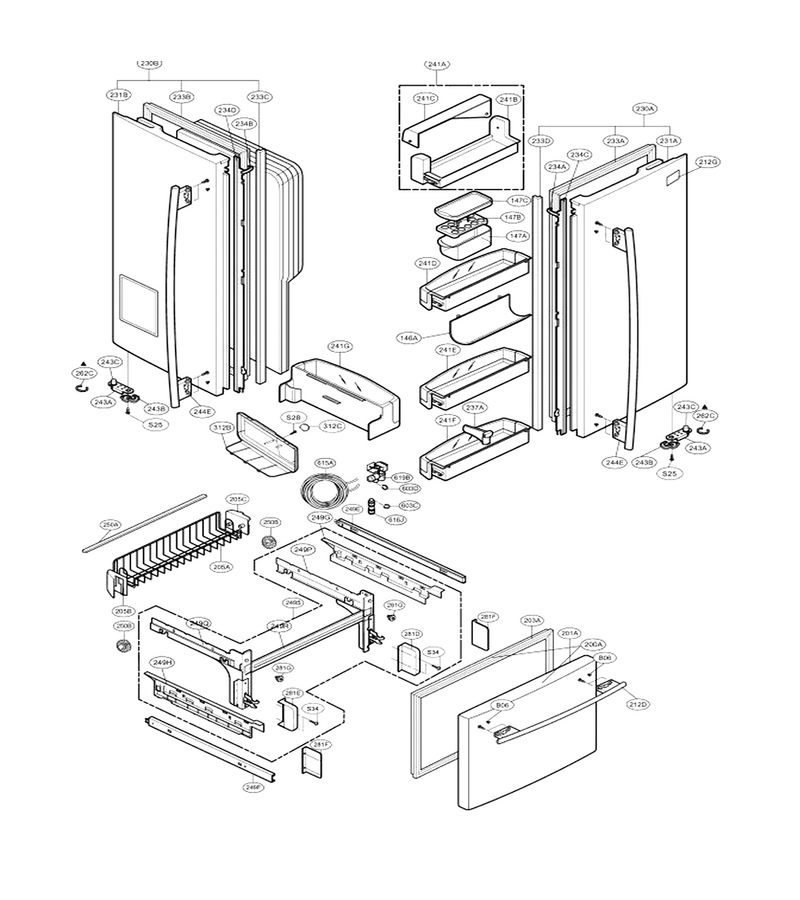

Door Parts

...
...
B06
Refrigerator Screw L-G-1SBZJA3004L
...
S25
Refrigerator Door Stop Bushing Screw L-G-1SZZJA3011D
...
S28
Screw,customized L-G-4J01425F
...
S34
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
146A
Refrigerator Wine Rack L-G-J469-00030A
...
147A
Refrigerator Dairy Bin L-G-5074JJ1016A
...
147B
Refrigerator Egg Tray L-G-3390JJ1082A
...
147C
Refrigerator Dairy Bin Cover L-G-3550JJ1084A
...
200A
Door Assembly,freezer L-G-3581JA8820B
...
201A
Door Foam Assembly,freezer L-G-5433JA8558G
...
203A
Refrigerator Freezer Door Gasket L-G-MDS38201401
...
205A
Refrigerator Freezer Door Bin L-G-5004JJ1061B
...
205B
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JA2017A
...
205C
Refrigerator Door Hinge L-G-5004JA2017B
...
212D
Handle Assembly,freezer L-G-3651JA1033C
...
212G
Name Plate L-G-3846JD1007Q
...
230A
Door Assembly,refrigerator(right) L-G-3581JA8814C
...
230B
Door Assembly,refrigerator(left) L-G-3581JA8815C
...
231A
Door Foam Assembly,refrigerator L-G-5433JA8560C
...
231B
Door Foam Assembly,refrigerator L-G-5433JA8561C
...
233A
Gasket Assembly,door L-G-4987JJ2002N
...
233B
Gasket Assembly,door L-G-4987JJ2002P
...
233C
Refrigerator Flipper Seal, Left L-G-3551JJ2030B
...
233D
Refrigerator Flipper Seal, Right L-G-3551JJ2030A
...
234A
Refrigerator Door Cam Latch, Right L-G-4430JJ2004A
...
234B
Refrigerator Door Cam Latch, Left L-G-4430JJ2004B
...
234C
Refrigerator Flipper Seal Frame L-G-4931JJ2002C
...
234D
Refrigerator Flipper Seal Frame L-G-4931JJ2002D
...
237A
Refrigerator Guide L-G-4974JA2055A
...
241A
Basket Assembly,door L-G-5005JJ2015A
...
241B
Refrigerator Door Bin L-G-5004JJ1057A
...
241C
Refrigerator Door Bin Cover L-G-5004JL1006A
...
241D
Basket Assembly,door L-G-5005JJ2014J
...
241E
Refrigerator Door Bin L-G-5005JJ2014G
...
241F
Door Assembly,freezer L-G-5005JJ2014H
...
241G
Basket Assembly,door L-G-5005JA2071B
...
243A
Refrigerator Door Stop L-G-4620JJ3006D
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
243C
Refrigerator Hinge Bushing L-G-J326-00012A
...
244E
Handle Assembly,freezer L-G-3651JA1023P
...
249G
Cover,connector L-G-3550JA1455C
...
249H
Cover,connector L-G-3550JA1455D
...
249P
Connector Assembly L-G-ACJ36625802
...
249Q
Connector Assembly L-G-ACJ36625801
...
249R
Refrigerator Freezer Drawer Frame L-G-4932JJ2009B
...
249S
Connector Assembly L-G-ACJ36695101
...
250A
Refrigerator Freezer Drawer Gear Support Bar L-G-MAK39123901
...
250B
Connector Assembly L-G-4403JA3005A
...
262C
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
281D
Refrigerator Hinge Cover L-G-3550JA2267B
...
281E
Refrigerator Freezer Door Hinge Cover, Left L-G-3550JA2267A
...
281F
Refrigerator Freezer Door Hinge Cover L-G-3550JA2264A
...
281G
Refrigerator Freezer Drawer Frame Bumper L-G-5040JA3075A
...
312B
Refrigerator Cover L-G-3550JJ1071A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603D
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
615A
Tank,water L-G-4838JA2003A
...
616J
Refrigerator Water Tubing L-G-5210JA3005G
...
619B
Valve Assembly,water L-G-5220JB2008A

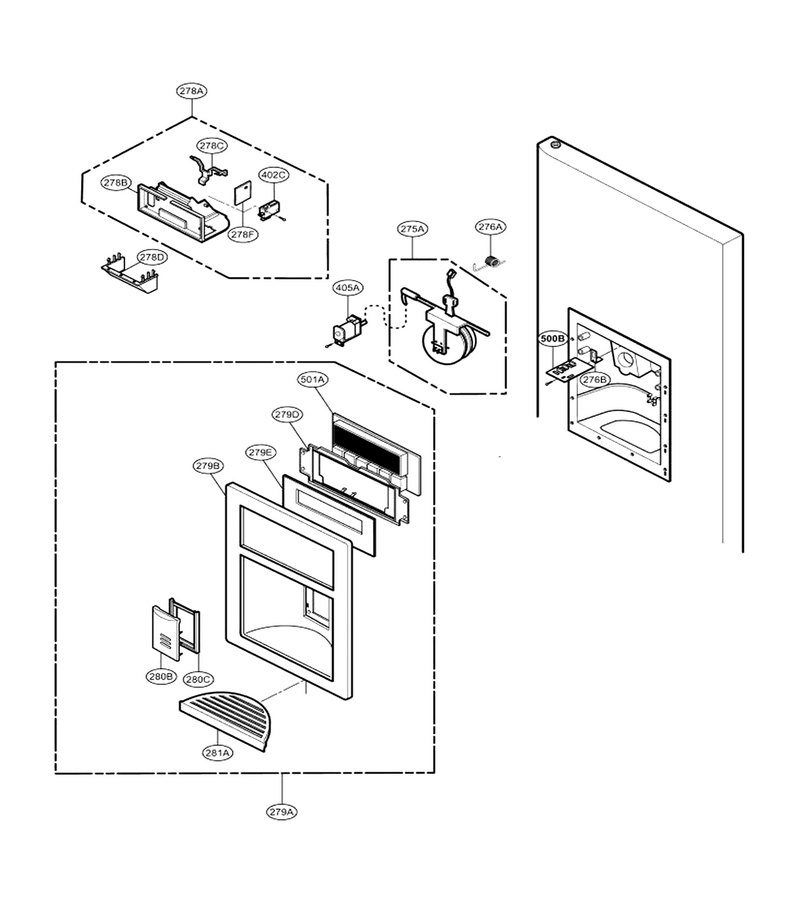

Dispenser Parts

...
...
275A
Refrigerator Dispenser Ice Chute Door L-G-5007JA3006R
...
276A
Refrigerator Spring L-G-4970JA3011C
...
276B
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
278A
Funnel Assembly L-G-3017JA2008B
...
278B
Frame,funnel L-G-3210JA1072B
...
278C
Refrigerator Dispenser Lever L-G-4510JA2022A
...
278D
Funnel L-G-3016JA2004E
...
278F
Refrigerator Dispenser Display Control Board As... L-G-6871JB2074A
...
279A
Cover Assembly,dispenser L-G-3551JA1132G
...
279B
Cover,dispenser L-G-3550JA1443B
...
279D
Cover,pcb L-G-3550JA2302A
...
279E
Decor,glass Door L-G-4890JD1111B
...
280B
Refrigerator Holder L-G-4930JA2074B
...
280C
Refrigerator Dispenser Lever L-G-5020JA2040E
...
281A
Decor,drain L-G-3806JA2118B
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001E
...
405A
Refrigerator Dispenser Ice Chute Door Solenoid L-G-6421JB2002L
...
500B
Solenoid,reversing,valve L-G-6421JB2002P
...
501A
Ckd Assembly L-G-ABY72971503

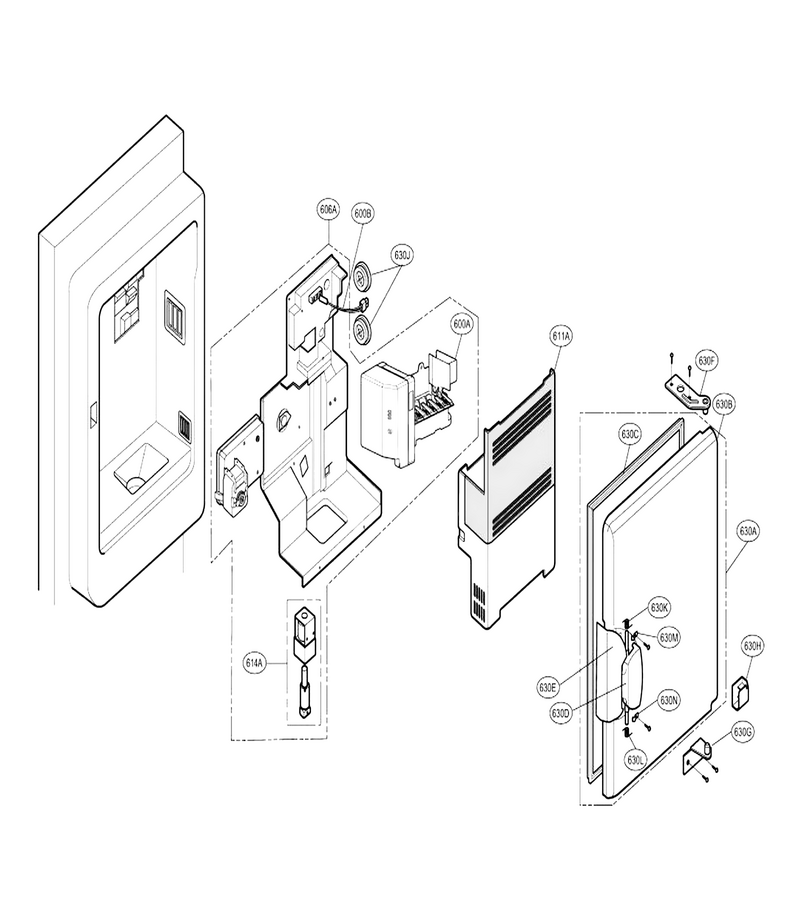

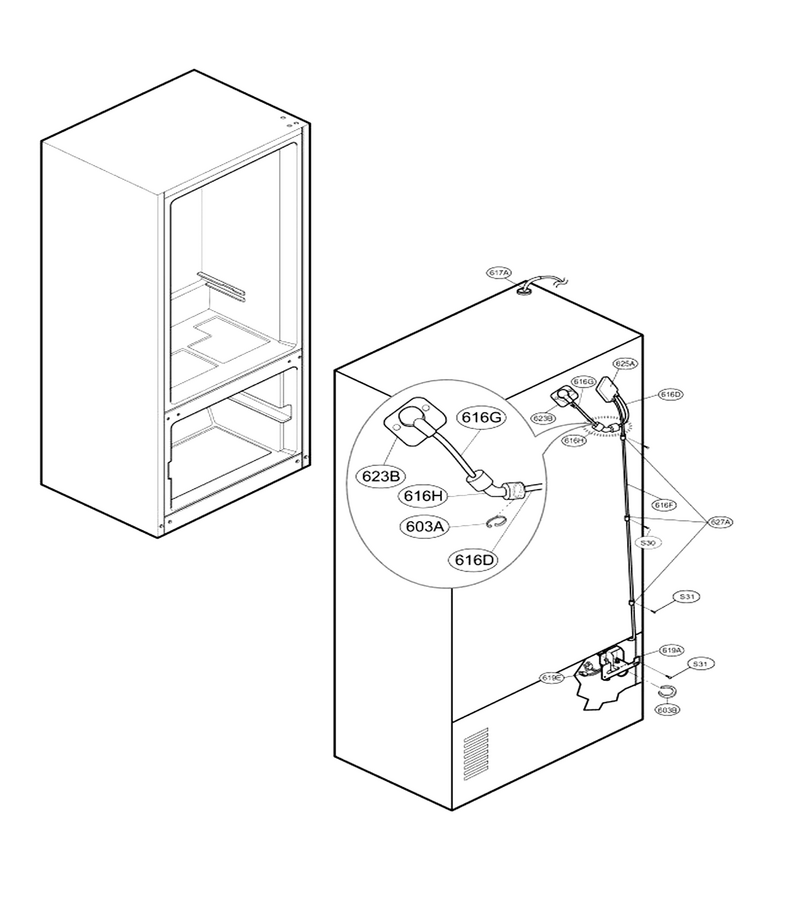

Ice And Icemaker Parts

...
...
S30
Screw,customized L-G-1SZZJJ3001B
...
S31
Refrigerator Screw L-G-4J00415D
...
603A
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603B
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
616D
Refrigerator Water Tubing L-G-5210JA3005L
...
616F
Refrigerator Water Tubing L-G-5210JA3004U
...
616G
Tube,plastic L-G-5210JA3005W
...
616H
Refrigerator Water Tube Fitting L-G-4932JA3009A
...
617A
Refrigerator Spring L-G-4970JA3004N
...
619A
Refrigerator Water Inlet Valve L-G-5221JA2011J
...
619E
Refrigerator Water Inlet Valve Wire Harness L-G-6877JB3036V
...
623B
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Clamp L-G-4930JA3054A

Ice Bin Parts

...
...
600A
Refrigerator Ice Maker Kit L-G-AEQ36756901
...
600B
Refrigerator Temperature Sensor L-G-6500JB1008A
...
606A
Refrigerator Ice Maker And Shelf L-G-4681JA1006K
...
611A
Bucket Assembly,ice L-G-5075JA1044D
...
614A
Refrigerator Ice Dispenser Solenoid L-G-6421JA3001N
...
630A
Door Assembly,freeze Room L-G-3581JA1182A
...
630B
Door Foam Assembly,home Bar L-G-5433JA2071A
...
630C
Gasket Assembly,door L-G-4987JA2012A
...
630D
Handle,home Bar L-G-3650JD1160A
...
630E
Decor,handle L-G-3806JA2119A
...
630F
Refrigerator Hinge L-G-4775JA2101A
...
630G
Hinge Assembly, Lower L-G-4775JA2102A
...
630H
Cover,home Bar L-G-3550JA3188A
...
630J
Gasket Assembly,door L-G-4987JA3025J
...
630K
Refrigerator Spring L-G-4970JA3044A
...
630L
Refrigerator Spring L-G-4970JA3045A
...
630M
Refrigerator Ice Room Door Handle Clamp L-G-4860JA3010A
...
630N
Refrigerator Ice Room Door Handle Clamp L-G-4860JA3010B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
