product name

LG LFCS22520B.AWBCNA0

Model: LFCS22520B.AWBCNA0

Save Part Not Listed?
product name

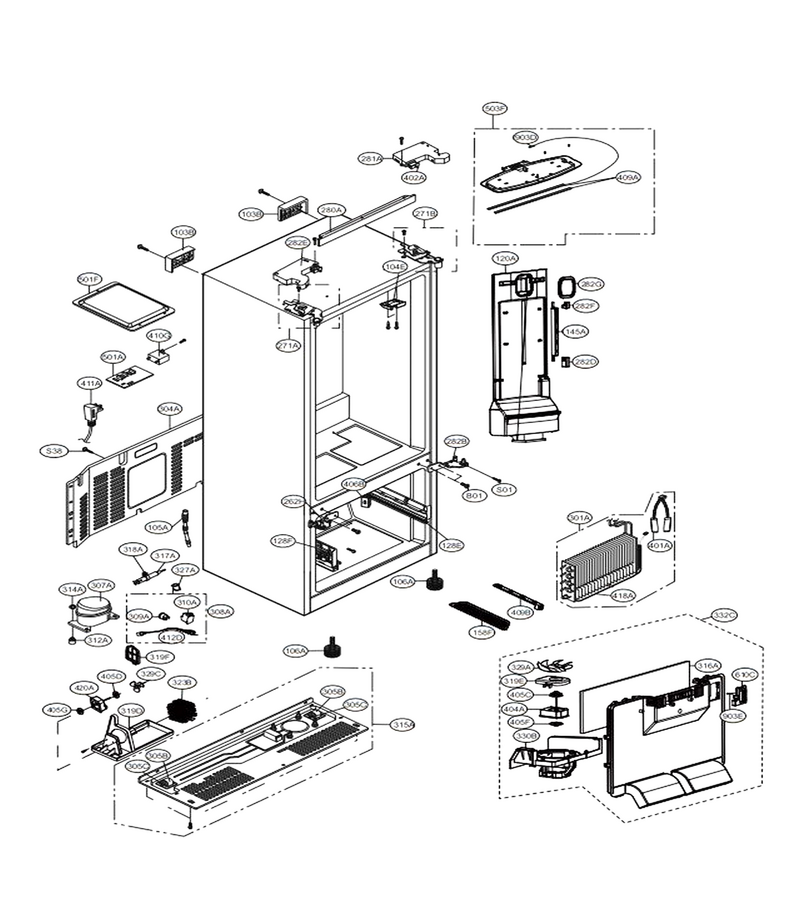

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
158F
Cover,lamp L-G-MCK69348401
...
262H
Hinge Assembly,center L-G-AEH73856223
...
280A
Case Assembly,display L-G-ABQ74110456
...
281A
Cover,hinge L-G-MCK67400404
...
282B
Hinge Assembly,center L-G-AEH73856224
...
282E
Cover,hinge L-G-MCK67400403
...
282G
Decor,cover L-G-MCR65017201
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
309A
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Gasket,foam L-G-MDS65810802
...
318A
Drier Holder L-G-MEG64900401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Condenser Assembly,wire L-G-ACG73766708
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
330B
Shroud,freezer L-G-MHN62322002
...
402A
Refrigerator Door Switch L-G-EBF61314804
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Motor L-G-5040JA2009A
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
409B
Refrigerator Led Light L-G-EAV61652805
...
410G
Refrigerator Run Capacitor L-G-EAE58905704
...
411A
Refrigerator Power Cord L-G-EAD61445206
...
418A
Heater,sheath L-G-5300JB1100R
...
420A
Refrigerator Evaporator Fan Motor L-G-4681JB1029S
...
501A
Refrigerator Electronic Control Board L-G-EBR77042536
...
610C
Cover,sensor L-G-MCK66690301
...
903D
Refrigerator Temperature Sensor L-G-EBD60925804
...
903E
Refrigerator Temperature Sensor L-G-6500JB2002X

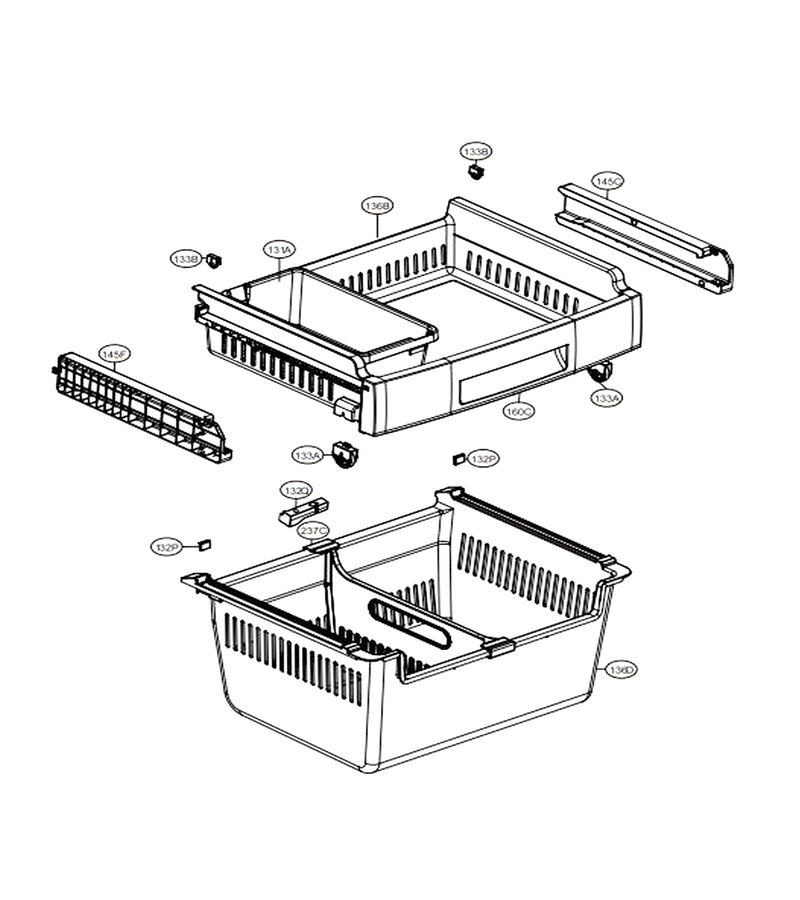

Freezer Parts

...
...
136D
Tray,drawer L-G-MJS62813501

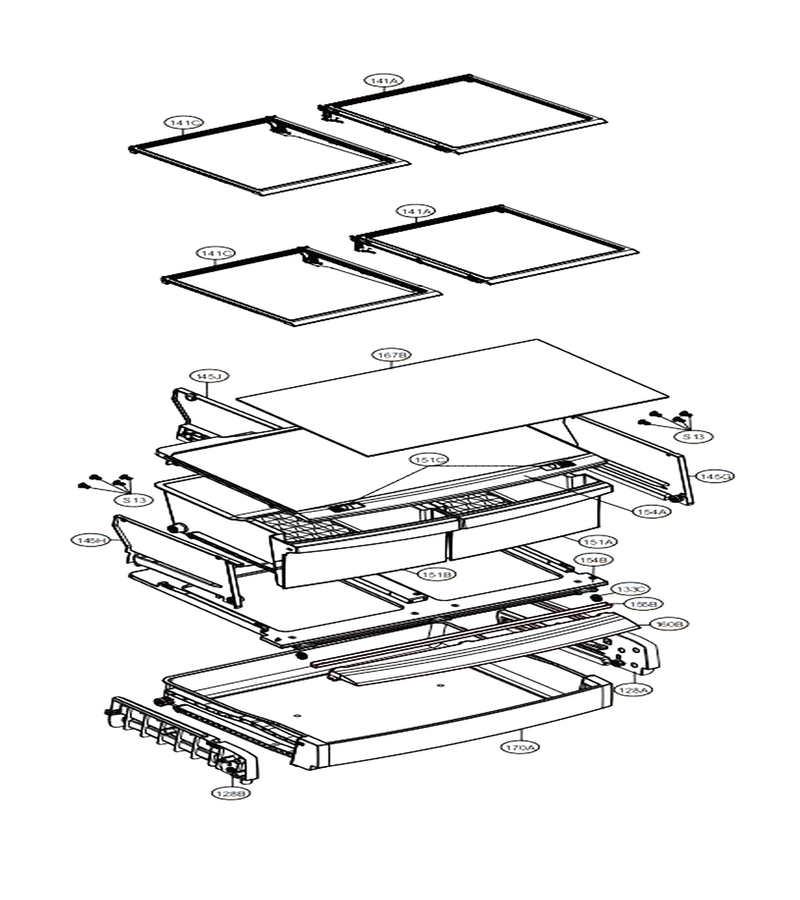

Refrigerator Parts

...
...
S13
Refrigerator Screw L-G-1SBZJA3004L

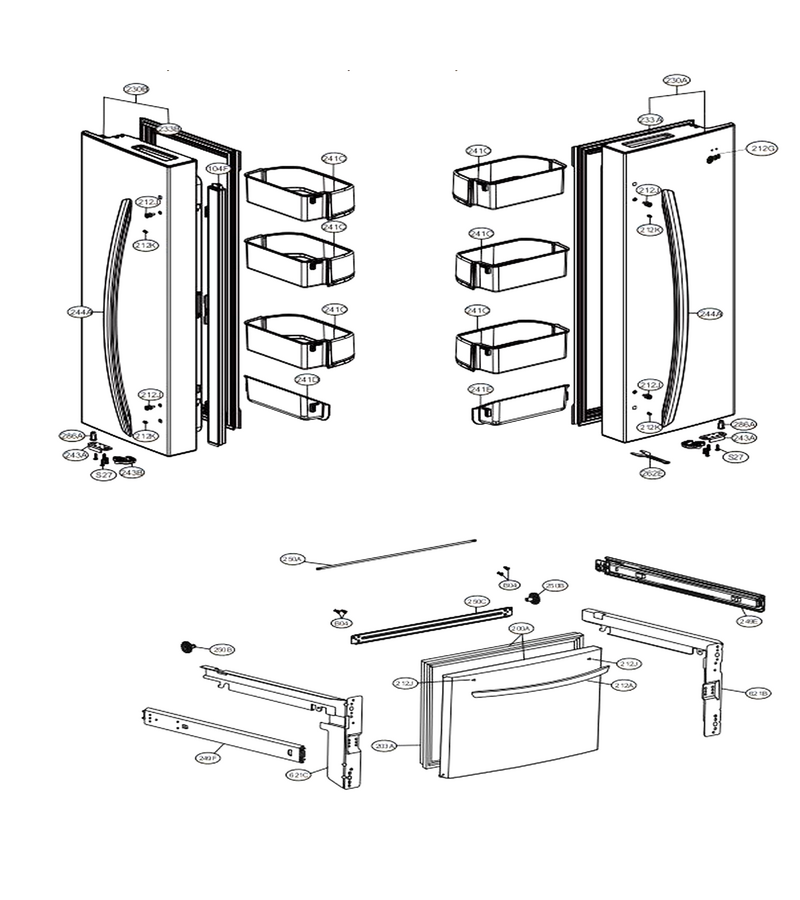

Door Parts

...
...
B04
Laundry Appliance Screw L-G-FAB30025701
...
S27
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
104F
Plate Assembly,front L-G-AGU73767914
...
200A
Door Assembly,freezer L-G-ADC74207357
...
212A
Handle Assembly,freezer L-G-AED37133146
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
212J
Stopper,handle L-G-MJB63190002
...
230A
Door Assembly,refrigerator(right) L-G-ADC52734371
...
230B
Door Assembly,refrigerator(left) L-G-ADC73746441
...
241C
Basket,door L-G-MAN64308401
...
243A
Stopper,door L-G-MJB63010703
...
244A
Refrigerator Door Handle Assembly L-G-AED37082930
...
250A
Bar L-G-4270JJ3001M
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621C
Connector,rail L-G-MCD61841107

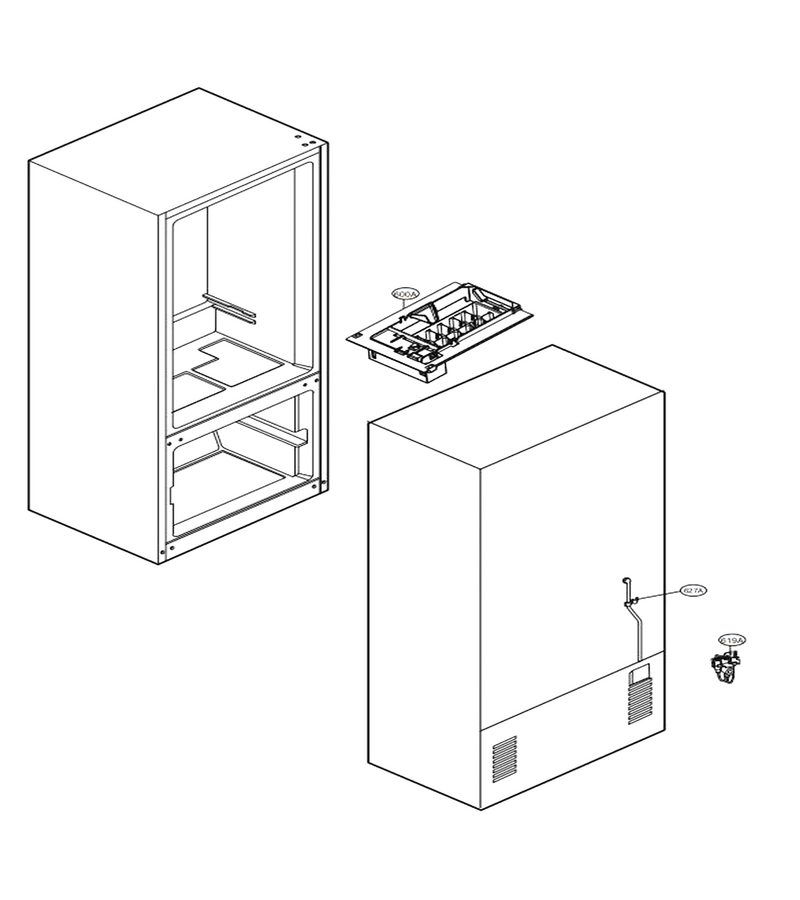

Icemaker Parts

...
...
627A
Refrigerator Water Tubing Holder L-G-4770JA3001A
