LG LFC28768SB.AWBCNA3

Model: LFC28768SB.AWBCNA3

Save Part Not Listed?
product name

Case Parts

...
...
B01
Screw,customized L-G-1SZZJQ3009A
...
B02
Screw,customized L-G-1SZZJQ3002R
...
S08
Refrigerator Screw L-G-1SZZJQ2002A
...
103A
Refrigerator Rear Handle L-G-3650JA2061T
...
103B
Refrigerator Rear Handle L-G-3650JA2061S
...
103C
Cover Assembly,lower L-G-ACQ85891308
...
105A
Tube Assembly L-G-AJR74125001
...
106A
Refrig Leg L-G-AFC73349801
...
120A
Refrigerator Air Duct L-G-ADJ73592106
...
120B
Duct Insulation L-G-MCZ62713001
...
145A
Refrigerator Shelf Holder L-G-MEG63100001
...
145B
Refrigerator Shelf Holder L-G-MEG63060501
...
158A
Refrigerator Lamp Cover L-G-MCK67153601
...
158B
Cover,lamp L-G-EBR77033103
...
207A
Cover,hinge L-G-MCK68187602
...
207B
Cover,hinge L-G-MCK68412401
...
207C
Case Assembly,display L-G-ABQ74229101
...
249C
Refrigerator Freezer Drawer Slide Rail, Right L-G-MEG63342502
...
249D
Refrigerator Holder Rail L-G-MEG63342501
...
250F
Harness Assembly L-G-EAD62469101
...
262B
Refrigerator Door Center Hinge L-G-AEH73577637
...
262H
Refrigerator Center Hinge Assembly L-G-AEH73577638
...
271B
Refrigerator Door Hinge, Upper L-G-AEH74216502
...
271D
Refrigerator Hinge Assembly, Upper L-G-AEH74216501
...
282F
Refrigerator Duct Cap L-G-MBL61865401
...
282G
Refrigerator Duct Cap L-G-MBL61865301
...
300A
Compressor,set Assembly L-G-TCA35893202
...
302B
Evaporator Assembly L-G-ADL73762004
...
303A
Thermistor Assembly,ptc L-G-EBG61486613
...
303C
Refrigerator Overload Protector L-G-6750CL0001C
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
309B
Refrigerator Damper Motor L-G-MCQ65884301
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
312C
Drain Tray Assembly L-G-AJP73574401
...
313A
Refrigerator Machine Compartment Cover L-G-ACQ85930901
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Base Assembly L-G-AAN74109204
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Pin L-G-1PZZJQ3018D
...
316A
Restrainer L-G-5072JQ3002B
...
316B
Damper,noise L-G-5072JQ3002F
...
317A
Refrigerator Filter Dryer L-G-ADH69749103
...
318A
Drier Holder L-G-4930JQ3020F
...
319A
Refrigerator Defrost Drain Pan L-G-MJS62591901
...
319C
Refrigerator Fan Guide L-G-MEA63170401
...
323B
Refrigerator Condenser Coil L-G-ACG73784701
...
329A
Fan Assembly L-G-ADP73713301
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Grille Assembly,fan L-G-AEB73764505
...
402A
Switch,magnet L-G-EBF62234501
...
404A
Motor,dc L-G-EAU61524002
...
405C
Refrigerator Evaporator Fan Motor Grommet L-G-5040JQ2002B
...
405F
Refrigerator Damper Motor L-G-5040JQ2003B
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-3550JA2273A
...
405P
Refrigerator Freezer Shroud L-G-MHN62442001
...
406B
Refrigerator Push Button Switch L-G-6600JR1002L
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
409D
Refrigerator Led Assembly L-G-EAV61873612
...
409E
Cover,lamp L-G-MCK68069401
...
410G
Refrigerator Capacitor L-G-EAE32501010
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly,main L-G-EBR74796477
...
501F
Refrigerator Power Control Board Cover L-G-ACQ86388101
...
503A
Decor,control L-G-MCR63407301
...
503C
Pcb Assembly,display L-G-EBR42479321
...
503D
Refrigerator Decorative Cover L-G-MCR64776601
...
503E
Cover Assy,l L-G-ACQ86133501
...
503F
Cover Assembly,lamp L-G-ACQ87128801
...
503G
Refrigerator Control Decor L-G-MCR64788601
...
610E
Refrigerator Temperature Sensor L-G-6500JB2002X
...
610F
Refrigerator Temperature Sensor L-G-EBR71326801

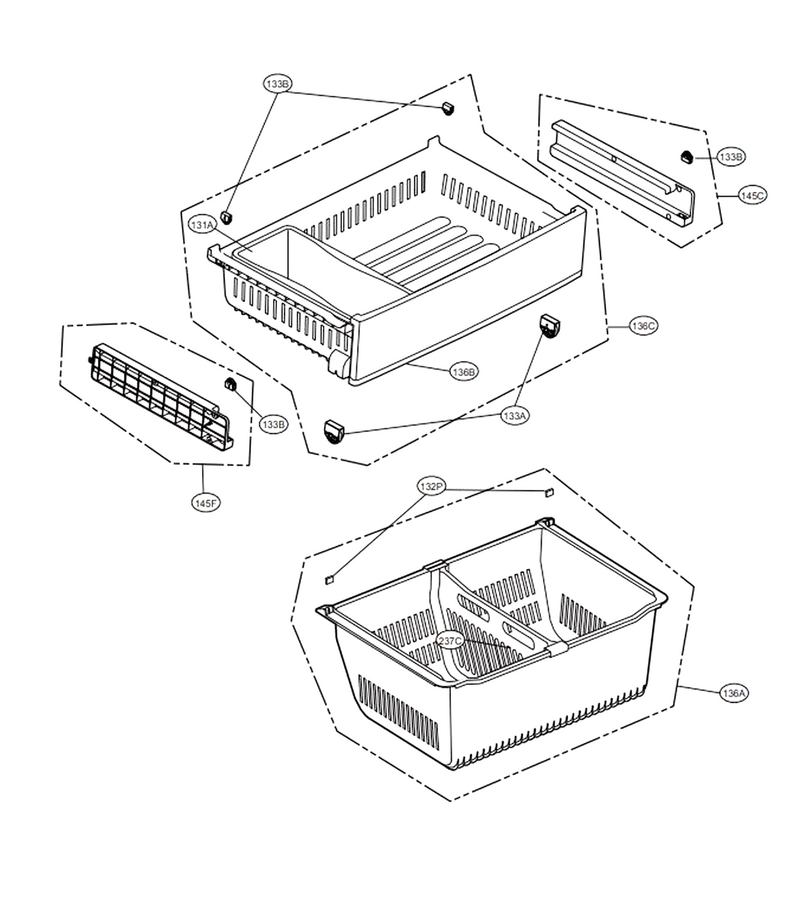

Freezer Parts

...
...
131A
Refrigerator Ice Bin L-G-MJS62591801
...
132P
Refrigerator Cap L-G-MBL65277501
...
133A
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73329901
...
133B
Home Electronics Roller Assembly L-G-AHJ73349901
...
136A
Refrigerator Freezer Drawer Assembly L-G-AJP73594401
...
136B
Refrigerator Drawer Tray Assembly L-G-AJP73574504
...
136C
Refrigerator Freezer Drawer Bin L-G-AJP73594506
...
145C
Refrigerator Freezer Basket Slide Rail, Right L-G-AEC73617602
...
145F
Refrigerator Freezer Drawer Slide Rail, Left L-G-AEC73617601
...
237C
Refrigerator Pantry Drawer Divider L-G-MEA61842101

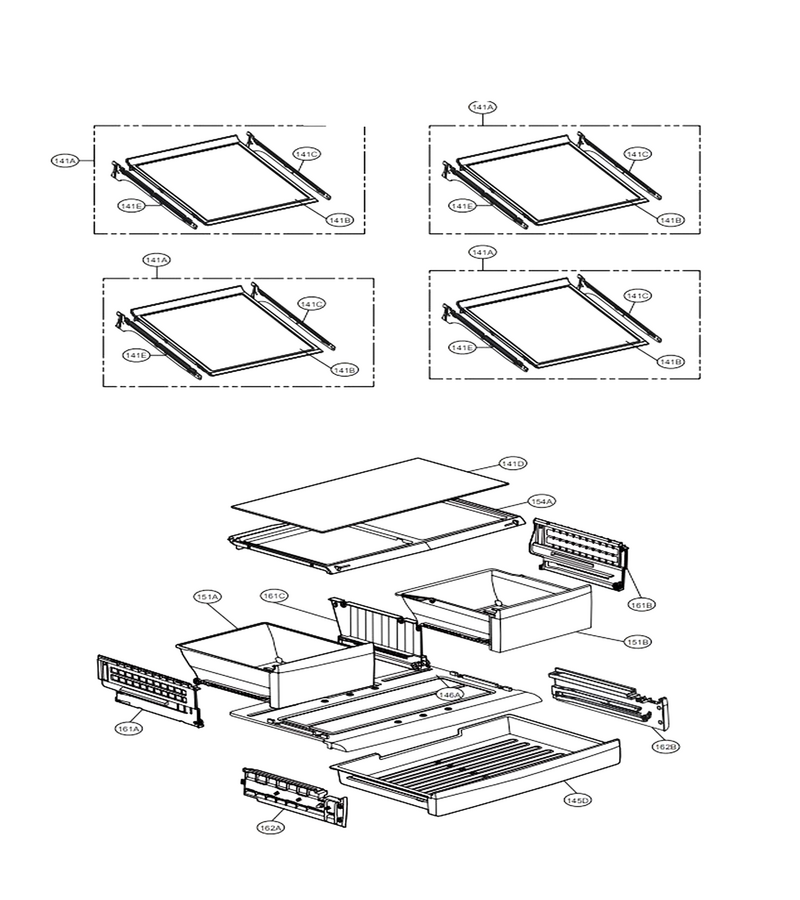

Refrigerator Parts

...
...
141A
Refrigerator Shelf L-G-AHT73554101
...
141B
Refrigerator Shelf L-G-MHL62551801
...
141C
Shelf,net L-G-MHL62832902
...
141D
Refrigerator Glass Shelf L-G-MHL62691504
...
141E
Shelf,net L-G-MHL62832901
...
145D
Tray Assembly L-G-AJP73574805
...
146A
Cover Assembly,tray L-G-ACQ85891502
...
151A
Refrigerator Crisper Drawer, Left L-G-AJP73694502
...
151B
Refrigerator Crisper Drawer, Right L-G-AJP73694501
...
154A
Cover,deli L-G-ACQ85891605
...
161A
Refrigerator Crisper Drawer Track, Left L-G-AEC73637501
...
161B
Refrigerator Drawer Slide Rail L-G-AEC73637502
...
161C
Refrigerator Rail Guide Assembly L-G-AEC73637401
...
162A
Refrigerator Drawer Slide Rail L-G-AEC73597502
...
162B
Rail Guide Assembly L-G-AEC73597503

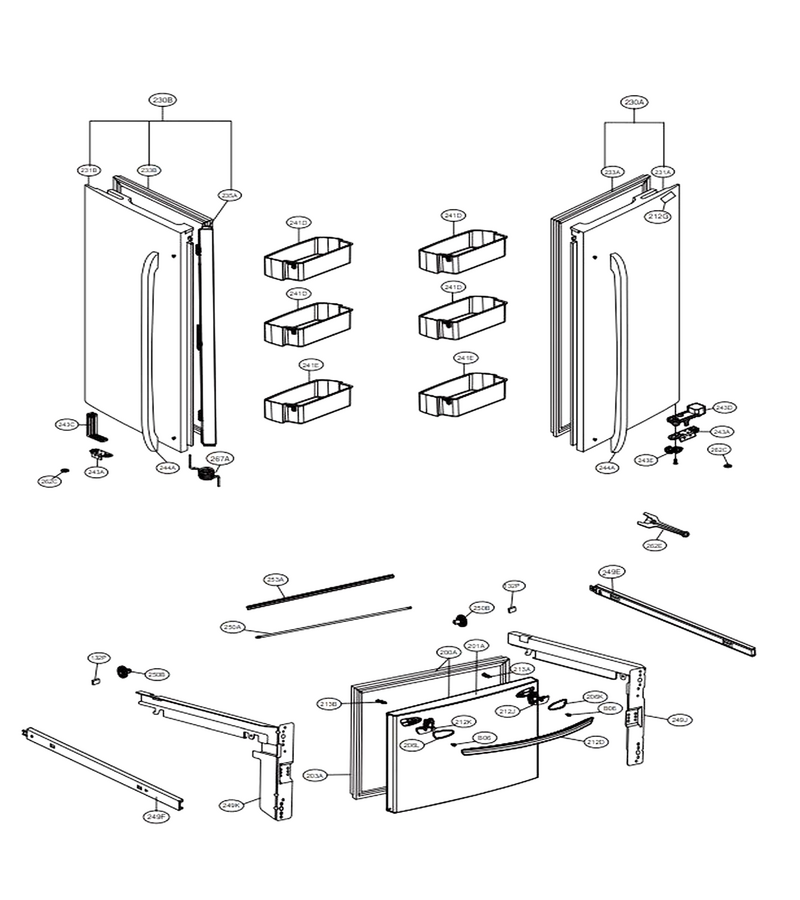

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
132P
Refrigerator Cap L-G-MBL65277501
...
200A
Door Assembly,freezer L-G-ADC73928111
...
201A
Door Foam Assembly,freezer L-G-ADD73719007
...
203A
Gasket,door L-G-MDS64172922
...
206K
Decor,handle L-G-MCR64995703
...
206L
Decor,handle L-G-MCR64995704
...
212D
Handle Assembly,freezer L-G-AED73593103
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
212J
Bracket Assembly,handle L-G-ABA74231701
...
212K
Bracket Assembly,handle L-G-ABA74231702
...
213A
Slider L-G-MHS62002201
...
213B
Slider L-G-MHS62002202
...
230A
Door Assembly,refrigerator(right) L-G-ADC73905655
...
230B
Door Assembly,refrigerator(left) L-G-ADC73886074
...
231A
Door Foam Assembly,refrigerator L-G-ADD73656045
...
231B
Door Foam Assembly,refrigerator L-G-ADD73695847
...
233A
Gasket Assembly,door L-G-ADX73550627
...
233B
Gasket Assembly,door L-G-ADX73550628
...
235A
Plate Assembly,front L-G-AGU74110903
...
241D
Refrigerator Door Bin L-G-AAP73631502
...
241E
Refrigerator Door Bin L-G-AAP73631602
...
243A
Stopper Assembly,door L-G-AJC73112304
...
243C
Hinge Assembly,center L-G-AEH36821905
...
243D
Refrigerator Hinge Cam L-G-MBJ62121901
...
243E
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Handle Assembly,refrigerator L-G-AED73593203
...
249E
Refrigerator Freezer Drawer Slide Rail, Right L-G-MGT61844003
...
249F
Refrigerator Freezer Drawer Slide Rail, Left L-G-MGT61844004
...
249J
Connector,rail L-G-MCD62466801
...
249K
Connector,rail L-G-MCD62466802
...
250A
Refrigerator Bar L-G-MAK62627101
...
250B
Refrigerator Ice Gear L-G-MDT62627101
...
253A
Support Cover L-G-MJH62755901
...
262C
Refrigerator Ring L-G-MGZ62766901
...
262E
Refrigerator Spanner L-G-MHU61981201
...
267A
Refrigerator Spring L-G-MHY62044106

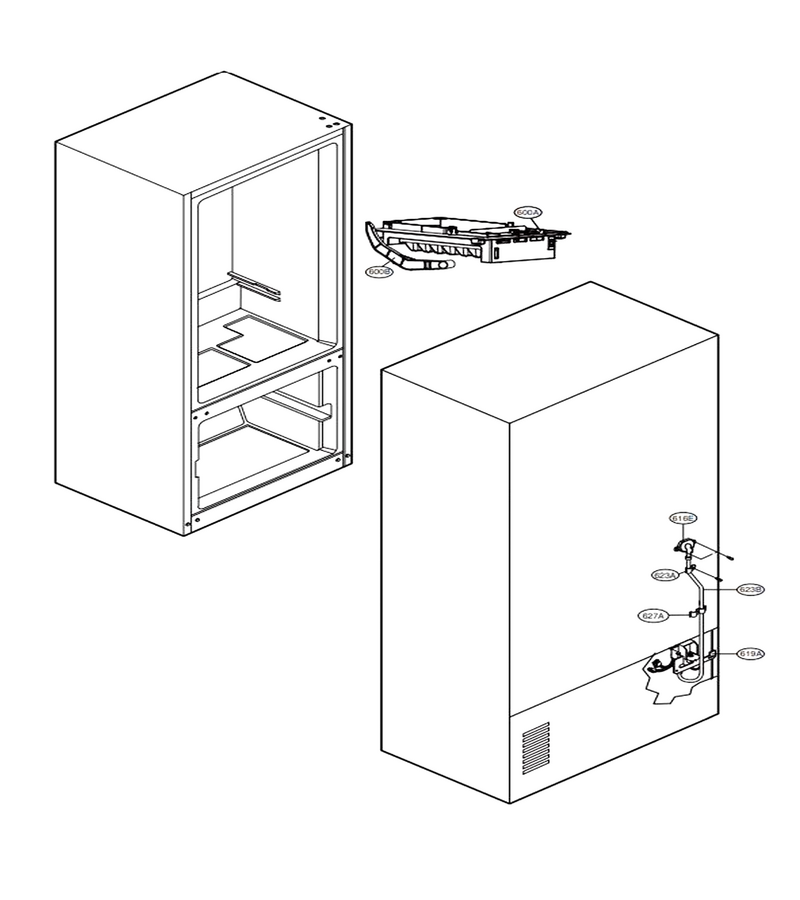

Water And Ice Maker Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ72909604
...
600B
Refrigerator Ice Maker Shut-Off Arm L-G-4510JA3003D
...
616E
Refrigerator Temperature Sensor L-G-6500JB2002X
...
619A
Refrigerator Water Inlet Valve L-G-5220JB2010A
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623B
Refrigerator Water Tubing L-G-MJU39256404
...
627A
Holder Pipe L-G-MEG63263001
