LG LFC25776SB.AWBCNA0

Model: LFC25776SB.AWBCNA0

Save Part Not Listed?
product name

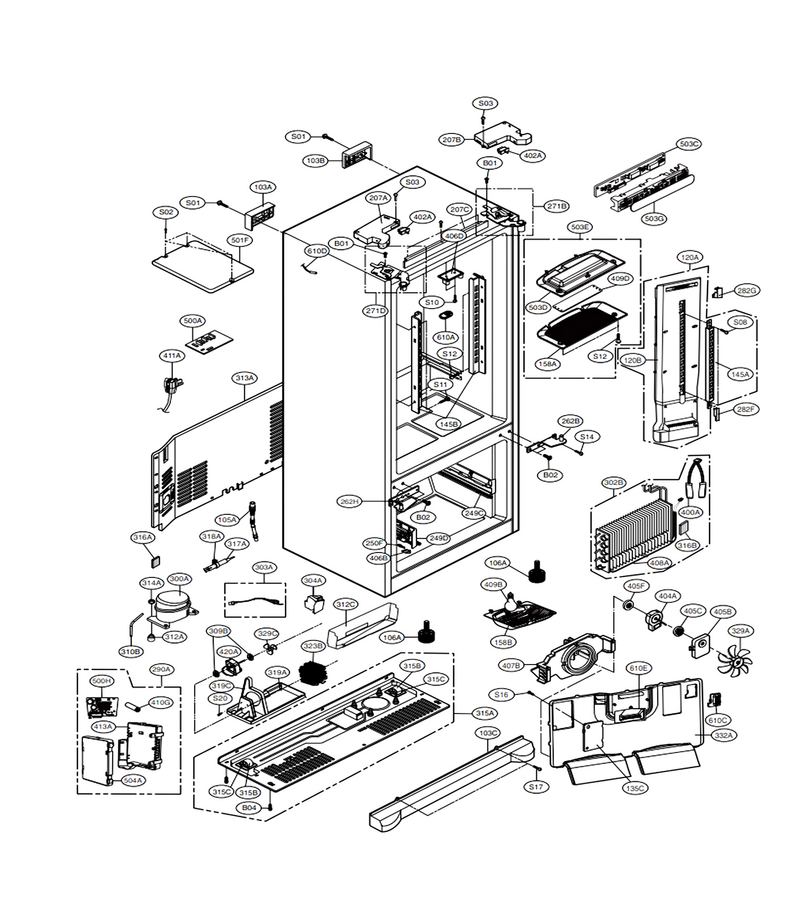

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004Q
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S01
Refrigerator Screw L-G-4J00415D
...
S02
Refrigerator Screw L-G-4J00415D
...
S03
Refrigerator Screw L-G-4J00415D
...
S08
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
S10
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S12
Refrigerator Screw L-G-1SZZJJ3003D
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010D
...
S16
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S17
Refrigerator Screw L-G-4J00415D
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Refrigerator Handle L-G-3650JA2113N
...
103B
Refrigerator Handle L-G-3650JA2113P
...
103C
Cover Assembly L-G-ACQ55957511
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Refrigerator Duct Assembly L-G-ADJ36702007
...
120B
Refrigerator Multi Duct L-G-MCZ42230901
...
135C
Refrigerator Grille Cover L-G-3550JA2263B
...
145A
Refrigerator Shelf Support L-G-4930JA2080C
...
145B
Refrigerator Shelf Holder L-G-4930JA2081C
...
158A
Refrigerator Light Cover L-G-MCK38019301
...
158B
Refrigerator Light Cover L-G-MCK62375001
...
207A
Refrigerator Door Hinge Cover, Left L-G-3550JJ1097E
...
207B
Refrigerator Door Hinge Cover, Right L-G-3550JJ1097F
...
207C
Case Assembly,display L-G-ABQ56655313
...
249C
Holder,rail L-G-MEG61878302
...
249D
Holder,rail L-G-MEG61878301
...
250F
Refrigerator Wire Harness L-G-EAD60704101
...
262B
Hinge Assembly,center L-G-AEH71135350
...
262H
Hinge Assembly,center L-G-AEH71135352
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282F
Refrigerator Duct Cap L-G-MBL38019501
...
282G
Refrigerator Duct Cap L-G-5006JA3111A
...
290A
Case Assembly,pcb L-G-ABQ73004302
...
300A
Refrigerator Compressor L-G-TCA34649901
...
302B
Refrigerator Evaporator L-G-5421JJ1003B
...
303A
Refrigerator Compressor Wire Harness L-G-EAD61050801
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2284A
...
309B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312A
Refrigerator Compressor Grommet L-G-5041JA3001B
...
312C
Refrigerator Drain Tray Assembly L-G-3391JJ2013B
...
313A
Refrigerator Shelf Support Rail L-G-3551JJ2018A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-3103JJ1001Q
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Drier Assembly L-G-5851JA2008U
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-MJS61845701
...
319C
Refrigerator Fan Guide L-G-MEA42257901
...
323B
Refrigerator Condenser Coil L-G-ACG72915205
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1021A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332A
Refrigerator Evaporator Cover L-G-3530JJ0007A
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005H
...
402A
Refrigerator Light Switch L-G-6600JB3007E
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129B
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
406D
Refrigerator Door Pivot Block L-G-4931JA3006A
...
407B
Refrigerator Bracket L-G-4810JJ0003B
...
408A
Refrigerator Defrost Heater L-G-5300JK1005D
...
409B
Refrigerator Light Bulb L-G-6912JB2004K
...
409D
Led Assembly L-G-EAV43060804
...
410G
Refrigerator Run Capacitor L-G-EAE58905701
...
411A
Refrigerator Power Cord Assembly L-G-6411JB1042W
...
413A
Pcb Case L-G-MBN61884601
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly,main L-G-EBR67348002
...
500H
Refrigerator Inverter L-G-EBR64173903
...
501F
Refrigerator Power Control Board Cover L-G-3551JA2144C
...
503C
Pcb Assembly,display L-G-EBR42479304
...
503D
Refrigerator Light Housing L-G-MBN38018601
...
503E
Cover Assembly,lamp L-G-ACQ33676502
...
503G
Decor,control L-G-MCR63407303
...
504A
Refrigerator Pcb Control L-G-MCK62887801
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JA2247A
...
610C
Refrigerator Temperature Sensor And Cover L-G-ACQ73244001
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610E
Refrigerator Multi Duct L-G-MCZ61849401

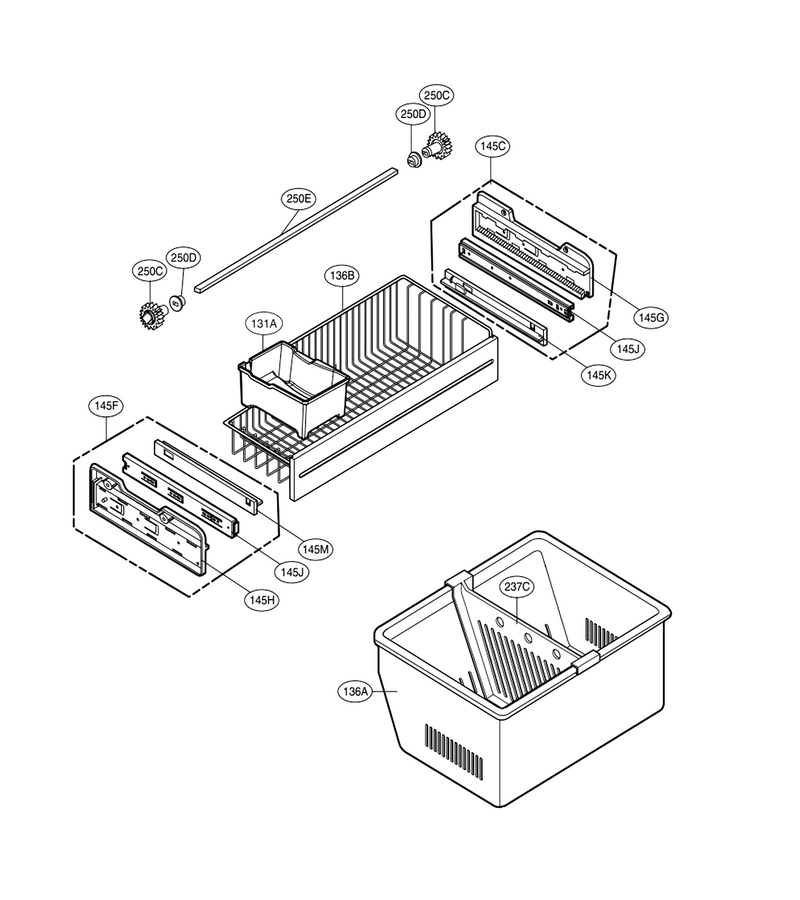

Freezer Parts

...
...
131A
Bucket,ice L-G-MKK61841801
...
136A
Refrigerator Freezer Drawer Assembly L-G-3391JJ2011M
...
136B
Tray Assembly,drawer L-G-3391JA1114W
...
145C
Guide Assembly,rail L-G-4975JA1040B
...
145F
Guide Assembly,rail L-G-4975JA1040A
...
145G
Guide,rail L-G-4974JA1154B
...
145H
Guide,rail L-G-4974JA1154A
...
145J
Rail,slide L-G-5218JA1007B
...
145K
Refrigerator Freezer Basket Support Rail, Right L-G-4932JA1010B
...
145M
Refrigerator Freezer Basket Support Rail, Left L-G-4932JA1010A
...
237C
Refrigerator Freezer Drawer Divider L-G-4974JJ1031A
...
250C
Gear,ice L-G-4470JA2008A
...
250D
Cap,cover L-G-5006JA2069A
...
250E
Bar L-G-MAK36519001

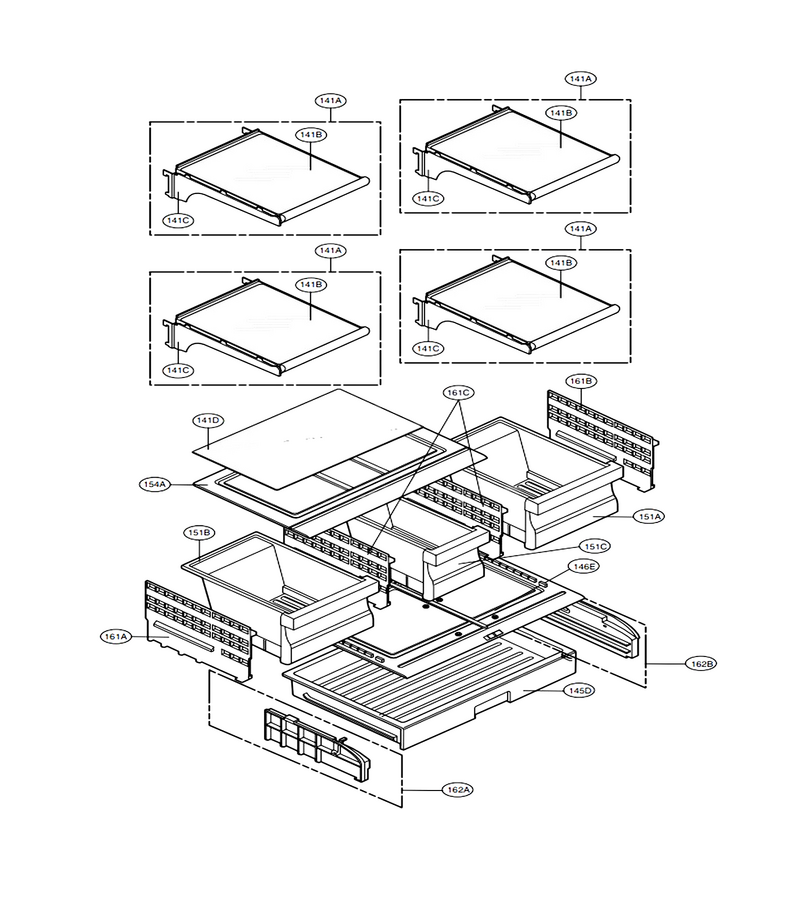

Refrigerator Parts

...
...
141A
Shelf Assembly,refrigerator L-G-AHT36764311
...
141B
Refrigerator Shelf L-G-AHT36968106
...
141C
Shelf,net L-G-5027JJ2012T
...
141D
Refrigerator Glass Shelf L-G-4890JJ1007Y
...
145D
Refrigerator Deli Drawer L-G-AJP36700901
...
146E
Cover Assembly,tray L-G-ACQ36701706
...
151A
Tray Assembly,vegetable L-G-AJP36702124
...
151B
Tray Assembly,vegetable L-G-AJP36702123
...
151C
Tray Assembly,vegetable L-G-AJP36702125
...
154A
Refrigerator Crisper Drawer Cover Frame L-G-ACQ36701106
...
161A
T-Guide Assembly L-G-AEC36906405
...
161B
T-Guide Assembly L-G-AEC36906406
...
161C
Refrigerator Rail Guide Assembly L-G-AEC36702201
...
162A
Refrigerator Drawer Slide Rail L-G-AEC36702301
...
162B
Refrigerator Pantry Drawer Guide L-G-AEC36702302

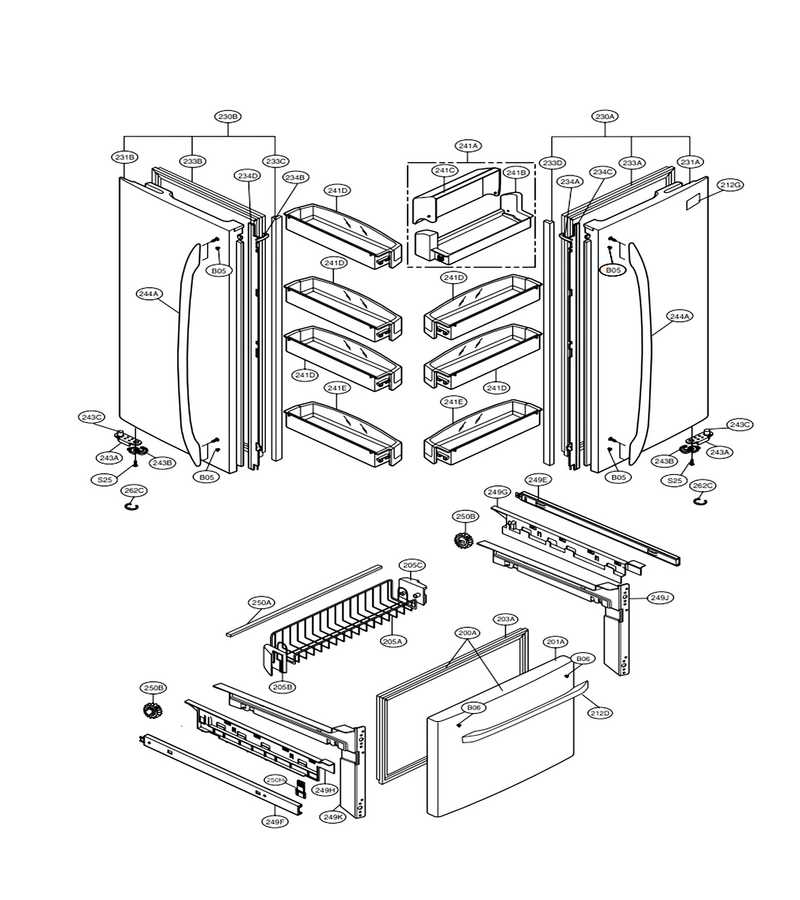

Door Parts

...
...
B05
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
B06
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
200A
Door Assembly,freezer L-G-ADC55707409
...
201A
Door Foam Assembly,freezer L-G-ADD55708502
...
203A
Refrigerator Freezer Door Gasket L-G-MDS38201402
...
205A
Refrigerator Freezer Door Bin L-G-5004JJ1061B
...
205B
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JA2017A
...
205C
Refrigerator Door Hinge L-G-5004JA2017B
...
212D
Refrigerator Door Handle L-G-AED37133118
...
212G
Refrigerator Nameplate L-G-MFT61843001
...
230A
Door Assembly,refrigerator(right) L-G-ADC55510565
...
230B
Door Assembly,refrigerator(left) L-G-ADC55626829
...
231A
Door Foam Assembly,refrigerator L-G-ADD55510662
...
231B
Door Foam Assembly,refrigerator L-G-ADD55625127
...
233A
Refrigerator Door Gasket, Right L-G-4987JJ2002Q
...
233B
Gasket Assembly,door L-G-4987JJ2002R
...
233C
Refrigerator Flipper Seal Cover L-G-MCK59045801
...
233D
Refrigerator Flipper Seal Cover L-G-MCK59045802
...
234A
Refrigerator Door Cam Latch, Right L-G-4430JJ2004A
...
234B
Refrigerator Door Cam Latch, Left L-G-4430JJ2004B
...
234C
Refrigerator Flipper Seal Frame L-G-4931JJ2002C
...
234D
Refrigerator Flipper Seal Frame L-G-4931JJ2002D
...
241A
Refrigerator Door Bin L-G-AAP33686302
...
241B
Refrigerator Door Bin L-G-MAN38142901
...
241C
Refrigerator Door Bin Cover L-G-MAN38143001
...
241D
Refrigerator Door Bin L-G-AAP36817401
...
241E
Refrigerator Door Bin L-G-AAP36817601
...
243A
Stopper,door L-G-4620JJ3006P
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
243C
Refrigerator Hinge Bushing L-G-J326-00012A
...
244A
Handle Assembly,refrigerator L-G-AED37082917
...
249G
Cover,connector L-G-3550JA1455C
...
249H
Cover,connector L-G-3550JA1455D
...
249J
Connector,rail L-G-MCD36888904
...
249K
Connector,rail L-G-MCD36888903
...
250A
Refrigerator Freezer Drawer Gear Support Bar L-G-MAK39123901
...
250B
Connector Assembly L-G-4403JA3005A
...
250H
Button,lever L-G-MBG62013801
...
262C
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B

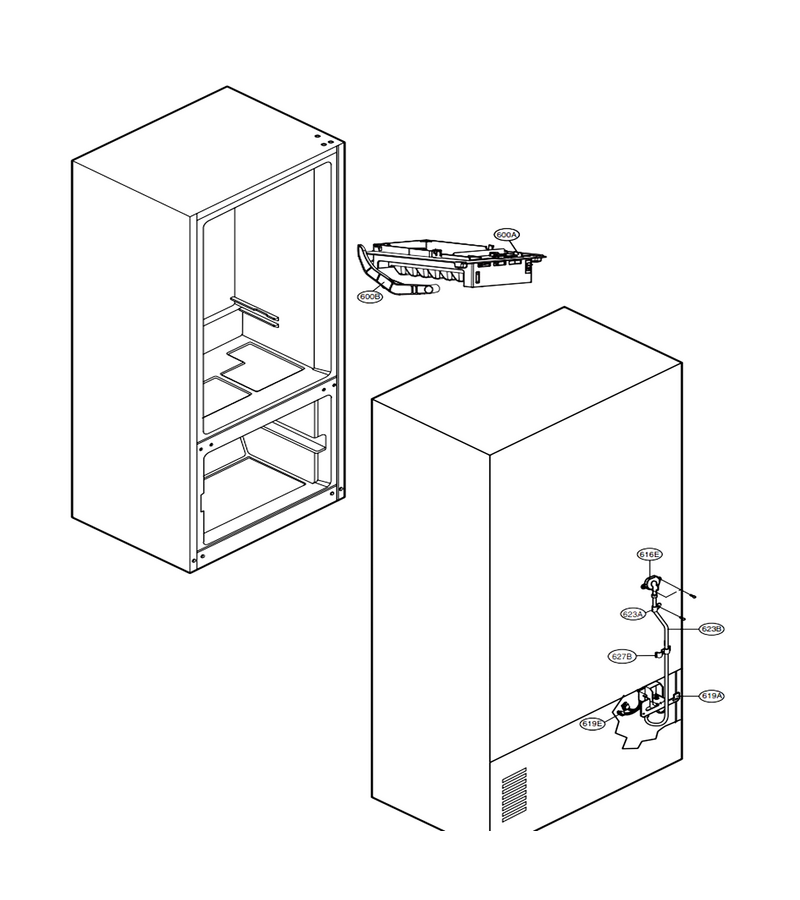

Water And Ice Maker Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ72909602
...
600B
Refrigerator Ice Maker Shut-Off Arm L-G-4510JA3003D
...
616E
Refrigerator Ice Maker Water Tube Fitting L-G-MEG61879201
...
619A
Refrigerator Water Inlet Valve L-G-5220JB2010A
...
619E
Refrigerator Ice Maker Wire Harness L-G-6877JB3036K
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623B
Refrigerator Water Tubing L-G-MJU39256404
...
627B
Refrigerator Clamp L-G-4930JA3054A
