product name

LG LFC24770SB.AWBCNA0

Model: LFC24770SB.AWBCNA0

Save Part Not Listed?
product name

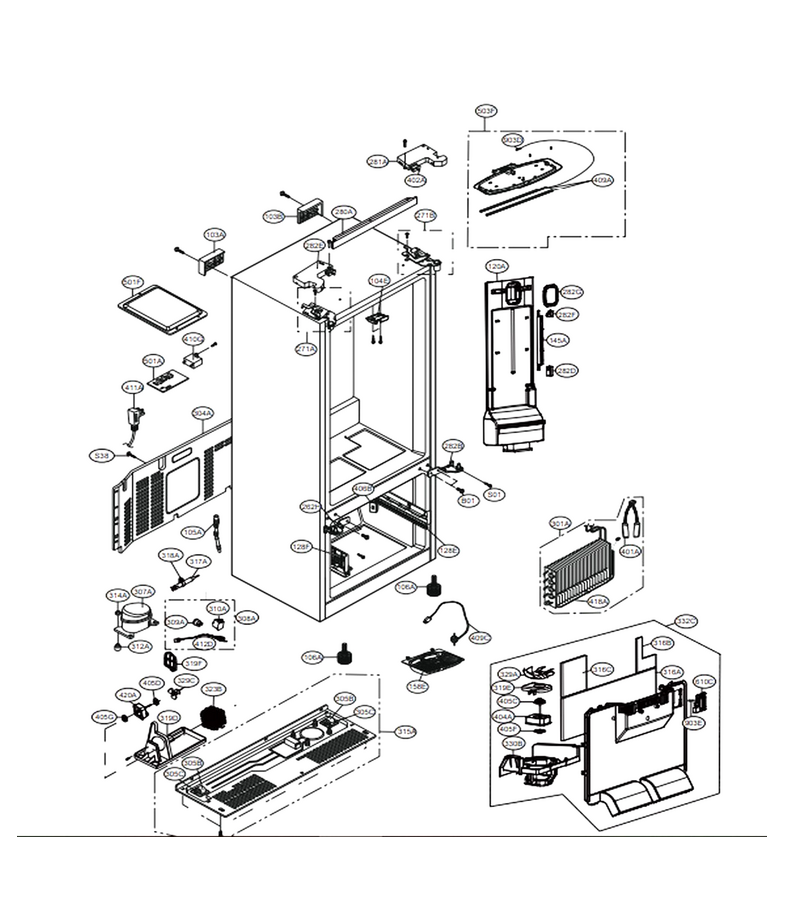

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S38
Refrigerator Screw L-G-4J00415D
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Leg Assembly,adjust L-G-4779JQ3003J
...
120A
Duct Assembly,multi L-G-ADJ73712906
...
262H
Refrigerator Hinge L-G-AEH71135344
...
280A
Case Assembly,display L-G-ABQ74110420
...
281A
Cover,hinge L-G-MCK67400404
...
282G
Decor,cover L-G-MCR65017201
...
282E
Cover,hinge L-G-MCK67400403
...
282B
Refrigerator Hinge L-G-AEH71135342
...
305B
Roller L-G-4580JJ3001G
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA35271201
...
309A
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Gasket,foam L-G-MDS65810801
...
317A
Drier Assembly L-G-ADH73590310
...
318A
Drier Holder L-G-MEG64900401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
330B
Shroud,freezer L-G-MHN62322002
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005N
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405G
Refrigerator Motor L-G-5040JA2009A
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
410G
Refrigerator Run Capacitor L-G-EAE58905704
...
411A
Refrigerator Power Cord L-G-EAD61445206
...
420A
Refrigerator Evaporator Fan Motor L-G-4681JB1029S
...
501A
Main Pcb Assembly L-G-EBR77042507
...
610C
Cover,sensor L-G-MCK66690301
...
903D
Refrigerator Temperature Sensor L-G-EBD60925804
...
903E
Refrigerator Temperature Sensor L-G-6500JB2002X

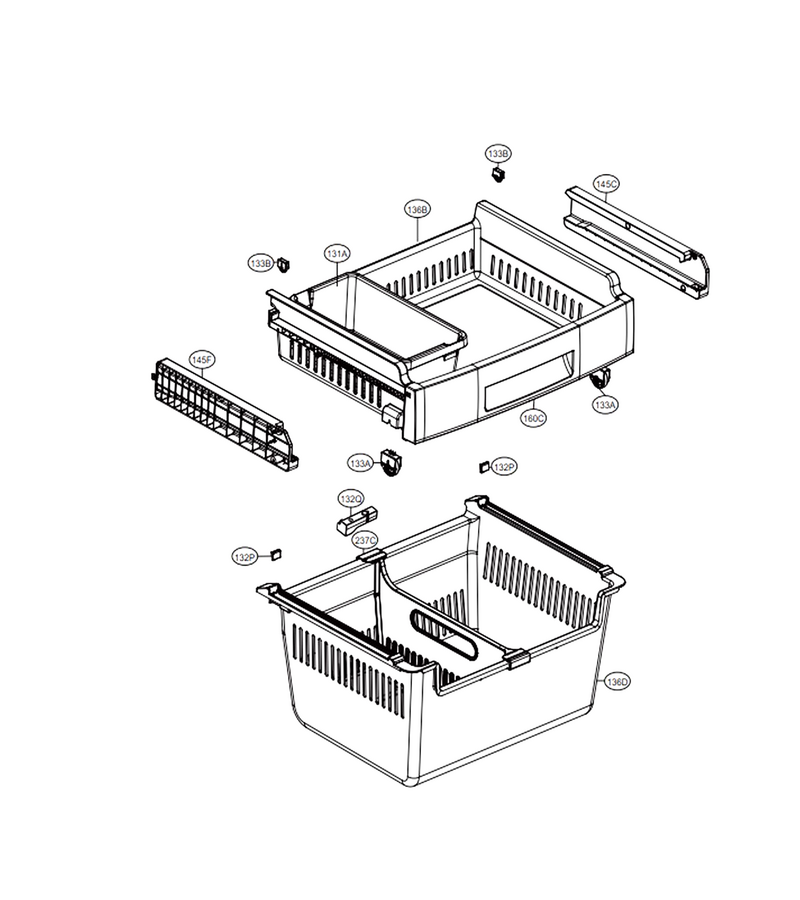

Freezer Parts

...
...
136D
Tray,drawer L-G-MJS62773501

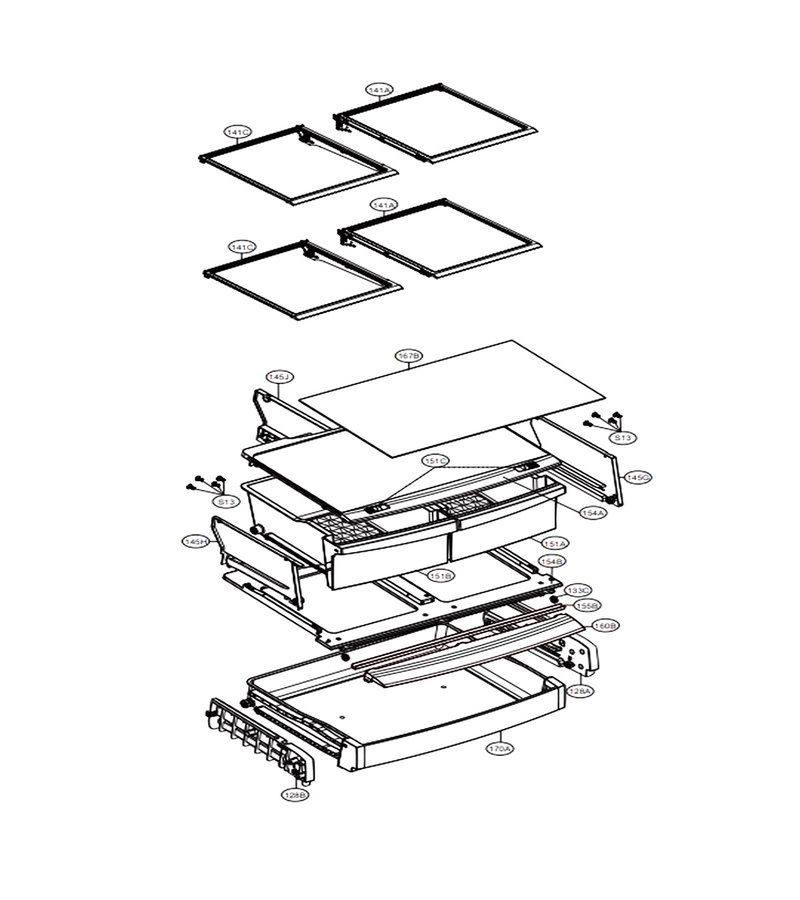

Refrigrator Parts

...
...
S13
Refrigerator Screw L-G-1SBZJA3004L
...
141A
Shelf Assembly,refrigerator L-G-AHT73595405
...
141C
Shelf Assembly,refrigerator L-G-AHT73595406
...
160B
Decor,cover L-G-MCR64973001

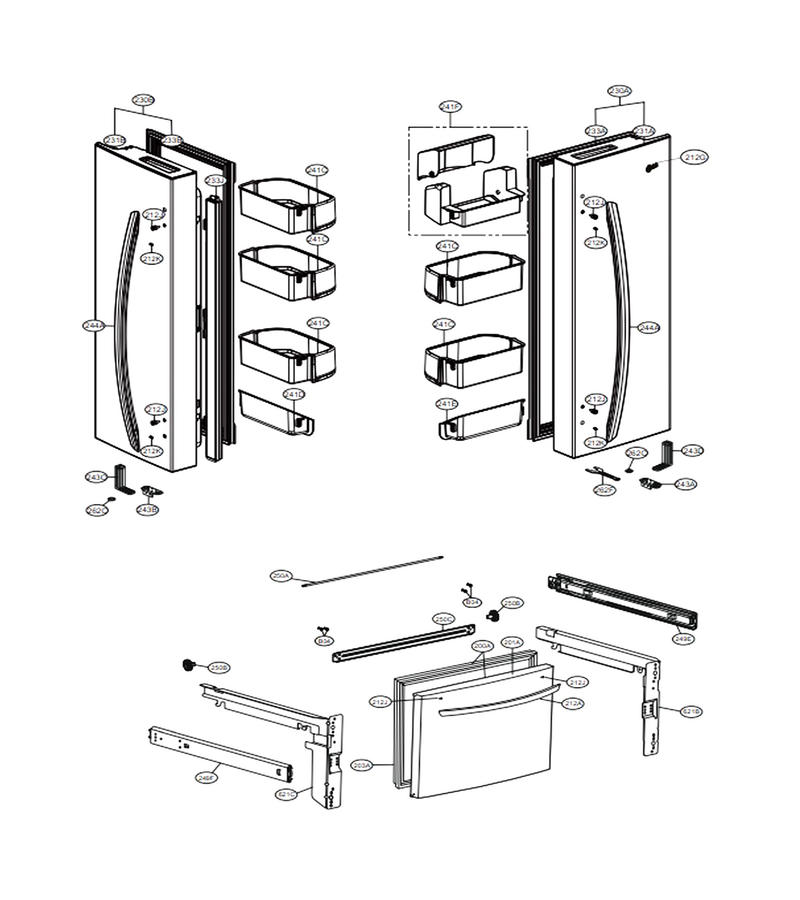

Door Parts

...
...
B04
Laundry Appliance Screw L-G-FAB30025701
...
200A
Door Assembly,freezer L-G-ADC74207331
...
203A
Gasket Assembly,door L-G-ADX73350963
...
212A
Handle Assembly,freezer L-G-AED37133146
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
212J
Stopper,handle L-G-MJB63190002
...
230B
Door Assembly,refrigerator(left) L-G-ADC73746433
...
230A
Door Assembly,refrigerator(right) L-G-ADC52734335
...
233A
Gasket Assembly,door L-G-ADX73350635
...
233B
Gasket Assembly,door L-G-ADX73350636
...
233J
Plate Assembly,front L-G-AGU74429103
...
241C
Basket Assembly,door L-G-AAP73051304
...
241D
Basket,door L-G-MAN62849801
...
241E
Basket,door L-G-MAN62849802
...
241F
Refrigerator Door Basket Assembly L-G-AAP73051402
...
243B
Refrigerator Stopper Assembly L-G-AJC68689617
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
243C
Hinge Cam L-G-MBJ62121902
...
243A
Refrigerator Stopper Assembly L-G-AJC68689618
...
244A
Refrigerator Door Handle Assembly L-G-AED37082930
...
250A
Bar L-G-4270JJ3001P
...
262F
Spanner L-G-MHU62101101
...
621C
Connector,rail L-G-MCD61841107

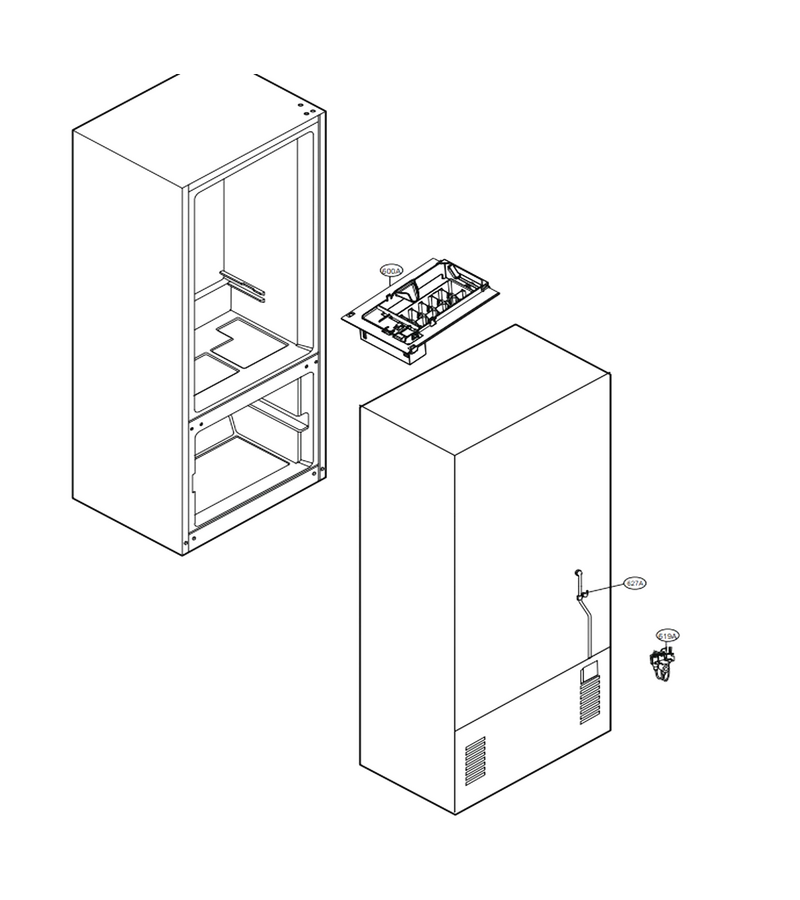

Icemaker Parts

...
...
627A
Refrigerator Water Tubing Holder L-G-4770JA3001E
